IslandPathversion 1.0

IslandPath Analysis: Lactobacillus reuteri JCM 1112

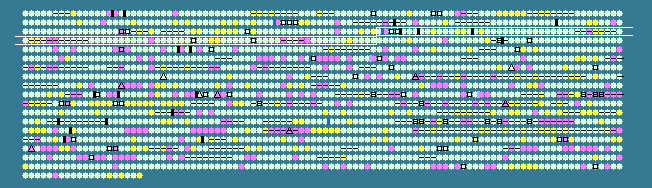

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.15 STD DEV: 3.24
Lactobacillus reuteri F275, complete genome - 1..2039414
1820 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
260	 42.57	+1	309274..310800	+	508	184152915	-	LAR_0260	-	lysyl-tRNA synthase
261	 34.92	-1	317554..317742	+	62	184152916	-	LAR_0261	-	hypothetical protein
262	 39.78	0	317732..318088	+	118	184152917	-	LAR_0262	-	transposase
263	 36.25	0	318159..319703	+	514	184152918	-	LAR_0263	-	putative transposase
264	 40.48	0	320744..321457	+	237	184152919	-	LAR_0264	-	hypothetical protein
265	 42.00	0	321670..323169	+	499	184152920	-	LAR_0265	-	di-/tripeptide transport protein
266	 39.59	0	323226..324056	+	276	184152921	-	LAR_0266	-	hypothetical protein
267	 37.36	0	324415..325059	+	214	184152922	-	LAR_0267	-	hypothetical protein
268	 37.47	0	325177..326577	+	466	184152923	-	LAR_0268	-	putative transport protein
269	 43.33	+1	326668..328317	+	549	184152924	-	LAR_0269	-	putative transport protein
270	 39.38	0	328350..329060	+	236	184152925	-	LAR_0270	-	aspartate racemase
271	 40.46	0	329226..329927	+	233	184152926	-	LAR_0271	-	transcription regulator
272	 39.33	0	329989..331455	+	488	184152927	-	LAR_0272	-	nicotinate phosphoribosyltransferase
273	 43.48	+1	331468..332295	+	275	184152928	-	LAR_0273	-	NAD synthase
274	 42.90	+1	332355..334538	+	727	184152929	-	LAR_0274	-	transcription accessory protein
275	 38.63	0	334531..334983	+	150	184152930	-	LAR_0275	-	hypothetical protein
276	 40.91	0	335286..337172	+	628	184152931	-	LAR_0276	-	beta-galactosidase large subunit
277	 43.96	+1	337156..338115	+	319	184152932	-	LAR_0277	-	beta-galactosidase small subunit
278	 40.11	0	338213..339982	-	589	184152933	-	LAR_0278	-	hypothetical protein
279	 38.28	0	340095..340862	+	255	184152934	-	LAR_0279	-	phosphoglycerate mutase
280	 41.98	0	340825..341703	+	292	184152935	-	LAR_0280	-	putative lipase/esterase
281	 40.07	0	341969..343111	+	380	184152936	-	LAR_0281	-	cystathionine beta-lyase
282	 39.74	0	343138..343839	+	233	184152937	-	LAR_0282	-	ABC transporter permease component
283	 36.53	0	343845..344594	+	249	184152938	-	LAR_0283	-	ABC transporter ATP-binding component
284	 39.14	0	344610..345401	+	263	184152939	-	LAR_0284	-	ABC transporter substrate binding component
285	 40.64	0	345509..346849	-	446	184152940	-	LAR_0285	-	aminopeptidase C
286	 40.94	0	346878..347561	-	227	184152941	-	LAR_0286	-	ribose 5-phosphate epimerase
287	 41.08	0	347573..347869	-	98	184152942	-	LAR_0287	-	hypothetical protein
288	 39.85	0	348008..348544	+	178	184152943	-	LAR_0288	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
289	 41.92	0	348569..349942	+	457	184152944	-	LAR_0289	-	DNA repair protein RadA
290	 38.19	0	349961..351112	+	383	184152945	-	LAR_0290	-	hypothetical protein
291	 39.28	0	351487..352899	+	470	184152946	-	LAR_0291	-	cysteinyl-tRNA synthase
292	 42.27	0	352911..353324	+	137	184152947	-	LAR_0292	-	hypothetical protein
293	 42.13	0	353314..354063	+	249	184152948	-	LAR_0293	-	tRNA/rRNA methyltransferase
294	 39.33	0	354129..354278	+	49	184152949	-	LAR_0294	-	50S ribosomal protein L33
295	 33.33	-1	354290..354466	+	58	184152950	-	LAR_0295	-	preprotein translocase subunit SecE
296	 42.73	+1	354585..355127	+	180	184152951	-	LAR_0296	-	transcription antitermination protein NusG
297	 46.24	+2	355267..355692	+	141	184152952	-	LAR_0297	-	50S ribosomal protein L11
298	 41.99	0	355784..356476	+	230	184152953	-	LAR_0298	-	50S ribosomal protein L1
299	 40.07	0	356645..357847	+	400	184152954	-	LAR_0299	-	aminotransferase
300	 37.01	0	358323..359627	+	434	184152955	-	LAR_0300	-	glycosyltransferase
301	 38.95	0	359640..360761	+	373	184152956	-	LAR_0301	-	UDP-N-acetylglucosamine 2-epimerase
302	 43.51	+1	360959..361459	+	166	184152957	-	LAR_0302	-	50S ribosomal protein L10
303	 45.08	+1	361522..361887	+	121	184152958	-	LAR_0303	-	50S ribosomal protein L7/L12
304	 35.79	-1	362075..362359	-	94	184152959	-	LAR_0304	-	hypothetical protein
305	 34.36	-1	362492..362782	-	96	184152960	-	LAR_0305	-	hypothetical protein
306	 34.14	-1	362856..363227	-	123	184152961	-	LAR_0306	-	large-conductance mechanosensitive channel
307	 36.04	0	363417..363749	+	110	184152962	-	LAR_0307	-	putative transcription regulator
308	 38.24	0	363742..364353	+	203	184152963	-	LAR_0308	-	hypothetical protein
309	 36.38	0	364354..365109	+	251	184152964	-	LAR_0309	-	hypothetical protein
310	 41.68	0	365197..367833	-	878	184152965	-	LAR_0310	-	aldehyde-alcohol dehydrogenase
311	 36.96	0	368191..369210	-	339	184152966	-	LAR_0311	-	ribonucleotide diphosphate reductase beta subunit
312	 38.21	0	369325..371496	-	723	184152967	-	LAR_0312	-	ribonucleoside-diphosphate reductase alpha subunit
313	 36.84	0	371596..371823	-	75	184152968	-	LAR_0313	-	putative glutaredoxin
314	 38.79	0	372075..372587	+	170	184152969	-	LAR_0314	-	cytosine/adenosine deaminase
315	 39.98	0	372860..374695	+	611	184152970	-	LAR_0315	-	DNA polymerase III gamma and tau subunits
316	 37.07	0	374704..375024	+	106	184152971	-	LAR_0316	-	hypothetical protein
317	 41.63	0	375028..375630	+	200	184152972	-	LAR_0317	-	recombination protein RecR
318	 39.36	0	375635..375883	+	82	184152973	-	LAR_0318	-	hypothetical protein
319	 40.03	0	375893..376534	+	213	184152974	-	LAR_0319	-	thymidylate kinase
320	 35.80	-1	376554..376877	+	107	184152975	-	LAR_0320	-	hypothetical protein
321	 38.07	0	376892..377905	+	337	184152976	-	LAR_0321	-	DNA polymerase III delta subunit
322	 35.33	-1	377916..378266	+	116	184152977	-	LAR_0322	-	hypothetical protein
323	 41.75	0	378275..379141	+	288	184152978	-	LAR_0323	-	hypothetical protein
324	 37.27	0	379151..379912	+	253	184152979	-	LAR_0324	-	hypothetical protein
325	 36.90	0	380077..381591	+	504	184152980	-	LAR_0325	-	exopolyphosphatase
326	 40.82	0	381581..383836	+	751	184152981	-	LAR_0326	-	polyphosphate kinase
327	 41.05	0	383840..384811	+	323	184152982	-	LAR_0327	-	exopolyphosphatase
328	 41.06	0	384923..385918	+	331	184152983	-	LAR_0328	-	UDP-glucose 4-epimerase
329	 38.77	0	385956..387113	+	385	184152984	-	LAR_0329	-	putative transposase
330	 39.94	0	387551..388276	+	241	184152985	-	LAR_0330	-	glycoprotein endopeptidase
331	 39.28	0	388260..388814	+	184	184152986	-	LAR_0331	-	ribosomal-protein-alanine N-acetyltransferase
332	 42.73	+1	388833..389864	+	343	184152987	-	LAR_0332	-	O-sialoglycoprotein endopeptidase
333	 42.76	+1	389981..390754	-	257	184152988	-	LAR_0333	-	pyrroline-5-carboxylate reductase
334	 42.33	0	390772..392016	-	414	184152989	-	LAR_0334	-	gamma-glutamyl phosphate reductase
335	 40.81	0	392028..392816	-	262	184152990	-	LAR_0335	-	glutamate 5-kinase
336	 39.31	0	393410..394195	+	261	184152991	-	LAR_0336	-	hypothetical protein
337	 41.82	0	394209..395387	+	392	184152992	-	LAR_0337	-	aminotransferase
338	 40.73	0	395407..396366	+	319	184152993	-	LAR_0338	-	2-dehydropantoate 2-reductase
339	 40.66	0	396443..398053	-	536	184152994	-	LAR_0339	-	transposase
340	 39.78	0	398197..400134	-	645	184152995	-	LAR_0340	-	ABC transporter ATP-binding component
341	 36.90	0	400375..401019	+	214	184152996	-	LAR_0341	-	hypothetical protein
342	 40.35	0	401254..401538	+	94	184152997	-	LAR_0342	-	chaperonin GroES
343	 41.50	0	401630..403258	+	542	184152998	-	LAR_0343	-	chaperonin GroEL
344	 33.33	-1	403352..403840	+	162	184152999	-	LAR_0344	-	putative DNA-binding protein
345	 40.66	0	403922..405532	+	536	184153000	-	LAR_0345	-	transport protein
346	 40.24	0	405617..407455	+	612	184153001	-	LAR_0346	-	transport protein
347	 32.95	-1	407482..407742	+	86	184153002	-	LAR_0347	-	hypothetical protein
348	 35.52	-1	407861..408271	+	136	184153003	-	LAR_0348	-	transcription regulator
349	 36.51	0	408271..409656	+	461	184153004	-	LAR_0349	-	transport protein
350	 39.81	0	409699..410331	-	210	184153005	-	LAR_0350	-	hypothetical protein
351	 39.86	0	410393..411724	+	443	184153006	-	LAR_0351	-	competence protein
352	 38.33	0	411705..412385	+	226	184153007	-	LAR_0352	-	competence protein
353	 38.62	0	412517..413065	+	182	184153008	-	LAR_0353	-	ribosomal subunit interface protein
354	 39.93	0	413277..415640	+	787	184153009	-	LAR_0354	-	preprotein translocase SecA subunit
355	 42.74	+1	415840..416838	+	332	184153010	-	LAR_0355	-	peptide chain release factor 2
356	 36.01	0	416868..417203	+	111	184153011	-	LAR_0356	-	putative stress-responsive transcription regulator
357	 36.13	0	417203..417559	+	118	184153012	-	LAR_0357	-	hypothetical protein
358	 42.26	0	417574..418536	+	320	184153013	-	LAR_0358	-	HPr-P(Ser) kinase/phosphatase
359	 39.49	0	418537..419364	+	275	184153014	-	LAR_0359	-	prolipoprotein diacylglyceryl transferase
39.15	MEAN

3.24	STD DEV
