IslandPathversion 1.0

IslandPath Analysis: Lactobacillus reuteri JCM 1112

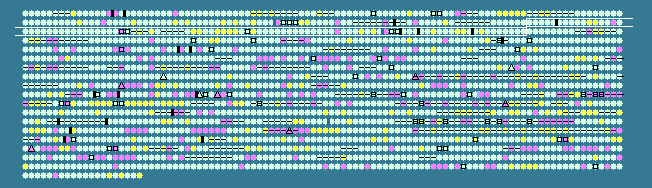

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.15 STD DEV: 3.24
Lactobacillus reuteri F275, complete genome - 1..2039414
1820 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
185	 42.23	0	226982..227914	+	310	184152840	-	LAR_0185	-	L-2-hydroxyisocaproate dehydrogenase
186	 37.34	0	228061..229257	+	398	184152841	-	LAR_0186	-	multidrug transport protein
187	 41.74	0	229644..230285	-	213	184152842	-	LAR_0187	-	endonuclease III
188	 40.70	0	230577..232055	+	492	184152843	-	LAR_0188	-	amino acid transport protein
189	 41.79	0	232009..233379	+	456	184152844	-	LAR_0189	-	4-aminobutyrate aminotransferase
190	 40.94	0	233662..234831	+	389	184152845	-	LAR_0190	-	Na-H antiporter
191	 38.54	0	234841..237162	+	773	184152846	-	LAR_0191	-	DNA helicase
192	 37.61	0	237250..237693	+	147	184152847	-	LAR_0192	-	nucleoside-diphosphate kinase
193	 41.56	0	237745..238704	-	319	184152848	-	LAR_0193	-	hypothetical protein
194	 40.37	0	238982..240004	+	340	184152849	-	LAR_0194	-	tryptophanyl-tRNA synthase
195	 44.30	+1	240151..241089	+	312	184152850	-	LAR_0195	-	exopolyphosphatase
196	 44.26	+1	241082..242344	+	420	184152851	-	LAR_0196	-	hydroxymethylglutaryl-CoA reductase
197	 40.52	0	242337..243296	+	319	184152852	-	LAR_0197	-	hypothetical protein
198	 39.20	0	243302..244000	+	232	184152853	-	LAR_0198	-	transcription regulator
199	 34.13	-1	244055..244180	-	41	184152854	-	LAR_0199	-	hypothetical protein
200	 40.99	0	244449..245297	+	282	184152855	-	LAR_0200	-	hypothetical protein
201	 39.50	0	245375..247402	+	675	184152856	-	LAR_0201	-	methionyl-tRNA synthase
202	 41.60	0	247428..248213	+	261	184152857	-	LAR_0202	-	DNase
203	 40.04	0	248210..248776	+	188	184152858	-	LAR_0203	-	hypothetical protein
204	 40.04	0	248769..249662	+	297	184152859	-	LAR_0204	-	dimethyladenosine transferase
205	 36.63	0	249753..249995	+	80	184152860	-	LAR_0205	-	hypothetical protein
206	 40.49	0	250181..251032	+	283	184152861	-	LAR_0206	-	4-diphosphocytidyl-2C-methyl-D-erythritol 2-phosphate synthase
207	 36.95	0	251172..252083	+	303	184152862	-	LAR_0207	-	zinc/iron ABC transporter substrate binding component
208	 40.92	0	252091..252762	+	223	184152863	-	LAR_0208	-	zinc/iron ABC transporter ATP-binding component
209	 38.22	0	252762..253559	+	265	184152864	-	LAR_0209	-	zinc/iron ABC transporter permease component
210	 41.84	0	253791..254636	+	281	184152865	-	LAR_0210	-	purine biosynthesis operon repressor
211	 40.86	0	254640..256007	+	455	184152866	-	LAR_0211	-	UDP-N-acetylglucosamine pyrophosphorylase
212	 41.31	0	256082..257071	+	329	184152867	-	LAR_0212	-	ribose-phosphate pyrophosphokinase
213	 39.57	0	257247..257984	+	245	184152868	-	LAR_0213	-	hypothetical protein
214	 39.78	0	258063..258884	-	273	184152869	-	LAR_0214	-	hypothetical protein
215	 41.15	0	258884..260251	-	455	184152870	-	LAR_0215	-	hypothetical protein
216	 40.85	0	260253..261077	-	274	184152871	-	LAR_0216	-	hypothetical protein
217	 34.31	-1	261278..261685	+	135	184152872	-	LAR_0217	-	transposase
218	 36.82	0	261685..262860	+	391	184152873	-	LAR_0218	-	transposase
219	 38.85	0	263087..263485	+	132	184152874	-	LAR_0219	-	hypothetical protein
220	 42.65	+1	263531..264088	+	185	184152875	-	LAR_0220	-	DNA-directed RNA polymerase delta subunit
221	 40.31	0	264265..265869	+	534	184152876	-	LAR_0221	-	CTP synthase
222	 42.88	+1	266382..267764	+	460	184152877	-	LAR_0222	-	reverse transcriptase/maturase family protein
223	 41.24	0	268048..269325	+	425	184152878	-	LAR_0223	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
224	 40.65	0	269418..269663	+	81	184152879	-	LAR_0224	-	50S ribosomal protein L31
225	 38.57	0	269825..271141	+	438	184152880	-	LAR_0225	-	PTS cellobiose-specific enzyme IIC component
226	 37.93	0	271125..272015	+	296	184152881	-	LAR_0226	-	hypothetical protein
227	 39.86	0	272065..272769	+	234	184152882	-	LAR_0227	-	sortase
228	 41.03	0	273170..273949	+	259	184152883	-	LAR_0228	-	triosephosphate isomerase
229	 42.68	+1	273961..274827	+	288	184152884	-	LAR_0229	-	fructose-bisphosphate aldolase
230	 43.84	+1	274847..275503	+	218	184152885	-	LAR_0230	-	phosphoglycerate mutase
231	 41.94	0	275542..276006	-	154	184152886	-	LAR_0231	-	phosphotyrosine protein phosphatase
232	 37.89	0	276136..276705	+	189	184152887	-	LAR_0232	-	hypothetical protein
233	 44.59	+1	276708..277604	+	298	184152888	-	LAR_0233	-	heat shock protein
234	 42.83	+1	277758..279137	+	459	184152889	-	LAR_0234	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2,6- diamino pimelate--D-alanyl-D-alanine ligase
235	 43.35	+1	279209..280705	+	498	184152890	-	LAR_0235	-	ATP-dependent RNA helicase
236	 43.25	+1	280786..281622	-	278	184152891	-	LAR_0236	-	hypothetical protein
237	 38.80	0	282115..283029	+	304	184152892	-	LAR_0237	-	glutaminase
238	 36.17	0	283175..283633	-	152	184152893	-	LAR_0238	-	transposase
239	 42.73	+1	284289..285671	+	460	184152894	-	LAR_0239	-	reverse transcriptase/maturase family protein
240	 38.84	0	285755..287044	-	429	184152895	-	LAR_0240	-	D-alanyl transfer protein DltD
241	 37.92	0	287037..287276	-	79	184152896	-	LAR_0241	-	D-alanyl carrier protein
242	 37.93	0	287296..288513	-	405	184152897	-	LAR_0242	-	D-alanyl transfer protein
243	 40.14	0	288513..290039	-	508	184152898	-	LAR_0243	-	D-alanine-D-alanyl carrier protein ligase
244	 39.39	0	290532..290894	+	120	184152899	-	LAR_0244	-	holo-[acyl-carrier protein] synthase
245	 42.11	0	290894..292021	+	375	184152900	-	LAR_0245	-	alanine racemase
246	 40.27	0	292040..292414	+	124	184152901	-	LAR_0246	-	hypothetical protein
247	 41.25	0	292605..293981	+	458	184152902	-	LAR_0247	-	cytosine transport protein
248	 40.52	0	293972..295210	+	412	184152903	-	LAR_0248	-	cytosine deaminase
249	 39.02	0	295595..296386	+	263	184152904	-	LAR_0249	-	2-oxo-hepta-3-ene-1,7-dioate hydratase
250	 39.12	0	296495..297133	-	212	184152905	-	LAR_0250	-	hypothetical protein
251	 40.11	0	297339..297899	+	186	184152906	-	LAR_0251	-	aminoacyl-tRNA hydrolase
252	 41.79	0	297921..301457	+	1178	184152907	-	LAR_0252	-	transcription-repair coupling factor
253	 35.53	-1	301454..301726	+	90	184152908	-	LAR_0253	-	hypothetical protein
254	 42.22	0	302367..302861	+	164	184152909	-	LAR_0254	-	hypothetical protein
255	 42.54	+1	302824..304257	+	477	184152910	-	LAR_0255	-	cell cycle protein
256	 36.83	0	304250..304792	+	180	184152911	-	LAR_0256	-	hypoxanthine-guanine phosphoribosyltransferase
257	 43.95	+1	305091..307133	+	680	184152912	-	LAR_0257	-	cell division protein FtsH
258	 40.83	0	307224..308144	+	306	184152913	-	LAR_0258	-	heat shock protein
259	 43.41	+1	308252..309253	+	333	184152914	-	LAR_0259	-	transcription regulator
260	 42.57	+1	309274..310800	+	508	184152915	-	LAR_0260	-	lysyl-tRNA synthase
261	 34.92	-1	317554..317742	+	62	184152916	-	LAR_0261	-	hypothetical protein
262	 39.78	0	317732..318088	+	118	184152917	-	LAR_0262	-	transposase
263	 36.25	0	318159..319703	+	514	184152918	-	LAR_0263	-	putative transposase
264	 40.48	0	320744..321457	+	237	184152919	-	LAR_0264	-	hypothetical protein
265	 42.00	0	321670..323169	+	499	184152920	-	LAR_0265	-	di-/tripeptide transport protein
266	 39.59	0	323226..324056	+	276	184152921	-	LAR_0266	-	hypothetical protein
267	 37.36	0	324415..325059	+	214	184152922	-	LAR_0267	-	hypothetical protein
268	 37.47	0	325177..326577	+	466	184152923	-	LAR_0268	-	putative transport protein
269	 43.33	+1	326668..328317	+	549	184152924	-	LAR_0269	-	putative transport protein
270	 39.38	0	328350..329060	+	236	184152925	-	LAR_0270	-	aspartate racemase
271	 40.46	0	329226..329927	+	233	184152926	-	LAR_0271	-	transcription regulator
272	 39.33	0	329989..331455	+	488	184152927	-	LAR_0272	-	nicotinate phosphoribosyltransferase
273	 43.48	+1	331468..332295	+	275	184152928	-	LAR_0273	-	NAD synthase
274	 42.90	+1	332355..334538	+	727	184152929	-	LAR_0274	-	transcription accessory protein
275	 38.63	0	334531..334983	+	150	184152930	-	LAR_0275	-	hypothetical protein
276	 40.91	0	335286..337172	+	628	184152931	-	LAR_0276	-	beta-galactosidase large subunit
277	 43.96	+1	337156..338115	+	319	184152932	-	LAR_0277	-	beta-galactosidase small subunit
278	 40.11	0	338213..339982	-	589	184152933	-	LAR_0278	-	hypothetical protein
279	 38.28	0	340095..340862	+	255	184152934	-	LAR_0279	-	phosphoglycerate mutase
280	 41.98	0	340825..341703	+	292	184152935	-	LAR_0280	-	putative lipase/esterase
281	 40.07	0	341969..343111	+	380	184152936	-	LAR_0281	-	cystathionine beta-lyase
282	 39.74	0	343138..343839	+	233	184152937	-	LAR_0282	-	ABC transporter permease component
283	 36.53	0	343845..344594	+	249	184152938	-	LAR_0283	-	ABC transporter ATP-binding component
284	 39.14	0	344610..345401	+	263	184152939	-	LAR_0284	-	ABC transporter substrate binding component
39.15	MEAN

3.24	STD DEV
