IslandPathversion 1.0

IslandPath Analysis: Lactobacillus reuteri JCM 1112

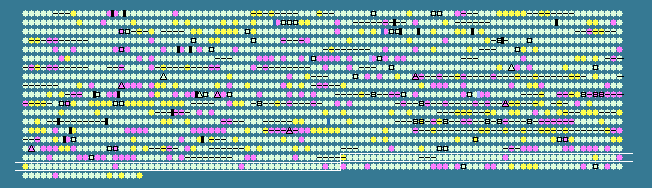

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.15 STD DEV: 3.24
Lactobacillus reuteri F275, complete genome - 1..2039414
1820 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1654	 42.94	+1	1857751..1859187	+	478	184154309	-	LAR_1654	-	6-phosphogluconate dehydrogenase
1655	 37.69	0	1859687..1861639	+	650	184154310	-	LAR_1655	-	sugar transport protein
1656	 39.57	0	1861869..1862333	-	154	184154311	-	LAR_1656	-	hypothetical protein
1657	 36.94	0	1862547..1863017	+	156	184154312	-	LAR_1657	-	transcription regulator
1658	 39.57	0	1863066..1864379	-	437	184154313	-	LAR_1658	-	proton/sodium-glutamate symport protein
1659	 39.87	0	1864629..1865255	+	208	184154314	-	LAR_1659	-	putative alkaline phosphatase
1660	 41.49	0	1866600..1867592	-	330	184154315	-	LAR_1660	-	galactose operon repressor
1661	 40.15	0	1867630..1869081	-	483	184154316	-	LAR_1661	-	galactose-1-phosphate uridylyltransferase
1662	 38.93	0	1869108..1870286	-	392	184154317	-	LAR_1662	-	galactokinase
1663	 41.59	0	1870481..1871449	+	322	184154318	-	LAR_1663	-	hypothetical protein
1664	 41.25	0	1871479..1872261	+	260	184154319	-	LAR_1664	-	putative protein-tyrosine phosphatase
1665	 40.24	0	1872298..1872804	+	168	184154320	-	LAR_1665	-	hypothetical protein
1666	 36.40	0	1872782..1873042	+	86	184154321	-	LAR_1666	-	hypothetical protein
1667	 41.28	0	1873238..1873564	-	108	184154322	-	LAR_1667	-	hypothetical protein
1668	 40.73	0	1873588..1874709	-	373	184154323	-	LAR_1668	-	hypothetical protein
1669	 37.37	0	1874843..1875313	+	156	184154324	-	LAR_1669	-	transcription elongation factor GreA
1670	 38.78	0	1875565..1876317	+	250	184154325	-	LAR_1670	-	hypothetical protein
1671	 38.08	0	1876511..1877353	-	280	184154326	-	LAR_1671	-	oxydoreductases
1672	 38.33	0	1877472..1878152	+	226	184154327	-	LAR_1672	-	two-component response regulator
1673	 36.12	0	1878121..1879125	+	334	184154328	-	LAR_1673	-	two-component sensor histidine kinase
1674	 41.80	0	1879238..1879993	+	251	184154329	-	LAR_1674	-	ABC transporter ATP-binding component
1675	 37.95	0	1879993..1881921	+	642	184154330	-	LAR_1675	-	ABC transporter permease and substrate binding components
1676	 40.22	0	1882162..1882989	+	275	184154331	-	LAR_1676	-	homoserine O-succinyltransferase
1677	 41.99	0	1882995..1883918	+	307	184154332	-	LAR_1677	-	cysteine synthase
1678	 37.95	0	1884135..1885628	-	497	184154333	-	LAR_1678	-	cardiolipinsynthase
1679	 39.62	0	1885704..1886864	-	386	184154334	-	LAR_1679	-	putative transport protein
1680	 39.57	0	1886966..1887478	-	170	184154335	-	LAR_1680	-	hypothetical protein
1681	 30.60	-2	1887475..1888095	-	206	184154336	-	LAR_1681	-	transcription regulator
1682	 41.21	0	1888239..1890143	-	634	184154337	-	LAR_1682	-	endopeptidase O
1683	 40.74	0	1890217..1890513	-	98	184154338	-	LAR_1683	-	hypothetical protein
1684	 41.45	0	1890514..1891806	-	430	184154339	-	LAR_1684	-	hypothetical protein
1685	 42.50	+1	1891803..1892948	-	381	184154340	-	LAR_1685	-	hypothetical protein
1686	 40.13	0	1892952..1893584	-	210	184154341	-	LAR_1686	-	3-methyladenine DNA glycosylase
1687	 38.13	0	1893644..1894018	+	124	184154342	-	LAR_1687	-	hypothetical protein
1688	 39.08	0	1894310..1894483	-	57	184154343	-	LAR_1688	-	hypothetical protein
1689	 38.89	0	1894486..1895169	-	227	184154344	-	LAR_1689	-	putative NAD(P)H oxidoreductase
1690	 37.38	0	1895175..1895495	-	106	184154345	-	LAR_1690	-	hypothetical protein
1691	 39.59	0	1895526..1896500	-	324	184154346	-	LAR_1691	-	hypothetical protein
1692	 37.87	0	1896590..1897582	-	330	184154347	-	LAR_1692	-	hypothetical protein
1693	 39.65	0	1897810..1898094	+	94	184154348	-	LAR_1693	-	hypothetical protein
1694	 40.64	0	1898281..1899375	-	364	184154349	-	LAR_1694	-	hypothetical protein
1695	 42.56	+1	1899496..1900731	+	411	184154350	-	LAR_1695	-	hypothetical protein
1696	 44.59	+1	1901086..1902471	+	461	184154351	-	LAR_1696	-	branched-chain amino acid transport protein
1697	 38.38	0	1902544..1903137	-	197	184154352	-	LAR_1697	-	putative N-acetylmuramoyl-L-alanine amidase
1698	 39.36	0	1903214..1903993	-	259	184154353	-	LAR_1698	-	hypothetical protein
1699	 42.28	0	1904034..1905575	-	513	184154354	-	LAR_1699	-	ABC transporter ATP-binding component
1700	 31.17	-2	1907170..1907907	+	245	184154355	-	LAR_1700	-	hypothetical protein
1701	 45.32	+1	1908809..1909801	+	330	184154356	-	LAR_1701	-	hypothetical protein
1702	 40.56	0	1910176..1911171	+	331	184154357	-	LAR_1702	-	ABC transporter substrate binding component
1703	 42.44	+1	1911168..1912067	+	299	184154358	-	LAR_1703	-	ABC transporter permease component
1704	 40.65	0	1912060..1912824	+	254	184154359	-	LAR_1704	-	ABC transporter ATP-binding component
1705	 37.77	0	1912892..1913455	+	187	184154360	-	LAR_1705	-	hypothetical protein
1706	 35.74	-1	1913503..1913835	+	110	184154361	-	LAR_1706	-	transcriptional regulator
1707	 40.36	0	1914064..1915386	+	440	184154362	-	LAR_1707	-	multidrug transport protein
1708	 39.31	0	1915457..1915774	-	105	184154363	-	LAR_1708	-	thioredoxin
1709	 35.85	-1	1915776..1916531	-	251	184154364	-	LAR_1709	-	hypothetical protein
1710	 40.00	0	1916550..1917479	-	309	184154365	-	LAR_1710	-	pseudouridylate synthase
1711	 37.25	0	1917617..1918534	+	305	184154366	-	LAR_1711	-	magnesium transport protein
1712	 38.91	0	1918713..1920146	-	477	184154367	-	LAR_1712	-	dipeptidase
1713	 41.89	0	1920500..1921843	+	447	184154368	-	LAR_1713	-	xanthine-uracil transport protein
1714	 41.99	0	1922155..1923540	+	461	184154369	-	LAR_1714	-	Na-H antiporter
1715	 37.48	0	1923821..1925122	-	433	184154370	-	LAR_1715	-	histidyl-tRNA synthase
1716	 33.90	-1	1925451..1925975	-	174	184154371	-	LAR_1716	-	hypothetical protein
1717	 40.06	0	1926216..1927151	-	311	184154372	-	LAR_1717	-	histidine decarboxylase
1718	 39.59	0	1927408..1928862	-	484	184154373	-	LAR_1718	-	arginine-ornithine antiporter
1719	 40.42	0	1929451..1930395	-	314	184154374	-	LAR_1719	-	hypothetical protein
1720	 38.27	0	1930810..1932369	-	519	184154375	-	LAR_1720	-	hypothetical protein
1721	 39.30	0	1932532..1933185	-	217	184154376	-	LAR_1721	-	phosphoglycerate mutase
1722	 35.98	0	1933317..1933580	+	87	184154377	-	LAR_1722	-	hypothetical protein
1723	 37.51	0	1933706..1935835	+	709	184154378	-	LAR_1723	-	alkaline phosphatase superfamily protein
1724	 39.57	0	1935994..1937115	+	373	184154379	-	LAR_1724	-	glycerol dehydrogenase
1725	 36.96	0	1937279..1938133	-	284	184154380	-	LAR_1725	-	hypothetical protein
1726	 36.06	0	1938201..1939412	-	403	184154381	-	LAR_1726	-	D-alanyl-D-alanine carboxypeptidase
1727	 38.49	0	1939483..1940064	+	193	184154382	-	LAR_1727	-	hypothetical protein
1728	 38.05	0	1940263..1940919	-	218	184154383	-	LAR_1728	-	hypothetical protein
1729	 42.10	0	1943088..1943726	+	212	184154384	-	LAR_1729	-	putative sugar kinase
1730	 37.65	0	1943815..1944324	+	169	184154385	-	LAR_1730	-	hypothetical protein
1731	 39.75	0	1944450..1945727	-	425	184154386	-	LAR_1731	-	histidyl-tRNA synthase
1732	 36.68	0	1946049..1947245	-	398	184154387	-	LAR_1732	-	multidrug transport protein
1733	 37.46	0	1947247..1947876	-	209	184154388	-	LAR_1733	-	hypothetical protein
1734	 36.02	0	1948092..1948277	+	61	184154389	-	LAR_1734	-	hypothetical protein
1735	 36.72	0	1948410..1949354	-	314	184154390	-	LAR_1735	-	sucrose operon repressor
1736	 41.07	0	1949782..1951488	+	568	184154391	-	LAR_1736	-	putative muramidase
1737	 30.38	-2	1952075..1952311	-	78	184154392	-	LAR_1737	-	hypothetical protein
1738	 40.24	0	1952415..1954397	-	660	184154393	-	LAR_1738	-	peptide ABC transporter permease and ATP-binding components
1739	 35.94	0	1954495..1955184	-	229	184154394	-	LAR_1739	-	peptide ABC transporter ATP-binding component
1740	 36.36	0	1955202..1956260	-	352	184154395	-	LAR_1740	-	peptide ABC transporter permease component
1741	 36.26	0	1956271..1956783	-	170	184154396	-	LAR_1741	-	transcription regulator
1742	 41.15	0	1957046..1958056	-	336	184154397	-	LAR_1742	-	mannitol-2-dehydrogenase
1743	 40.80	0	1958627..1960219	+	530	184154398	-	LAR_1743	-	manganese transport protein
1744	 38.72	0	1960476..1961162	+	228	184154399	-	LAR_1744	-	hypothetical protein
1745	 40.66	0	1961413..1963296	+	627	184154400	-	LAR_1745	-	threonyl-tRNA synthase
1746	 36.18	0	1963875..1964507	-	210	184154401	-	LAR_1746	-	putative transport protein
1747	 39.72	0	1964467..1965108	-	213	184154402	-	LAR_1747	-	putative transport protein
1748	 40.76	0	1965118..1966410	-	430	184154403	-	LAR_1748	-	putative pyrophosphatase
1749	 39.78	0	1966640..1968034	+	464	184154404	-	LAR_1749	-	amino acid permease
1750	 36.99	0	1968099..1969055	-	318	184154405	-	LAR_1750	-	2-dehydropantoate 2-reductase
1751	 31.31	-2	1969675..1970217	+	180	184154406	-	LAR_1751	-	hypothetical protein
1752	 40.55	0	1970613..1971749	+	378	184154407	-	LAR_1752	-	putative methionine synthase
1753	 40.24	0	1971802..1972047	-	81	184154408	-	LAR_1753	-	hypothetical protein
39.15	MEAN

3.24	STD DEV
