IslandPathversion 1.0

IslandPath Analysis: Lactobacillus reuteri JCM 1112

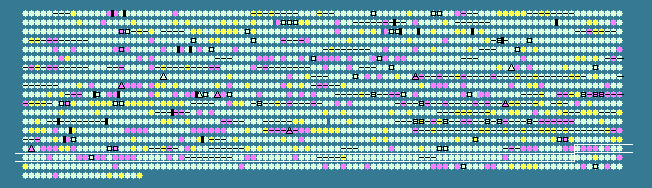

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.15 STD DEV: 3.24
Lactobacillus reuteri F275, complete genome - 1..2039414
1820 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1593	 38.78	0	1805820..1807325	-	501	184154248	-	LAR_1593	-	cobyric acid synthase CbiP
1594	 34.45	-1	1807400..1808203	-	267	184154249	-	LAR_1594	-	cobalt ABC transporter ATP-binding component CbiO
1595	 33.04	-1	1808215..1808892	-	225	184154250	-	LAR_1595	-	cobalt ABC transporter permease component CbiQ
1596	 34.94	-1	1808913..1809224	-	103	184154251	-	LAR_1596	-	cobalt ABC transporter permease component CbiN
1597	 38.55	0	1809221..1809967	-	248	184154252	-	LAR_1597	-	cobalamin biosynthesis protein CbiM
1598	 34.03	-1	1809951..1810664	-	237	184154253	-	LAR_1598	-	precorrin-2 C20-methyltransferase CbiL
1599	 36.67	0	1810666..1811445	-	259	184154254	-	LAR_1599	-	cobalt chelatase CbiK
1600	 37.92	0	1811438..1812832	-	464	184154255	-	LAR_1600	-	uroporphyrinogen-III C-methyltransferase CobA
1601	 37.68	0	1812822..1813580	-	252	184154256	-	LAR_1601	-	precorrin-6X reductase CbiJ
1602	 38.71	0	1813577..1814302	-	241	184154257	-	LAR_1602	-	precorrin-3B C17-methyltransferase CbiH
1603	 37.59	0	1814315..1815370	-	351	184154258	-	LAR_1603	-	cobalamin biosynthesis protein CbiG
1604	 40.03	0	1815373..1816134	-	253	184154259	-	LAR_1604	-	precorrin-4 C11-methyltransferase CbiF
1605	 34.05	-1	1816151..1816705	-	184	184154260	-	LAR_1605	-	precorrin-8W decarboxylase CbiT
1606	 37.31	0	1816698..1817300	-	200	184154261	-	LAR_1606	-	precorrin-6Y C5,15-methyltransferase CbiE
1607	 38.72	0	1817297..1818448	-	383	184154262	-	LAR_1607	-	cobalamin biosynthesis protein CbiD
1608	 36.11	0	1818429..1819112	-	227	184154263	-	LAR_1608	-	precorrin-8X methylmutase CbiC
1609	 36.88	0	1819118..1820077	-	319	184154264	-	LAR_1609	-	cobalamin biosynthesis protein CbiB
1610	 35.16	-1	1820074..1821438	-	454	184154265	-	LAR_1610	-	cobyrinic acid A,C-diamide synthase CbiA
1611	 34.62	-1	1821438..1822526	-	362	184154266	-	LAR_1611	-	L-threonine-O-3-phosphate decarboxylase CobD
1612	 42.00	0	1822871..1823839	-	322	184154267	-	LAR_1612	-	transposase
1613	 35.45	-1	1823968..1824534	+	188	184154268	-	LAR_1613	-	putative ATP:cob(I)alamin adenosyltransferase
1614	 34.05	-1	1824582..1825424	-	280	184154269	-	LAR_1614	-	hypothetical protein
1615	 36.67	0	1825446..1825895	-	149	184154270	-	LAR_1615	-	flavodoxin
1616	 34.50	-1	1826002..1826430	+	142	184154271	-	LAR_1616	-	propanediol utilization protein PduV
1617	 29.03	-2	1826423..1826980	-	185	184154272	-	LAR_1617	-	hypothetical protein
1618	 33.02	-1	1826977..1827621	-	214	184154273	-	LAR_1618	-	phosphoglycerate mutase
1619	 33.08	-1	1827718..1828512	-	264	184154274	-	LAR_1619	-	hypothetical protein
1620	 39.94	0	1828585..1828932	-	115	184154275	-	LAR_1620	-	propanediol utilization protein PduU
1621	 36.62	0	1828948..1830132	-	394	184154276	-	LAR_1621	-	acetate kinase PduW
1622	 37.97	0	1830156..1831277	-	373	184154277	-	LAR_1622	-	propanol dehydrogenase PduQ
1623	 39.96	0	1831295..1832728	-	477	184154278	-	LAR_1623	-	propanediol utilization protein PduP
1624	 36.71	0	1832731..1833204	-	157	184154279	-	LAR_1624	-	propanediol utilization protein PduObis
1625	 34.18	-1	1833207..1833794	-	195	184154280	-	LAR_1625	-	propanediol utilization protein PduO
1626	 40.14	0	1833815..1834093	-	92	184154281	-	LAR_1626	-	propanediol utilization protein PduN
1627	 32.74	-1	1834075..1834578	-	167	184154282	-	LAR_1627	-	propanediol utilization protein PduM
1628	 40.93	0	1834610..1835254	-	214	184154283	-	LAR_1628	-	propanediol utilization protein PduL
1629	 42.27	0	1835283..1835573	-	96	184154284	-	LAR_1629	-	propanediol utilization protein PduJ
1630	 37.89	0	1835586..1836155	-	189	184154285	-	LAR_1630	-	propanediol utilization protein PduK
1631	 35.94	0	1836163..1836546	-	127	184154286	-	LAR_1631	-	propanediol dehydratase reactivation protein PduH
1632	 37.49	0	1836509..1838359	-	616	184154287	-	LAR_1632	-	propanediol dehydratase reactivation protein PduG
1633	 38.57	0	1838390..1838905	-	171	184154288	-	LAR_1633	-	glycerol dehydratase small subunit PduE
1634	 39.38	0	1838918..1839628	-	236	184154289	-	LAR_1634	-	glycerol dehydratase medium subunit PduD
1635	 40.31	0	1839646..1841322	-	558	184154290	-	LAR_1635	-	glycerol dehydratase large subunit PduC
1636	 41.42	0	1841347..1842063	-	238	184154291	-	LAR_1636	-	propanediol utilization protein PduB
1637	 40.43	0	1842161..1842442	-	93	184154292	-	LAR_1637	-	propanediol utilization protein PduA
1638	 28.52	-2	1842696..1843775	+	359	184154293	-	LAR_1638	-	transcriptional regulator PocR
1639	 34.89	-1	1843816..1844649	-	277	184154294	-	LAR_1639	-	ethanolamine utilization protein EutJ
1640	 38.70	0	1844734..1845441	-	235	184154295	-	LAR_1640	-	glycerol uptake facilitator protein PduF
1641	 36.51	0	1845611..1846555	-	314	184154296	-	LAR_1641	-	hypothetical protein
1642	 37.38	0	1846615..1847454	+	279	184154297	-	LAR_1642	-	hypothetical protein
1643	 37.62	0	1847457..1848575	+	372	184154298	-	LAR_1643	-	hypothetical protein
1644	 39.39	0	1848725..1849450	-	241	184154299	-	LAR_1644	-	hypothetical protein
1645	 35.98	0	1849474..1849926	-	150	184154300	-	LAR_1645	-	transcriptional regulator
1646	 34.66	-1	1849994..1850521	-	175	184154301	-	LAR_1646	-	hypothetical protein
1647	 39.85	0	1850538..1851074	-	178	184154302	-	LAR_1647	-	hypothetical protein
1648	 37.85	0	1851080..1851943	-	287	184154303	-	LAR_1648	-	ABC transporter ATP-binding component
1649	 38.53	0	1852116..1853444	+	442	184154304	-	LAR_1649	-	hypothetical protein
1650	 41.03	0	1853556..1854023	+	155	184154305	-	LAR_1650	-	ribonucleotide reductase protein
1651	 38.73	0	1854073..1854498	-	141	184154306	-	LAR_1651	-	hypothetical protein
1652	 37.40	0	1854665..1855843	+	392	184154307	-	LAR_1652	-	putative transport protein
1653	 40.15	0	1856126..1857607	+	493	184154308	-	LAR_1653	-	glucose-6-phosphate 1-dehydrogenase
1654	 42.94	+1	1857751..1859187	+	478	184154309	-	LAR_1654	-	6-phosphogluconate dehydrogenase
1655	 37.69	0	1859687..1861639	+	650	184154310	-	LAR_1655	-	sugar transport protein
1656	 39.57	0	1861869..1862333	-	154	184154311	-	LAR_1656	-	hypothetical protein
1657	 36.94	0	1862547..1863017	+	156	184154312	-	LAR_1657	-	transcription regulator
1658	 39.57	0	1863066..1864379	-	437	184154313	-	LAR_1658	-	proton/sodium-glutamate symport protein
1659	 39.87	0	1864629..1865255	+	208	184154314	-	LAR_1659	-	putative alkaline phosphatase
1660	 41.49	0	1866600..1867592	-	330	184154315	-	LAR_1660	-	galactose operon repressor
1661	 40.15	0	1867630..1869081	-	483	184154316	-	LAR_1661	-	galactose-1-phosphate uridylyltransferase
1662	 38.93	0	1869108..1870286	-	392	184154317	-	LAR_1662	-	galactokinase
1663	 41.59	0	1870481..1871449	+	322	184154318	-	LAR_1663	-	hypothetical protein
1664	 41.25	0	1871479..1872261	+	260	184154319	-	LAR_1664	-	putative protein-tyrosine phosphatase
1665	 40.24	0	1872298..1872804	+	168	184154320	-	LAR_1665	-	hypothetical protein
1666	 36.40	0	1872782..1873042	+	86	184154321	-	LAR_1666	-	hypothetical protein
1667	 41.28	0	1873238..1873564	-	108	184154322	-	LAR_1667	-	hypothetical protein
1668	 40.73	0	1873588..1874709	-	373	184154323	-	LAR_1668	-	hypothetical protein
1669	 37.37	0	1874843..1875313	+	156	184154324	-	LAR_1669	-	transcription elongation factor GreA
1670	 38.78	0	1875565..1876317	+	250	184154325	-	LAR_1670	-	hypothetical protein
1671	 38.08	0	1876511..1877353	-	280	184154326	-	LAR_1671	-	oxydoreductases
1672	 38.33	0	1877472..1878152	+	226	184154327	-	LAR_1672	-	two-component response regulator
1673	 36.12	0	1878121..1879125	+	334	184154328	-	LAR_1673	-	two-component sensor histidine kinase
1674	 41.80	0	1879238..1879993	+	251	184154329	-	LAR_1674	-	ABC transporter ATP-binding component
1675	 37.95	0	1879993..1881921	+	642	184154330	-	LAR_1675	-	ABC transporter permease and substrate binding components
1676	 40.22	0	1882162..1882989	+	275	184154331	-	LAR_1676	-	homoserine O-succinyltransferase
1677	 41.99	0	1882995..1883918	+	307	184154332	-	LAR_1677	-	cysteine synthase
1678	 37.95	0	1884135..1885628	-	497	184154333	-	LAR_1678	-	cardiolipinsynthase
1679	 39.62	0	1885704..1886864	-	386	184154334	-	LAR_1679	-	putative transport protein
1680	 39.57	0	1886966..1887478	-	170	184154335	-	LAR_1680	-	hypothetical protein
1681	 30.60	-2	1887475..1888095	-	206	184154336	-	LAR_1681	-	transcription regulator
1682	 41.21	0	1888239..1890143	-	634	184154337	-	LAR_1682	-	endopeptidase O
1683	 40.74	0	1890217..1890513	-	98	184154338	-	LAR_1683	-	hypothetical protein
1684	 41.45	0	1890514..1891806	-	430	184154339	-	LAR_1684	-	hypothetical protein
1685	 42.50	+1	1891803..1892948	-	381	184154340	-	LAR_1685	-	hypothetical protein
1686	 40.13	0	1892952..1893584	-	210	184154341	-	LAR_1686	-	3-methyladenine DNA glycosylase
1687	 38.13	0	1893644..1894018	+	124	184154342	-	LAR_1687	-	hypothetical protein
1688	 39.08	0	1894310..1894483	-	57	184154343	-	LAR_1688	-	hypothetical protein
1689	 38.89	0	1894486..1895169	-	227	184154344	-	LAR_1689	-	putative NAD(P)H oxidoreductase
1690	 37.38	0	1895175..1895495	-	106	184154345	-	LAR_1690	-	hypothetical protein
1691	 39.59	0	1895526..1896500	-	324	184154346	-	LAR_1691	-	hypothetical protein
1692	 37.87	0	1896590..1897582	-	330	184154347	-	LAR_1692	-	hypothetical protein
39.15	MEAN

3.24	STD DEV
