IslandPathversion 1.0

IslandPath Analysis: Lactobacillus reuteri JCM 1112

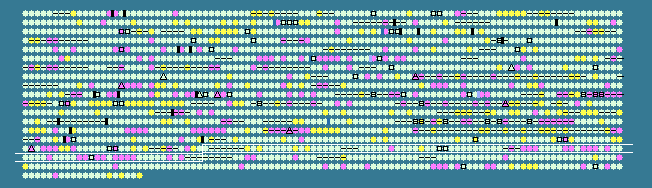

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.15 STD DEV: 3.24
Lactobacillus reuteri F275, complete genome - 1..2039414
1820 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1531	 42.03	0	1736047..1737438	+	463	184154186	-	LAR_1531	-	amino acid transport protein
1532	 37.78	0	1737614..1738918	+	434	184154187	-	LAR_1532	-	putative transport protein
1533	 35.93	0	1738999..1740387	-	462	184154188	-	LAR_1533	-	hypothetical protein
1534	 39.48	0	1740409..1741482	-	357	184154189	-	LAR_1534	-	spermidine/putrescine ABC transporter substrate-binding component
1535	 41.39	0	1741479..1742297	-	272	184154190	-	LAR_1535	-	spermidine/putrescine ABC transporter permease component
1536	 39.53	0	1742297..1743103	-	268	184154191	-	LAR_1536	-	spermidine/putrescine ABC transporter permease component
1537	 40.29	0	1743103..1744194	-	363	184154192	-	LAR_1537	-	spermidine/putrescine ABC transporter ATP-binding component
1538	 43.03	+1	1744334..1746736	+	800	184154193	-	LAR_1538	-	Xaa-Pro dipeptidyl-peptidase
1539	 38.60	0	1746837..1747748	+	303	184154194	-	LAR_1539	-	prolyl aminopeptidase
1540	 43.08	+1	1747930..1750647	+	905	184154195	-	LAR_1540	-	cation transport ATPase
1541	 36.75	0	1750790..1751257	+	155	184154196	-	LAR_1541	-	hypothetical protein
1542	 40.26	0	1751338..1752738	-	466	184154197	-	LAR_1542	-	amino acid transport protein
1543	 41.82	0	1752879..1753526	+	215	184154198	-	LAR_1543	-	putative phosphatase
1544	 38.22	0	1753758..1753982	-	74	184154199	-	LAR_1544	-	hypothetical protein
1545	 41.52	0	1755028..1755699	+	223	184154200	-	LAR_1545	-	zinc/iron ABC transporter ATP-binding component
1546	 47.55	+2	1755969..1756967	-	332	184154201	-	LAR_1546	-	thioredoxin reductase
1547	 41.33	0	1757132..1758094	+	320	184154202	-	LAR_1547	-	purine nucleosidase
1548	 44.18	+1	1758386..1759141	+	251	184154203	-	LAR_1548	-	alcohol dehydrogenase
1549	 41.09	0	1759194..1759979	-	261	184154204	-	LAR_1549	-	transport protein
1550	 42.25	0	1760246..1760806	+	186	184154205	-	LAR_1550	-	hypothetical protein
1551	 39.55	0	1760811..1762193	+	460	184154206	-	LAR_1551	-	cobalt ABC transporter ATP-binding component
1552	 41.28	0	1762183..1762836	+	217	184154207	-	LAR_1552	-	cobalt ABC transporter permease component
1553	 40.16	0	1763309..1765270	+	653	184154208	-	LAR_1553	-	Na-H antiporter
1554	 39.22	0	1765318..1765674	-	118	184154209	-	LAR_1554	-	hypothetical protein
1555	 39.82	0	1765688..1766581	-	297	184154210	-	LAR_1555	-	hypothetical protein
1556	 40.34	0	1766789..1767202	+	137	184154211	-	LAR_1556	-	transcriptional regulator
1557	 39.02	0	1767210..1768070	+	286	184154212	-	LAR_1557	-	hypothetical protein
1558	 42.35	0	1768125..1769111	-	328	184154213	-	LAR_1558	-	oxidoreductase
1559	 39.70	0	1769157..1770569	-	470	184154214	-	LAR_1559	-	PTS system galactitol-specific IIC component
1560	 41.54	0	1770723..1771892	+	389	184154215	-	LAR_1560	-	putative drug efflux protein
1561	 36.85	0	1772065..1772946	+	293	184154216	-	LAR_1561	-	ABC transporter ATP-binding component
1562	 35.02	-1	1772957..1773667	+	236	184154217	-	LAR_1562	-	hypothetical protein
1563	 36.60	0	1773901..1774359	-	152	184154218	-	LAR_1563	-	hypothetical protein
1564	 35.78	-1	1774356..1774763	-	135	184154219	-	LAR_1564	-	hypothetical protein
1565	 39.74	0	1774893..1775906	-	337	184154220	-	LAR_1565	-	lipoate-protein ligase
1566	 41.88	0	1776107..1776574	+	155	184154221	-	LAR_1566	-	hypothetical protein
1567	 43.18	+1	1776586..1778514	+	642	184154222	-	LAR_1567	-	elongation factor G
1568	 40.42	0	1778581..1779483	-	300	184154223	-	LAR_1568	-	sugar kinase and transcription regulator
1569	 38.21	0	1779509..1780861	-	450	184154224	-	LAR_1569	-	branched-chain amino acid transport protein
1570	 38.44	0	1780946..1781395	-	149	184154225	-	LAR_1570	-	transposase
1571	 39.01	0	1781470..1782720	+	416	184154226	-	LAR_1571	-	transposase
1572	 40.53	0	1783126..1783875	-	249	184154227	-	LAR_1572	-	hypothetical protein
1573	 39.23	0	1783907..1785262	-	451	184154228	-	LAR_1573	-	hypothetical protein
1574	 42.58	+1	1785439..1787850	-	803	184154229	-	LAR_1574	-	xylulose 5-phosphate phosphoketolase
1575	 37.57	0	1788120..1788851	-	243	184154230	-	LAR_1575	-	transcription regulator
1576	 36.29	0	1788983..1789489	+	168	184154231	-	LAR_1576	-	putative transcription regulator
1577	 41.34	0	1789577..1791013	+	478	184154232	-	LAR_1577	-	dipeptidase
1578	 39.01	0	1791072..1792904	-	610	184154233	-	LAR_1578	-	multidrug ABC transporter ATP-binding and permease components
1579	 41.65	0	1792888..1794630	-	580	184154234	-	LAR_1579	-	multidrug ABC transporter ATP-binding and permease components
1580	 40.40	0	1794800..1795804	+	334	184154235	-	LAR_1580	-	D-lactate dehydrogenase
1581	 36.14	0	1795866..1796399	-	177	184154236	-	LAR_1581	-	hypothetical protein
1582	 28.61	-2	1796401..1796781	-	126	184154237	-	LAR_1582	-	hypothetical protein
1583	 38.66	0	1797070..1798140	-	356	184154238	-	LAR_1583	-	nicotinate-nucleotide-dimethylbenzimidazole phosphoribosyltransferase CobT
1584	 30.52	-2	1798124..1798834	-	236	184154239	-	LAR_1584	-	putative type I site-specific deoxyribonuclease
1585	 35.03	-1	1798871..1799461	-	196	184154240	-	LAR_1585	-	alpha-ribazole-5'-phosphate phosphatase CobC
1586	 32.94	-1	1799458..1800219	-	253	184154241	-	LAR_1586	-	cobalamin 5'-phosphate synthase CobS
1587	 36.72	0	1800228..1800818	-	196	184154242	-	LAR_1587	-	cobinamide kinase/cobinamide phosphate guanylyltransferase CobU
1588	 39.12	0	1800881..1802176	-	431	184154243	-	LAR_1588	-	glutamate-1-semialdehyde 2,1-aminotransferase HemL
1589	 38.17	0	1802196..1803167	-	323	184154244	-	LAR_1589	-	delta-aminolevulinic acid dehydratase HemB
1590	 37.04	0	1803173..1804090	-	305	184154245	-	LAR_1590	-	porphobilinogen deaminase HemC
1591	 35.31	-1	1804080..1805345	-	421	184154246	-	LAR_1591	-	glutamyl-tRNA reductase HemA
1592	 34.42	-1	1805347..1805805	-	152	184154247	-	LAR_1592	-	putative siroheme synthase CysG
1593	 38.78	0	1805820..1807325	-	501	184154248	-	LAR_1593	-	cobyric acid synthase CbiP
1594	 34.45	-1	1807400..1808203	-	267	184154249	-	LAR_1594	-	cobalt ABC transporter ATP-binding component CbiO
1595	 33.04	-1	1808215..1808892	-	225	184154250	-	LAR_1595	-	cobalt ABC transporter permease component CbiQ
1596	 34.94	-1	1808913..1809224	-	103	184154251	-	LAR_1596	-	cobalt ABC transporter permease component CbiN
1597	 38.55	0	1809221..1809967	-	248	184154252	-	LAR_1597	-	cobalamin biosynthesis protein CbiM
1598	 34.03	-1	1809951..1810664	-	237	184154253	-	LAR_1598	-	precorrin-2 C20-methyltransferase CbiL
1599	 36.67	0	1810666..1811445	-	259	184154254	-	LAR_1599	-	cobalt chelatase CbiK
1600	 37.92	0	1811438..1812832	-	464	184154255	-	LAR_1600	-	uroporphyrinogen-III C-methyltransferase CobA
1601	 37.68	0	1812822..1813580	-	252	184154256	-	LAR_1601	-	precorrin-6X reductase CbiJ
1602	 38.71	0	1813577..1814302	-	241	184154257	-	LAR_1602	-	precorrin-3B C17-methyltransferase CbiH
1603	 37.59	0	1814315..1815370	-	351	184154258	-	LAR_1603	-	cobalamin biosynthesis protein CbiG
1604	 40.03	0	1815373..1816134	-	253	184154259	-	LAR_1604	-	precorrin-4 C11-methyltransferase CbiF
1605	 34.05	-1	1816151..1816705	-	184	184154260	-	LAR_1605	-	precorrin-8W decarboxylase CbiT
1606	 37.31	0	1816698..1817300	-	200	184154261	-	LAR_1606	-	precorrin-6Y C5,15-methyltransferase CbiE
1607	 38.72	0	1817297..1818448	-	383	184154262	-	LAR_1607	-	cobalamin biosynthesis protein CbiD
1608	 36.11	0	1818429..1819112	-	227	184154263	-	LAR_1608	-	precorrin-8X methylmutase CbiC
1609	 36.88	0	1819118..1820077	-	319	184154264	-	LAR_1609	-	cobalamin biosynthesis protein CbiB
1610	 35.16	-1	1820074..1821438	-	454	184154265	-	LAR_1610	-	cobyrinic acid A,C-diamide synthase CbiA
1611	 34.62	-1	1821438..1822526	-	362	184154266	-	LAR_1611	-	L-threonine-O-3-phosphate decarboxylase CobD
1612	 42.00	0	1822871..1823839	-	322	184154267	-	LAR_1612	-	transposase
1613	 35.45	-1	1823968..1824534	+	188	184154268	-	LAR_1613	-	putative ATP:cob(I)alamin adenosyltransferase
1614	 34.05	-1	1824582..1825424	-	280	184154269	-	LAR_1614	-	hypothetical protein
1615	 36.67	0	1825446..1825895	-	149	184154270	-	LAR_1615	-	flavodoxin
1616	 34.50	-1	1826002..1826430	+	142	184154271	-	LAR_1616	-	propanediol utilization protein PduV
1617	 29.03	-2	1826423..1826980	-	185	184154272	-	LAR_1617	-	hypothetical protein
1618	 33.02	-1	1826977..1827621	-	214	184154273	-	LAR_1618	-	phosphoglycerate mutase
1619	 33.08	-1	1827718..1828512	-	264	184154274	-	LAR_1619	-	hypothetical protein
1620	 39.94	0	1828585..1828932	-	115	184154275	-	LAR_1620	-	propanediol utilization protein PduU
1621	 36.62	0	1828948..1830132	-	394	184154276	-	LAR_1621	-	acetate kinase PduW
1622	 37.97	0	1830156..1831277	-	373	184154277	-	LAR_1622	-	propanol dehydrogenase PduQ
1623	 39.96	0	1831295..1832728	-	477	184154278	-	LAR_1623	-	propanediol utilization protein PduP
1624	 36.71	0	1832731..1833204	-	157	184154279	-	LAR_1624	-	propanediol utilization protein PduObis
1625	 34.18	-1	1833207..1833794	-	195	184154280	-	LAR_1625	-	propanediol utilization protein PduO
1626	 40.14	0	1833815..1834093	-	92	184154281	-	LAR_1626	-	propanediol utilization protein PduN
1627	 32.74	-1	1834075..1834578	-	167	184154282	-	LAR_1627	-	propanediol utilization protein PduM
1628	 40.93	0	1834610..1835254	-	214	184154283	-	LAR_1628	-	propanediol utilization protein PduL
1629	 42.27	0	1835283..1835573	-	96	184154284	-	LAR_1629	-	propanediol utilization protein PduJ
1630	 37.89	0	1835586..1836155	-	189	184154285	-	LAR_1630	-	propanediol utilization protein PduK
39.15	MEAN

3.24	STD DEV
