IslandPathversion 1.0

IslandPath Analysis: Lactobacillus reuteri JCM 1112

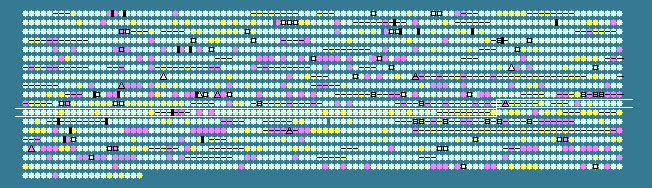

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.15 STD DEV: 3.24
Lactobacillus reuteri F275, complete genome - 1..2039414
1820 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1080	 37.25	0	1238962..1239471	+	169	184153735	-	LAR_1080	-	hypothetical protein
1081	 35.63	-1	1239954..1241084	+	376	184153736	-	LAR_1081	-	phage integrase
1082	 45.83	+2	1241198..1241557	-	119	184153737	-	LAR_1082	-	50S ribosomal protein L19
1083	 43.26	+1	1241680..1243110	-	476	184153738	-	LAR_1083	-	amino acid transport protein
1084	 41.90	0	1243121..1243879	-	252	184153739	-	LAR_1084	-	tRNA (guanine-N1)-methyltransferase
1085	 38.26	0	1243879..1244385	-	168	184153740	-	LAR_1085	-	16S rRNA processing protein RimM
1086	 43.68	+1	1244440..1244700	-	86	184153741	-	LAR_1086	-	hypothetical protein
1087	 43.48	+1	1244713..1244988	-	91	184153742	-	LAR_1087	-	30S ribosomal protein S16
1088	 42.25	0	1245087..1246532	-	481	184153743	-	LAR_1088	-	signal recognition particle protein
1089	 35.96	0	1246534..1246875	-	113	184153744	-	LAR_1089	-	hypothetical protein
1090	 44.53	+1	1246890..1248416	-	508	184153745	-	LAR_1090	-	signal recognition particle receptor
1091	 42.37	0	1248439..1252002	-	1187	184153746	-	LAR_1091	-	cell division protein
1092	 38.60	0	1252019..1252720	-	233	184153747	-	LAR_1092	-	ribonuclease III
1093	 33.33	-1	1252897..1253151	-	84	184153748	-	LAR_1093	-	acyl carrier protein
1094	 41.86	0	1253188..1254219	-	343	184153749	-	LAR_1094	-	fatty acid/phospholipid synthesis protein PlsX
1095	 43.85	+1	1254237..1256309	-	690	184153750	-	LAR_1095	-	ATP-dependent DNA helicase RecG
1096	 41.81	0	1256376..1258085	-	569	184153751	-	LAR_1096	-	hypothetical protein
1097	 40.77	0	1258111..1258473	-	120	184153752	-	LAR_1097	-	hypothetical protein
1098	 42.47	+1	1258668..1258853	-	61	184153753	-	LAR_1098	-	50S ribosomal protein L28
1099	 39.17	0	1259003..1259653	-	216	184153754	-	LAR_1099	-	hypothetical protein
1100	 40.06	0	1259739..1260392	-	217	184153755	-	LAR_1100	-	ribulose-phosphate 3-epimerase
1101	 40.97	0	1260403..1261293	-	296	184153756	-	LAR_1101	-	hypothetical protein
1102	 40.26	0	1261306..1263210	-	634	184153757	-	LAR_1102	-	protein kinase
1103	 41.30	0	1263214..1263954	-	246	184153758	-	LAR_1103	-	protein kinase
1104	 41.78	0	1263962..1265311	-	449	184153759	-	LAR_1104	-	rRNA methylase
1105	 40.99	0	1265301..1266254	-	317	184153760	-	LAR_1105	-	methionyl-tRNA formyltransferase
1106	 42.63	+1	1266272..1268701	-	809	184153761	-	LAR_1106	-	primosomal protein N'
1107	 43.86	+1	1268702..1269907	-	401	184153762	-	LAR_1107	-	pantothenate metabolism flavoprotein
1108	 36.99	0	1270018..1270236	-	72	184153763	-	LAR_1108	-	DNA-directed RNA polymerase omega subunit
1109	 37.52	0	1270233..1270853	-	206	184153764	-	LAR_1109	-	guanylate kinase
1110	 39.70	0	1271620..1273299	-	559	184153765	-	LAR_1110	-	DNA repair protein RecN
1111	 40.40	0	1273315..1273767	-	150	184153766	-	LAR_1111	-	arginine catabolic regulator
1112	 41.73	0	1273786..1274607	-	273	184153767	-	LAR_1112	-	hemolysin
1113	 43.76	+1	1274619..1275491	-	290	184153768	-	LAR_1113	-	geranyltranstransferase
1114	 40.07	0	1275510..1275791	-	93	184153769	-	LAR_1114	-	exodeoxyribonuclease VII small subunit
1115	 39.09	0	1275793..1277130	-	445	184153770	-	LAR_1115	-	exodeoxyribonuclease VII large subunit
1116	 39.72	0	1277123..1277983	-	286	184153771	-	LAR_1116	-	methylenetetrahydrofolate dehydrogenase/methenyltetrahydrofolate cyclohydrolase
1117	 37.89	0	1278112..1278528	-	138	184153772	-	LAR_1117	-	transcription termination factor
1118	 38.13	0	1278530..1278967	-	145	184153773	-	LAR_1118	-	hypothetical protein
1119	 38.96	0	1279057..1279731	-	224	184153774	-	LAR_1119	-	hypothetical protein
1120	 40.85	0	1279733..1280809	-	358	184153775	-	LAR_1120	-	Xaa-Pro dipeptidase
1121	 39.96	0	1280822..1281304	-	160	184153776	-	LAR_1121	-	hypothetical protein
1122	 48.58	+2	1281655..1281936	-	93	184153777	-	LAR_1122	-	50S ribosomal protein L27
1123	 37.35	0	1281962..1282285	-	107	184153778	-	LAR_1123	-	hypothetical protein
1124	 41.75	0	1282301..1282609	-	102	184153779	-	LAR_1124	-	50S ribosomal protein L21
1125	 35.70	-1	1282824..1283456	-	210	184153780	-	LAR_1125	-	transcription regulator
1126	 33.33	-1	1283906..1284061	+	51	184153781	-	LAR_1126	-	hypothetical protein
1127	 34.52	-1	1284125..1284631	-	168	184153782	-	LAR_1127	-	hypothetical protein
1128	 38.43	0	1284661..1285719	-	352	184153783	-	LAR_1128	-	hypothetical protein
1129	 36.13	0	1285679..1286572	-	297	184153784	-	LAR_1129	-	hypothetical protein
1130	 35.44	-1	1286895..1287227	-	110	184153785	-	LAR_1130	-	hypothetical protein
1131	 40.50	0	1287212..1287769	-	185	184153786	-	LAR_1131	-	peptide methionine sulfoxide reductase
1132	 35.45	-1	1287756..1288607	-	283	184153787	-	LAR_1132	-	lipoprotein
1133	 39.76	0	1289291..1290472	-	393	184153788	-	LAR_1133	-	aromatic amino acid aminotransferas
1134	 40.17	0	1290587..1292092	-	501	184153789	-	LAR_1134	-	glutamyl-tRNA synthase
1135	 41.29	0	1292337..1293680	-	447	184153790	-	LAR_1135	-	glutamine synthase
1136	 41.13	0	1293853..1294776	-	307	184153791	-	LAR_1136	-	tRNA delta(2)-isopentenylpyrophosphate transferase
1137	 41.81	0	1294891..1295067	+	58	184153792	-	LAR_1137	-	hypothetical protein
1138	 39.05	0	1295231..1295650	-	139	184153793	-	LAR_1138	-	hypothetical protein
1139	 41.36	0	1295664..1296635	-	323	184153794	-	LAR_1139	-	glucokinase
1140	 35.83	-1	1296660..1296899	-	79	184153795	-	LAR_1140	-	hypothetical protein
1141	 39.85	0	1296906..1297565	-	219	184153796	-	LAR_1141	-	hypothetical protein
1142	 40.36	0	1297569..1298123	-	184	184153797	-	LAR_1142	-	5-formyltetrahydrofolate cyclo-ligase
1143	 41.33	0	1298261..1298410	-	49	184153798	-	LAR_1143	-	50S ribosomal protein L33
1144	 41.25	0	1298549..1300606	-	685	184153799	-	LAR_1144	-	penicillin binding protein 2B
1145	 40.67	0	1300858..1303473	+	871	184153800	-	LAR_1145	-	hypothetical protein
1146	 39.74	0	1303559..1303948	-	129	184153801	-	LAR_1146	-	hypothetical protein
1147	 37.11	0	1304098..1304574	-	158	184153802	-	LAR_1147	-	transcription elongation factor GreA
1148	 38.05	0	1304638..1305294	-	218	184153803	-	LAR_1148	-	uridine kinase
1149	 39.75	0	1305407..1306045	-	212	184153804	-	LAR_1149	-	hypothetical protein
1150	 41.65	0	1306229..1308646	-	805	184153805	-	LAR_1150	-	phenylalanyl-tRNA synthase beta subunit
1151	 43.17	+1	1308653..1309699	-	348	184153806	-	LAR_1151	-	phenylalanyl-tRNA synthase alpha subunit
1152	 39.53	0	1309994..1310332	-	112	184153807	-	LAR_1152	-	transcription regulator
1153	 42.41	+1	1310353..1310859	-	168	184153808	-	LAR_1153	-	hypothetical protein
1154	 45.17	+1	1310924..1311700	-	258	184153809	-	LAR_1154	-	rRNA methylase
1155	 39.49	0	1311799..1312074	+	91	184153810	-	LAR_1155	-	acylphosphatase
1156	 42.38	0	1312173..1313123	+	316	184153811	-	LAR_1156	-	hypothetical protein
1157	 37.96	0	1313187..1313597	+	136	184153812	-	LAR_1157	-	polypeptide deformylase
1158	 40.07	0	1313676..1315055	+	459	184153813	-	LAR_1158	-	hypothetical protein
1159	 38.82	0	1315137..1316630	-	497	184153814	-	LAR_1159	-	amino acid transport protein
1160	 39.84	0	1316819..1318294	-	491	184153815	-	LAR_1160	-	two-component system histidine kinase
1161	 39.30	0	1318307..1318993	-	228	184153816	-	LAR_1161	-	two-component response regulator
1162	 47.22	+2	1319218..1319397	-	59	184153817	-	LAR_1162	-	50S ribosomal protein L32
1163	 40.32	0	1319452..1320009	-	185	184153818	-	LAR_1163	-	hypothetical protein
1164	 41.17	0	1320139..1321095	-	318	184153819	-	LAR_1164	-	hypothetical protein
1165	 46.15	+2	1321079..1321273	-	64	184153820	-	LAR_1165	-	hypothetical protein
1166	 39.41	0	1321285..1322025	-	246	184153821	-	LAR_1166	-	hypothetical protein
1167	 40.62	0	1322025..1322381	-	118	184153822	-	LAR_1167	-	hypothetical protein
1168	 40.98	0	1322381..1322995	-	204	184153823	-	LAR_1168	-	hypothetical protein
1169	 42.33	0	1322988..1323632	-	214	184153824	-	LAR_1169	-	nicotinate-nucleotide adenylyltransferase
1170	 36.54	0	1323654..1323965	-	103	184153825	-	LAR_1170	-	hypothetical protein
1171	 40.87	0	1323989..1325116	-	375	184153826	-	LAR_1171	-	GTPase
1172	 38.04	0	1325109..1325639	-	176	184153827	-	LAR_1172	-	hydrolase
1173	 43.22	+1	1325793..1326146	-	117	184153828	-	LAR_1173	-	50S ribosomal protein L20
1174	 42.93	+1	1326191..1326388	-	65	184153829	-	LAR_1174	-	50S ribosomal protein L35
1175	 43.08	+1	1326411..1326923	-	170	184153830	-	LAR_1175	-	translation initiation factor IF-3
1176	 38.00	0	1327149..1328090	-	313	184153831	-	LAR_1176	-	primosomal protein DnaI
1177	 40.86	0	1328111..1329466	-	451	184153832	-	LAR_1177	-	DNA replication protein DnaB
1178	 43.66	+1	1329484..1329948	-	154	184153833	-	LAR_1178	-	hypothetical protein
1179	 42.67	+1	1329994..1330593	-	199	184153834	-	LAR_1179	-	dephospho-CoA kinase
39.15	MEAN

3.24	STD DEV
