IslandPath Analysis: Lactococcus lactis subsp. cremoris MG1363

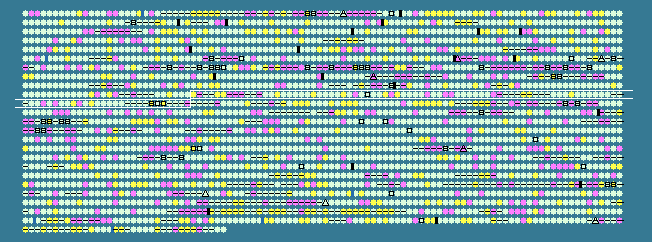

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.99 STD DEV: 3.62
Lactococcus lactis subsp. cremoris MG1363, complete genome - 1..2529478
2434 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
929	 41.42	+1	936330..936737	+	135	125623811	-	llmg_0972	-	hypothetical protein
930	 32.37	-1	936865..937587	+	240	125623812	purC	llmg_0973	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
931	 36.70	0	937642..937908	+	88	125623813	purS	llmg_0974	-	phosphoribosylformylglycinamidine synthetase PurS
932	 38.47	0	937905..938585	+	226	125623814	purQ	llmg_0975	-	phosphoribosylformylglycinamidine synthase I
933	 40.59	+1	938802..941021	+	739	125623815	purL	llmg_0976	-	phosphoribosylformylglycinamidine synthase II
934	 44.51	+2	941006..942526	+	506	125623816	purF	llmg_0977	-	amidophosphoribosyltransferase
935	 32.15	-1	942840..943262	+	140	125623817	-	llmg_0978	-	hypothetical protein
936	 28.91	-1	943295..943678	-	127	125623818	-	llmg_0979	-	hypothetical protein
937	 31.46	-1	943687..944595	-	302	125623819	-	llmg_0980	-	hypothetical protein
938	 37.80	0	944625..944915	+	96	125623820	-	llmg_0981	-	hypothetical protein
939	 37.97	0	945825..946406	+	193	125623821	-	llmg_0983	-	hypothetical protein
940	 32.46	0	947275..947388	-	37	125623822	-	llmg_0984	-	hypothetical protein
941	 37.17	0	947599..948405	+	268	125623823	-	llmg_0985	-	putative secreted protein
942	 38.98	0	948593..951196	+	867	125623824	clpB	llmg_0986	-	ATP-dependent Clp protease
943	 40.66	+1	951380..952402	+	340	125623825	purM	llmg_0987	-	phosphoribosylaminoimidazole synthetase
944	 37.16	0	952431..952979	+	182	125623826	purN	llmg_0988	-	phosphoribosylglycinamide formyltransferase
945	 35.09	0	953119..954765	+	548	125623827	-	llmg_0989	-	ABC transporter ATP binding and permease protein
946	 34.46	0	956132..956662	-	176	125623828	-	llmg_0991	-	AcrR family transcriptional regulator
947	 39.02	0	956790..957827	+	345	125623829	-	llmg_0992	-	putative nucleoside-diphosphate-sugar epimerases
948	 35.54	0	957962..958504	+	180	125623830	hprT	llmg_0993	-	HprT protein
949	 39.56	0	958681..960237	+	518	125623831	purH	llmg_0994	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
950	 37.66	0	960356..961048	+	230	125623832	-	llmg_0995	-	hydrolase, haloacid dehalogenase-like family protein
951	 34.93	0	962586..963212	-	208	125623833	-	llmg_0996	-	TetR family transcriptional regulator
952	 38.97	0	963606..964847	+	413	125623834	purD	llmg_0997	-	phosphoribosylamine--glycine ligase
953	 32.90	0	964919..965611	+	230	125623835	-	llmg_0998	-	putative hydrolase
954	 42.80	+1	965608..966093	+	161	125623836	purE	llmg_0999	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
955	 37.67	0	966149..967255	+	368	125623837	purK	llmg_1000	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
956	 31.73	-1	967411..968343	-	310	125623838	xylR	llmg_1001	-	xylose operon regulator
957	 38.94	0	968454..969149	+	231	125623839	xylA	llmg_1002	-	XylA protein
958	 37.59	0	969172..969852	-	226	125623840	tnp1216	llmg_1003	-	transposase for insertion sequence-like element IS1216
959	 33.19	0	969894..970571	+	225	125623841	-	llmg_1004	-	beta-glucosidase
960	 38.28	0	970613..971482	+	289	125623842	-	llmg_1005	-	sugar kinase and transcriptional regulator
961	 40.30	+1	971556..972431	+	291	125623843	scrK	llmg_1006	-	fructokinase
962	 22.45	-2	972415..972561	+	48	125623844	-	llmg_1007	-	hypothetical protein
963	 41.89	+1	972641..974182	+	513	125623845	guaA	llmg_1008	-	bifunctional GMP synthase/glutamine amidotransferase protein
964	 36.03	0	974516..975406	+	296	125623846	lplB	llmg_1009	-	sugar ABC transporter substrate binding protein
965	 35.65	0	975417..976280	+	287	125623847	lplC	llmg_1010	-	sugar ABC transporter permease
966	 37.26	0	976352..977548	+	398	125623848	lplA	llmg_1011	-	sugar ABC transporter substrate-binding protein
967	 36.82	0	977586..977987	+	133	125623849	-	llmg_1012	-	putative ABC transporter substrate-binding protein
968	 30.69	-1	978188..978376	+	62	125623850	-	llmg_1013	-	putative secreted protein
969	 34.84	0	978828..981218	+	796	125623851	-	llmg_1014	-	hypothetical protein
970	 37.68	0	981287..982666	-	459	125623852	ypbC	llmg_1015	-	hypothetical protein
971	 30.24	-1	982765..983670	-	301	125623853	-	llmg_1016	-	cationic transporter
972	 30.24	-1	983847..984266	+	139	125623854	rmaE	llmg_1017	-	MarR family transcriptional regulator
973	 36.67	0	986437..987216	-	259	125623855	-	llmg_1019	-	oxidoreductase, short-chain dehydrogenase/reductase family protein
974	 35.17	0	987245..987679	+	144	125623856	rmeB	llmg_1020	-	MerR family transcriptional regulator
975	 36.04	0	987722..988609	-	295	125623857	-	llmg_1021	-	hypothetical protein
976	 36.18	0	990101..990487	-	128	125623858	fur	llmg_1023	-	ferric uptake regulation protein
977	 38.55	0	990614..991303	+	229	125623859	-	llmg_1024	-	hypothetical protein
978	 35.24	0	991303..991983	+	226	125623860	-	llmg_1025	-	hypothetical protein
979	 32.26	-1	992059..992802	+	247	125623861	-	llmg_1026	-	putative methyltransferase
980	 32.38	0	992912..993331	+	139	125623862	rmaC	llmg_1027	-	MarR family transcriptional regulator
981	 34.27	0	993343..993981	+	212	125623863	-	llmg_1028	-	putative NAD(P)H nitroreductase
982	 33.33	0	993996..994355	+	119	125623864	-	llmg_1029	-	hypothetical protein
983	 37.13	0	994809..996179	+	456	125623865	trpE	llmg_1030	-	anthranilate synthase component I
984	 40.21	+1	996231..996812	+	193	125623866	trpG	llmg_1031	-	anthranilate synthase component II
985	 43.75	+2	996817..997824	+	335	125623867	trpD	llmg_1032	-	anthranilate phosphoribosyltransferase
986	 34.27	0	998610..998930	+	106	125623868	-	llmg_1034	-	hypothetical protein
987	 35.00	0	998956..999135	+	59	125623869	-	llmg_1035	-	hypothetical protein
988	 39.30	0	999434..999802	+	122	125623870	-	llmg_1037	-	putative lyase
989	 33.08	0	999809..1000603	+	264	125623871	trpC	llmg_1038	-	indole-3-glycerol-phosphate synthase
990	 35.88	0	1000593..1001651	+	352	125623872	trpF	llmg_1039	-	N-(5'-phosphoribosyl)-anthranilate isomerase
991	 36.82	0	1001641..1002213	+	190	125623873	-	llmg_1040	-	acetyltransferase
992	 41.87	+1	1002258..1003463	+	401	125623874	trpB	llmg_1041	-	tryptophan synthase subunit beta
993	 34.51	0	1003463..1004224	+	253	125623875	trpA	llmg_1042	-	tryptophan synthase subunit alpha
994	 37.99	0	1006599..1008509	+	636	125623876	bglP	llmg_1045	-	PTS system, beta-glucosides specific enzyme IIABC
995	 35.77	0	1008557..1009993	+	478	125623877	bglH	llmg_1046	-	beta-glucosidase
996	 36.88	0	1010159..1010779	+	206	125623878	busR	llmg_1047	-	transcriptional repressor BusR
997	 36.93	0	1010991..1012214	+	407	125623879	busAA	llmg_1048	-	glycine betaine/proline ABC transporter
998	 36.82	0	1012207..1013928	+	573	125623880	busAB	llmg_1049	-	glycine betaine-binding periplasmic protein precursor
999	 36.26	0	1014118..1014288	+	56	125623881	-	llmg_1050	-	hypothetical protein
1000	 35.76	0	1014345..1014920	-	191	125623882	-	llmg_1051	-	transcription regulator
1001	 36.78	0	1015186..1016259	+	357	125623883	-	llmg_1052	-	hypothetical protein
1002	 32.85	0	1016260..1016466	+	68	125623884	-	llmg_1053	-	hypothetical protein
1003	 38.86	0	1016490..1017032	+	180	125623885	-	llmg_1054	-	hypothetical protein
1004	 27.06	-2	1017062..1017364	+	100	125623886	-	llmg_1055	-	transcriptional regulator
1005	 35.13	0	1017646..1018590	+	314	125623887	-	llmg_1056	-	cation transporter
1006	 28.94	-1	1018644..1019075	+	143	125623888	-	llmg_1057	-	phosphate-starvation-inducible protein PsiE
1007	 33.66	0	1019146..1020066	-	306	125623889	coaA	llmg_1058	-	pantothenate kinase
1008	 35.34	0	1020255..1020851	+	198	125623890	rsmC	llmg_1059	-	ribosomal RNA small subunit methyltransferase C
1009	 39.83	+1	1020886..1022178	+	430	125623891	pdp	llmg_1060	-	pyrimidine-nucleoside phosphorylase
1010	 31.22	-1	1022180..1022368	+	62	125623892	-	llmg_1061	-	hypothetical protein
1011	 38.31	0	1022381..1023043	+	220	125623893	deoC	llmg_1062	-	DeoC protein
1012	 39.69	+1	1023030..1023422	+	130	125623894	cdd	llmg_1063	-	Cdd protein
1013	 39.02	0	1023690..1024745	+	351	125623895	bmpA	llmg_1064	-	basic membrane protein A
1014	 37.15	0	1024931..1025638	+	235	125623896	rgrB	llmg_1065	-	GntR family transcriptional regulator
1015	 37.19	0	1025646..1026086	-	146	125623897	-	llmg_1066	-	hypothetical protein
1016	 34.36	0	1026184..1027737	-	517	125623898	kinB	llmg_1067	-	sensor protein kinase kinB
1017	 33.61	0	1027727..1028437	-	236	125623899	llrB	llmg_1068	-	two-component system regulator llrB
1018	 33.04	0	1028621..1028956	+	111	125623900	-	llmg_1069	-	hypothetical protein
1019	 35.22	0	1029743..1030273	+	176	125623901	-	llmg_1070	-	putative secreted protein
1020	 33.33	0	1030384..1030953	+	189	125623902	-	llmg_1071	-	hypothetical protein
1021	 37.80	0	1031842..1032132	+	96	125623903	-	llmg_1072	-	hypothetical protein
1022	 40.31	+1	1032228..1032944	+	238	125623904	-	llmg_1073	-	transposase for insertion sequence element IS904E (fragment)
1023	 35.84	0	1032985..1033743	-	252	125623905	-	llmg_1074	-	putative transposase helper protein for IS712E
1024	 39.87	+1	1033755..1034978	-	407	125623906	tnp712	llmg_1075	-	transposase for insertion sequence element IS712E
1025	 35.87	0	1035285..1035836	-	183	125623907	-	llmg_1076	-	putative acetyltransferase
1026	 34.99	0	1036203..1036625	+	140	125623908	-	llmg_1077	-	putative glyoxalase family protein
1027	 33.52	0	1036771..1037319	+	182	125623909	-	llmg_1078	-	hypothetical protein
1028	 32.18	-1	1037518..1037865	-	115	125623910	-	llmg_1079	-	hypothetical protein
35.99	MEAN

3.62	STD DEV
