IslandPathversion 1.0

IslandPath Analysis: Lactococcus lactis subsp. cremoris MG1363

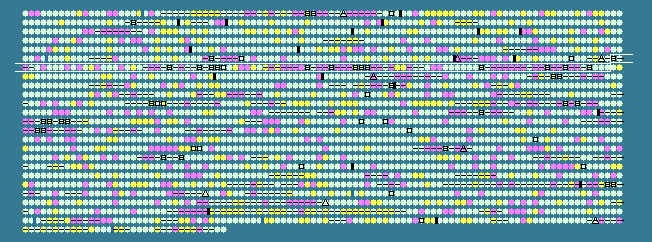

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.99 STD DEV: 3.62
Lactococcus lactis subsp. cremoris MG1363, complete genome - 1..2529478
2434 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
599	 36.31	0	610648..611487	-	279	125623481	tnp981	llmg_0621	-	transposase for insertion sequence element IS981B
600	 36.78	0	611499..611759	-	86	125623482	-	llmg_0622	-	hypothetical protein
601	 27.75	-2	611839..612519	+	226	125623483	abiP	llmg_0623	-	abortive phage resistance protein abiP
602	 33.33	0	613053..613724	-	223	125623484	-	llmg_0624	-	ABC transporter ATP-binding protein
603	 33.89	0	613726..614799	-	357	125623485	-	llmg_0625	-	ABC transporter permease
604	 31.58	-1	614811..615380	-	189	125623486	-	llmg_0626	-	putative transcriptional regulator
605	 38.45	0	615570..617093	-	507	125623487	fadD	llmg_0627	-	long-chain acyl-CoA synthetase
606	 33.77	0	617287..618204	+	305	125623488	-	llmg_0628	-	divalent cation transport-related protein
607	 38.16	0	618464..620827	+	787	125623489	pfl	llmg_0629	-	formate acetyltransferase
608	 32.42	0	620956..621615	+	219	125623490	coaE	llmg_0630	-	dephospho-CoA kinase
609	 38.59	0	621618..622835	+	405	125623491	pmrA	llmg_0631	-	multidrug resistance efflux pump
610	 30.61	-1	622832..622978	+	48	125623492	rpmG	llmg_0632	-	50S ribosomal protein L33
611	 35.87	0	623355..624617	+	420	125623493	ftsW1	llmg_0633	-	cell division protein ftsW1
612	 39.54	0	624722..628135	+	1137	125623494	pycA	llmg_0634	-	pyruvate carboxylase
613	 32.35	-1	628261..629586	+	441	125623495	gltA	llmg_0635	-	methylcitrate synthase
614	 34.71	0	629583..632129	+	848	125623496	citB	llmg_0636	-	aconitate hydratase
615	 35.67	0	632149..633387	+	412	125623497	icd	llmg_0637	-	isocitrate dehydrogenase
616	 38.67	0	633447..634046	-	199	125623498	clpP	llmg_0638	-	ATP-dependent Clp protease proteolytic subunit
617	 29.38	-1	634242..634772	+	176	125623499	-	llmg_0639	-	hypothetical protein
618	 36.09	0	634943..635341	+	132	125623500	spxA	llmg_0640	-	transcriptional regulator Spx
619	 42.22	+1	635494..635628	-	44	125623501	-	llmg_0641	-	putative secreted protein
620	 33.16	0	635725..636888	-	387	125623502	-	llmg_0642	-	hypothetical protein
621	 35.40	0	637215..639971	+	918	125623503	pacL	llmg_0643	-	cation transporter E1-E2 family ATPase
622	 30.83	-1	640489..640968	+	159	125623504	-	llmg_0644	-	hypothetical protein
623	 31.83	-1	640986..641516	+	176	125623505	-	llmg_0645	-	hypothetical protein
624	 33.42	0	641521..642735	+	404	125623506	icaA	llmg_0646	-	intercellular adhesion protein A
625	 36.19	0	643149..643988	-	279	125623507	tnp981	llmg_0647	-	transposase for insertion sequence element IS981C
626	 37.16	0	644000..644260	-	86	125623508	-	llmg_0648	-	hypothetical protein
627	 32.00	-1	644291..645115	+	274	125623509	icaB	llmg_0649	-	intercellular adhesion protein icaB
628	 36.30	0	645202..646551	-	449	125623510	brnQ	llmg_0650	-	branched chain amino acid ABC transporter carrier protein
629	 32.97	0	646767..647039	-	90	125623511	-	llmg_0651	-	putative acetyltransferase
630	 38.98	0	647207..647968	-	253	125623512	-	llmg_0652	-	transposase for insertion sequence element IS904C
631	 33.99	0	648202..648354	-	50	125623513	-	llmg_0653	-	hypothetical protein
632	 34.62	0	648490..649110	-	206	125623514	-	llmg_0654	-	transposase for insertion sequence element IS-LL6B
633	 38.41	0	649272..649547	-	91	125623515	-	llmg_0655	-	transposase
634	 38.38	0	649642..650532	-	296	125623516	tnp982	llmg_0656	-	transposase for insertion sequence element IS982B
635	 37.87	0	650883..654059	+	1058	125623517	hsdR	llmg_0658	-	type I restriction-modification system restriction subunit
636	 39.87	+1	654041..655678	+	545	125623518	hsdM	llmg_0659	-	putative type I site-specific deoxyribonuclease
637	 31.02	-1	655644..656894	+	416	125623519	hsdS	llmg_0660	-	specificity determinant HsdS
638	 31.97	-1	657080..658030	+	316	125623520	-	llmg_0661	-	CorA like magnesium and cobalt transport protein
639	 46.60	+2	659931..660578	+	215	125623521	pcp	llmg_0663	-	pyrrolidone-carboxylate peptidase
640	 35.67	0	660769..661965	-	398	125623522	amd	llmg_0664	-	amidase/aminoacylase
641	 40.65	+1	663030..664286	+	418	125623523	oxlT	llmg_0666	-	oxalate/formate antiporter
642	 30.19	-1	665114..665431	+	105	125623524	-	llmg_0668	-	hypothetical protein
643	 45.75	+2	665705..665857	-	50	125623525	-	llmg_0669	-	hypothetical protein
644	 28.38	-2	665908..666210	-	100	125623526	-	llmg_0670	-	hypothetical protein
645	 31.64	-1	666207..666383	-	58	125623527	-	llmg_0671	-	hypothetical protein
646	 24.51	-2	666858..666959	+	33	125623528	-	llmg_0672	-	hypothetical protein
647	 28.48	-2	666946..667563	-	205	125623529	-	llmg_0673	-	hypothetical protein
648	 38.47	0	667840..668520	-	226	125623530	tnp1297	llmg_0674	-	transposase for insertion sequence element IS1297
649	 37.92	0	668849..669088	+	79	125623531	-	llmg_0675	-	hypothetical protein
650	 31.12	-1	669248..669745	-	165	125623532	-	llmg_0676	-	acetyltransferase
651	 26.29	-2	670033..670245	+	70	125623533	-	llmg_0677	-	putative secreted protein
652	 36.78	0	671109..671369	-	86	125623534	-	llmg_0678	-	putative transposase helper protein for IS981
653	 25.00	-2	671499..671690	+	63	125623535	-	llmg_0679	-	hypothetical protein
654	 27.68	-2	671742..671918	+	58	125623536	-	llmg_0680	-	hypothetical protein
655	 30.86	-1	672065..672550	+	161	125623537	-	llmg_0681	-	hypothetical protein
656	 39.95	+1	672799..674022	+	407	125623538	tnp712	llmg_0682	-	transposase for insertion sequence element IS712B
657	 35.84	0	674034..674792	+	252	125623539	-	llmg_0683	-	putative transposase helper protein for IS712B
658	 36.55	0	675028..675867	+	279	125623540	tnp981	llmg_0684	-	transposase for insertion sequence element IS981E
659	 28.57	-2	676555..676701	+	48	125623541	-	llmg_0685	-	hypothetical protein
660	 32.27	-1	677108..677389	+	93	125623542	-	llmg_0686	-	hypothetical protein
661	 32.74	0	677973..678140	+	55	125623543	-	llmg_0687	-	hypothetical protein
662	 28.38	-2	678147..678449	+	100	125623544	-	llmg_0688	-	hypothetical protein
663	 40.31	+1	678500..678628	+	42	125623545	-	llmg_0689	-	hypothetical protein
664	 40.58	+1	678701..680563	+	620	125623546	-	llmg_0690	-	heavy metal-(Cd/Co/Hg/Pb/Zn)-translocating P-type ATPase
665	 32.32	-1	680949..681047	+	32	125623547	-	llmg_0691	-	hypothetical protein
666	 35.53	0	681269..681496	+	75	125623548	-	llmg_0692	-	hypothetical protein
667	 36.43	0	681542..682090	+	182	125623549	-	llmg_0693	-	putative stress induced DNA binding protein
668	 37.54	0	682176..682865	+	229	125623550	flpB	llmg_0694	-	transcriptional regulator FNR like protein B
669	 28.68	-2	683191..683319	+	42	125623551	-	llmg_0695	-	hypothetical protein
670	 25.86	-2	683306..683479	-	57	125623552	-	llmg_0696	-	hypothetical protein
671	 37.17	0	683542..684558	+	338	125623553	oppD	llmg_0697	-	oligopeptide transport ATP-binding protein oppD
672	 35.31	0	684555..685514	+	319	125623554	oppF	llmg_0698	-	oligopeptide transport ATP-binding protein oppF
673	 38.02	0	685495..686454	+	319	125623555	oppB	llmg_0699	-	peptide transport system permease protein oppB
674	 36.72	0	686464..687348	+	294	125623556	oppC	llmg_0700	-	oligopeptide transport system permease protein oppC
675	 36.88	0	687458..689260	+	600	125623557	oppA	llmg_0701	-	oligopeptide-binding protein oppA precursor
676	 34.87	0	689385..691268	+	627	125623558	pepO	llmg_0702	-	endopeptidase O
677	 33.94	0	691571..692890	+	439	125623559	tnp1675	llmg_0703	-	putative transposase
678	 36.27	0	693318..693521	+	67	125623560	-	llmg_0704	-	hypothetical protein
679	 26.85	-2	693514..693837	+	107	125623561	-	llmg_0705	-	hypothetical protein
680	 30.50	-1	694246..694527	+	93	125623562	-	llmg_0706	-	hypothetical protein
681	 28.93	-1	694698..695015	-	105	125623563	-	llmg_0707	-	hypothetical protein
682	 30.07	-1	694993..695268	-	91	125623564	-	llmg_0708	-	hypothetical protein
683	 32.46	0	695498..695842	+	114	125623565	-	llmg_0709	-	PadR-like family transcriptional regulator
684	 30.31	-1	695839..696666	+	275	125623566	-	llmg_0710	-	hypothetical protein
685	 36.58	0	696901..697455	+	184	125623567	tnpR	llmg_0711	-	DNA-invertase/resolvase
686	 31.68	-1	697799..698404	-	201	125623568	-	llmg_0712	-	hypothetical protein
687	 30.00	-1	698417..698596	-	59	125623569	-	llmg_0713	-	hypothetical protein
688	 35.95	0	698693..699532	-	279	125623570	tnp981	llmg_0714	-	transposase for insertion sequence element IS981F
689	 32.37	0	699794..700417	+	207	125623571	-	llmg_0715	-	hypothetical protein
690	 30.21	-1	700636..700923	+	95	125623572	-	llmg_0716	-	hypothetical protein
691	 38.03	0	701028..701708	-	226	125623573	tnp946	llmg_0717	-	transposase for insertion sequence element IS946
692	 29.51	-1	702975..703628	+	217	125623574	-	llmg_0718	-	putative nucleotide binding protein
693	 29.29	-1	703621..704781	+	386	125623575	-	llmg_0719	-	ABC transporter substrate-binding protein
694	 37.16	0	704818..705078	+	86	125623576	-	llmg_0720	-	hypothetical protein
695	 36.55	0	705090..705929	+	279	125623577	tnp981	llmg_0721	-	transposase for insertion sequence element IS981G
696	 38.84	0	706170..707441	-	423	125623578	serS	llmg_0722	-	seryl-tRNA synthetase
697	 36.11	0	707840..708199	-	119	125623579	-	llmg_0724	-	hypothetical protein
698	 36.35	0	708350..709045	+	231	125623580	-	llmg_0725	-	hypothetical protein
35.99	MEAN

3.62	STD DEV
