IslandPath Analysis: Lactococcus lactis subsp. cremoris MG1363

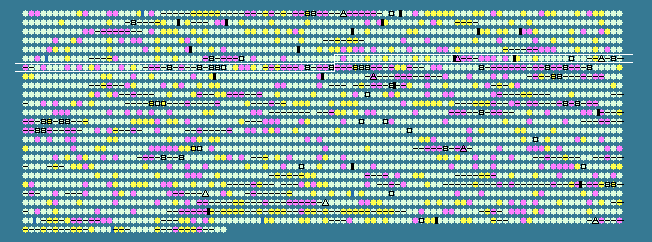

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.99 STD DEV: 3.62
Lactococcus lactis subsp. cremoris MG1363, complete genome - 1..2529478
2434 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
553	 34.10	0	562315..562704	-	129	125623435	-	llmg_0571	-	hypothetical protein
554	 31.32	-1	563010..563357	+	115	125623436	-	llmg_0572	-	MerR family transcriptional regulator
555	 35.78	0	563371..563697	+	108	125623437	-	llmg_0573	-	hypothetical protein
556	 38.74	0	563889..564332	-	147	125623438	fld	llmg_0574	-	flavodoxin
557	 34.44	0	566198..566827	+	209	125623439	-	llmg_0576	-	TetR family transcriptional regulator
558	 41.17	+1	567107..567961	+	284	125623440	pepM	llmg_0577	-	methionine aminopeptidase
559	 32.78	0	567981..568886	+	301	125623441	-	llmg_0578	-	putative tRNA-processing ribonuclease BN
560	 33.11	0	568989..569435	-	148	125623442	-	llmg_0579	-	hypothetical protein
561	 40.11	+1	569967..570143	+	58	125623443	-	llmg_0581	-	hypothetical protein
562	 39.44	0	570276..571208	+	310	125623444	ptsK	llmg_0582	-	HPr kinase/phosphorylase
563	 36.77	0	571270..572055	+	261	125623445	lgt	llmg_0583	-	prolipoprotein diacylglyceryl transferase
564	 38.33	0	572222..572641	+	139	125623446	-	llmg_0584	-	hypothetical protein
565	 33.87	0	572671..573231	+	186	125623447	-	llmg_0585	-	hypothetical protein
566	 39.82	+1	573365..574783	+	472	125623448	gnd	llmg_0586	-	6-phosphogluconate dehydrogenase
567	 37.65	0	577201..579216	+	671	125623449	kupB	llmg_0588	-	putative potassium transport system protein kupB
568	 40.94	+1	579269..579439	-	56	125623450	-	llmg_0589	-	hypothetical protein
569	 37.84	0	579634..580299	+	221	125623451	-	llmg_0590	-	hypothetical protein
570	 37.18	0	580430..581314	+	294	125623452	miaA	llmg_0591	-	tRNA delta(2)-isopentenylpyrophosphate transferase
571	 34.98	0	581460..582128	+	222	125623453	-	llmg_0592	-	hypothetical protein
572	 37.54	0	582293..583195	+	300	125623454	-	llmg_0593	-	prohibitin/stomatin like protein
573	 31.47	-1	583444..584460	-	338	125623455	ps201	llmg_0594	-	phage integrase
574	 27.24	-2	584681..585172	-	163	125623456	ps202	llmg_0595	-	hypothetical protein
575	 28.10	-2	585448..585657	-	69	125623457	ps203	llmg_0596	-	hypothetical protein
576	 33.33	0	585725..585976	-	83	125623458	ps204	llmg_0597	-	hypothetical protein
577	 25.14	-2	586213..586395	-	60	125623459	ps205	llmg_0598	-	cI-like repressor
578	 28.11	-2	586683..588290	+	535	125623460	-	llmg_0599	-	hypothetical protein
579	 31.84	-1	588208..589146	+	312	125623461	-	llmg_0600	-	glycosyl transferase
580	 38.01	0	589412..589903	-	163	125623462	-	llmg_0601	-	putative secreted protein
581	 30.93	-1	589916..590290	-	124	125623463	-	llmg_0602	-	hypothetical protein
582	 33.62	0	590635..590982	-	115	125623464	-	llmg_0603	-	HTH-type transcriptional regulator
583	 40.04	+1	591748..592671	+	307	125623465	-	llmg_0604	-	ribonuclease Z
584	 34.53	0	592616..593365	+	249	125623466	-	llmg_0605	-	oxidoreductase
585	 37.15	0	593538..595766	+	742	125623467	recJ	llmg_0606	-	single strand DNA-specific exonuclease
586	 40.35	+1	595890..596402	+	170	125623468	apt	llmg_0607	-	adenine phosphoribosyltransferase
587	 36.33	0	596618..597184	+	188	125623469	rpoE	llmg_0608	-	DNA-directed RNA polymerase delta chain
588	 35.41	0	597323..598960	+	545	125623470	pabC	llmg_0609	-	putative aminodeoxychorismate lyase
589	 35.46	0	599021..599491	+	156	125623471	greA	llmg_0610	-	transcription elongation factor greA
590	 36.02	0	599583..600140	+	185	125623472	-	llmg_0611	-	hypothetical protein
591	 37.80	0	601031..601321	+	96	125623473	-	llmg_0612	-	hypothetical protein
592	 38.98	0	601417..602178	+	253	125623474	-	llmg_0613	-	transposase for insertion sequence element IS904B
593	 36.40	0	602409..602864	+	151	125623475	ctsR	llmg_0614	-	transcriptional regulator ctsR
594	 38.60	0	602854..605304	+	816	125623476	clpC	llmg_0615	-	ATP-dependent Clp protease ATP-binding subunit
595	 37.99	0	605439..605996	+	185	125623477	yfiA	llmg_0616	-	putative sigma 54 modulation protein
596	 42.63	+1	606184..607485	+	433	125623478	eno	llmg_0617	-	phosphopyruvate hydratase
597	 33.65	0	607574..608509	+	311	125623479	xerD	llmg_0618	-	integrase-recombinase
598	 32.54	0	608636..609268	+	210	125623480	-	llmg_0619	-	putative secreted protein
599	 36.31	0	610648..611487	-	279	125623481	tnp981	llmg_0621	-	transposase for insertion sequence element IS981B
600	 36.78	0	611499..611759	-	86	125623482	-	llmg_0622	-	hypothetical protein
601	 27.75	-2	611839..612519	+	226	125623483	abiP	llmg_0623	-	abortive phage resistance protein abiP
602	 33.33	0	613053..613724	-	223	125623484	-	llmg_0624	-	ABC transporter ATP-binding protein
603	 33.89	0	613726..614799	-	357	125623485	-	llmg_0625	-	ABC transporter permease
604	 31.58	-1	614811..615380	-	189	125623486	-	llmg_0626	-	putative transcriptional regulator
605	 38.45	0	615570..617093	-	507	125623487	fadD	llmg_0627	-	long-chain acyl-CoA synthetase
606	 33.77	0	617287..618204	+	305	125623488	-	llmg_0628	-	divalent cation transport-related protein
607	 38.16	0	618464..620827	+	787	125623489	pfl	llmg_0629	-	formate acetyltransferase
608	 32.42	0	620956..621615	+	219	125623490	coaE	llmg_0630	-	dephospho-CoA kinase
609	 38.59	0	621618..622835	+	405	125623491	pmrA	llmg_0631	-	multidrug resistance efflux pump
610	 30.61	-1	622832..622978	+	48	125623492	rpmG	llmg_0632	-	50S ribosomal protein L33
611	 35.87	0	623355..624617	+	420	125623493	ftsW1	llmg_0633	-	cell division protein ftsW1
612	 39.54	0	624722..628135	+	1137	125623494	pycA	llmg_0634	-	pyruvate carboxylase
613	 32.35	-1	628261..629586	+	441	125623495	gltA	llmg_0635	-	methylcitrate synthase
614	 34.71	0	629583..632129	+	848	125623496	citB	llmg_0636	-	aconitate hydratase
615	 35.67	0	632149..633387	+	412	125623497	icd	llmg_0637	-	isocitrate dehydrogenase
616	 38.67	0	633447..634046	-	199	125623498	clpP	llmg_0638	-	ATP-dependent Clp protease proteolytic subunit
617	 29.38	-1	634242..634772	+	176	125623499	-	llmg_0639	-	hypothetical protein
618	 36.09	0	634943..635341	+	132	125623500	spxA	llmg_0640	-	transcriptional regulator Spx
619	 42.22	+1	635494..635628	-	44	125623501	-	llmg_0641	-	putative secreted protein
620	 33.16	0	635725..636888	-	387	125623502	-	llmg_0642	-	hypothetical protein
621	 35.40	0	637215..639971	+	918	125623503	pacL	llmg_0643	-	cation transporter E1-E2 family ATPase
622	 30.83	-1	640489..640968	+	159	125623504	-	llmg_0644	-	hypothetical protein
623	 31.83	-1	640986..641516	+	176	125623505	-	llmg_0645	-	hypothetical protein
624	 33.42	0	641521..642735	+	404	125623506	icaA	llmg_0646	-	intercellular adhesion protein A
625	 36.19	0	643149..643988	-	279	125623507	tnp981	llmg_0647	-	transposase for insertion sequence element IS981C
626	 37.16	0	644000..644260	-	86	125623508	-	llmg_0648	-	hypothetical protein
627	 32.00	-1	644291..645115	+	274	125623509	icaB	llmg_0649	-	intercellular adhesion protein icaB
628	 36.30	0	645202..646551	-	449	125623510	brnQ	llmg_0650	-	branched chain amino acid ABC transporter carrier protein
629	 32.97	0	646767..647039	-	90	125623511	-	llmg_0651	-	putative acetyltransferase
630	 38.98	0	647207..647968	-	253	125623512	-	llmg_0652	-	transposase for insertion sequence element IS904C
631	 33.99	0	648202..648354	-	50	125623513	-	llmg_0653	-	hypothetical protein
632	 34.62	0	648490..649110	-	206	125623514	-	llmg_0654	-	transposase for insertion sequence element IS-LL6B
633	 38.41	0	649272..649547	-	91	125623515	-	llmg_0655	-	transposase
634	 38.38	0	649642..650532	-	296	125623516	tnp982	llmg_0656	-	transposase for insertion sequence element IS982B
635	 37.87	0	650883..654059	+	1058	125623517	hsdR	llmg_0658	-	type I restriction-modification system restriction subunit
636	 39.87	+1	654041..655678	+	545	125623518	hsdM	llmg_0659	-	putative type I site-specific deoxyribonuclease
637	 31.02	-1	655644..656894	+	416	125623519	hsdS	llmg_0660	-	specificity determinant HsdS
638	 31.97	-1	657080..658030	+	316	125623520	-	llmg_0661	-	CorA like magnesium and cobalt transport protein
639	 46.60	+2	659931..660578	+	215	125623521	pcp	llmg_0663	-	pyrrolidone-carboxylate peptidase
640	 35.67	0	660769..661965	-	398	125623522	amd	llmg_0664	-	amidase/aminoacylase
641	 40.65	+1	663030..664286	+	418	125623523	oxlT	llmg_0666	-	oxalate/formate antiporter
642	 30.19	-1	665114..665431	+	105	125623524	-	llmg_0668	-	hypothetical protein
643	 45.75	+2	665705..665857	-	50	125623525	-	llmg_0669	-	hypothetical protein
644	 28.38	-2	665908..666210	-	100	125623526	-	llmg_0670	-	hypothetical protein
645	 31.64	-1	666207..666383	-	58	125623527	-	llmg_0671	-	hypothetical protein
646	 24.51	-2	666858..666959	+	33	125623528	-	llmg_0672	-	hypothetical protein
647	 28.48	-2	666946..667563	-	205	125623529	-	llmg_0673	-	hypothetical protein
648	 38.47	0	667840..668520	-	226	125623530	tnp1297	llmg_0674	-	transposase for insertion sequence element IS1297
649	 37.92	0	668849..669088	+	79	125623531	-	llmg_0675	-	hypothetical protein
650	 31.12	-1	669248..669745	-	165	125623532	-	llmg_0676	-	acetyltransferase
651	 26.29	-2	670033..670245	+	70	125623533	-	llmg_0677	-	putative secreted protein
652	 36.78	0	671109..671369	-	86	125623534	-	llmg_0678	-	putative transposase helper protein for IS981
35.99	MEAN

3.62	STD DEV
