IslandPathversion 1.0

IslandPath Analysis: Lactococcus lactis subsp. cremoris MG1363

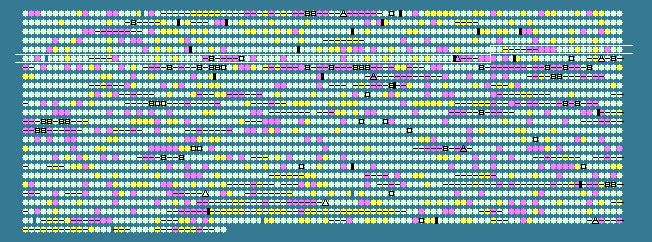

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.99 STD DEV: 3.62
Lactococcus lactis subsp. cremoris MG1363, complete genome - 1..2529478
2434 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
479	 39.39	0	488285..489505	+	406	125623361	nagZ	llmg_0494	-	putative beta-N-acetylglucosaminidase
480	 33.33	0	489514..490170	+	218	125623362	-	llmg_0495	-	hypothetical protein
481	 39.49	0	490275..490550	+	91	125623363	hllA	llmg_0496	-	HU-like DNA-binding protein
482	 32.73	0	490661..491158	-	165	125623364	-	llmg_0497	-	hypothetical protein
483	 34.12	0	491341..491850	+	169	125623365	ogt	llmg_0498	-	6-O-methylguanine-DNA methyltransferase
484	 34.06	0	491865..492413	+	182	125623366	adaA	llmg_0499	-	methylphosphotriester-DNA alkyltransferase
485	 31.59	-1	492425..493228	+	267	125623367	nhoA	llmg_0500	-	arylamine N-acetyltransferase 2
486	 30.62	-1	493375..494184	+	269	125623368	-	llmg_0501	-	ABC transporter ATP binding protein
487	 31.40	-1	494181..494906	+	241	125623369	-	llmg_0502	-	ABC transporter permease protein
488	 29.19	-1	494968..495426	+	152	125623370	-	llmg_0503	-	LytR family transcriptional regulator
489	 29.89	-1	495423..495800	+	125	125623371	-	llmg_0504	-	hypothetical protein
490	 38.48	0	495909..497054	+	381	125623372	nifZ	llmg_0505	-	pyridoxal-phosphate dependent aminotransferase
491	 35.49	0	497205..498083	+	292	125623373	-	llmg_0506	-	hypothetical protein
492	 37.33	0	498140..499789	-	549	125623374	-	llmg_0507	-	peptide binding protein
493	 41.91	+1	499981..500913	-	310	125623375	-	llmg_0508	-	cysteine synthase
494	 39.23	0	501132..502217	+	361	125623376	acmD	llmg_0509	-	N-acetylglucosaminidase
495	 36.97	0	502253..502885	-	210	125623377	-	llmg_0510	-	Zn-dependent hydrolase
496	 39.72	+1	502886..504967	-	693	125623378	ponA	llmg_0511	-	penicillin-binding protein 1a
497	 35.98	0	504954..505595	-	213	125623379	recU	llmg_0512	-	Holliday junction-specific endonuclease
498	 29.90	-1	505676..506200	+	174	125623380	-	llmg_0513	-	hypothetical protein
499	 37.31	0	506345..506746	+	133	125623381	-	llmg_0514	-	hypothetical protein
500	 36.52	0	506967..507248	+	93	125623382	-	llmg_0515	-	hypothetical protein
501	 33.99	0	507232..507993	+	253	125623383	suhB	llmg_0516	-	putative myo-inositol-1(or 4)-monophosphatase
502	 39.27	0	508088..509368	+	426	125623384	murA2	llmg_0517	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
503	 30.21	-1	509368..509559	+	63	125623385	-	llmg_0518	-	hypothetical protein
504	 36.99	0	509736..511019	+	427	125623386	tig	llmg_0519	-	trigger factor
505	 34.90	0	517878..519791	+	637	125623387	dnaG	llmg_0520	-	DNA primase
506	 38.32	0	519868..521211	+	447	125623388	rpoD	llmg_0521	-	RNA polymerase sigma factor RpoD
507	 33.74	0	521309..522052	+	247	125623389	-	llmg_0522	-	putative transcriptional regulator
508	 40.29	+1	522209..523588	+	459	125623390	glpT	llmg_0523	-	glycerol-3-phosphatase transporter
509	 35.49	0	523744..524346	+	200	125623391	-	llmg_0524	-	hypothetical protein
510	 35.90	0	524418..524612	+	64	125623392	-	llmg_0525	-	hypothetical protein
511	 33.33	0	524622..525887	+	421	125623393	-	llmg_0526	-	hypothetical protein
512	 34.20	0	526116..526460	+	114	125623394	-	llmg_0527	-	hypothetical protein
513	 38.81	0	526506..528752	+	748	125623395	clpE	llmg_0528	-	ATP-dependent Clp protease ATP-binding subunit clpE
514	 38.43	0	528887..529357	-	156	125623396	-	llmg_0529	-	putative transcriptional regulator
515	 40.04	+1	529583..530596	+	337	125623397	gapA	llmg_0530	-	glyceraldehyde 3-phosphate dehydrogenase
516	 30.51	-1	530629..530805	-	58	125623398	-	llmg_0531	-	hypothetical protein
517	 39.47	0	530821..531456	-	211	125623399	def	llmg_0532	-	peptide deformylase
518	 33.11	0	531611..532066	+	151	125623400	nudH	llmg_0533	-	dinucleoside polyphosphate hydrolase
519	 39.11	0	532077..534155	+	692	125623401	uvrB	llmg_0534	-	excinuclease ABC subunit B
520	 33.09	0	534338..535159	+	273	125623402	gltS	llmg_0535	-	arginine-binding periplasmic protein 1 precursor
521	 37.43	0	535174..536295	+	373	125623403	argE	llmg_0536	-	acetylornithine deacetylase
522	 36.62	0	536347..536802	-	151	125623404	-	llmg_0538	-	(3R)-hydroxymyristoyl-(acyl-carrier-protein) dehydratase
523	 40.11	+1	537078..537830	+	250	125623405	fabI	llmg_0539	-	enoyl-(acyl carrier protein) reductase
524	 38.42	0	538093..539055	-	320	125623406	oxaA2	llmg_0540	-	OxaA-like protein precursor
525	 36.23	0	539230..539988	-	252	125623407	pgmA	llmg_0541	-	alpha-phosphoglucomutase
526	 40.61	+1	540083..540673	-	196	125623408	-	llmg_0542	-	hypothetical protein
527	 37.06	0	540690..541226	-	178	125623409	dfpA	llmg_0543	-	phosphopantothenoylcysteine decarboxylase
528	 36.06	0	541219..541914	-	231	125623410	dfpB	llmg_0544	-	phosphopantothenate--cysteine ligase
529	 36.56	0	542061..542246	-	61	125623411	xylH	llmg_0546	-	4-oxalocrotonate tautomerase
530	 35.74	0	542442..544769	+	775	125623412	ctpE	llmg_0547	-	cation transporter E1-E2 family ATPase
531	 29.76	-1	544801..544968	+	55	125623413	-	llmg_0548	-	hypothetical protein
532	 36.31	0	545001..545840	-	279	125623414	tnp981	llmg_0549	-	transposase for insertion sequence element IS981A
533	 36.78	0	545852..546112	-	86	125623415	-	llmg_0550	-	hypothetical protein
534	 31.83	-1	546237..546833	+	198	125623416	-	llmg_0551	-	hypothetical protein
535	 32.49	0	546982..547338	+	118	125623417	-	llmg_0552	-	putative glyoxylase
536	 28.77	-1	547560..547844	+	94	125623418	-	llmg_0553	-	hypothetical protein
537	 39.20	0	548155..549330	-	391	125623419	tnp905	llmg_0554	-	transposase for insertion sequence element IS905B
538	 35.96	0	549717..550286	+	189	125623420	tdk	llmg_0555	-	thymidine kinase
539	 31.98	-1	550297..550740	+	147	125623421	-	llmg_0556	-	hypothetical protein
540	 37.34	0	550758..551831	+	357	125623422	prfA	llmg_0557	-	peptide chain release factor 1
541	 36.36	0	551831..552358	+	175	125623423	-	llmg_0558	-	hypothetical protein
542	 37.83	0	552428..553183	+	251	125623424	-	llmg_0559	-	NADPH-flavin oxidoreductase
543	 34.69	0	553288..554100	+	270	125623425	hemK	llmg_0560	-	putative protoporphyrinogen oxidase
544	 27.53	-2	554134..554598	+	154	125623426	-	llmg_0561	-	putative acetyltransferase
545	 34.53	0	554595..555515	+	306	125623427	-	llmg_0562	-	putative translation factor
546	 39.10	0	555748..556995	+	415	125623428	glyA	llmg_0563	-	serine hydroxymethyltransferase
547	 35.16	0	557176..557778	+	200	125623429	-	llmg_0564	-	putative soluble lytic murein transglycosylase
548	 34.70	0	557905..559002	+	365	125623430	serC	llmg_0565	-	phosphoserine aminotransferase
549	 37.18	0	558999..560195	+	398	125623431	serA	llmg_0566	-	D-3-phosphoglycerate dehydrogenase
550	 38.76	0	560241..560903	+	220	125623432	serB	llmg_0567	-	SerB protein
551	 38.10	0	560940..561233	-	97	125623433	-	llmg_0568	-	putative acylphosphate phosphohydrolase
552	 36.76	0	561345..562103	+	252	125623434	spoU	llmg_0570	-	rRNA methyltransferase
553	 34.10	0	562315..562704	-	129	125623435	-	llmg_0571	-	hypothetical protein
554	 31.32	-1	563010..563357	+	115	125623436	-	llmg_0572	-	MerR family transcriptional regulator
555	 35.78	0	563371..563697	+	108	125623437	-	llmg_0573	-	hypothetical protein
556	 38.74	0	563889..564332	-	147	125623438	fld	llmg_0574	-	flavodoxin
557	 34.44	0	566198..566827	+	209	125623439	-	llmg_0576	-	TetR family transcriptional regulator
558	 41.17	+1	567107..567961	+	284	125623440	pepM	llmg_0577	-	methionine aminopeptidase
559	 32.78	0	567981..568886	+	301	125623441	-	llmg_0578	-	putative tRNA-processing ribonuclease BN
560	 33.11	0	568989..569435	-	148	125623442	-	llmg_0579	-	hypothetical protein
561	 40.11	+1	569967..570143	+	58	125623443	-	llmg_0581	-	hypothetical protein
562	 39.44	0	570276..571208	+	310	125623444	ptsK	llmg_0582	-	HPr kinase/phosphorylase
563	 36.77	0	571270..572055	+	261	125623445	lgt	llmg_0583	-	prolipoprotein diacylglyceryl transferase
564	 38.33	0	572222..572641	+	139	125623446	-	llmg_0584	-	hypothetical protein
565	 33.87	0	572671..573231	+	186	125623447	-	llmg_0585	-	hypothetical protein
566	 39.82	+1	573365..574783	+	472	125623448	gnd	llmg_0586	-	6-phosphogluconate dehydrogenase
567	 37.65	0	577201..579216	+	671	125623449	kupB	llmg_0588	-	putative potassium transport system protein kupB
568	 40.94	+1	579269..579439	-	56	125623450	-	llmg_0589	-	hypothetical protein
569	 37.84	0	579634..580299	+	221	125623451	-	llmg_0590	-	hypothetical protein
570	 37.18	0	580430..581314	+	294	125623452	miaA	llmg_0591	-	tRNA delta(2)-isopentenylpyrophosphate transferase
571	 34.98	0	581460..582128	+	222	125623453	-	llmg_0592	-	hypothetical protein
572	 37.54	0	582293..583195	+	300	125623454	-	llmg_0593	-	prohibitin/stomatin like protein
573	 31.47	-1	583444..584460	-	338	125623455	ps201	llmg_0594	-	phage integrase
574	 27.24	-2	584681..585172	-	163	125623456	ps202	llmg_0595	-	hypothetical protein
575	 28.10	-2	585448..585657	-	69	125623457	ps203	llmg_0596	-	hypothetical protein
576	 33.33	0	585725..585976	-	83	125623458	ps204	llmg_0597	-	hypothetical protein
577	 25.14	-2	586213..586395	-	60	125623459	ps205	llmg_0598	-	cI-like repressor
578	 28.11	-2	586683..588290	+	535	125623460	-	llmg_0599	-	hypothetical protein
35.99	MEAN

3.62	STD DEV
