IslandPathversion 1.0

IslandPath Analysis: Lactococcus lactis subsp. cremoris MG1363

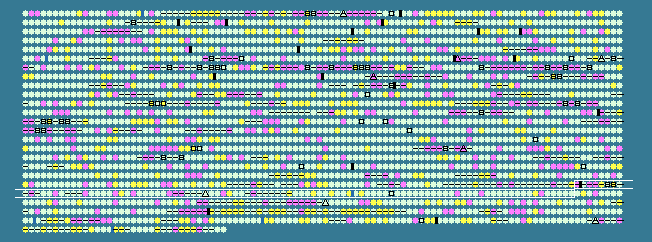

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.99 STD DEV: 3.62
Lactococcus lactis subsp. cremoris MG1363, complete genome - 1..2529478
2434 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1993	 29.90	-1	2088822..2089112	-	96	125624875	ps438	llmg_2104	-	hypothetical protein
1994	 36.32	0	2089489..2089890	-	133	125624876	ps437	llmg_2105	-	hypothetical protein
1995	 26.88	-2	2089973..2090158	-	61	125624877	ps436	llmg_2106	-	hypothetical protein
1996	 24.92	-2	2090155..2090463	-	102	125624878	ps435	llmg_2107	-	hypothetical protein
1997	 39.66	+1	2090646..2090819	-	57	125624879	ps434	llmg_2108	-	hypothetical protein
1998	 35.70	0	2090895..2091653	-	252	125624880	-	llmg_2109	-	putative transposase helper protein for IS712H
1999	 39.95	+1	2091665..2092888	-	407	125624881	tnp712	llmg_2110	-	transposase for insertion sequence element IS712H
2000	 35.24	0	2093448..2093657	+	69	125624882	ps431	llmg_2111	-	hypothetical protein
2001	 33.33	0	2093903..2094133	-	76	125624883	ps430	llmg_2112	-	no similarity
2002	 31.86	-1	2094152..2094490	-	112	125624884	ps429	llmg_2113	-	hypothetical protein
2003	 38.33	0	2094491..2094910	-	139	125624885	ps428	llmg_2114	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
2004	 34.95	0	2094907..2095464	-	185	125624886	ps427	llmg_2115	-	hypothetical protein
2005	 36.71	0	2095480..2095716	-	78	125624887	ps426	llmg_2116	-	hypothetical protein
2006	 31.31	-1	2095888..2096085	-	65	125624888	ps425	llmg_2117	-	hypothetical protein
2007	 33.71	0	2096086..2096352	-	88	125624889	ps424	llmg_2118	-	hypothetical protein
2008	 34.53	0	2096333..2096665	-	110	125624890	ps423	llmg_2119	-	hypothetical protein
2009	 36.84	0	2096680..2096964	-	94	125624891	ps422	llmg_2120	-	hypothetical protein
2010	 33.78	0	2096981..2097205	-	74	125624892	ps421	llmg_2121	-	hypothetical protein
2011	 31.67	-1	2097312..2097551	-	79	125624893	ps420	llmg_2122	-	hypothetical protein
2012	 33.87	0	2097548..2097922	-	124	125624894	ps419	llmg_2123	-	hypothetical protein
2013	 35.12	0	2097919..2098644	-	241	125624895	ps418	llmg_2124	-	hypothetical protein
2014	 33.97	0	2098644..2099426	-	260	125624896	ps417	llmg_2125	-	phage replication initiation protein
2015	 36.38	0	2099555..2099980	-	141	125624897	ps416	llmg_2126	-	single-strand binding protein ssB
2016	 31.11	-1	2099973..2100107	-	44	125624898	-	llmg_2127	-	putative translation initiation factor
2017	 41.13	+1	2100360..2100731	-	123	125624899	ps415	llmg_2128	-	putative translation initiation factor
2018	 36.62	0	2100740..2101135	-	131	125624900	ps414	llmg_2129	-	hypothetical protein
2019	 28.40	-2	2101234..2101476	-	80	125624901	ps413	llmg_2130	-	hypothetical protein
2020	 34.38	0	2101482..2101961	+	159	125624902	ps412	llmg_2131	-	hypothetical protein
2021	 34.31	0	2101954..2102157	-	67	125624903	ps411	llmg_2132	-	hypothetical protein
2022	 39.26	0	2102253..2102522	-	89	125624904	ps410	llmg_2133	-	hypothetical protein
2023	 37.15	0	2102536..2103294	-	252	125624905	ps409	llmg_2134	-	putative phage antirepressor protein
2024	 34.94	0	2103307..2103555	-	82	125624906	ps408	llmg_2135	-	putative Cro repressor
2025	 29.96	-1	2103660..2103896	+	78	125624907	ps407	llmg_2136	-	hypothetical protein
2026	 27.48	-2	2103868..2104089	-	73	125624908	ps406	llmg_2137	-	hypothetical protein
2027	 23.68	-2	2104187..2104300	+	37	125624909	ps405	llmg_2138	-	hypothetical protein
2028	 35.54	0	2104945..2105442	+	165	125624910	ps404	llmg_2139	-	cI-like repressor
2029	 34.48	0	2105448..2105882	+	144	125624911	ps403	llmg_2140	-	hypothetical protein
2030	 36.31	0	2105896..2106231	+	111	125624912	ps402	llmg_2141	-	hypothetical protein
2031	 33.66	0	2106266..2107480	+	404	125624913	ps401	llmg_2142	-	phage integrase
2032	 37.28	0	2107775..2108281	-	168	125624914	-	llmg_2143	-	putative 20-kDa protein
2033	 34.92	0	2108291..2108479	-	62	125624915	-	llmg_2144	-	hypothetical protein
2034	 31.37	-1	2108490..2109050	-	186	125624916	-	llmg_2145	-	hypothetical protein
2035	 41.56	+1	2109078..2109320	-	80	125624917	-	llmg_2146	-	hypothetical protein
2036	 39.20	0	2109555..2110526	-	323	125624918	fmt	llmg_2147	-	methionyl-tRNA formyltransferase
2037	 34.19	0	2110523..2110987	-	154	125624919	-	llmg_2148	-	hypothetical protein
2038	 35.82	0	2110953..2111474	-	173	125624920	-	llmg_2149	-	putative Nudix hydrolase
2039	 31.47	-1	2111488..2111862	-	124	125624921	-	llmg_2150	-	hypothetical protein
2040	 35.88	0	2111849..2112595	-	248	125624922	-	llmg_2151	-	hypothetical protein
2041	 37.72	0	2112728..2113069	-	113	125624923	-	llmg_2152	-	hypothetical protein
2042	 37.98	0	2113093..2115438	-	781	125624924	priA	llmg_2153	-	primosome assembly protein PriA
2043	 37.57	0	2115615..2115968	-	117	125624925	rpoZ	llmg_2154	-	DNA-directed RNA polymerase subunit omega
2044	 37.86	0	2116037..2116654	-	205	125624926	gmk	llmg_2155	-	guanylate kinase
2045	 39.97	+1	2116803..2118398	-	531	125624927	-	llmg_2156	-	phosphodiesterase
2046	 37.82	0	2118632..2119345	-	237	125624928	nagB2	llmg_2157	-	putative 6-phosphogluconolactonase
2047	 38.71	0	2119449..2119541	-	30	125624929	-	llmg_2158	-	hypothetical protein
2048	 38.71	0	2119619..2119711	-	30	125624930	-	llmg_2159	-	hypothetical protein
2049	 41.08	+1	2119789..2120988	-	399	125624931	metK	llmg_2160	-	S-adenosylmethionine synthetase
2050	 37.69	0	2121533..2122726	-	397	125624932	cfa	llmg_2161	-	cyclopropane-fatty-acyl-phospholipid synthase
2051	 35.06	0	2122883..2123635	+	250	125624933	birA2	llmg_2162	-	acetyl-CoA carboxylase ligase / biotin operon repressor bifunctional protein
2052	 39.57	0	2123763..2124227	-	154	125624934	-	llmg_2163	-	hypothetical protein
2053	 32.70	0	2124563..2125675	-	370	125624935	-	llmg_2164	-	hypothetical protein
2054	 35.56	0	2125886..2127502	-	538	125624936	acmB	llmg_2165	-	N-acetylmuramoyl-L-alanine amidase
2055	 42.03	+1	2129181..2130077	-	298	125624937	fbaA	llmg_2167	-	fructose-bisphosphate aldolase
2056	 34.39	0	2136110..2136769	-	219	125624938	-	llmg_2168	-	hypothetical protein
2057	 40.03	+1	2136874..2138814	-	646	125624939	thrS	llmg_2169	-	ThrS protein
2058	 34.59	0	2139513..2139830	-	105	125624940	-	llmg_2170	-	ribonucleoside-diphosphate reductase
2059	 37.53	0	2139888..2141150	-	420	125624941	mntA	llmg_2171	-	putative Mn and Fe transporters
2060	 38.92	0	2141256..2141864	-	202	125624942	-	llmg_2172	-	putative nitroreductase
2061	 37.80	0	2142091..2142381	+	96	125624943	-	llmg_2173	-	hypothetical protein
2062	 38.71	0	2142477..2143238	+	253	125624944	tnp904	llmg_2174	-	transposase for insertion sequence element IS904I
2063	 33.33	0	2144101..2144670	-	189	125624945	-	llmg_2175	-	hypothetical protein
2064	 39.31	0	2144746..2145381	-	211	125624946	upp	llmg_2176	-	uracil phosphoribosyltransferase
2065	 36.75	0	2145583..2146722	-	379	125624947	nah	llmg_2177	-	Na+/H+ antiporter
2066	 36.64	0	2148432..2149520	-	362	125624948	metB1	llmg_2181	-	cystathionine gamma-synthase
2067	 34.69	0	2149551..2150510	-	319	125624949	metA	llmg_2182	-	homoserine O-succinyltransferase
2068	 33.15	0	2150648..2151205	-	185	125624950	-	llmg_2183	-	hypothetical protein
2069	 34.54	0	2151214..2152122	-	302	125624951	-	llmg_2184	-	hypothetical protein
2070	 35.86	0	2152257..2153126	-	289	125624952	lacX	llmg_2185	-	galactose mutarotase related enzyme
2071	 37.25	0	2153217..2154161	-	314	125624953	cbf	llmg_2186	-	putative CMP-binding factor
2072	 35.87	0	2154235..2155533	-	432	125624954	-	llmg_2187	-	hypothetical protein
2073	 28.89	-1	2155543..2155812	-	89	125624955	-	llmg_2188	-	no similarity
2074	 32.76	0	2155879..2156052	-	57	125624956	tmrB	llmg_2189	-	putative tunicamycin resistance protein
2075	 37.25	0	2156049..2156711	-	220	125624957	rpe	llmg_2190	-	ribulose-phosphate 3-epimerase
2076	 36.43	0	2156785..2157042	-	85	125624958	-	llmg_2191	-	hypothetical protein
2077	 30.98	-1	2157039..2157293	-	84	125624959	-	llmg_2192	-	hypothetical protein
2078	 35.71	0	2157265..2158188	-	307	125624960	-	llmg_2193	-	ribosome-associated GTPase
2079	 38.45	0	2158249..2159322	-	357	125624961	-	llmg_2194	-	hypothetical protein
2080	 37.64	0	2159623..2162016	-	797	125624962	pheT	llmg_2195	-	phenylalanyl-tRNA synthetase subunit beta
2081	 38.63	0	2162127..2163164	-	345	125624963	pheS	llmg_2196	-	phenylalanyl-tRNA synthetase subunit alpha
2082	 33.55	0	2163648..2164103	+	151	125624964	padC	llmg_2197	-	PadC protein
2083	 34.26	0	2164419..2164958	+	179	125624965	padR	llmg_2198	-	putative transcriptional repressor of padC
2084	 35.43	0	2165127..2166605	+	492	125624966	chiC	llmg_2199	-	acidic endochitinase precursor
2085	 39.22	0	2166626..2167288	+	220	125624967	chb	llmg_2200	-	chitin binding protein, putative
2086	 40.37	+1	2167331..2168623	-	430	125624968	purA	llmg_2201	-	adenylosuccinate synthetase
2087	 24.56	-2	2168798..2168911	-	37	125624969	-	llmg_2202	-	hypothetical protein
2088	 32.68	0	2168989..2169600	-	203	125624970	cadD	llmg_2203	-	cadmium resistance protein
2089	 38.87	0	2169764..2170630	+	288	125624971	hslO	llmg_2204	-	Hsp33-like chaperonin
2090	 36.02	0	2170685..2171206	+	173	125624972	-	llmg_2205	-	dihydrofolate reductase family protein
2091	 37.95	0	2171541..2172818	+	425	125624973	-	llmg_2206	-	hypothetical protein
2092	 37.87	0	2172828..2173400	+	190	125624974	-	llmg_2207	-	hypothetical protein
35.99	MEAN

3.62	STD DEV
