IslandPathversion 1.0

IslandPath Analysis: Lactococcus lactis subsp. cremoris MG1363

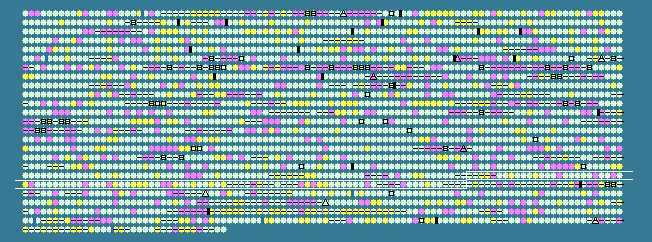

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.99 STD DEV: 3.62
Lactococcus lactis subsp. cremoris MG1363, complete genome - 1..2529478
2434 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1875	 38.72	0	1960958..1961644	-	228	125624757	gltP	llmg_1979	-	glutamate ABC transporter permease protein
1876	 34.32	0	1961791..1962699	-	302	125624758	-	llmg_1980	-	hypothetical protein
1877	 40.76	+1	1962823..1966446	-	1207	125624759	rpoC	llmg_1981	-	DNA-directed RNA polymerase subunit beta'
1878	 41.63	+1	1966555..1970145	-	1196	125624760	rpoB	llmg_1982	-	DNA-directed RNA polymerase subunit beta
1879	 29.83	-1	1970414..1971013	-	199	125624761	codZ	llmg_1983	-	CodY family transcriptional regulator
1880	 34.52	0	1971249..1971923	+	224	125624762	-	llmg_1984	-	transcriptional regulator
1881	 36.68	0	1972038..1973921	+	627	125624763	pepO2	llmg_1985	-	putative neutral endopeptidase O2
1882	 40.20	+1	1973970..1974275	-	101	125624764	-	llmg_1986	-	hypothetical protein
1883	 38.83	0	1974345..1976018	-	557	125624765	-	llmg_1988	-	hypothetical protein
1884	 36.78	0	1976229..1977680	+	483	125624766	murE	llmg_1989	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
1885	 34.48	0	1977762..1978022	-	86	125624767	-	llmg_1990	-	hypothetical protein
1886	 40.66	+1	1978043..1979065	-	340	125624768	adhA	llmg_1991	-	alcohol dehydrogenase
1887	 38.73	0	1979285..1981063	+	592	125624769	recQ	llmg_1992	-	ATP-dependent DNA helicase RecQ
1888	 37.40	0	1981100..1982623	-	507	125624770	-	llmg_1993	-	transporter
1889	 37.28	0	1982905..1984146	-	413	125624771	pepT	llmg_1994	-	peptidase T
1890	 32.08	-1	1984175..1984972	-	265	125624772	-	llmg_1995	-	hypothetical protein
1891	 36.72	0	1984972..1985916	-	314	125624773	ppa	llmg_1996	-	putative manganese-dependent inorganic pyrophosphatase
1892	 36.62	0	1986117..1986908	-	263	125624774	pflA	llmg_1997	-	pyruvate-formate lyase activating enzyme
1893	 37.44	0	1987127..1988464	-	445	125624775	-	llmg_1999	-	hypothetical protein
1894	 32.53	0	1988584..1989699	-	371	125624776	-	llmg_2000	-	putative permease
1895	 35.05	0	1990003..1990467	-	154	125624777	-	llmg_2002	-	hypothetical protein
1896	 30.35	-1	1990464..1991033	-	189	125624778	-	llmg_2003	-	UDP-glucose 4-epimerase
1897	 37.31	0	1991280..1991732	+	150	125624779	-	llmg_2004	-	hypothetical protein
1898	 38.13	0	1991789..1992226	-	145	125624780	-	llmg_2005	-	putative cell wall hydrolase
1899	 30.27	-1	1992275..1992862	+	195	125624781	-	llmg_2006	-	hypothetical protein
1900	 35.05	0	1992989..1993570	-	193	125624782	-	llmg_2007	-	hypothetical protein
1901	 40.25	+1	1993652..1996483	-	943	125624783	uvrA	llmg_2008	-	UvrABC system protein A
1902	 32.39	0	1996628..1997266	-	212	125624784	-	llmg_2009	-	hypothetical protein
1903	 34.68	0	1997373..1997669	+	98	125624785	-	llmg_2010	-	hypothetical protein
1904	 38.65	0	1997679..1999052	-	457	125624786	-	llmg_2011	-	putative amino acid permease
1905	 34.64	0	1999452..2000369	-	305	125624787	-	llmg_2012	-	hypothetical protein
1906	 35.69	0	2000399..2001034	-	211	125624788	thiN	llmg_2013	-	thiamin pyrophosphokinase
1907	 35.34	0	2001031..2001378	-	115	125624789	-	llmg_2014	-	hypothetical protein
1908	 37.33	0	2001410..2001859	-	149	125624790	-	llmg_2015	-	hypothetical protein
1909	 33.91	0	2002053..2002571	+	172	125624791	-	llmg_2016	-	hypothetical protein
1910	 37.72	0	2002619..2003962	-	447	125624792	asnC	llmg_2017	-	asparaginyl-tRNA synthetase
1911	 30.77	-1	2004010..2004321	-	103	125624793	-	llmg_2018	-	hypothetical protein
1912	 37.65	0	2004314..2005495	-	393	125624794	aspB	llmg_2019	-	aspartate aminotransferase
1913	 36.04	0	2005492..2005935	-	147	125624795	-	llmg_2020	-	hypothetical protein
1914	 35.14	0	2006071..2008446	-	791	125624796	dinG	llmg_2021	-	ATP-dependent helicase dinG-like protein
1915	 18.70	-2	2008550..2008672	+	40	125624797	-	llmg_2022	-	hypothetical protein
1916	 40.87	+1	2008694..2009131	+	145	125624798	-	llmg_2023	-	universal stress protein A
1917	 38.44	0	2009303..2011105	-	600	125624799	oppA2	llmg_2024	-	oligopeptide-binding protein oppA2 precursor
1918	 38.87	0	2011218..2012102	-	294	125624800	oppC2	llmg_2025	-	oligopeptide transport system permease protein oppC2
1919	 41.04	+1	2012112..2013071	-	319	125624801	oppB2	llmg_2026	-	peptide transport system permease protein oppB2
1920	 41.94	+1	2015238..2015597	-	119	125624802	rplT	llmg_2029	-	50S ribosomal protein L20
1921	 43.78	+2	2015861..2016061	-	66	125624803	rpmI	llmg_2030	-	50S ribosomal protein L35
1922	 38.25	0	2016189..2016839	-	216	125624804	infC	llmg_2031	-	translation initiation factor IF-3
1923	 37.21	0	2017144..2017272	+	42	125624805	-	llmg_2032	-	hypothetical protein
1924	 31.51	-1	2017303..2017851	+	182	125624806	-	llmg_2033	-	hypothetical protein
1925	 32.17	-1	2017879..2018565	-	228	125624807	-	llmg_2034	-	HAD superfamily hydrolase
1926	 40.04	+1	2018737..2020614	-	625	125624808	gidA	llmg_2035	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
1927	 33.33	0	2020999..2021562	-	187	125624809	-	llmg_2036	-	hypothetical protein
1928	 35.77	0	2021695..2022063	-	122	125624810	-	llmg_2037	-	hypothetical protein
1929	 40.00	+1	2022177..2022596	-	139	125624811	-	llmg_2039	-	ribonuclease III
1930	 36.30	0	2022571..2023917	-	448	125624812	cysS	llmg_2040	-	cysteinyl-tRNA synthetase
1931	 33.33	0	2023930..2024523	-	197	125624813	-	llmg_2041	-	hypothetical protein
1932	 45.17	+2	2024537..2025136	-	199	125624814	cysE	llmg_2042	-	putative serine acetyltransferase
1933	 32.94	0	2025242..2026012	-	256	125624815	-	llmg_2043	-	hypothetical protein
1934	 40.20	+1	2026280..2028580	-	766	125624816	pnpA	llmg_2044	-	polynucleotide phosphorylase/polyadenylase
1935	 37.70	0	2028861..2030006	-	381	125624817	prsA	llmg_2045	-	hypothetical protein
1936	 38.41	0	2030371..2031336	+	321	125624818	prsB	llmg_2046	-	ribose-phosphate pyrophosphokinase
1937	 33.33	0	2031441..2031872	-	143	125624819	-	llmg_2047	-	universal stress protein E
1938	 35.60	0	2032415..2033296	+	293	125624820	nifS	llmg_2048	-	putative iron-sulfur cofactor synthesis protein
1939	 28.99	-1	2033322..2033666	+	114	125624821	-	llmg_2049	-	hypothetical protein
1940	 44.53	+2	2033755..2034942	-	395	125624822	tufA	llmg_2050	-	elongation factor Tu
1941	 33.88	0	2035186..2035368	+	60	125624823	-	llmg_2051	-	hypothetical protein
1942	 36.75	0	2035427..2035543	+	38	125624824	-	llmg_2052	-	hypothetical protein
1943	 38.30	0	2035603..2038401	-	932	125624825	ileS	llmg_2053	-	isoleucyl-tRNA synthetase
1944	 34.75	0	2038605..2038745	+	46	125624826	-	llmg_2054	-	hypothetical protein
1945	 33.01	0	2038848..2039783	-	311	125624827	-	llmg_2055	-	hypothetical protein
1946	 33.06	0	2039840..2040559	-	239	125624828	-	llmg_2056	-	hypothetical protein
1947	 29.35	-1	2040628..2040903	-	91	125624829	-	llmg_2057	-	hypothetical protein
1948	 41.29	+1	2040903..2041493	-	196	125624830	-	llmg_2058	-	Ycf50-like protein
1949	 32.45	0	2041527..2042204	-	225	125624831	-	llmg_2059	-	hypothetical protein
1950	 40.48	+1	2042201..2043460	-	419	125624832	ftsZ	llmg_2060	-	cell division protein FtsZ
1951	 40.99	+1	2043490..2044860	-	456	125624833	ftsA	llmg_2061	-	cell division protein ftsA
1952	 38.62	0	2045022..2045891	-	289	125624834	-	llmg_2062	-	hypothetical protein
1953	 37.72	0	2046008..2046736	-	242	125624835	trmH	llmg_2063	-	tRNA/rRNA methyltransferase
1954	 35.88	0	2046900..2048000	-	366	125624836	-	llmg_2064	-	oxidoreductase
1955	 34.75	0	2048138..2048983	-	281	125624837	-	llmg_2065	-	aldo/keto reductase family oxidoreductase
1956	 34.24	0	2048995..2050320	-	441	125624838	-	llmg_2066	-	multidrug resistance protein B
1957	 37.32	0	2050435..2051313	-	292	125624839	rlrB	llmg_2067	-	LysR family transcriptional regulator
1958	 30.86	-1	2051329..2051733	-	134	125624840	rmeA	llmg_2068	-	MerR family transcriptional regulator
1959	 36.92	0	2051813..2053177	-	454	125624841	pepC	llmg_2069	-	PepC protein
1960	 35.70	0	2053252..2053926	-	224	125624842	-	llmg_2070	-	hypothetical protein
1961	 34.52	0	2053944..2054447	-	167	125624843	-	llmg_2071	-	hypothetical protein
1962	 28.95	-1	2054401..2054514	-	37	125624844	-	llmg_2072	-	hypothetical protein
1963	 37.00	0	2054584..2055264	-	226	125624845	pfs	llmg_2073	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
1964	 31.18	-1	2055292..2055570	-	92	125624846	-	llmg_2074	-	hypothetical protein
1965	 36.24	0	2055563..2056147	-	194	125624847	-	llmg_2075	-	ADP-ribose pyrophosphatase
1966	 38.20	0	2056248..2057624	-	458	125624848	glmU	llmg_2076	-	glucosamine-1-phosphate N-acetyltransferase / UDP-N-acetylglucosamine pyrophosphorylase
1967	 36.74	0	2057845..2058636	+	263	125624849	proC	llmg_2077	-	pyrroline-5-carboxylate reductase
1968	 40.74	+1	2058720..2059043	-	107	125624850	rpsO	llmg_2078	-	30S ribosomal protein S15
1969	 36.85	0	2059160..2061037	-	625	125624851	pknB	llmg_2079	-	serine/threonine protein kinase
1970	 38.10	0	2061037..2061813	-	258	125624852	pppL	llmg_2080	-	putative phosphoprotein phosphatase
1971	 35.61	0	2061936..2063210	-	424	125624853	sunL	llmg_2081	-	ribosomal RNA small subunit methyltransferase B
1972	 37.41	0	2064418..2065275	-	285	125624854	ps461	llmg_2082	-	bacteriophage lysin
1973	 35.93	0	2065277..2065738	-	153	125624855	ps460	llmg_2083	-	bacteriophage holin
1974	 35.34	0	2065754..2066101	-	115	125624856	ps459	llmg_2084	-	hypothetical protein
35.99	MEAN

3.62	STD DEV
