IslandPath Analysis: Lactococcus lactis subsp. cremoris MG1363

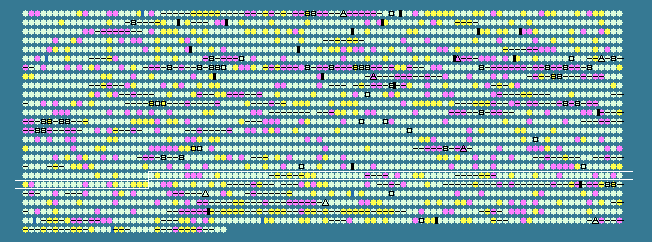

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.99 STD DEV: 3.62
Lactococcus lactis subsp. cremoris MG1363, complete genome - 1..2529478
2434 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1822	 37.77	0	1901770..1904271	-	833	125624704	recD	llmg_1922	-	exodeoxyribonuclease V alpha chain
1823	 39.73	+1	1904268..1904861	-	197	125624705	gpmC	llmg_1923	-	phosphoglycerate mutase
1824	 37.38	0	1904864..1905703	-	279	125624706	pheA	llmg_1924	-	prephenate dehydratase
1825	 34.36	0	1905705..1906193	-	162	125624707	aroK	llmg_1925	-	AroK protein
1826	 39.44	0	1906217..1907509	-	430	125624708	aroA	llmg_1926	-	3-phosphoshikimate 1-carboxyvinyltransferase
1827	 35.21	0	1907629..1908693	-	354	125624709	tyrA	llmg_1927	-	prephenate dehydrogenase
1828	 32.19	-1	1908697..1909572	-	291	125624710	kinG	llmg_1928	-	sensor histidine kinase
1829	 32.29	-1	1909559..1910230	-	223	125624711	llrG	llmg_1929	-	response regulator
1830	 32.21	-1	1910233..1911297	-	354	125624712	-	llmg_1930	-	hypothetical protein
1831	 36.41	0	1913487..1914266	-	259	125624713	-	llmg_1932	-	Sulfate/thiosulfate import ATP-binding protein cysA
1832	 33.05	0	1914460..1914816	-	118	125624714	-	llmg_1933	-	hypothetical protein
1833	 41.47	+1	1914939..1916105	-	388	125624715	aroC	llmg_1934	-	chorismate synthase
1834	 33.67	0	1916738..1917337	-	199	125624716	-	llmg_1936	-	hypothetical protein
1835	 38.31	0	1917709..1918632	-	307	125624717	-	llmg_1937	-	hypothetical protein
1836	 38.84	0	1918746..1919816	-	356	125624718	aroB	llmg_1938	-	3-dehydroquinate synthase
1837	 38.21	0	1919813..1920673	-	286	125624719	aroE	llmg_1939	-	shikimate 5-dehydrogenase
1838	 36.97	0	1920851..1921510	-	219	125624720	-	llmg_1941	-	hypothetical protein
1839	 37.53	0	1921895..1924039	+	714	125624721	glnP	llmg_1942	-	glutamine ABC transporter permease and substrate binding protein
1840	 37.90	0	1924062..1924805	+	247	125624722	glnQ	llmg_1943	-	glutamine ABC transporter ATP-binding protein
1841	 35.03	0	1924864..1926804	-	646	125624723	-	llmg_1944	-	hypothetical protein
1842	 38.03	0	1926908..1927333	-	141	125624724	atpC	llmg_1945	-	F0F1 ATP synthase subunit epsilon
1843	 41.96	+1	1927518..1928978	-	486	125624725	atpD	llmg_1946	-	F0F1 ATP synthase subunit beta
1844	 38.74	0	1929099..1929968	-	289	125624726	atpG	llmg_1947	-	F0F1 ATP synthase subunit gamma
1845	 41.12	+1	1929984..1931486	-	500	125624727	atpA	llmg_1948	-	F0F1 ATP synthase subunit alpha
1846	 32.95	0	1931675..1932202	-	175	125624728	atpH	llmg_1949	-	F0F1 ATP synthase subunit delta
1847	 40.24	+1	1932204..1932710	-	168	125624729	atpF	llmg_1950	-	F0F1 ATP synthase subunit B
1848	 40.62	+1	1932725..1933438	-	237	125624730	atpB	llmg_1951	-	F0F1 ATP synthase subunit A
1849	 48.15	+2	1933485..1933700	-	71	125624731	atpE	llmg_1952	-	F0F1 ATP synthase subunit C
1850	 36.94	0	1933883..1934659	-	258	125624732	estA	llmg_1953	-	tributyrin esterase
1851	 34.63	0	1937133..1937747	-	204	125624733	comEA	llmg_1955	-	putative competence protein
1852	 37.15	0	1937847..1939208	-	453	125624734	-	llmg_1956	-	hypothetical protein
1853	 38.26	0	1939205..1940137	-	310	125624735	-	llmg_1957	-	ABC transporter, ATP-binding protein
1854	 35.48	0	1940243..1940428	-	61	125624736	-	llmg_1958	-	hypothetical protein
1855	 36.72	0	1940757..1941317	-	186	125624737	bar	llmg_1959	-	phosphinothricin N-acetyltransferase
1856	 36.22	0	1941491..1942669	-	392	125624738	-	llmg_1960	-	hypothetical protein
1857	 35.92	0	1943058..1943714	-	218	125624739	tenA	llmg_1961	-	transcriptional activator TenA
1858	 29.39	-1	1943932..1944261	-	109	125624740	-	llmg_1962	-	hypothetical protein
1859	 34.26	0	1944255..1945226	-	323	125624741	birA1	llmg_1963	-	biotin--[acetyl-CoA-carboxylase] ligase and biotin operon repressor
1860	 35.61	0	1945232..1945801	-	189	125624742	bioY	llmg_1964	-	hypothetical protein
1861	 32.21	-1	1945938..1947182	+	414	125624743	-	llmg_1965	-	putative AMP-binding enzyme
1862	 37.88	0	1948940..1949203	-	87	125624744	-	llmg_1966	-	hypothetical protein
1863	 29.94	-1	1949203..1949673	-	156	125624745	-	llmg_1967	-	hypothetical protein
1864	 35.05	0	1949781..1950071	-	96	125624746	-	llmg_1968	-	hypothetical protein
1865	 36.31	0	1950420..1951832	-	470	125624747	sufB	llmg_1969	-	hypothetical protein
1866	 39.65	+1	1951928..1952386	-	152	125624748	nifU	llmg_1970	-	hypothetical protein
1867	 39.75	+1	1952520..1953002	-	160	125624749	-	llmg_1971	-	hypothetical protein
1868	 38.01	0	1953004..1954221	-	405	125624750	-	llmg_1972	-	hypothetical protein
1869	 38.58	0	1954221..1955477	-	418	125624751	-	llmg_1973	-	hypothetical protein
1870	 37.61	0	1955617..1956387	-	256	125624752	-	llmg_1974	-	ATP-dependent transporter
1871	 33.33	0	1956608..1957177	+	189	125624753	-	llmg_1975	-	hypothetical protein
1872	 37.93	0	1958065..1959390	-	441	125624754	-	llmg_1976	-	polysaccharide biosynthesis protein
1873	 34.90	0	1959393..1960094	-	233	125624755	-	llmg_1977	-	putative MecA-like protein
1874	 36.05	0	1960224..1960958	-	244	125624756	gltQ	llmg_1978	-	glutamate ABC transporter ATP-binding protein
1875	 38.72	0	1960958..1961644	-	228	125624757	gltP	llmg_1979	-	glutamate ABC transporter permease protein
1876	 34.32	0	1961791..1962699	-	302	125624758	-	llmg_1980	-	hypothetical protein
1877	 40.76	+1	1962823..1966446	-	1207	125624759	rpoC	llmg_1981	-	DNA-directed RNA polymerase subunit beta'
1878	 41.63	+1	1966555..1970145	-	1196	125624760	rpoB	llmg_1982	-	DNA-directed RNA polymerase subunit beta
1879	 29.83	-1	1970414..1971013	-	199	125624761	codZ	llmg_1983	-	CodY family transcriptional regulator
1880	 34.52	0	1971249..1971923	+	224	125624762	-	llmg_1984	-	transcriptional regulator
1881	 36.68	0	1972038..1973921	+	627	125624763	pepO2	llmg_1985	-	putative neutral endopeptidase O2
1882	 40.20	+1	1973970..1974275	-	101	125624764	-	llmg_1986	-	hypothetical protein
1883	 38.83	0	1974345..1976018	-	557	125624765	-	llmg_1988	-	hypothetical protein
1884	 36.78	0	1976229..1977680	+	483	125624766	murE	llmg_1989	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
1885	 34.48	0	1977762..1978022	-	86	125624767	-	llmg_1990	-	hypothetical protein
1886	 40.66	+1	1978043..1979065	-	340	125624768	adhA	llmg_1991	-	alcohol dehydrogenase
1887	 38.73	0	1979285..1981063	+	592	125624769	recQ	llmg_1992	-	ATP-dependent DNA helicase RecQ
1888	 37.40	0	1981100..1982623	-	507	125624770	-	llmg_1993	-	transporter
1889	 37.28	0	1982905..1984146	-	413	125624771	pepT	llmg_1994	-	peptidase T
1890	 32.08	-1	1984175..1984972	-	265	125624772	-	llmg_1995	-	hypothetical protein
1891	 36.72	0	1984972..1985916	-	314	125624773	ppa	llmg_1996	-	putative manganese-dependent inorganic pyrophosphatase
1892	 36.62	0	1986117..1986908	-	263	125624774	pflA	llmg_1997	-	pyruvate-formate lyase activating enzyme
1893	 37.44	0	1987127..1988464	-	445	125624775	-	llmg_1999	-	hypothetical protein
1894	 32.53	0	1988584..1989699	-	371	125624776	-	llmg_2000	-	putative permease
1895	 35.05	0	1990003..1990467	-	154	125624777	-	llmg_2002	-	hypothetical protein
1896	 30.35	-1	1990464..1991033	-	189	125624778	-	llmg_2003	-	UDP-glucose 4-epimerase
1897	 37.31	0	1991280..1991732	+	150	125624779	-	llmg_2004	-	hypothetical protein
1898	 38.13	0	1991789..1992226	-	145	125624780	-	llmg_2005	-	putative cell wall hydrolase
1899	 30.27	-1	1992275..1992862	+	195	125624781	-	llmg_2006	-	hypothetical protein
1900	 35.05	0	1992989..1993570	-	193	125624782	-	llmg_2007	-	hypothetical protein
1901	 40.25	+1	1993652..1996483	-	943	125624783	uvrA	llmg_2008	-	UvrABC system protein A
1902	 32.39	0	1996628..1997266	-	212	125624784	-	llmg_2009	-	hypothetical protein
1903	 34.68	0	1997373..1997669	+	98	125624785	-	llmg_2010	-	hypothetical protein
1904	 38.65	0	1997679..1999052	-	457	125624786	-	llmg_2011	-	putative amino acid permease
1905	 34.64	0	1999452..2000369	-	305	125624787	-	llmg_2012	-	hypothetical protein
1906	 35.69	0	2000399..2001034	-	211	125624788	thiN	llmg_2013	-	thiamin pyrophosphokinase
1907	 35.34	0	2001031..2001378	-	115	125624789	-	llmg_2014	-	hypothetical protein
1908	 37.33	0	2001410..2001859	-	149	125624790	-	llmg_2015	-	hypothetical protein
1909	 33.91	0	2002053..2002571	+	172	125624791	-	llmg_2016	-	hypothetical protein
1910	 37.72	0	2002619..2003962	-	447	125624792	asnC	llmg_2017	-	asparaginyl-tRNA synthetase
1911	 30.77	-1	2004010..2004321	-	103	125624793	-	llmg_2018	-	hypothetical protein
1912	 37.65	0	2004314..2005495	-	393	125624794	aspB	llmg_2019	-	aspartate aminotransferase
1913	 36.04	0	2005492..2005935	-	147	125624795	-	llmg_2020	-	hypothetical protein
1914	 35.14	0	2006071..2008446	-	791	125624796	dinG	llmg_2021	-	ATP-dependent helicase dinG-like protein
1915	 18.70	-2	2008550..2008672	+	40	125624797	-	llmg_2022	-	hypothetical protein
1916	 40.87	+1	2008694..2009131	+	145	125624798	-	llmg_2023	-	universal stress protein A
1917	 38.44	0	2009303..2011105	-	600	125624799	oppA2	llmg_2024	-	oligopeptide-binding protein oppA2 precursor
1918	 38.87	0	2011218..2012102	-	294	125624800	oppC2	llmg_2025	-	oligopeptide transport system permease protein oppC2
1919	 41.04	+1	2012112..2013071	-	319	125624801	oppB2	llmg_2026	-	peptide transport system permease protein oppB2
1920	 41.94	+1	2015238..2015597	-	119	125624802	rplT	llmg_2029	-	50S ribosomal protein L20
1921	 43.78	+2	2015861..2016061	-	66	125624803	rpmI	llmg_2030	-	50S ribosomal protein L35
35.99	MEAN

3.62	STD DEV
