IslandPathversion 1.0

IslandPath Analysis: Lactococcus lactis subsp. cremoris MG1363

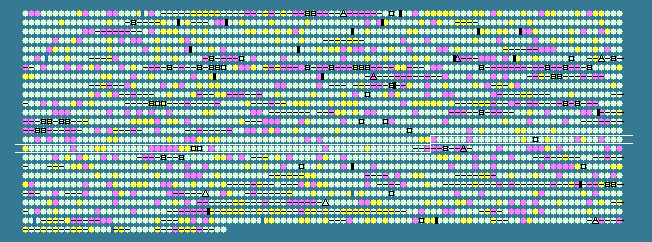

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.99 STD DEV: 3.62
Lactococcus lactis subsp. cremoris MG1363, complete genome - 1..2529478
2434 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1469	 31.46	-1	1521136..1521723	+	195	125624351	-	llmg_1548	-	putative phosphohydrolase
1470	 33.33	0	1521871..1522041	+	56	125624352	-	llmg_1549	-	hypothetical protein
1471	 37.85	0	1522205..1522735	+	176	125624353	-	llmg_1550	-	hypothetical protein
1472	 38.18	0	1522750..1523553	-	267	125624354	fdhC	llmg_1551	-	putative formate dehydrogenase
1473	 36.66	0	1523708..1525330	-	540	125624355	-	llmg_1552	-	putative ABC type transport system permease protein
1474	 35.84	0	1525342..1526220	-	292	125624356	-	llmg_1553	-	putative ABC transporter ATP-binding protein
1475	 28.42	-2	1526416..1527066	+	216	125624357	-	llmg_1554	-	TetR family transcriptional regulator
1476	 35.73	0	1527099..1528016	-	305	125624358	-	llmg_1555	-	hypothetical protein
1477	 38.72	0	1528112..1529095	-	327	125624359	-	llmg_1556	-	hypothetical protein
1478	 36.15	0	1529092..1529979	-	295	125624360	-	llmg_1557	-	hypothetical protein
1479	 34.92	0	1530044..1531489	-	481	125624361	clsA	llmg_1558	-	cardiolipin synthetase
1480	 36.81	0	1531681..1532370	-	229	125624362	flpA	llmg_1559	-	FNR like protein A
1481	 33.89	0	1532360..1532899	-	179	125624363	-	llmg_1560	-	stress induced DNA binding protein (putative)
1482	 39.02	0	1533121..1534983	-	620	125624364	-	llmg_1561	-	heavy metal-(Cd/Co/Hg/Pb/Zn)-translocating P-type ATPase
1483	 33.33	0	1535617..1536057	-	146	125624365	-	llmg_1562	-	hypothetical protein
1484	 40.90	+1	1536449..1537783	-	444	125624366	-	llmg_1563	-	hypothetical protein
1485	 38.14	0	1538074..1538364	+	96	125624367	-	llmg_1564	-	hypothetical protein
1486	 38.98	0	1538460..1539221	+	253	125624368	tnp904	llmg_1565	-	transposase for insertion sequence IS904F
1487	 37.97	0	1539275..1539856	+	193	125624369	-	llmg_1566	-	hypothetical protein
1488	 40.89	+1	1540757..1542661	-	634	125624370	fruA	llmg_1568	-	PTS system, fructose specific IIBC components
1489	 36.06	0	1542661..1543578	-	305	125624371	fruC	llmg_1569	-	tagatose-6-phosphate kinase
1490	 36.89	0	1543662..1544363	-	233	125624372	fruR	llmg_1570	-	lactose transport regulator
1491	 38.07	0	1544485..1545624	-	379	125624373	hipO2	llmg_1571	-	aminoacylase/N-acyl-L-amino acid amidohydrolase/hippurate hydrolase
1492	 35.66	0	1545691..1547454	-	587	125624374	mycA	llmg_1572	-	Myosin-crossreactive streptococcal antigen homologue
1493	 30.84	-1	1547624..1549468	-	614	125624375	-	llmg_1573	-	hypothetical protein
1494	 39.75	+1	1549632..1551455	-	607	125624376	dnaK	llmg_1574	-	molecular chaperone DnaK
1495	 38.33	0	1551527..1552066	-	179	125624377	grpE	llmg_1575	-	GrpE protein
1496	 34.48	0	1552096..1553139	-	347	125624378	hrcA	llmg_1576	-	heat-inducible transcription repressor
1497	 26.91	-2	1553287..1553691	-	134	125624379	-	llmg_1577	-	hypothetical protein
1498	 37.22	0	1553706..1554452	-	248	125624380	dacB	llmg_1578	-	D-alanyl-D-alanine carboxypeptidase
1499	 38.51	0	1554449..1555144	-	231	125624381	gpmB	llmg_1579	-	phosphoglycerate mutase
1500	 38.33	0	1555215..1555694	-	159	125624382	-	llmg_1580	-	hypothetical protein
1501	 42.45	+1	1555789..1557126	-	445	125624383	-	llmg_1581	-	hypothetical protein
1502	 37.12	0	1557243..1557506	-	87	125624384	-	llmg_1582	-	hypothetical protein
1503	 33.33	0	1557660..1558601	+	313	125624385	-	llmg_1583	-	putative prenyltransferase
1504	 33.33	0	1558625..1559683	-	352	125624386	-	llmg_1584	-	endonuclease/exonuclease/phosphatase family protein
1505	 38.44	0	1559761..1560348	-	195	125624387	-	llmg_1585	-	putative amidase
1506	 37.64	0	1560360..1562819	-	819	125624388	vacB1	llmg_1586	-	putative exoribonuclease R
1507	 38.55	0	1563061..1563309	-	82	125624389	secG	llmg_1587	-	preprotein translocase subunit SecG
1508	 38.51	0	1563450..1564376	-	308	125624390	trxB1	llmg_1588	-	TrxB1 protein
1509	 31.14	-1	1564574..1564801	-	75	125624391	-	llmg_1589	-	hypothetical protein
1510	 37.58	0	1564803..1565555	-	250	125624392	-	llmg_1590	-	putative amino-acid ABC transporter ATP-binding protein
1511	 36.94	0	1565567..1566454	-	295	125624393	-	llmg_1591	-	putative amino-acid ABC transporter permease protein
1512	 35.34	0	1566722..1567570	-	282	125624394	-	llmg_1593	-	amino acid ABC transporter substrate binding protein
1513	 40.45	+1	1567714..1568289	-	191	125624395	-	llmg_1594	-	gamma-glutamyl-diamino acid-endopeptidase
1514	 40.17	+1	1568416..1570083	-	555	125624396	fhs	llmg_1595	-	formate--tetrahydrofolate ligase
1515	 39.14	0	1570244..1570570	-	108	125624397	-	llmg_1596	-	hypothetical protein
1516	 39.15	0	1570654..1571100	-	148	125624398	-	llmg_1597	-	hypothetical protein
1517	 35.38	0	1571714..1572202	+	162	125624399	-	llmg_1598	-	putative secreted protein
1518	 38.87	0	1572439..1573143	-	234	125624400	deoD	llmg_1599	-	DeoD protein
1519	 34.07	0	1573214..1573483	-	89	125624401	-	llmg_1600	-	hypothetical protein
1520	 38.19	0	1573541..1574776	-	411	125624402	deoB	llmg_1601	-	phosphopentomutase
1521	 37.55	0	1574963..1575793	-	276	125624403	-	llmg_1602	-	putative transcriptional regulator
1522	 31.27	-1	1575893..1577008	-	371	125624404	tagB	llmg_1603	-	teichoic acid biosynthesis protein B
1523	 31.73	-1	1576998..1578185	-	395	125624405	tagF	llmg_1604	-	teichoic acid biosynthesis protein F
1524	 30.56	-1	1578208..1578639	-	143	125624406	-	llmg_1605	-	hypothetical protein
1525	 30.92	-1	1578636..1579091	-	151	125624407	tagD2	llmg_1606	-	glycerol-3-phosphate cytidylyltransferase
1526	 30.03	-1	1579142..1580323	-	393	125624408	-	llmg_1607	-	hypothetical protein
1527	 39.92	+1	1580420..1581421	-	333	125624409	-	llmg_1608	-	putative glycosyl hydrolases
1528	 40.40	+1	1581424..1582710	-	428	125624410	-	llmg_1609	-	putative secreted protein
1529	 39.95	+1	1584010..1585233	+	407	125624411	tnp712	llmg_1611	-	transposase for insertion sequence element IS712G
1530	 35.84	0	1585245..1586003	+	252	125624412	-	llmg_1612	-	putative transposase helper protein for IS712G
1531	 36.22	0	1586044..1586841	-	265	125624413	-	llmg_1613	-	putative secreted protein
1532	 30.45	-1	1586856..1587236	-	126	125624414	-	llmg_1614	-	hypothetical protein
1533	 36.39	0	1587246..1587899	-	217	125624415	-	llmg_1615	-	putative acetyltransferase
1534	 38.03	0	1587913..1589082	-	389	125624416	ugd	llmg_1616	-	UDP-glucose 6-dehydrogenase
1535	 36.24	0	1589136..1592123	-	995	125624417	-	llmg_1617	-	hypothetical protein
1536	 37.07	0	1592144..1593481	-	445	125624418	-	llmg_1618	-	hypothetical protein
1537	 36.64	0	1593468..1594496	-	342	125624419	-	llmg_1619	-	hypothetical protein
1538	 38.92	0	1594493..1596694	-	733	125624420	-	llmg_1620	-	hypothetical protein
1539	 35.63	0	1596691..1598169	-	492	125624421	-	llmg_1621	-	hypothetical protein
1540	 34.32	0	1598186..1598992	-	268	125624422	tagG	llmg_1622	-	teichoic acid ABC transporter permease protein
1541	 36.62	0	1599003..1600433	-	476	125624423	tagH	llmg_1623	-	teichoic acid export ATP-binding protein tagH
1542	 33.88	0	1600496..1601404	-	302	125624424	tagL	llmg_1624	-	exopolysaccharide biosynthesis protein
1543	 34.03	0	1601728..1602447	-	239	125624425	-	llmg_1625	-	hypothetical protein
1544	 37.42	0	1603984..1604448	-	154	125624426	rmaH	llmg_1627	-	MarR family transcriptional regulator
1545	 33.64	0	1604605..1605246	-	213	125624427	-	llmg_1628	-	putative secreted protein
1546	 33.88	0	1605419..1606156	-	245	125624428	-	llmg_1629	-	putative methyltransferase
1547	 38.17	0	1606380..1606565	-	61	125624429	-	llmg_1630	-	hypothetical protein
1548	 39.01	0	1606663..1608618	-	651	125624430	gyrB	llmg_1631	-	DNA gyrase subunit B
1549	 36.57	0	1608772..1609419	-	215	125624431	-	llmg_1632	-	putative hydrolase
1550	 35.11	0	1609485..1610330	-	281	125624432	-	llmg_1633	-	hypothetical protein
1551	 32.19	-1	1610468..1612048	-	526	125624433	-	llmg_1634	-	hypothetical protein
1552	 36.21	0	1612029..1612793	-	254	125624434	-	llmg_1635	-	putative ABC transporter ATP-binding protein
1553	 36.67	0	1612916..1613815	-	299	125624435	-	llmg_1636	-	putative permease protein
1554	 36.93	0	1614001..1615278	-	425	125624436	mleP	llmg_1637	-	malate transporter
1555	 36.54	0	1615293..1616915	-	540	125624437	mleS	llmg_1638	-	malate dehydrogenase
1556	 33.91	0	1617330..1618880	-	516	125624438	-	llmg_1639	-	ABC transporter ATP-binding protein
1557	 34.57	0	1618991..1619152	-	53	125624439	-	llmg_1640	-	hypothetical protein
1558	 40.42	+1	1619425..1620186	-	253	125624440	butA	llmg_1641	-	acetoin reductase
1559	 38.12	0	1620222..1621202	-	326	125624441	butB	llmg_1642	-	2,3-butanediol dehydrogenase
1560	 37.75	0	1621500..1622744	-	414	125624442	rodA	llmg_1643	-	rod shape-determining protein RodA
1561	 38.12	0	1622956..1623561	-	201	125624443	-	llmg_1644	-	hypothetical protein
1562	 32.91	0	1623558..1624028	-	156	125624444	-	llmg_1645	-	general stress protein GSP13
1563	 38.07	0	1623991..1624581	-	196	125624445	ppiB	llmg_1646	-	peptidyl-prolyl cis-trans isomerase
1564	 35.69	0	1624680..1625486	-	268	125624446	-	llmg_1647	-	putative hydrolase
1565	 35.87	0	1625557..1626186	-	209	125624447	llrD	llmg_1648	-	two-component system regulator llrD
1566	 36.64	0	1626214..1627212	-	332	125624448	kinD	llmg_1649	-	sensor protein kinase kinD
1567	 36.46	0	1627209..1627784	-	191	125624449	-	llmg_1650	-	putative secreted protein
1568	 26.26	-2	1628174..1628272	-	32	125624450	-	llmg_1651	-	hypothetical protein
35.99	MEAN

3.62	STD DEV
