IslandPathversion 1.0

IslandPath Analysis: Lactococcus lactis subsp. cremoris MG1363

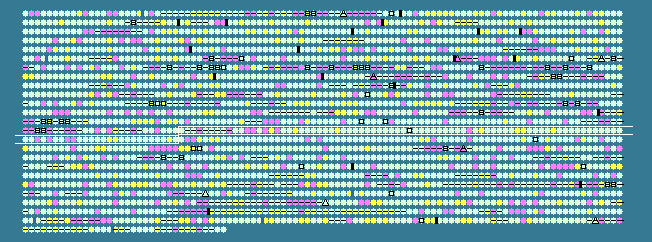

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.99 STD DEV: 3.62
Lactococcus lactis subsp. cremoris MG1363, complete genome - 1..2529478
2434 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1327	 38.78	0	1367342..1368130	-	262	125624209	-	llmg_1393	-	hypothetical protein
1328	 37.09	0	1368421..1368819	-	132	125624210	-	llmg_1395	-	hypothetical protein
1329	 34.50	0	1368792..1368962	-	56	125624211	-	llmg_1396	-	hypothetical protein
1330	 25.16	-2	1368981..1369139	-	52	125624212	-	llmg_1397	-	hypothetical protein
1331	 37.59	0	1369190..1372921	-	1243	125624213	cluA	llmg_1398	-	cell surface antigen I/II precursor
1332	 39.39	0	1373131..1374153	-	340	125624214	-	llmg_1399	-	hypothetical protein
1333	 33.67	0	1374171..1374470	-	99	125624215	-	llmg_1400	-	hypothetical protein
1334	 35.54	0	1375104..1375466	-	120	125624216	-	llmg_1402	-	hypothetical protein
1335	 30.19	-1	1375896..1376435	-	179	125624217	-	llmg_1403	-	hypothetical protein
1336	 37.12	0	1376846..1377109	-	87	125624218	-	llmg_1406	-	hypothetical protein
1337	 34.85	0	1377114..1377311	-	65	125624219	-	llmg_1407	-	hypothetical protein
1338	 29.80	-1	1377325..1377522	-	65	125624220	-	llmg_1408	-	hypothetical protein
1339	 30.57	-1	1377548..1378417	-	289	125624221	-	llmg_1409	-	hypothetical protein
1340	 35.09	0	1378410..1378865	-	151	125624222	-	llmg_1410	-	hypothetical protein
1341	 31.95	-1	1379125..1380063	-	312	125624223	-	llmg_1411	-	hypothetical protein
1342	 39.60	0	1380599..1381588	-	329	125624224	guaC	llmg_1412	-	guanosine 5'-monophosphate oxidoreductase
1343	 32.04	-1	1381851..1382468	-	205	125624225	-	llmg_1413	-	hypothetical protein
1344	 38.11	0	1382610..1383383	-	257	125624226	nagD	llmg_1414	-	putative N-acetylglucosamine catabolic protein
1345	 33.20	0	1383432..1384163	-	243	125624227	-	llmg_1415	-	hypothetical protein
1346	 39.68	+1	1384265..1384705	-	146	125624228	-	llmg_1416	-	hypothetical protein
1347	 36.89	0	1384807..1385622	-	271	125624229	-	llmg_1417	-	hypothetical protein
1348	 34.47	0	1385668..1386807	-	379	125624230	hemN	llmg_1418	-	coproporphyrinogen III oxidase
1349	 38.07	0	1386995..1387522	-	175	125624231	-	llmg_1419	-	putative transcriptional regulator
1350	 36.36	0	1387504..1388823	-	439	125624232	-	llmg_1420	-	hypothetical protein
1351	 35.07	0	1389161..1389562	-	133	125624233	-	llmg_1421	-	hypothetical protein
1352	 37.91	0	1389794..1390711	-	305	125624234	pacA	llmg_1422	-	penicillin acylase
1353	 41.37	+1	1390877..1391635	-	252	125624235	tpiA	llmg_1424	-	triosephosphate isomerase
1354	 35.21	0	1391768..1392619	-	283	125624236	-	llmg_1425	-	RpiR family transcriptional regulator
1355	 38.61	0	1392681..1394633	-	650	125624237	-	llmg_1426	-	sucrose-specific PTS system IIBC component
1356	 36.80	0	1394669..1395562	-	297	125624238	murQ	llmg_1427	-	N-acetylmuramic acid-6-phosphate etherase
1357	 35.03	0	1395555..1396616	-	353	125624239	-	llmg_1428	-	hypothetical protein
1358	 38.07	0	1396766..1397737	-	323	125624240	ldhX	llmg_1429	-	L-lactate dehydrogenase
1359	 34.88	0	1397821..1398723	-	300	125624241	ribC	llmg_1430	-	bifunctional riboflavin kinase/FMN adenylyltransferase
1360	 36.76	0	1398755..1399747	-	330	125624242	truB	llmg_1431	-	tRNA pseudouridine synthase B
1361	 38.33	0	1399886..1400605	-	239	125624243	-	llmg_1432	-	hypothetical protein
1362	 34.81	0	1400795..1403095	-	766	125624244	-	llmg_1433	-	putative secreted protein
1363	 35.24	0	1403462..1403986	+	174	125624245	-	llmg_1434	-	putative secreted protein
1364	 34.42	0	1404048..1404506	+	152	125624246	-	llmg_1435	-	putative secreted protein
1365	 36.55	0	1404756..1405595	-	279	125624247	tnp981	llmg_1437	-	transposase for insertion sequence element IS981L
1366	 36.78	0	1405607..1405867	-	86	125624248	-	llmg_1438	-	hypothetical protein
1367	 35.98	0	1406092..1407036	-	314	125624249	-	llmg_1440	-	hypothetical protein
1368	 37.91	0	1407163..1408671	-	502	125624250	frdC	llmg_1441	-	fumarate reductase flavoprotein subunit
1369	 37.11	0	1408847..1409296	-	149	125624251	-	llmg_1442	-	hypothetical protein
1370	 34.62	0	1409997..1410464	-	155	125624252	mutX	llmg_1444	-	ADP-ribose pyrophosphatase
1371	 37.15	0	1410489..1412765	-	758	125624253	pcrA	llmg_1445	-	ATP-dependent DNA helicase
1372	 36.81	0	1412917..1413693	+	258	125624254	-	llmg_1446	-	hypothetical protein
1373	 38.10	0	1413638..1414267	-	209	125624255	-	llmg_1447	-	hypothetical protein
1374	 36.96	0	1414254..1417007	-	917	125624256	-	llmg_1448	-	hypothetical protein
1375	 31.87	-1	1417226..1417978	-	250	125624257	srtA	llmg_1449	-	sortase SrtA
1376	 33.43	0	1418101..1419186	-	361	125624258	apbE	llmg_1450	-	thiamine biosynthesis lipoprotein apbE precursor
1377	 40.14	+1	1419268..1421778	-	836	125624259	gyrA	llmg_1451	-	DNA gyrase subunit A
1378	 37.76	0	1422000..1423469	-	489	125624260	-	llmg_1452	-	putative amino-acid permease
1379	 36.95	0	1423642..1424277	-	211	125624261	-	llmg_1453	-	oxidoreductase
1380	 33.12	0	1424379..1425326	-	315	125624262	-	llmg_1454	-	putative sugar kinase
1381	 33.75	0	1425329..1426771	-	480	125624263	bglA2	llmg_1455	-	6-phospho-beta-glucosidase
1382	 35.94	0	1426768..1428912	-	714	125624264	bglX	llmg_1456	-	beta-glucosidase
1383	 41.60	+1	1428989..1430053	-	354	125624265	-	llmg_1457	-	putative di/Tri-peptide transport ATP-binding protein
1384	 39.61	0	1430053..1431072	-	339	125624266	-	llmg_1458	-	putative di/Tri-peptide transport system permease protein
1385	 38.12	0	1431074..1432054	-	326	125624267	-	llmg_1459	-	putative di/Tri-peptide transport system permease protein
1386	 39.33	0	1432054..1433154	-	366	125624268	-	llmg_1460	-	putative di/Tri-peptide transport ATP-binding protein
1387	 38.32	0	1433227..1434771	-	514	125624269	-	llmg_1461	-	putative di/Tri-peptide binding protein precursor
1388	 34.30	0	1435163..1435888	-	241	125624270	-	llmg_1462	-	putative HTH-type transcriptional regulator
1389	 39.80	+1	1436035..1437858	-	607	125624271	lepA	llmg_1463	-	GTP-binding protein LepA
1390	 39.19	0	1438148..1438813	-	221	125624272	aldC	llmg_1464	-	AldC protein
1391	 36.30	0	1438912..1440261	+	449	125624273	murC2	llmg_1465	-	putative UDP-N-acetylmuramyl tripeptide synthetase
1392	 36.01	0	1440262..1441047	+	261	125624274	cobQ	llmg_1466	-	cobyric acid synthase
1393	 34.90	0	1441125..1443806	-	893	125624275	-	llmg_1467	-	ABC transporter permease
1394	 34.47	0	1443810..1444511	-	233	125624276	-	llmg_1468	-	ABC transporter ATP-binding protein
1395	 38.91	0	1444713..1445537	-	274	125624277	nadE	llmg_1470	-	NAD synthetase
1396	 35.58	0	1445594..1446082	-	162	125624278	-	llmg_1471	-	putative acetyltransferase
1397	 37.81	0	1446079..1447551	-	490	125624279	pncB	llmg_1472	-	nicotinate phosphoribosyltransferase
1398	 36.03	0	1448134..1448727	+	197	125624280	nadD	llmg_1473	-	nicotinic acid mononucleotide adenylyltransferase
1399	 36.39	0	1448742..1449953	-	403	125624281	-	llmg_1474	-	putative voltage gated chloride channel
1400	 37.86	0	1450356..1450598	-	80	125624282	-	llmg_1475	-	hypothetical protein
1401	 35.21	0	1450705..1452726	-	673	125624283	glyS	llmg_1477	-	glycyl-tRNA synthetase beta chain
1402	 38.89	0	1452726..1453679	-	317	125624284	glyQ	llmg_1478	-	glycyl-tRNA synthetase subunit alpha
1403	 30.34	-1	1453908..1454675	-	255	125624285	nucA	llmg_1479	-	5'-nucleotidase
1404	 39.02	0	1454785..1455804	-	339	125624286	-	llmg_1480	-	hypothetical protein
1405	 29.74	-1	1455870..1456370	-	166	125624287	vanZ	llmg_1481	-	putative teicoplanin resistance protein
1406	 33.81	0	1456412..1457047	-	211	125624288	-	llmg_1482	-	hypothetical protein
1407	 34.65	0	1457104..1458396	+	430	125624289	comFA	llmg_1483	-	superfamily II DNA/RNA helicase
1408	 31.80	-1	1458396..1459046	+	216	125624290	comFC	llmg_1484	-	putative late competence protein
1409	 31.09	-1	1459105..1459683	-	192	125624291	-	llmg_1485	-	hypothetical protein
1410	 34.87	0	1459700..1460155	-	151	125624292	dgkA	llmg_1486	-	DgkA protein
1411	 37.42	0	1460139..1460627	-	162	125624293	-	llmg_1487	-	putative metalloprotease
1412	 35.79	0	1460857..1461345	-	162	125624294	-	llmg_1488	-	putative hydrolase
1413	 38.91	0	1461415..1462383	-	322	125624295	phoH	llmg_1489	-	PhoH-like protein
1414	 36.33	0	1462457..1463989	-	510	125624296	mntH	llmg_1490	-	putative proton-dependent manganese transporter group C beta
1415	 44.91	+2	1464261..1464545	-	94	125624297	rpmA	llmg_1491	-	50S ribosomal protein L27
1416	 39.88	+1	1464547..1464882	-	111	125624298	-	llmg_1492	-	hypothetical protein
1417	 38.41	0	1464885..1465199	-	104	125624299	rplU	llmg_1493	-	50S ribosomal protein L21
1418	 33.84	0	1465369..1466544	-	391	125624300	-	llmg_1494	-	ABC transporter permease
1419	 33.08	0	1466537..1466935	-	132	125624301	-	llmg_1495	-	hypothetical protein
1420	 36.38	0	1467108..1468451	+	447	125624302	-	llmg_1496	-	putative phosphohydrolase
1421	 38.73	0	1468504..1469319	+	271	125624303	-	llmg_1497	-	putative hydrolase
1422	 34.15	0	1469458..1469823	+	121	125624304	-	llmg_1498	-	hypothetical protein
1423	 37.21	0	1469857..1470630	-	257	125624305	-	llmg_1499	-	hypothetical protein
1424	 35.94	0	1470627..1471316	-	229	125624306	-	llmg_1500	-	putative methyltransferase
1425	 39.57	0	1471309..1471965	-	218	125624307	nth	llmg_1501	-	putative endonuclease III (DNA repair)
1426	 37.37	0	1471987..1472655	-	222	125624308	dnaD	llmg_1502	-	DNA replication protein dnaD
35.99	MEAN

3.62	STD DEV
