IslandPath Analysis: Lactococcus lactis subsp. cremoris MG1363

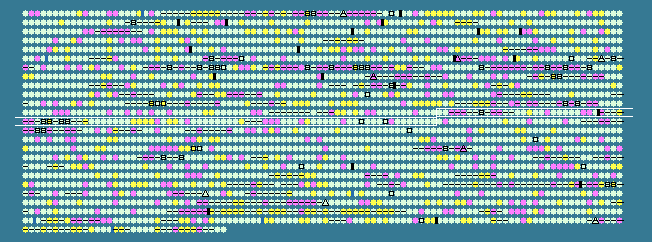

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.99 STD DEV: 3.62
Lactococcus lactis subsp. cremoris MG1363, complete genome - 1..2529478
2434 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1170	 33.22	0	1197480..1198337	+	285	125624052	metF	llmg_1226	-	5,10-methylenetetrahydrofolate reductase
1171	 35.29	0	1198699..1199721	+	340	125624053	aroH	llmg_1227	-	phospho-2-dehydro-3-deoxyheptonate aldolase
1172	 19.67	-2	1199843..1200025	-	60	125624054	-	llmg_1228	-	hypothetical protein
1173	 28.07	-2	1200210..1200380	+	56	125624055	-	llmg_1229	-	hypothetical protein
1174	 29.15	-1	1200421..1201662	+	413	125624056	-	llmg_1230	-	hypothetical protein
1175	 37.63	0	1202589..1203170	-	193	125624057	-	llmg_1231	-	hypothetical protein
1176	 38.14	0	1203241..1203531	+	96	125624058	-	llmg_1232	-	hypothetical protein
1177	 36.31	0	1203668..1204507	-	279	125624059	tnp981	llmg_1233	-	transposase for insertion element IS981J
1178	 36.78	0	1204519..1204779	-	86	125624060	-	llmg_1234	-	hypothetical protein
1179	 27.55	-2	1205420..1206076	-	218	125624061	-	llmg_1235	-	cyclic nucleotide-binding domain-containing protein
1180	 27.45	-2	1206198..1206809	+	203	125624062	-	llmg_1236	-	hypothetical protein
1181	 33.55	0	1207355..1208293	+	312	125624063	ceo	llmg_1237	-	N5-carboxyethyl-ornithine synthase
1182	 36.82	0	1209297..1209497	+	66	125624064	cspD2	llmg_1238	-	cold shock-like protein cspD2
1183	 33.33	0	1210978..1212060	+	360	125624065	-	llmg_1240	-	hypothetical protein
1184	 36.85	0	1212077..1212787	+	236	125624066	-	llmg_1241	-	hypothetical protein
1185	 40.99	+1	1212815..1213036	+	73	125624067	-	llmg_1242	-	hypothetical protein
1186	 34.63	0	1213067..1215454	+	795	125624068	-	llmg_1243	-	hypothetical protein
1187	 37.00	0	1215435..1216742	+	435	125624069	-	llmg_1244	-	hypothetical protein
1188	 32.10	-1	1216780..1217592	+	270	125624070	-	llmg_1245	-	hypothetical protein
1189	 33.64	0	1217893..1218216	+	107	125624071	arsR	llmg_1246	-	regulator of arsenical resistance
1190	 35.10	0	1218231..1218626	+	131	125624072	arsD	llmg_1247	-	arsenical resistance operon trans-acting repressor arsD
1191	 35.90	0	1218639..1220354	+	571	125624073	arsA	llmg_1248	-	arsenical pump-driving ATPase
1192	 36.46	0	1220371..1222032	+	553	125624074	-	llmg_1249	-	hypothetical protein
1193	 35.04	0	1222048..1223100	+	350	125624075	-	llmg_1250	-	putative arsenical-resistance protein
1194	 25.98	-2	1223109..1223312	+	67	125624076	-	llmg_1251	-	hypothetical protein
1195	 27.61	-2	1223857..1224258	-	133	125624077	-	llmg_1252	-	hypothetical protein
1196	 32.98	0	1224964..1225821	+	285	125624078	-	llmg_1253	-	hypothetical protein
1197	 32.34	-1	1226569..1226769	+	66	125624079	-	llmg_1254	-	hypothetical protein
1198	 32.84	0	1226900..1227100	+	66	125624080	cspC	llmg_1255	-	cold shock protein cspC
1199	 36.32	0	1227378..1227578	+	66	125624081	cspD	llmg_1256	-	cold shock protein cspD
1200	 41.25	+1	1228094..1228333	+	79	125624082	-	llmg_1257	-	hypothetical protein
1201	 32.09	-1	1228363..1228923	+	186	125624083	-	llmg_1258	-	hypothetical protein
1202	 29.10	-1	1228933..1229121	+	62	125624084	-	llmg_1259	-	hypothetical protein
1203	 36.40	0	1229142..1229402	+	86	125624085	-	llmg_1260	-	hypothetical protein
1204	 35.84	0	1229451..1230209	-	252	125624086	-	llmg_1261	-	putative transposase helper protein for IS712F
1205	 39.95	+1	1230221..1231444	-	407	125624087	tnp712	llmg_1262	-	transposase for insertion sequence element IS712F
1206	 36.27	0	1231488..1231862	+	124	125624088	-	llmg_1263	-	hypothetical protein
1207	 36.78	0	1232254..1232514	+	86	125624089	-	llmg_1264	-	putative transposase helper protein for IS981
1208	 36.91	0	1232526..1233140	+	204	125624090	tnp981	llmg_1265	-	transposase for insertion sequence element IS981J
1209	 32.76	0	1234522..1234869	+	115	125624091	-	llmg_1267	-	hypothetical protein
1210	 34.85	0	1236405..1237460	+	351	125624092	xerS	llmg_1268	-	site-specific tyrosine recombinase XerS
1211	 39.93	+1	1237544..1237831	+	95	125624093	-	llmg_1269	-	hypothetical protein
1212	 35.11	0	1238314..1239384	+	356	125624094	xerS	llmg_1270	-	site-specific tyrosine recombinase XerS
1213	 38.53	0	1239434..1240780	-	448	125624095	gidC	llmg_1271	-	tRNA (uracil-5-)-methyltransferase Gid
1214	 38.03	0	1240852..1242978	-	708	125624096	topA	llmg_1272	-	DNA topoisomerase I
1215	 34.86	0	1243244..1244092	-	282	125624097	smf	llmg_1273	-	Smf protein
1216	 37.53	0	1244240..1244620	-	126	125624098	aldR	llmg_1274	-	putative regulator AldR
1217	 35.44	0	1244660..1245370	-	236	125624099	aldB	llmg_1275	-	AldB protein
1218	 38.05	0	1245506..1246756	-	416	125624100	ilvA	llmg_1276	-	threonine dehydratase
1219	 41.64	+1	1246815..1247837	-	340	125624101	ilvC	llmg_1277	-	ketol-acid reductoisomerase
1220	 40.25	+1	1247882..1248358	-	158	125624102	ilvN	llmg_1278	-	acetolactate synthase 3 regulatory subunit
1221	 41.22	+1	1248351..1250075	-	574	125624103	ilvB	llmg_1279	-	acetolactate synthase catalytic subunit
1222	 43.61	+2	1250090..1251802	-	570	125624104	ilvD	llmg_1280	-	dihydroxy-acid dehydratase
1223	 32.14	-1	1251922..1252758	-	278	125624105	-	llmg_1281	-	putative ABC transporter ATP-binding protein
1224	 34.72	0	1252718..1253293	-	191	125624106	leuD	llmg_1282	-	isopropylmalate isomerase small subunit
1225	 41.95	+1	1253342..1253875	-	177	125624107	-	llmg_1283	-	hypothetical protein
1226	 42.19	+1	1253875..1255251	-	458	125624108	leuC	llmg_1284	-	isopropylmalate isomerase large subunit
1227	 39.27	0	1258411..1259370	+	319	125624109	-	llmg_1287	-	hypothetical protein
1228	 30.03	-1	1259403..1260188	-	261	125624110	hisK	llmg_1288	-	histidinol-phosphatase
1229	 36.93	0	1260189..1260827	-	212	125624111	hisI	llmg_1289	-	bifunctional phosphoribosyl-AMP cyclohydrolase/phosphoribosyl-ATP pyrophosphatase protein
1230	 36.67	0	1260824..1261603	-	259	125624112	hisF	llmg_1290	-	imidazoleglycerol-phosphate synthase cyclase
1231	 34.82	0	1261572..1262312	-	246	125624113	hisA	llmg_1291	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
1232	 37.11	0	1262312..1262920	-	202	125624114	hisH	llmg_1292	-	imidazole glycerol phosphate synthase subunit HisH
1233	 32.57	0	1262971..1263759	-	262	125624115	-	llmg_1293	-	hypothetical protein
1234	 37.83	0	1263756..1264355	-	199	125624116	hisB	llmg_1294	-	imidazoleglycerol-phosphate dehydratase
1235	 37.84	0	1264356..1265663	-	435	125624117	hisD	llmg_1295	-	HisD protein
1236	 34.77	0	1265647..1266273	-	208	125624118	hisG	llmg_1296	-	ATP phosphoribosyltransferase catalytic subunit
1237	 42.74	+1	1266502..1267458	-	318	125624119	hisZ	llmg_1297	-	ATP phosphoribosyltransferase regulatory subunit
1238	 33.71	0	1267458..1268528	-	356	125624120	hisC	llmg_1298	-	histidinol-phosphate aminotransferase
1239	 33.01	0	1269077..1269691	-	204	125624121	-	llmg_1299	-	hypothetical protein
1240	 34.88	0	1269721..1269849	-	42	125624122	-	llmg_1300	-	hypothetical protein
1241	 32.28	-1	1269846..1271642	-	598	125624123	-	llmg_1301	-	hypothetical protein
1242	 29.35	-1	1271646..1272047	-	133	125624124	-	llmg_1302	-	hypothetical protein
1243	 28.54	-2	1272123..1272602	-	159	125624125	-	llmg_1303	-	hypothetical protein
1244	 36.08	0	1272922..1274925	-	667	125624126	vacB2	llmg_1304	-	putative exoribonuclease R
1245	 33.03	0	1275130..1275462	-	110	125624127	-	llmg_1305	-	putative transcriptional regulator
1246	 35.46	0	1275928..1278375	-	815	125624128	-	llmg_1306	-	hypothetical protein
1247	 23.08	-2	1279042..1279197	-	51	125624129	-	llmg_1308	-	hypothetical protein
1248	 41.80	+1	1279940..1281604	-	554	125624130	als	llmg_1309	-	acetolactate synthase
1249	 32.62	0	1281759..1283015	-	418	125624131	-	llmg_1310	-	hypothetical protein
1250	 35.89	0	1283043..1284215	-	390	125624132	-	llmg_1311	-	hypothetical protein
1251	 33.17	0	1284281..1284901	-	206	125624133	-	llmg_1313	-	hypothetical protein
1252	 38.12	0	1284903..1286510	-	535	125624134	-	llmg_1314	-	hypothetical protein
1253	 34.28	0	1286555..1287925	-	456	125624135	-	llmg_1315	-	putative RNA methyltransferase
1254	 30.66	-1	1287988..1288809	-	273	125624136	-	llmg_1316	-	putative transcriptional regulator
1255	 36.17	0	1288947..1289651	+	234	125624137	-	llmg_1317	-	N-acetylmannosamine-6-phosphate 2-epimerase
1256	 32.94	0	1289736..1292261	-	841	125624138	-	llmg_1318	-	cation-transporting ATPase
1257	 39.12	0	1292447..1293622	+	391	125624139	tnp905	llmg_1319	-	transposase for insertion sequence element IS905H
1258	 37.23	0	1294199..1295584	-	461	125624140	-	llmg_1320	-	putative xylan beta-1,4-xylosidase
1259	 33.84	0	1295892..1297073	-	393	125624141	-	llmg_1321	-	hypothetical protein
1260	 34.09	0	1297370..1298566	+	398	125624142	-	llmg_1322	-	hypothetical protein
1261	 39.12	0	1298942..1300117	-	391	125624143	tnp905	llmg_1323	-	transposase for insertion sequence element IS905I
1262	 31.14	-1	1300331..1300786	+	151	125624144	-	llmg_1324	-	AraC family transcriptional regulator
1263	 34.36	0	1301096..1302163	-	355	125624145	potD	llmg_1325	-	spermidine/putrescine ABC transporter substrate-binding protein
1264	 34.71	0	1302211..1303011	-	266	125624146	potC	llmg_1326	-	spermidine/putrescine ABC transporter permease
1265	 37.39	0	1303013..1303801	-	262	125624147	potB	llmg_1327	-	spermidine/putrescine ABC transporter permease
1266	 37.70	0	1303798..1305078	-	426	125624148	potA	llmg_1328	-	spermidine/putrescine ABC transporter ATP-binding protein
1267	 38.33	0	1305539..1306438	-	299	125624149	murB	llmg_1329	-	UDP-N-acetylenolpyruvoylglucosamine reductase
1268	 37.22	0	1306481..1307149	-	222	125624150	-	llmg_1330	-	hypothetical protein
1269	 39.17	0	1307334..1308224	-	296	125624151	thrB	llmg_1331	-	homoserine kinase
35.99	MEAN

3.62	STD DEV
