IslandPath Analysis: Lactococcus lactis subsp. cremoris MG1363

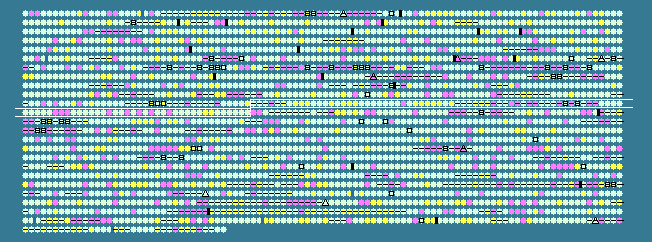

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.99 STD DEV: 3.62
Lactococcus lactis subsp. cremoris MG1363, complete genome - 1..2529478
2434 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1039	 35.57	0	1050354..1050935	+	193	125623921	-	llmg_1090	-	hypothetical protein
1040	 38.81	0	1051013..1051231	+	72	125623922	-	llmg_1091	-	putative secreted protein
1041	 38.25	0	1051383..1052867	+	494	125623923	-	llmg_1092	-	hypothetical protein
1042	 31.24	-1	1052879..1053883	+	334	125623924	-	llmg_1093	-	putative secreted protein
1043	 35.14	0	1053915..1054247	+	110	125623925	-	llmg_1094	-	hypothetical protein
1044	 43.95	+2	1054301..1055044	+	247	125623926	-	llmg_1095	-	hypothetical protein
1045	 33.33	0	1055122..1056285	+	387	125623927	-	llmg_1096	-	hypothetical protein
1046	 42.94	+1	1056343..1057071	-	242	125623928	glpF2	llmg_1097	-	glycerol uptake facilitator
1047	 40.05	+1	1057090..1058667	-	525	125623929	glpD	llmg_1098	-	GlpD protein
1048	 41.57	+1	1058720..1060237	-	505	125623930	glpK	llmg_1099	-	glycerol kinase
1049	 36.70	0	1060537..1061070	+	177	125623931	rluC	llmg_1100	-	ribosomal large subunit pseudouridine synthase
1050	 39.19	0	1061106..1061891	-	261	125623932	-	llmg_1101	-	putative secreted protein
1051	 38.11	0	1061888..1063039	-	383	125623933	-	llmg_1102	-	hypothetical protein
1052	 39.93	+1	1063253..1064464	-	403	125623934	-	llmg_1103	-	hypothetical protein
1053	 37.58	0	1064841..1066205	+	454	125623935	-	llmg_1104	-	drug-export protein
1054	 40.68	+1	1066455..1067243	+	262	125623936	pyrK	llmg_1105	-	dihydroorotate dehydrogenase, electron transfer subunit
1055	 41.77	+1	1067401..1068336	+	311	125623937	pyrDB	llmg_1106	-	dihydroorotate dehydrogenase 1B
1056	 39.64	+1	1068466..1069179	+	237	125623938	pyrF	llmg_1107	-	orotidine 5'-phosphate decarboxylase
1057	 33.77	0	1069181..1069639	+	152	125623939	-	llmg_1108	-	hypothetical protein
1058	 36.12	0	1069648..1070364	-	238	125623940	gidB	llmg_1109	-	glucose-inhibited division protein B
1059	 37.19	0	1070361..1071320	-	319	125623941	ispB	llmg_1110	-	heptaprenyl diphosphate synthase component II
1060	 37.66	0	1071311..1071841	-	176	125623942	gerCA	llmg_1111	-	heptaprenyl diphosphate synthase component I
1061	 35.29	0	1071838..1072245	-	135	125623943	-	llmg_1112	-	hypothetical protein
1062	 35.03	0	1072316..1073257	-	313	125623944	galU	llmg_1113	-	UDP--glucose-1-phosphate uridylyltransferase
1063	 39.46	0	1073311..1074339	-	342	125623945	gpsA	llmg_1114	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
1064	 30.14	-1	1074531..1075157	+	208	125623946	-	llmg_1115	-	XpaC-like protein
1065	 34.44	0	1075298..1076476	+	392	125623947	telA1	llmg_1116	-	toxic anion resistance protein
1066	 42.56	+1	1076647..1077795	+	382	125623948	nagA	llmg_1117	-	NagA protein
1067	 43.30	+2	1078182..1079204	+	340	125623949	pfk	llmg_1118	-	6-phosphofructokinase
1068	 40.69	+1	1079292..1080800	+	502	125623950	pyk	llmg_1119	-	pyruvate kinase
1069	 41.10	+1	1080918..1081895	+	325	125623951	ldh	llmg_1120	-	L-lactate dehydrogenase
1070	 42.35	+1	1082012..1082965	-	317	125623952	nupC	llmg_1121	-	purine/cytidine ABC transporter permease protein
1071	 39.36	0	1082962..1084056	-	364	125623953	nupB	llmg_1122	-	purine/cytidine ABC transporter permease protein
1072	 40.83	+1	1084049..1085569	-	506	125623954	nupA	llmg_1123	-	purine/cytidine ABC transporter ATP-binding protein
1073	 34.80	0	1085751..1086566	-	271	125623955	-	llmg_1124	-	hypothetical protein
1074	 35.86	0	1086608..1088230	-	540	125623956	fbpA	llmg_1125	-	putative fibronectin-binding protein-like protein A
1075	 34.01	0	1088535..1088978	+	147	125623957	-	llmg_1126	-	hypothetical protein
1076	 45.65	+2	1089321..1093370	+	1349	125623958	-	llmg_1127	-	cell wall surface anchor family protein
1077	 43.90	+2	1093388..1093633	+	81	125623959	-	llmg_1128	-	hypothetical protein
1078	 41.67	+1	1093651..1094226	+	191	125623960	-	llmg_1129	-	cell wall surface anchor family protein
1079	 28.27	-2	1094974..1095348	+	124	125623961	-	llmg_1130	-	hypothetical protein
1080	 35.04	0	1095546..1096484	+	312	125623962	panE	llmg_1131	-	2-dehydropantoate 2-reductase
1081	 33.16	0	1096630..1097802	+	390	125623963	sbcD	llmg_1132	-	nuclease SbcCD subunit D
1082	 31.90	-1	1097805..1100945	+	1046	125623964	sbcC	llmg_1133	-	nuclease sbcCD subunit C
1083	 30.74	-1	1101195..1101425	+	76	125623965	-	llmg_1134	-	hypothetical protein
1084	 34.54	0	1101504..1101917	-	137	125623966	-	llmg_1135	-	hypothetical protein
1085	 31.65	-1	1102206..1102919	+	237	125623967	mtsB	llmg_1136	-	manganese ABC transporter ATP binding protein
1086	 32.14	-1	1102926..1103765	+	279	125623968	mtsC	llmg_1137	-	manganese transport system membrane protein
1087	 33.33	0	1103765..1104712	+	315	125623969	mtsA	llmg_1138	-	manganese ABC transporter substrate binding protein
1088	 33.79	0	1105019..1105885	+	288	125623970	-	llmg_1139	-	hypothetical protein
1089	 36.83	0	1105938..1107194	+	418	125623971	-	llmg_1140	-	hypothetical protein
1090	 28.70	-2	1107609..1107932	+	107	125623972	-	llmg_1141	-	putative transcriptional regulator
1091	 39.12	0	1108260..1109435	-	391	125623973	tnp905	llmg_1142	-	transposase for insertion sequence element IS905F
1092	 32.36	-1	1109730..1110245	+	171	125623974	-	llmg_1143	-	hypothetical protein
1093	 36.19	0	1110256..1111095	-	279	125623975	tnp981	llmg_1144	-	transposase for insertion sequence element IS981I
1094	 36.78	0	1111107..1111367	-	86	125623976	-	llmg_1145	-	hypothetical protein
1095	 27.64	-2	1111431..1111781	+	116	125623977	-	llmg_1146	-	hypothetical protein
1096	 32.10	-1	1113008..1113331	+	107	125623978	-	llmg_1147	-	putative transcription regulator
1097	 36.38	0	1113561..1115264	+	567	125623979	-	llmg_1148	-	hypothetical protein
1098	 36.26	0	1115457..1116413	+	318	125623980	ocd	llmg_1149	-	ornithine cyclodeaminase, mu-crystallin-like protein
1099	 36.02	0	1116424..1117206	+	260	125623981	-	llmg_1150	-	hypothetical protein
1100	 33.19	0	1117267..1118679	-	470	125623982	-	llmg_1151	-	hypothetical protein
1101	 32.91	0	1119320..1120990	+	556	125623983	-	llmg_1152	-	hypothetical protein
1102	 36.08	0	1121415..1121996	+	193	125623984	pabA	llmg_1153	-	p-aminobenzoate synthetase, component II
1103	 33.81	0	1122001..1123887	+	628	125623985	pabB	llmg_1154	-	para-aminobenzoate synthase component I
1104	 33.06	0	1124076..1124447	+	123	125623986	-	llmg_1155	-	Spx-like protein
1105	 34.86	0	1124506..1124832	+	108	125623987	-	llmg_1156	-	hypothetical protein
1106	 31.52	-1	1124929..1125093	-	54	125623988	-	llmg_1158	-	hypothetical protein
1107	 32.51	0	1125090..1125452	-	120	125623989	-	llmg_1159	-	hypothetical protein
1108	 30.86	-1	1125608..1126618	+	336	125623990	-	llmg_1160	-	hypothetical protein
1109	 35.65	0	1126850..1127323	+	157	125623991	-	llmg_1161	-	sialic acid-specific 9-O-acetylesterase
1110	 37.75	0	1127360..1128718	+	452	125623992	-	llmg_1162	-	sialic acid-specific 9-O-acetylesterase
1111	 38.91	0	1128720..1130027	+	435	125623993	-	llmg_1163	-	sugar ABC transporter substrate-binding protein
1112	 37.29	0	1130161..1131120	+	319	125623994	-	llmg_1164	-	hypothetical protein
1113	 38.83	0	1131120..1131974	+	284	125623995	-	llmg_1165	-	hypothetical protein
1114	 37.01	0	1131976..1132872	+	298	125623996	-	llmg_1166	-	putative endoglucanase
1115	 28.79	-1	1132978..1133109	+	43	125623997	-	llmg_1167	-	putative endoglucanase
1116	 38.12	0	1133124..1133750	+	208	125623998	-	llmg_1168	-	putative polysaccharide deacetylase
1117	 39.25	0	1133781..1135775	+	664	125623999	aguA	llmg_1169	-	AguA protein
1118	 31.42	-1	1135978..1137705	+	575	125624000	-	llmg_1170	-	hypothetical protein
1119	 35.21	0	1137774..1139159	-	461	125624001	-	llmg_1171	-	hypothetical protein
1120	 31.23	-1	1139152..1139913	-	253	125624002	rdrB	llmg_1172	-	transcription regulator
1121	 35.71	0	1140260..1141309	+	349	125624003	-	llmg_1173	-	hypothetical protein
1122	 29.12	-1	1141470..1142015	+	181	125624004	-	llmg_1174	-	hypothetical protein
1123	 38.40	0	1142245..1143093	+	282	125624005	rbgA	llmg_1175	-	ribosomal biogenesis GTPase
1124	 37.08	0	1143206..1143979	+	257	125624006	rnhB	llmg_1176	-	ribonuclease HII
1125	 29.24	-1	1144571..1145401	+	276	125624007	gadR	llmg_1177	-	positive regulator GadR
1126	 35.31	0	1145542..1147056	+	504	125624008	gadC	llmg_1178	-	putative glutamate/gamma-aminobutyrate antiporter
1127	 35.40	0	1147076..1148476	+	466	125624009	gadB	llmg_1179	-	glutamate decarboxylase
1128	 37.35	0	1148551..1149297	-	248	125624010	-	llmg_1180	-	hypothetical protein
1129	 39.30	0	1149457..1150479	+	340	125624011	ilvE	llmg_1181	-	branched-chain amino acid aminotransferase
1130	 38.73	0	1150512..1151123	-	203	125624012	-	llmg_1182	-	putative acetyltransferase
1131	 40.96	+1	1151292..1155761	+	1489	125624013	gltB	llmg_1183	-	glutamate synthase, large subunit
1132	 41.39	+1	1155761..1157200	+	479	125624014	gltD	llmg_1184	-	glutamate synthase subunit beta
1133	 37.54	0	1157315..1158574	+	419	125624015	lysA	llmg_1185	-	LysA protein
1134	 39.17	0	1158725..1158964	+	79	125624016	-	llmg_1186	-	hypothetical protein
1135	 39.46	0	1159140..1159955	+	271	125624017	murI	llmg_1187	-	glutamate racemase
1136	 37.62	0	1159956..1160561	+	201	125624018	-	llmg_1188	-	hypothetical protein
1137	 35.52	0	1160600..1161103	+	167	125624019	-	llmg_1189	-	hypothetical protein
1138	 33.77	0	1161134..1161595	+	153	125624020	-	llmg_1190	-	hypothetical protein
35.99	MEAN

3.62	STD DEV
