IslandPathversion 1.0

IslandPath Analysis: Lactococcus lactis subsp. cremoris MG1363

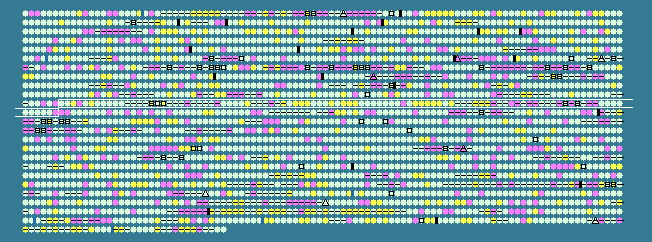

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.99 STD DEV: 3.62
Lactococcus lactis subsp. cremoris MG1363, complete genome - 1..2529478
2434 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1007	 33.66	0	1019146..1020066	-	306	125623889	coaA	llmg_1058	-	pantothenate kinase
1008	 35.34	0	1020255..1020851	+	198	125623890	rsmC	llmg_1059	-	ribosomal RNA small subunit methyltransferase C
1009	 39.83	+1	1020886..1022178	+	430	125623891	pdp	llmg_1060	-	pyrimidine-nucleoside phosphorylase
1010	 31.22	-1	1022180..1022368	+	62	125623892	-	llmg_1061	-	hypothetical protein
1011	 38.31	0	1022381..1023043	+	220	125623893	deoC	llmg_1062	-	DeoC protein
1012	 39.69	+1	1023030..1023422	+	130	125623894	cdd	llmg_1063	-	Cdd protein
1013	 39.02	0	1023690..1024745	+	351	125623895	bmpA	llmg_1064	-	basic membrane protein A
1014	 37.15	0	1024931..1025638	+	235	125623896	rgrB	llmg_1065	-	GntR family transcriptional regulator
1015	 37.19	0	1025646..1026086	-	146	125623897	-	llmg_1066	-	hypothetical protein
1016	 34.36	0	1026184..1027737	-	517	125623898	kinB	llmg_1067	-	sensor protein kinase kinB
1017	 33.61	0	1027727..1028437	-	236	125623899	llrB	llmg_1068	-	two-component system regulator llrB
1018	 33.04	0	1028621..1028956	+	111	125623900	-	llmg_1069	-	hypothetical protein
1019	 35.22	0	1029743..1030273	+	176	125623901	-	llmg_1070	-	putative secreted protein
1020	 33.33	0	1030384..1030953	+	189	125623902	-	llmg_1071	-	hypothetical protein
1021	 37.80	0	1031842..1032132	+	96	125623903	-	llmg_1072	-	hypothetical protein
1022	 40.31	+1	1032228..1032944	+	238	125623904	-	llmg_1073	-	transposase for insertion sequence element IS904E (fragment)
1023	 35.84	0	1032985..1033743	-	252	125623905	-	llmg_1074	-	putative transposase helper protein for IS712E
1024	 39.87	+1	1033755..1034978	-	407	125623906	tnp712	llmg_1075	-	transposase for insertion sequence element IS712E
1025	 35.87	0	1035285..1035836	-	183	125623907	-	llmg_1076	-	putative acetyltransferase
1026	 34.99	0	1036203..1036625	+	140	125623908	-	llmg_1077	-	putative glyoxalase family protein
1027	 33.52	0	1036771..1037319	+	182	125623909	-	llmg_1078	-	hypothetical protein
1028	 32.18	-1	1037518..1037865	-	115	125623910	-	llmg_1079	-	hypothetical protein
1029	 37.06	0	1038050..1038478	+	142	125623911	uspA2	llmg_1080	-	universal stress protein A2
1030	 33.62	0	1038629..1038982	+	117	125623912	-	llmg_1081	-	putative secreted protein
1031	 33.86	0	1039099..1039854	-	251	125623913	-	llmg_1082	-	hypothetical protein
1032	 34.59	0	1040025..1040579	-	184	125623914	-	llmg_1083	-	hypothetical protein
1033	 27.72	-2	1040836..1041405	+	189	125623915	-	llmg_1084	-	hypothetical protein
1034	 34.57	0	1041625..1042350	+	241	125623916	-	llmg_1085	-	hypothetical protein
1035	 39.07	0	1042609..1045242	+	877	125623917	-	llmg_1086	-	cation (calcium) transporting ATPase
1036	 36.51	0	1045285..1045914	-	209	125623918	acmC	llmg_1087	-	N-acetylglucosaminidase
1037	 33.33	0	1046138..1046611	+	157	125623919	gpo	llmg_1088	-	gluthatione peroxidase
1038	 40.00	+1	1046961..1050155	+	1064	125623920	carB	llmg_1089	-	carbamoyl phosphate synthase large subunit
1039	 35.57	0	1050354..1050935	+	193	125623921	-	llmg_1090	-	hypothetical protein
1040	 38.81	0	1051013..1051231	+	72	125623922	-	llmg_1091	-	putative secreted protein
1041	 38.25	0	1051383..1052867	+	494	125623923	-	llmg_1092	-	hypothetical protein
1042	 31.24	-1	1052879..1053883	+	334	125623924	-	llmg_1093	-	putative secreted protein
1043	 35.14	0	1053915..1054247	+	110	125623925	-	llmg_1094	-	hypothetical protein
1044	 43.95	+2	1054301..1055044	+	247	125623926	-	llmg_1095	-	hypothetical protein
1045	 33.33	0	1055122..1056285	+	387	125623927	-	llmg_1096	-	hypothetical protein
1046	 42.94	+1	1056343..1057071	-	242	125623928	glpF2	llmg_1097	-	glycerol uptake facilitator
1047	 40.05	+1	1057090..1058667	-	525	125623929	glpD	llmg_1098	-	GlpD protein
1048	 41.57	+1	1058720..1060237	-	505	125623930	glpK	llmg_1099	-	glycerol kinase
1049	 36.70	0	1060537..1061070	+	177	125623931	rluC	llmg_1100	-	ribosomal large subunit pseudouridine synthase
1050	 39.19	0	1061106..1061891	-	261	125623932	-	llmg_1101	-	putative secreted protein
1051	 38.11	0	1061888..1063039	-	383	125623933	-	llmg_1102	-	hypothetical protein
1052	 39.93	+1	1063253..1064464	-	403	125623934	-	llmg_1103	-	hypothetical protein
1053	 37.58	0	1064841..1066205	+	454	125623935	-	llmg_1104	-	drug-export protein
1054	 40.68	+1	1066455..1067243	+	262	125623936	pyrK	llmg_1105	-	dihydroorotate dehydrogenase, electron transfer subunit
1055	 41.77	+1	1067401..1068336	+	311	125623937	pyrDB	llmg_1106	-	dihydroorotate dehydrogenase 1B
1056	 39.64	+1	1068466..1069179	+	237	125623938	pyrF	llmg_1107	-	orotidine 5'-phosphate decarboxylase
1057	 33.77	0	1069181..1069639	+	152	125623939	-	llmg_1108	-	hypothetical protein
1058	 36.12	0	1069648..1070364	-	238	125623940	gidB	llmg_1109	-	glucose-inhibited division protein B
1059	 37.19	0	1070361..1071320	-	319	125623941	ispB	llmg_1110	-	heptaprenyl diphosphate synthase component II
1060	 37.66	0	1071311..1071841	-	176	125623942	gerCA	llmg_1111	-	heptaprenyl diphosphate synthase component I
1061	 35.29	0	1071838..1072245	-	135	125623943	-	llmg_1112	-	hypothetical protein
1062	 35.03	0	1072316..1073257	-	313	125623944	galU	llmg_1113	-	UDP--glucose-1-phosphate uridylyltransferase
1063	 39.46	0	1073311..1074339	-	342	125623945	gpsA	llmg_1114	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
1064	 30.14	-1	1074531..1075157	+	208	125623946	-	llmg_1115	-	XpaC-like protein
1065	 34.44	0	1075298..1076476	+	392	125623947	telA1	llmg_1116	-	toxic anion resistance protein
1066	 42.56	+1	1076647..1077795	+	382	125623948	nagA	llmg_1117	-	NagA protein
1067	 43.30	+2	1078182..1079204	+	340	125623949	pfk	llmg_1118	-	6-phosphofructokinase
1068	 40.69	+1	1079292..1080800	+	502	125623950	pyk	llmg_1119	-	pyruvate kinase
1069	 41.10	+1	1080918..1081895	+	325	125623951	ldh	llmg_1120	-	L-lactate dehydrogenase
1070	 42.35	+1	1082012..1082965	-	317	125623952	nupC	llmg_1121	-	purine/cytidine ABC transporter permease protein
1071	 39.36	0	1082962..1084056	-	364	125623953	nupB	llmg_1122	-	purine/cytidine ABC transporter permease protein
1072	 40.83	+1	1084049..1085569	-	506	125623954	nupA	llmg_1123	-	purine/cytidine ABC transporter ATP-binding protein
1073	 34.80	0	1085751..1086566	-	271	125623955	-	llmg_1124	-	hypothetical protein
1074	 35.86	0	1086608..1088230	-	540	125623956	fbpA	llmg_1125	-	putative fibronectin-binding protein-like protein A
1075	 34.01	0	1088535..1088978	+	147	125623957	-	llmg_1126	-	hypothetical protein
1076	 45.65	+2	1089321..1093370	+	1349	125623958	-	llmg_1127	-	cell wall surface anchor family protein
1077	 43.90	+2	1093388..1093633	+	81	125623959	-	llmg_1128	-	hypothetical protein
1078	 41.67	+1	1093651..1094226	+	191	125623960	-	llmg_1129	-	cell wall surface anchor family protein
1079	 28.27	-2	1094974..1095348	+	124	125623961	-	llmg_1130	-	hypothetical protein
1080	 35.04	0	1095546..1096484	+	312	125623962	panE	llmg_1131	-	2-dehydropantoate 2-reductase
1081	 33.16	0	1096630..1097802	+	390	125623963	sbcD	llmg_1132	-	nuclease SbcCD subunit D
1082	 31.90	-1	1097805..1100945	+	1046	125623964	sbcC	llmg_1133	-	nuclease sbcCD subunit C
1083	 30.74	-1	1101195..1101425	+	76	125623965	-	llmg_1134	-	hypothetical protein
1084	 34.54	0	1101504..1101917	-	137	125623966	-	llmg_1135	-	hypothetical protein
1085	 31.65	-1	1102206..1102919	+	237	125623967	mtsB	llmg_1136	-	manganese ABC transporter ATP binding protein
1086	 32.14	-1	1102926..1103765	+	279	125623968	mtsC	llmg_1137	-	manganese transport system membrane protein
1087	 33.33	0	1103765..1104712	+	315	125623969	mtsA	llmg_1138	-	manganese ABC transporter substrate binding protein
1088	 33.79	0	1105019..1105885	+	288	125623970	-	llmg_1139	-	hypothetical protein
1089	 36.83	0	1105938..1107194	+	418	125623971	-	llmg_1140	-	hypothetical protein
1090	 28.70	-2	1107609..1107932	+	107	125623972	-	llmg_1141	-	putative transcriptional regulator
1091	 39.12	0	1108260..1109435	-	391	125623973	tnp905	llmg_1142	-	transposase for insertion sequence element IS905F
1092	 32.36	-1	1109730..1110245	+	171	125623974	-	llmg_1143	-	hypothetical protein
1093	 36.19	0	1110256..1111095	-	279	125623975	tnp981	llmg_1144	-	transposase for insertion sequence element IS981I
1094	 36.78	0	1111107..1111367	-	86	125623976	-	llmg_1145	-	hypothetical protein
1095	 27.64	-2	1111431..1111781	+	116	125623977	-	llmg_1146	-	hypothetical protein
1096	 32.10	-1	1113008..1113331	+	107	125623978	-	llmg_1147	-	putative transcription regulator
1097	 36.38	0	1113561..1115264	+	567	125623979	-	llmg_1148	-	hypothetical protein
1098	 36.26	0	1115457..1116413	+	318	125623980	ocd	llmg_1149	-	ornithine cyclodeaminase, mu-crystallin-like protein
1099	 36.02	0	1116424..1117206	+	260	125623981	-	llmg_1150	-	hypothetical protein
1100	 33.19	0	1117267..1118679	-	470	125623982	-	llmg_1151	-	hypothetical protein
1101	 32.91	0	1119320..1120990	+	556	125623983	-	llmg_1152	-	hypothetical protein
1102	 36.08	0	1121415..1121996	+	193	125623984	pabA	llmg_1153	-	p-aminobenzoate synthetase, component II
1103	 33.81	0	1122001..1123887	+	628	125623985	pabB	llmg_1154	-	para-aminobenzoate synthase component I
1104	 33.06	0	1124076..1124447	+	123	125623986	-	llmg_1155	-	Spx-like protein
1105	 34.86	0	1124506..1124832	+	108	125623987	-	llmg_1156	-	hypothetical protein
1106	 31.52	-1	1124929..1125093	-	54	125623988	-	llmg_1158	-	hypothetical protein
35.99	MEAN

3.62	STD DEV
