IslandPathversion 1.0

IslandPath Analysis: Lawsonia intracellularis PHE/MN1-00

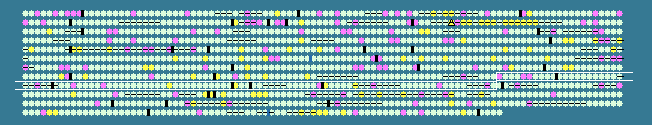

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.48 STD DEV: 3.07
Lawsonia intracellularis PHE/MN1-00, complete genome - 1..1457619
1180 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
780	 31.00	-1	972160..972975	-	271	94987225	-	LI0783	-	hypothetical protein
781	 35.69	0	973029..975491	-	820	94987226	gyrA	LI0784	-	Type IIA topoisomerase (DNA gyrase/topo II, topoisomerase IV), A subunit
782	 33.58	0	975610..978009	-	799	94987227	gyrB	LI0785	-	Type IIA topoisomerase (DNA gyrase/topo II, topoisomerase IV), B subunit
783	 31.08	-1	978042..979193	-	383	94987228	dnaN	LI0786	-	DNA polymerase sliding clamp subunit (PCNA homolog)
784	 30.08	-1	979314..980636	-	440	94987229	dnaA	LI0787	-	ATPase involved in DNA replication initiation
785	 30.34	-1	980888..982222	+	444	94987230	-	LI0788	-	membrane proteins related to metalloendopeptidases
786	 32.88	0	982255..983355	+	366	94987231	queA	LI0789	-	S-adenosylmethionine:tRNA-ribosyltransferase- isomerase (queuine synthetase)
787	 37.29	0	984330..985391	+	353	94987232	vorB	LI0790	-	2-ketoisovalerate ferredoxin reductase
788	 37.94	+1	985391..986194	+	267	94987233	porB	LI0791	-	ferredoxin oxidoreductases, beta subunit
789	 36.46	0	986196..986738	+	180	94987234	porB	LI0792	-	ferredoxin oxidoreductases, gamma subunit
790	 33.10	0	987288..988580	+	430	94987235	-	LI0793	-	FKBP-type peptidyl-prolyl cis-trans isomerase (trigger factor)
791	 36.03	0	988737..989366	+	209	94987236	clpP	LI0794	-	protease subunit of ATP-dependent Clp proteases
792	 36.20	0	989642..990895	+	417	94987237	clpX	LI0795	-	ATP-dependent protease ATP-binding subunit
793	 35.90	0	990983..993436	+	817	94987238	lon	LI0796	-	ATP-dependent protease
794	 33.59	0	993461..993847	-	128	94987239	-	LI0797	-	hypothetical protein
795	 33.54	0	994282..995271	+	329	94987240	-	LI0798	-	hypothetical protein
796	 32.24	0	995278..995916	-	212	94987241	-	LI0799	-	hypothetical protein
797	 36.54	0	995965..996681	-	238	94987242	-	LI0800	-	hypothetical protein
798	 32.24	0	996842..998215	+	457	94987243	glmU	LI0801	-	N-acetylglucosamine-1-phosphate uridyltransferase
799	 37.04	0	999188..1000750	+	520	94987244	-	LI0802	-	HD superfamily hydrolase
800	 33.33	0	1000833..1001591	+	252	94987245	-	LI0803	-	hypothetical protein
801	 37.47	0	1001682..1002140	-	152	94987246	-	LI0804	-	hypothetical protein
802	 35.10	0	1002133..1002810	-	225	94987247	-	LI0805	-	hypothetical protein
803	 30.67	-1	1002865..1003953	-	362	94987248	menE	LI0806	-	O-succinylbenzoic acid--CoA ligase
804	 35.64	0	1004052..1004873	-	273	94987249	menB	LI0807	-	naphthoate synthase
805	 32.87	0	1004883..1005317	-	144	94987250	comA	LI0808	-	putative hydrolase, haloacid dehalogenase-like hydrolase
806	 32.05	0	1005673..1006062	-	129	94987251	-	LI0809	-	hypothetical protein
807	 33.61	0	1006385..1007098	+	237	94987252	-	LI0810	-	integral membrane protein, interacts with FtsH
808	 34.72	0	1007157..1008167	-	336	94987253	pit	LI0811	-	phosphate/sulphate permeases
809	 27.83	-2	1008160..1008795	-	211	94987254	-	LI0812	-	hypothetical protein
810	 33.52	0	1010184..1011809	+	541	94987255	rluD	LI0813	-	pseudouridylate synthases, 23S RNA-specific
811	 35.37	0	1012019..1012804	+	261	94987256	soj	LI0814	-	ATPases involved in chromosome partitioning
812	 35.73	0	1012884..1013843	+	319	94987257	spo0J	LI0815	-	transcriptional regulator
813	 35.45	0	1013959..1014996	+	345	94987258	-	LI0816	-	ADP-heptose synthase, bifunctional sugar kinase/adenylyltransferase
814	 28.48	-1	1015004..1016197	-	397	94987259	hemN	LI0817	-	coproporphyrinogen III oxidase-like protein
815	 34.18	0	1016534..1017481	+	315	94987260	pyrB	LI0818	-	aspartate carbamoyltransferase catalytic subunit
816	 36.64	0	1017493..1018764	+	423	94987261	pyrC	LI0819	-	dihydroorotase-like protein
817	 34.37	0	1018869..1019642	-	257	94987262	-	LI0820	-	2-keto-4-pentenoate hydratase/2-oxohepta-3-ene-1,7-dioic acid hydratase (catechol pathway)
818	 33.19	0	1019930..1021303	+	457	94987263	miaB	LI0821	-	2-methylthioadenine synthetase
819	 31.43	0	1021458..1022141	+	227	94987264	-	LI0822	-	PHP family histidinol phosphatase/hydrolase
820	 35.90	0	1022176..1023267	+	363	94987265	pepQ	LI0823	-	Xaa-Pro aminopeptidase
821	 33.71	0	1023291..1024349	+	352	94987266	-	LI0824	-	glycosyltransferase
822	 33.57	0	1024378..1025664	+	428	94987267	-	LI0825	-	Lipid A core-O-antigen ligase and related enzymes
823	 35.24	0	1025679..1025888	-	69	94987268	rpmB	LI0826	-	50S ribosomal protein L28
824	 35.47	0	1026067..1028082	+	671	94987269	-	LI0827	-	lipoprotein
825	 38.20	+1	1028105..1029172	-	355	94987270	gpsA	LI0828	-	glycerol-3-phosphate dehydrogenase
826	 36.59	0	1029763..1030869	+	368	94987271	potA	LI0829	-	putrescine/spermidine ABC transporter ATPase protein
827	 32.32	0	1030856..1031740	+	294	94987272	potB	LI0830	-	ABC-type spermidine/putrescine transport system, permease component I
828	 32.95	0	1031740..1032516	+	258	94987273	potC	LI0831	-	spermidine/putrescine ABC transporter membrane protein
829	 31.53	0	1032574..1033626	+	350	94987274	potD	LI0832	-	spermidine/putrescine-binding periplasmic protein
830	 37.43	0	1033802..1035070	-	422	94987275	-	LI0833	-	hypothetical protein
831	 32.66	0	1035090..1035533	-	147	94987276	-	LI0834	-	hypothetical protein
832	 31.78	0	1035578..1036222	-	214	94987277	-	LI0835	-	hypothetical protein
833	 36.84	0	1036458..1037198	+	246	94987278	-	LI0836	-	transcriptional regulator
834	 33.55	0	1037498..1040206	+	902	94987279	-	LI0837	-	hypothetical protein
835	 37.65	+1	1040246..1041496	-	416	94987280	murA	LI0838	-	UDP-N-acetylglucosamine enolpyruvyl transferase
836	 38.08	+1	1041779..1042558	-	259	94987281	xthA	LI0839	-	exonuclease III
837	 32.52	0	1042878..1043369	-	163	94987282	-	LI0840	-	hypothetical protein
838	 32.79	0	1043947..1044681	-	244	94987283	-	LI0841	-	putative invasin
839	 35.93	0	1045546..1047813	+	755	94987284	katE	LI0842	-	hydroperoxidase II
840	 34.70	0	1048872..1050629	+	585	94987285	tsr	LI0843	-	methyl-accepting chemotaxis protein
841	 33.25	0	1050746..1052017	-	423	94987286	-	LI0844	-	tRNA and rRNA cytosine-C5-methylases
842	 34.61	0	1052160..1053803	+	547	94987287	-	LI0845	-	hypothetical protein
843	 35.20	0	1053988..1055109	+	373	94987288	-	LI0846	-	lipopolysaccharide core biosynthesis protein RfaG (glucosyltransferase I)
844	 31.32	-1	1055274..1056068	+	264	94987289	-	LI0847	-	hypothetical protein
845	 35.72	0	1056140..1057477	-	445	94987290	gidA	LI0848	-	tRNA (uracil-5-)-methyltransferase Gid
846	 31.76	0	1057662..1058297	-	211	94987291	-	LI0849	-	HD superfamily hydrolase
847	 33.42	0	1058349..1059566	-	405	94987292	-	LI0850	-	hypothetical protein
848	 37.31	0	1059742..1060068	+	108	94987293	-	LI0851	-	NAD(P)H-dependent flavin reductase
849	 33.00	0	1060120..1060419	+	99	94987294	-	LI0852	-	NAD(P)H nitroreductase
850	 29.90	-1	1060422..1060829	-	135	94987295	-	LI0853	-	redox protein, regulator of disulfide bond formation
851	 39.62	+1	1062640..1063959	-	439	94987296	fliI	LI0854	-	flagellar biosynthesis/type III secretory pathway ATPase
852	 34.51	0	1063984..1065429	-	481	94987297	-	LI0855	-	flagellar biosynthesis/type III secretory pathway protein
853	 37.05	0	1065476..1066471	-	331	94987298	fliG	LI0856	-	flagellar motor switch protein
854	 36.40	0	1066878..1068542	-	554	94987299	fliF	LI0857	-	flagellar biosynthesis/type III secretory pathway lipoprotein
855	 33.62	0	1068655..1069002	-	115	94987300	fliE	LI0858	-	flagellar hook-basal body protein
856	 38.55	+1	1069051..1069491	-	146	94987301	flgC	LI0859	-	flagellar basal body rod protein
857	 36.23	0	1069494..1069907	-	137	94987302	flgB	LI0860	-	flagellar basal body rod protein FlgB
858	 32.67	0	1070196..1070954	-	252	94987303	cbiO	LI0861	-	ABC-type cobalt transport system, ATPase component
859	 28.78	-1	1070963..1071709	-	248	94987304	-	LI0862	-	hypothetical protein
860	 33.33	0	1071699..1072334	-	211	94987305	cbiM	LI0863	-	cobalt transport protein CbiM
861	 33.33	0	1072321..1072818	-	165	94987306	-	LI0864	-	hypothetical protein
862	 34.80	0	1073007..1074569	-	520	94987307	mviN	LI0865	-	uncharacterized membrane protein, putative virulence factor
863	 33.43	0	1074655..1076736	-	693	94987308	-	LI0866	-	membrane metal-binding protein
864	 34.26	0	1077738..1078598	-	286	94987309	murI	LI0867	-	glutamate racemase
865	 32.60	0	1078883..1079695	-	270	94987310	rluB	LI0868	-	16S rRNA uridine-516 pseudouridylate synthase and related pseudouridylate synthases
866	 33.50	0	1079867..1081684	+	605	94987311	-	LI0869	-	ABC-type multidrug transport system, ATPase and permease components
867	 35.81	0	1081659..1082303	+	214	94987312	-	LI0870	-	hypothetical protein
868	 34.80	0	1082307..1083191	+	294	94987313	htrB	LI0871	-	acyltransferase
869	 36.03	0	1083991..1085361	-	456	94987314	-	LI0872	-	hypothetical protein
870	 26.77	-2	1085499..1086062	-	187	94987315	-	LI0873	-	ACT domain-containing protein
871	 36.88	0	1086267..1088042	+	591	94987316	-	LI0874	-	formate--tetrahydrofolate ligase
872	 35.68	0	1088081..1088974	+	297	94987317	-	LI0875	-	methylenetetrahydrofolate dehydrogenase (NADP+) / methenyltetrahydrofolate cyclohydrolase
873	 32.66	0	1088986..1090329	-	447	94987318	-	LI0876	-	tRNA and rRNA cytosine-C5-methylases
874	 35.15	0	1090388..1091761	-	457	94987319	atoC	LI0877	-	response regulator
875	 32.57	0	1091827..1093269	-	480	94987320	atoS	LI0878	-	Signal transduction histidine kinase
876	 35.81	0	1093271..1094605	-	444	94987321	pgi	LI0879	-	glucose-6-phosphate isomerase
877	 33.59	0	1095072..1095860	+	262	94987322	sfsA	LI0880	-	DNA-binding protein, stimulates sugar fermentation
878	 27.70	-2	1095872..1096972	-	366	94987323	-	LI0881	-	permease
879	 32.47	0	1096969..1098123	-	384	94987324	-	LI0882	-	permease
34.48	MEAN

3.07	STD DEV
