IslandPath Analysis: Lawsonia intracellularis PHE/MN1-00

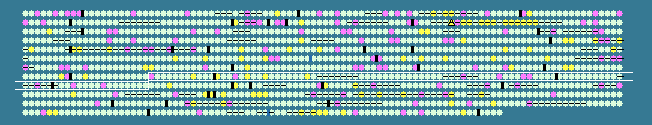

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.48 STD DEV: 3.07
Lawsonia intracellularis PHE/MN1-00, complete genome - 1..1457619
1180 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
722	 30.90	-1	910107..910928	-	273	94987167	hisB	LI0725	-	PHP family histidinol phosphatase/hydrolase
723	 37.59	+1	911020..912195	-	391	162138293	metK	LI0726	-	S-adenosylmethionine synthetase
724	 31.81	0	912401..912991	+	196	94987169	-	LI0727	-	hypothetical protein
725	 33.45	0	912997..913881	+	294	94987170	lytB	LI0728	-	ribosomal protein S1
726	 35.86	0	913946..914896	+	316	94987171	cheV	LI0729	-	chemotaxis signal transduction protein
727	 35.89	0	914956..916287	-	443	94987172	ugd	LI0730	-	UDP-glucose 6-dehydrogenase
728	 32.28	0	916424..916801	+	125	94987173	acpS	LI0731	-	holo-[acyl-carrier protein] synthase
729	 38.20	+1	916828..917361	+	177	94987174	hslV	LI0732	-	ATP-dependent protease peptidase subunit
730	 33.08	0	917632..918429	+	265	94987175	-	LI0733	-	amino acid ABC transporter periplasmic protein
731	 37.47	0	918588..919070	+	160	94987176	-	LI0734	-	hypothetical protein
732	 33.55	0	919170..920087	+	305	94987177	ychB	LI0735	-	4-diphosphocytidyl-2C-methyl-D-erythritol 2-phosphate synthase
733	 38.20	+1	920202..921167	+	321	94987178	prsA	LI0736	-	phosphoribosylpyrophosphate synthetase
734	 33.50	0	921211..921804	+	197	94987179	-	LI0737	-	50S ribosomal protein L25/general stress protein Ctc
735	 33.99	0	921880..922485	+	201	94987180	-	LI0738	-	peptidyl-tRNA hydrolase
736	 28.43	-1	922741..923433	+	230	94987181	-	LI0739	-	hypothetical protein
737	 36.73	0	923583..924377	+	264	94987182	flgF	LI0740	-	flagellar basal body rod protein
738	 39.44	+1	924392..925177	+	261	94987183	flgG	LI0741	-	flagellar basal body rod protein FlgG
739	 35.67	0	925203..926186	+	327	94987184	-	LI0742	-	hypothetical protein
740	 37.52	0	926204..926896	+	230	94987185	flgH	LI0743	-	flagellar basal body L-ring protein
741	 38.42	+1	926942..928081	+	379	94987186	flgI	LI0744	-	flagellar basal body P-ring protein
742	 33.04	0	928086..928769	+	227	94987187	flgJ	LI0745	-	membrane proteins related to metalloendopeptidases
743	 34.46	0	928976..929506	+	176	94987188	-	LI0746	-	hypothetical protein
744	 36.40	0	929506..931623	+	705	94987189	flgK	LI0747	-	flagellar hook-associated protein
745	 37.39	0	931633..933210	+	525	94987190	flgL	LI0748	-	flagellin-like protein
746	 32.17	0	933304..933993	+	229	94987191	-	LI0749	-	flagellar assembly protein FliW
747	 35.86	0	934221..935801	+	526	94987192	-	LI0750	-	hypothetical protein
748	 38.43	+1	935839..937368	-	509	94987193	-	LI0751	-	Mg chelatase-related protein
749	 33.63	0	937365..939059	-	564	94987194	-	LI0752	-	Sulfate transporter family protein
750	 35.50	0	939166..939858	-	230	94987195	glnP	LI0753	-	ABC-type amino acid transport system, permease component
751	 33.07	0	939981..940730	-	249	94987196	glnH	LI0754	-	amino acid ABC transporter periplasmic protein
752	 36.70	0	941271..942995	-	574	94987197	rpsA	LI0755	-	30S ribosomal protein S1
753	 37.24	0	943310..943795	-	161	94987198	rnh	LI0756	-	ribonuclease HI
754	 31.43	0	943971..944864	-	297	94987199	menA	LI0757	-	hypothetical protein
755	 33.65	0	944976..945602	-	208	94987200	-	LI0758	-	hypothetical protein
756	 34.32	0	945599..946513	-	304	94987201	menA	LI0759	-	hypothetical protein
757	 37.00	0	946612..947238	-	208	94987202	tmk	LI0760	-	thymidylate kinase
758	 33.71	0	947223..948281	-	352	94987203	cbf1	LI0761	-	HD-superfamily hydrolase
759	 34.66	0	948405..949160	+	251	94987204	surE	LI0762	-	acid phosphatase
760	 37.23	0	949353..950276	+	307	94987205	fba	LI0763	-	fructose/tagatose bisphosphate aldolase
761	 36.63	0	950386..951387	+	333	94987206	gapA	LI0764	-	glyceraldehyde-3-phosphate dehydrogenase/erythrose-4-phosphate dehydrogenase
762	 33.11	0	951412..952311	-	299	94987207	-	LI0765	-	hypothetical protein
763	 36.33	0	952368..953336	-	322	94987208	fmt	LI0766	-	methionyl-tRNA formyltransferase
764	 32.75	0	953333..953848	-	171	94987209	def	LI0767	-	N-formylmethionyl-tRNA deformylase
765	 34.64	0	954008..955000	+	330	94987210	nifr3	LI0768	-	tRNA-dihydrouridine synthase
766	 36.52	0	955017..955769	-	250	94987211	-	LI0769	-	hypothetical protein
767	 37.63	+1	955760..956341	-	193	94987212	-	LI0770	-	5-formyltetrahydrofolate cyclo-ligase
768	 34.68	0	957340..959340	+	666	94987213	rne	LI0771	-	ribonucleases G and E
769	 33.84	0	959344..959937	+	197	94987214	-	LI0772	-	hypothetical protein
770	 36.77	0	959970..961946	-	658	94987215	kefC	LI0773	-	Kef-type K+ transport systems, membrane components
771	 33.26	0	962215..963630	+	471	94987216	trkA	LI0774	-	potassium transporter peripheral membrane component
772	 33.67	0	963721..965187	+	488	94987217	trkH	LI0775	-	Trk-type K+ transport systems, membrane components
773	 34.99	0	965279..965941	+	220	94987218	psd	LI0776	-	phosphatidylserine decarboxylase
774	 30.80	-1	966003..966752	+	249	94987219	-	LI0777	-	phosphatidylserine synthase
775	 33.64	0	966810..967460	-	216	94987220	nth	LI0778	-	endonuclease III, putative
776	 33.64	0	967580..967900	+	106	94987221	cutA	LI0779	-	divalent cation tolerance protein,
777	 33.12	0	967901..968842	+	313	94987222	fruK	LI0780	-	ribokinase family sugar kinase
778	 32.41	0	969129..970853	+	574	94987223	-	LI0781	-	5-enolpyruvylshikimate-3-phosphate synthase
779	 34.29	0	970873..971706	+	277	94987224	thiD	LI0782	-	hydroxymethylpyrimidine/phosphomethylpyrimidine kinase
780	 31.00	-1	972160..972975	-	271	94987225	-	LI0783	-	hypothetical protein
781	 35.69	0	973029..975491	-	820	94987226	gyrA	LI0784	-	Type IIA topoisomerase (DNA gyrase/topo II, topoisomerase IV), A subunit
782	 33.58	0	975610..978009	-	799	94987227	gyrB	LI0785	-	Type IIA topoisomerase (DNA gyrase/topo II, topoisomerase IV), B subunit
783	 31.08	-1	978042..979193	-	383	94987228	dnaN	LI0786	-	DNA polymerase sliding clamp subunit (PCNA homolog)
784	 30.08	-1	979314..980636	-	440	94987229	dnaA	LI0787	-	ATPase involved in DNA replication initiation
785	 30.34	-1	980888..982222	+	444	94987230	-	LI0788	-	membrane proteins related to metalloendopeptidases
786	 32.88	0	982255..983355	+	366	94987231	queA	LI0789	-	S-adenosylmethionine:tRNA-ribosyltransferase- isomerase (queuine synthetase)
787	 37.29	0	984330..985391	+	353	94987232	vorB	LI0790	-	2-ketoisovalerate ferredoxin reductase
788	 37.94	+1	985391..986194	+	267	94987233	porB	LI0791	-	ferredoxin oxidoreductases, beta subunit
789	 36.46	0	986196..986738	+	180	94987234	porB	LI0792	-	ferredoxin oxidoreductases, gamma subunit
790	 33.10	0	987288..988580	+	430	94987235	-	LI0793	-	FKBP-type peptidyl-prolyl cis-trans isomerase (trigger factor)
791	 36.03	0	988737..989366	+	209	94987236	clpP	LI0794	-	protease subunit of ATP-dependent Clp proteases
792	 36.20	0	989642..990895	+	417	94987237	clpX	LI0795	-	ATP-dependent protease ATP-binding subunit
793	 35.90	0	990983..993436	+	817	94987238	lon	LI0796	-	ATP-dependent protease
794	 33.59	0	993461..993847	-	128	94987239	-	LI0797	-	hypothetical protein
795	 33.54	0	994282..995271	+	329	94987240	-	LI0798	-	hypothetical protein
796	 32.24	0	995278..995916	-	212	94987241	-	LI0799	-	hypothetical protein
797	 36.54	0	995965..996681	-	238	94987242	-	LI0800	-	hypothetical protein
798	 32.24	0	996842..998215	+	457	94987243	glmU	LI0801	-	N-acetylglucosamine-1-phosphate uridyltransferase
799	 37.04	0	999188..1000750	+	520	94987244	-	LI0802	-	HD superfamily hydrolase
800	 33.33	0	1000833..1001591	+	252	94987245	-	LI0803	-	hypothetical protein
801	 37.47	0	1001682..1002140	-	152	94987246	-	LI0804	-	hypothetical protein
802	 35.10	0	1002133..1002810	-	225	94987247	-	LI0805	-	hypothetical protein
803	 30.67	-1	1002865..1003953	-	362	94987248	menE	LI0806	-	O-succinylbenzoic acid--CoA ligase
804	 35.64	0	1004052..1004873	-	273	94987249	menB	LI0807	-	naphthoate synthase
805	 32.87	0	1004883..1005317	-	144	94987250	comA	LI0808	-	putative hydrolase, haloacid dehalogenase-like hydrolase
806	 32.05	0	1005673..1006062	-	129	94987251	-	LI0809	-	hypothetical protein
807	 33.61	0	1006385..1007098	+	237	94987252	-	LI0810	-	integral membrane protein, interacts with FtsH
808	 34.72	0	1007157..1008167	-	336	94987253	pit	LI0811	-	phosphate/sulphate permeases
809	 27.83	-2	1008160..1008795	-	211	94987254	-	LI0812	-	hypothetical protein
810	 33.52	0	1010184..1011809	+	541	94987255	rluD	LI0813	-	pseudouridylate synthases, 23S RNA-specific
811	 35.37	0	1012019..1012804	+	261	94987256	soj	LI0814	-	ATPases involved in chromosome partitioning
812	 35.73	0	1012884..1013843	+	319	94987257	spo0J	LI0815	-	transcriptional regulator
813	 35.45	0	1013959..1014996	+	345	94987258	-	LI0816	-	ADP-heptose synthase, bifunctional sugar kinase/adenylyltransferase
814	 28.48	-1	1015004..1016197	-	397	94987259	hemN	LI0817	-	coproporphyrinogen III oxidase-like protein
815	 34.18	0	1016534..1017481	+	315	94987260	pyrB	LI0818	-	aspartate carbamoyltransferase catalytic subunit
816	 36.64	0	1017493..1018764	+	423	94987261	pyrC	LI0819	-	dihydroorotase-like protein
817	 34.37	0	1018869..1019642	-	257	94987262	-	LI0820	-	2-keto-4-pentenoate hydratase/2-oxohepta-3-ene-1,7-dioic acid hydratase (catechol pathway)
818	 33.19	0	1019930..1021303	+	457	94987263	miaB	LI0821	-	2-methylthioadenine synthetase
819	 31.43	0	1021458..1022141	+	227	94987264	-	LI0822	-	PHP family histidinol phosphatase/hydrolase
820	 35.90	0	1022176..1023267	+	363	94987265	pepQ	LI0823	-	Xaa-Pro aminopeptidase
821	 33.71	0	1023291..1024349	+	352	94987266	-	LI0824	-	glycosyltransferase
34.48	MEAN

3.07	STD DEV
