IslandPathversion 1.0

IslandPath Analysis: Lawsonia intracellularis PHE/MN1-00

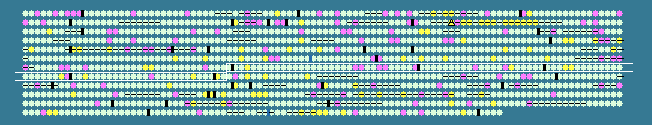

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.48 STD DEV: 3.07
Lawsonia intracellularis PHE/MN1-00, complete genome - 1..1457619
1180 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
635	 31.09	-1	788870..789181	-	103	94987080	-	LI0638	-	hypothetical protein
636	 32.07	0	789827..790615	-	262	94987081	fliP	LI0639	-	flagellar biosynthesis protein FliP
637	 36.77	0	790596..791090	-	164	94987082	-	LI0640	-	flagellar biogenesis protein
638	 40.40	+1	791116..791610	-	164	94987083	fliN	LI0641	-	flagellar motor switch/type III secretory pathway protein
639	 34.39	0	791623..792192	-	189	94987084	fliL	LI0642	-	flagellar basal body-associated protein
640	 31.77	0	792334..793035	-	233	94987085	-	LI0643	-	TIM-barrel fold family protein
641	 35.90	0	793032..794006	-	324	94987086	era	LI0644	-	GTP-binding protein Era
642	 37.17	0	794233..795093	-	286	94987087	htpX	LI0645	-	Zn-dependent protease with chaperone function
643	 33.75	0	795375..797069	+	564	94987088	-	LI0646	-	N-methylhydantoinase A/acetone carboxylase, beta subunit
644	 32.20	0	797066..798295	-	409	94987089	-	LI0647	-	hypothetical protein
645	 35.86	0	799057..801705	+	882	94987090	valS	LI0648	-	valyl-tRNA synthetase
646	 35.60	0	802639..805194	+	851	94987091	-	LI0649	-	hypothetical protein
647	 34.75	0	806068..808959	+	963	94987092	-	LI0650	-	Zn-dependent peptidases, insulinase-like
648	 35.66	0	809068..810786	+	572	94987093	nadh	LI0651	-	rhodanese-related sulfurtransferase
649	 31.13	-1	810827..811642	-	271	94987094	-	LI0652	-	DNA adenine methylase
650	 34.44	0	811686..812498	-	270	94987095	-	LI0653	-	Zn-dependent protease with chaperone function
651	 35.50	0	812614..814878	+	754	94987096	topA	LI0654	-	zinc finger domain-containing protein
652	 31.58	0	814978..815604	+	208	94987097	gloB	LI0655	-	Zn-dependent hydrolases, including glyoxylases
653	 36.60	0	815668..816861	+	397	94987098	argG	LI0656	-	argininosuccinate synthase
654	 36.37	0	816949..818331	+	460	94987099	argH	LI0657	-	argininosuccinate lyase
655	 35.25	0	818505..819497	+	330	94987100	trmU	LI0658	-	tRNA(5-methylaminomethyl-2-thiouridylate) methyltransferase
656	 26.30	-2	819913..820452	+	179	94987101	-	LI0659	-	shikimate kinase
657	 30.57	-1	820449..820991	-	180	94987102	bfr	LI0660	-	bacterioferritin (cytochrome b1)
658	 35.25	0	821433..823262	+	609	94987103	glmS	LI0661	-	glucosamine 6-phosphate synthetase
659	 34.67	0	823446..826448	+	1000	94987104	-	LI0662	-	hypothetical protein
660	 30.88	-1	828562..828969	+	135	94987105	-	LI0663	-	hypothetical protein
661	 30.40	-1	829283..830440	+	385	94987106	-	LI0664	-	hypothetical protein
662	 37.67	+1	830885..831484	-	199	94987107	-	LI0665	-	hypothetical protein
663	 36.26	0	831665..832279	-	204	94987108	-	LI0666	-	hypothetical protein
664	 35.93	0	833929..835044	-	371	94987109	-	LI0667	-	hypothetical protein
665	 37.51	0	835309..836481	-	390	94987110	-	LI0668	-	hypothetical protein
666	 30.52	-1	836694..837119	-	141	94987111	-	LI0669	-	hypothetical protein
667	 35.98	0	839619..841052	+	477	94987112	ahcY	LI0670	-	S-adenosyl-L-homocysteine hydrolase
668	 33.44	0	841336..842244	+	302	94987113	serA	LI0671	-	phosphoglycerate dehydrogenase and related dehydrogenases
669	 34.83	0	842275..844410	+	711	94987114	pcrA	LI0672	-	superfamily I DNA/RNA helicase
670	 36.36	0	844426..845448	+	340	94987115	thiL	LI0673	-	thiamine monophosphate kinase
671	 35.75	0	845474..846838	-	454	94987116	-	LI0674	-	hypothetical protein
672	 35.59	0	847108..848259	+	383	94987117	hflK	LI0675	-	membrane protease subunits, stomatin/prohibitin homologs
673	 35.92	0	848260..849111	+	283	94987118	hflC	LI0676	-	membrane protease subunits, stomatin/prohibitin homologs
674	 37.14	0	849077..849838	+	253	94987119	-	LI0677	-	hypothetical protein
675	 33.64	0	849897..851219	-	440	94987120	-	LI0678	-	2-methylthioadenine synthetase
676	 30.53	-1	851253..852002	+	249	94987121	-	LI0679	-	xanthosine triphosphate pyrophosphatase
677	 33.80	0	852068..853144	+	358	94987122	-	LI0680	-	Fe-S-cluster redox protein
678	 34.17	0	853157..854476	-	439	94987123	kdtA	LI0681	-	3-deoxy-D-manno-octulosonic-acid transferase
679	 37.95	+1	854481..855389	-	302	94987124	ddlA	LI0682	-	D-alanine-D-alanine ligase and related ATP-grasp enzymes
680	 34.27	0	855346..855987	-	213	94987125	-	LI0683	-	hypothetical protein
681	 29.80	-1	856632..857084	-	150	94987126	-	LI0684	-	acetyltransferase
682	 39.56	+1	858662..859786	-	374	94987127	dnaJ	LI0685	-	DnaJ-like molecular chaperone
683	 36.46	0	860201..861736	-	511	94987128	pepA	LI0686	-	leucyl aminopeptidase
684	 34.62	0	861756..863153	-	465	94987129	-	LI0687	-	response regulator
685	 33.28	0	863417..865222	+	601	94987130	-	LI0688	-	Outer membrane protein
686	 32.18	0	865222..869370	+	1382	94987131	grsT	LI0689	-	hypothetical protein
687	 35.26	0	869436..869954	-	172	94987132	-	LI0690	-	hypothetical protein
688	 37.63	+1	870411..870899	-	162	94987133	pal	LI0691	-	Outer membrane protein and related peptidoglycan-associated (lipo)proteins
689	 36.50	0	871045..872403	-	452	94987134	tolB	LI0692	-	periplasmic component of the Tol biopolymer transport system
690	 36.37	0	872867..873820	-	317	94987135	-	LI0693	-	membrane protein involved in colicin uptake
691	 38.39	+1	873921..874355	-	144	94987136	exbD	LI0694	-	biopolymer transport protein
692	 38.79	+1	874438..875115	-	225	94987137	tolQ	LI0695	-	biopolymer transport proteins
693	 37.50	0	875739..876314	+	191	94987138	rubY	LI0696	-	rubrerythrin
694	 35.78	0	876328..876531	+	67	94987139	rubA	LI0697	-	rubredoxin 2 (Rd-2)
695	 34.01	0	876635..877663	+	342	94987140	rfaF	LI0698	-	ADP-heptose:LPS heptosyltransferase II
696	 36.20	0	877710..878720	+	336	94987141	-	LI0699	-	hypothetical protein
697	 34.52	0	878912..879499	-	195	94987142	-	LI0700	-	TPR repeat-containing protein
698	 34.51	0	879685..881550	-	621	94987143	uvrC	LI0701	-	nuclease subunit of the excinuclease complex
699	 33.05	0	881559..882254	-	231	94987144	maf	LI0702	-	nucleotide-binding protein implicated in inhibition of septum formation
700	 35.56	0	882513..883592	+	359	94987145	-	LI0703	-	exopolyphosphatase-like protein
701	 36.26	0	883675..885042	-	455	94987146	asnC	LI0704	-	asparaginyl-tRNA synthetase
702	 32.61	0	885106..885795	-	229	94987147	-	LI0705	-	DedA family protein
703	 36.90	0	885880..889188	-	1102	94987148	-	LI0706	-	hypothetical protein
704	 33.58	0	889587..891977	-	796	94987149	hypF	LI0707	-	hydrogenase maturation factor
705	 33.33	0	892189..893016	+	275	94987150	-	LI0708	-	protein-disulfide isomerase
706	 32.76	0	893127..894170	+	347	94987151	ribF	LI0709	-	FAD synthase
707	 38.32	+1	894199..895080	+	293	94987152	fliC	LI0710	-	flagellin-like protein
708	 26.98	-2	895227..895730	-	167	94987153	-	LI0711	-	uncharacterized membrane protein, required for colicin V production
709	 36.93	0	896405..897349	-	314	94987154	pyrD	LI0712	-	dihydroorotate dehydrogenase
710	 36.43	0	897346..898152	-	268	94987155	pyrDII	LI0713	-	2-polyprenylphenol hydroxylase and related flavodoxin oxidoreductases
711	 38.14	+1	898390..899574	+	394	94987156	argJ	LI0714	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
712	 34.37	0	899739..900704	+	321	94987157	rluD	LI0715	-	pseudouridylate synthases, 23S RNA-specific
713	 31.42	0	900834..901616	+	260	94987158	gln	LI0716	-	amino acid ABC transporter periplasmic protein
714	 34.19	0	901672..902370	+	232	94987159	glnP	LI0717	-	ABC-type amino acid transport system, permease component
715	 33.22	0	902381..903256	+	291	94987160	glnQ	LI0718	-	ABC-type polar amino acid transport system, ATPase component
716	 33.77	0	903258..903944	+	228	94987161	-	LI0719	-	ABC-type amino acid transport system, permease component
717	 35.37	0	903994..905814	+	606	94987162	lepA	LI0720	-	GTP-binding protein LepA
718	 31.44	0	905910..906278	-	122	94987163	-	LI0721	-	transporter, putative
719	 32.66	0	906849..908045	-	398	94987164	-	LI0722	-	hypothetical protein
720	 33.25	0	908182..909393	-	403	94987165	mltA	LI0723	-	membrane-bound lytic murein transglycosylase
721	 33.33	0	909409..909858	+	149	94987166	-	LI0724	-	thioesterase
722	 30.90	-1	910107..910928	-	273	94987167	hisB	LI0725	-	PHP family histidinol phosphatase/hydrolase
723	 37.59	+1	911020..912195	-	391	162138293	metK	LI0726	-	S-adenosylmethionine synthetase
724	 31.81	0	912401..912991	+	196	94987169	-	LI0727	-	hypothetical protein
725	 33.45	0	912997..913881	+	294	94987170	lytB	LI0728	-	ribosomal protein S1
726	 35.86	0	913946..914896	+	316	94987171	cheV	LI0729	-	chemotaxis signal transduction protein
727	 35.89	0	914956..916287	-	443	94987172	ugd	LI0730	-	UDP-glucose 6-dehydrogenase
728	 32.28	0	916424..916801	+	125	94987173	acpS	LI0731	-	holo-[acyl-carrier protein] synthase
729	 38.20	+1	916828..917361	+	177	94987174	hslV	LI0732	-	ATP-dependent protease peptidase subunit
730	 33.08	0	917632..918429	+	265	94987175	-	LI0733	-	amino acid ABC transporter periplasmic protein
731	 37.47	0	918588..919070	+	160	94987176	-	LI0734	-	hypothetical protein
732	 33.55	0	919170..920087	+	305	94987177	ychB	LI0735	-	4-diphosphocytidyl-2C-methyl-D-erythritol 2-phosphate synthase
733	 38.20	+1	920202..921167	+	321	94987178	prsA	LI0736	-	phosphoribosylpyrophosphate synthetase
734	 33.50	0	921211..921804	+	197	94987179	-	LI0737	-	50S ribosomal protein L25/general stress protein Ctc
34.48	MEAN

3.07	STD DEV
