IslandPath Analysis: Lawsonia intracellularis PHE/MN1-00

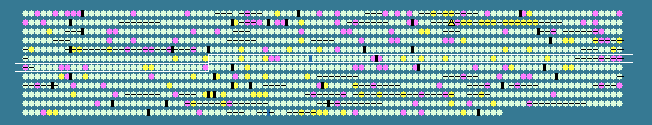

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.48 STD DEV: 3.07
Lawsonia intracellularis PHE/MN1-00, complete genome - 1..1457619
1180 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
532	 36.45	0	653879..656764	+	961	94986977	infB	LI0535	-	translation initiation factor 2 (IF-2; GTPase)
533	 36.34	0	657048..658046	+	332	94986978	mgpa	LI0536	-	exopolyphosphatase-like protein
534	 33.49	0	658119..658769	-	216	94986979	SctR	LI0537	-	type III secretion system protein
535	 31.58	0	658794..659876	-	360	94986980	-	LI0538	-	putative translocation protein in type III secretion
536	 33.13	0	659919..660416	-	165	94986981	-	LI0539	-	hypothetical protein
537	 38.88	+1	660438..661754	-	438	94986982	sctN	LI0540	-	type III secretion system ATPase
538	 33.50	0	661775..662389	-	204	94986983	sctL	LI0541	-	type III secretion system protein
539	 35.60	0	662368..663072	-	234	94986984	-	LI0542	-	hypothetical protein
540	 34.59	0	663072..663944	-	290	94986985	nolT	LI0543	-	LscJ
541	 38.36	+1	663958..664335	-	125	94986986	-	LI0544	-	hypothetical protein
542	 30.98	-1	665261..665557	-	98	94986987	-	LI0545	-	hypothetical protein
543	 30.30	-1	665820..666182	+	120	94986988	-	LI0546	-	hypothetical protein
544	 37.13	0	666388..666729	+	113	94986989	-	LI0547	-	hypothetical protein
545	 37.23	0	666726..668828	+	700	94986990	yscV	LI0548	-	putative type III secretion pore protein
546	 32.95	0	668846..669106	+	86	94986991	yscS	LI0549	-	translocation protein in type III secretion
547	 34.80	0	669154..669969	+	271	94986992	yscT	LI0550	-	Type III secretion component protein SctT
548	 33.15	0	669966..671048	+	360	94986993	yscU	LI0551	-	translocation protein in type III secretion
549	 33.77	0	677116..681264	+	1382	94986994	-	LI0552	-	Signal transduction histidine kinase
550	 32.62	0	681626..682891	+	421	94986995	lysA	LI0553	-	diaminopimelate decarboxylase
551	 33.16	0	682917..684095	+	392	94986996	-	LI0554	-	hypothetical protein
552	 34.79	0	684290..685045	+	251	94986997	-	LI0555	-	hypothetical protein
553	 35.44	0	685227..686414	+	395	94986998	-	LI0556	-	major facilitator superfamily permease
554	 34.96	0	686543..687343	+	266	94986999	bacA	LI0557	-	uncharacterized bacitracin resistance protein
555	 33.33	0	687407..688678	-	423	94987000	-	LI0558	-	competence protein ComGF
556	 36.78	0	688844..689278	+	144	94987001	rplM	LI0559	-	50S ribosomal protein L13
557	 35.62	0	689297..689689	+	130	94987002	rpsI	LI0560	-	30S ribosomal protein S9
558	 34.96	0	689868..691523	+	551	94987003	-	LI0561	-	metallo-beta-lactamase superfamily hydrolase
559	 28.38	-1	691765..692793	+	342	94987004	-	LI0562	-	hypothetical protein
560	 30.00	-1	693085..693444	-	119	94987005	-	LI0563	-	hypothetical protein
561	 32.93	0	693561..694052	+	163	94987006	pgpA	LI0564	-	phosphatidylglycerophosphatase A and related proteins
562	 34.38	0	694166..694642	+	158	94987007	-	LI0565	-	hypothetical protein
563	 37.67	+1	694775..696847	-	690	94987008	flgE	LI0566	-	flagellar hook protein FlgE
564	 38.21	+1	696931..697770	-	279	94987009	-	LI0567	-	flagellar hook capping protein
565	 36.56	0	697783..699609	-	608	94987010	-	LI0568	-	flagellar hook-length control protein
566	 34.04	0	699820..701229	-	469	94987011	-	LI0569	-	ADP-heptose:LPS heptosyltransferase
567	 39.32	+1	701958..702842	+	294	94987012	fliC	LI0570	-	flagellin-like protein
568	 33.33	0	703046..703747	-	233	94987013	rnc	LI0571	-	dsRNA-specific ribonuclease
569	 33.63	0	703881..704216	+	111	94987014	-	LI0572	-	hypothetical protein
570	 35.44	0	704639..705160	-	173	94987015	-	LI0573	-	RimM protein, required for 16S rRNA processing
571	 39.74	+1	705170..705403	-	77	94987016	-	LI0574	-	RNA-binding protein
572	 35.84	0	705860..707374	-	504	94987017	-	LI0575	-	Signal renition particle GTPase
573	 32.55	0	707511..708923	-	470	94987018	trmA	LI0576	-	RNA methyltransferase
574	 35.15	0	708959..709837	-	292	94987019	-	LI0577	-	dTDP-glucose pyrophosphorylase
575	 31.82	0	709985..710578	+	197	94987020	purH	LI0578	-	AICAR transformylase/IMP cyclohydrolase PurH
576	 36.03	0	710794..711201	+	135	94987021	mutT	LI0579	-	NTP pyrophosphohydrolases including oxidative damage repair enzymes
577	 34.52	0	711302..712312	-	336	94987022	-	LI0580	-	nucleoside-diphosphate-sugar epimerases
578	 33.33	0	712325..713056	-	243	94987023	-	LI0581	-	hypothetical protein
579	 37.97	+1	713038..714246	-	402	94987024	-	LI0582	-	phosphopantothenoylcysteine synthetase/decarboxylase
580	 35.34	0	714243..714791	-	182	94987025	-	LI0583	-	hypothetical protein
581	 34.15	0	715334..715945	+	203	94987026	-	LI0584	-	hypothetical protein
582	 35.24	0	716001..717314	+	437	94987027	-	LI0585	-	DNA repair exonuclease
583	 31.84	0	717314..721276	+	1320	94987028	-	LI0586	-	hypothetical protein
584	 36.74	0	721314..721958	-	214	94987029	-	LI0587	-	hypothetical protein
585	 32.28	0	722079..723026	-	315	94987030	tatC	LI0588	-	Sec-independent protein secretion pathway component TatC
586	 33.06	0	723056..723421	-	121	94987031	-	LI0589	-	Sec-independent protein secretion pathway components
587	 35.80	0	723704..725245	-	513	94987032	guaA	LI0590	-	bifunctional GMP synthase/glutamine amidotransferase protein
588	 38.14	+1	725358..726833	-	491	94987033	guaB	LI0591	-	IMP dehydrogenase/GMP reductase
589	 32.65	0	727151..727738	+	195	94987034	maa	LI0592	-	maltose transacetylase
590	 34.86	0	727939..729378	+	479	94987035	cls	LI0593	-	phosphatidylserine/phosphatidylglycerophosphate/cardiolipin synthase-like protein
591	 34.73	0	729401..731842	-	813	94987036	rnb	LI0594	-	exoribonuclease R
592	 33.61	0	731866..733320	-	484	94987037	lpxK	LI0595	-	tetraacyldisaccharide-1-P 4'-kinase
593	 37.76	+1	733491..734009	-	172	94987038	tpx	LI0596	-	peroxiredoxin
594	 33.33	0	734850..737261	+	803	94987039	-	LI0597	-	TPR repeat-containing protein
595	 35.61	0	737302..739368	-	688	94987040	zntA	LI0598	-	cation-transporting ATPase, P-type
596	 33.81	0	739657..741138	-	493	94987041	panF	LI0599	-	sodium/panthothenate symporter
597	 27.32	-2	741141..741506	-	121	94987042	-	LI0600	-	hypothetical protein
598	 35.00	0	742192..743511	+	439	94987043	-	LI0601	-	voltage-gated chloride channel family protein
599	 30.92	-1	743611..744357	+	248	94987044	-	LI0602	-	metal dependent hydrolases
600	 29.84	-1	744711..746285	+	524	94987045	-	LI0603	-	two-component response regulator
601	 26.13	-2	746343..747425	+	360	94987046	-	LI0604	-	PleD
602	 33.79	0	747467..748333	-	288	94987047	-	LI0605	-	hypothetical protein
603	 32.19	0	748457..749158	-	233	94987048	-	LI0606	-	transcriptional regulator
604	 35.14	0	749754..751250	-	498	94987049	-	LI0607	-	TPR repeat-containing Zn-dependent protease
605	 34.36	0	751382..752839	-	485	94987050	cysS	LI0608	-	cysteinyl-tRNA synthetase
606	 33.33	0	752940..753368	-	142	94987051	rpiB	LI0609	-	ribose 5-phosphate isomerase RpiB
607	 28.70	-1	753377..753721	-	114	94987052	-	LI0610	-	hypothetical protein
608	 30.41	-1	753798..754583	-	261	94987053	-	LI0611	-	hypothetical protein
609	 33.97	0	754591..756312	-	573	94987054	-	LI0612	-	TPR repeat-containing protein
610	 34.80	0	756332..757489	-	385	94987055	sigB	LI0613	-	DNA-directed RNA polymerase, sigma subunit (sigma70/sigma32)
611	 29.91	-1	758603..759070	+	155	94987056	-	LI0614	-	Thiol-disulfide isomerase and thioredoxins
612	 34.00	0	759733..760479	+	248	94987057	-	LI0615	-	hypothetical protein
613	 37.01	0	760506..761837	+	443	94987058	radA	LI0616	-	DNA repair protein RadA
614	 37.27	0	761962..762291	+	109	94987059	yljA	LI0617	-	hypothetical protein
615	 35.60	0	762288..764534	+	748	94987060	-	LI0618	-	ATPases with chaperone activity, ATP-binding subunit
616	 37.41	0	764629..765315	+	228	94987061	aat	LI0619	-	leucyl/phenylalanyl-tRNA--protein transferase
617	 37.03	0	765529..766827	-	432	94987062	clr3	LI0620	-	deacetylase
618	 34.67	0	767002..767973	-	323	94987063	-	LI0621	-	nucleoside-diphosphate-sugar epimerases
619	 35.43	0	768129..769223	-	364	94987064	obgE	LI0622	-	GTPase ObgE
620	 31.72	0	769665..769973	-	102	94987065	rplU	LI0623	-	50S ribosomal protein L21
621	 39.22	+1	770472..770777	+	101	94987066	-	LI0624	-	GroES/HSP10-like protein
622	 39.04	+1	770925..772571	+	548	94987067	groEL	LI0625	-	chaperonin GroEL
623	 31.29	-1	772698..773579	+	293	94987068	-	LI0626	-	protoporphyrinogen oxidase HemK
624	 34.75	0	773705..774619	+	304	94987069	lpxC	LI0627	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
625	 35.70	0	774694..776640	+	648	94987070	mutL	LI0628	-	DNA mismatch repair ATPase
626	 36.44	0	776669..778213	-	514	94987071	-	LI0629	-	hypothetical protein
627	 34.94	0	778307..780802	-	831	94987072	secA	LI0630	-	preprotein translocase subunit SecA
628	 37.66	+1	780948..781964	-	338	94987073	hypE	LI0631	-	hydrogenase maturation factor
629	 32.05	0	782118..783515	-	465	94987074	-	LI0632	-	major facilitator superfamily permease
630	 34.28	0	783773..784090	-	105	94987075	flgM	LI0633	-	hypothetical protein
631	 28.95	-1	784118..784528	-	136	94987076	-	LI0634	-	hypothetical protein
34.48	MEAN

3.07	STD DEV
