IslandPath Analysis: Lawsonia intracellularis PHE/MN1-00

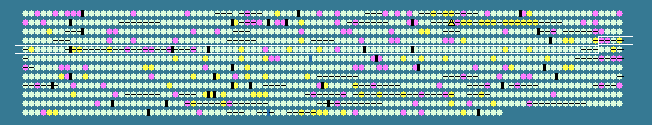

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.48 STD DEV: 3.07
Lawsonia intracellularis PHE/MN1-00, complete genome - 1..1457619
1180 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
397	 28.13	-2	490519..490941	+	140	94986842	-	LI0398	-	F0F1-type ATP synthase, subunit b
398	 29.02	-1	490959..491537	+	192	94986843	atpF	LI0399	-	F0F1-type ATP synthase, subunit b
399	 31.92	0	491534..492100	+	188	94986844	atpE	LI0400	-	F0F1 ATP synthase subunit delta
400	 38.46	+1	492090..493610	+	506	94986845	atpD	LI0401	-	F0F1 ATP synthase subunit alpha
401	 32.53	0	493615..494484	+	289	94986846	atpC	LI0402	-	F0F1 ATP synthase subunit gamma
402	 38.35	+1	494508..495923	+	471	94986847	atpB	LI0403	-	F0F1 ATP synthase subunit beta
403	 37.81	+1	495934..496335	+	133	94986848	atpA	LI0404	-	F0F1 ATP synthase subunit epsilon
404	 31.88	0	496471..497913	+	480	94986849	xseA	LI0405	-	exonuclease VII, large subunit
405	 36.44	0	497938..498807	+	289	94986850	-	LI0406	-	membrane proteins related to metalloendopeptidases
406	 34.66	0	499089..499991	+	300	94986851	-	LI0407	-	geranylgeranyl pyrophosphate synthase
407	 37.46	0	500065..501978	+	637	94986852	dsx	LI0408	-	1-deoxy-D-xylulose-5-phosphate synthase
408	 33.82	0	502001..503026	-	341	94986853	-	LI0409	-	ATPase
409	 39.10	+1	504438..505217	-	259	94986854	trpA	LI0410	-	bifunctional tryptophan synthase TRPB
410	 41.71	+2	505228..506397	-	389	94986855	trpB	LI0411	-	tryptophan synthase subunit beta
411	 35.11	0	506387..507004	-	205	94986856	trpF	LI0412	-	phosphoribosyl anthranilate isomerase
412	 34.44	0	506982..507704	-	240	94986857	trpC_2	LI0413	-	indole-3-glycerol phosphate synthase protein
413	 35.97	0	507758..508744	-	328	94986858	trpD	LI0414	-	anthranilate phosphoribosyltransferase
414	 35.62	0	508741..509877	-	378	94986859	-	LI0415	-	kynureninase (kyurenine hydrolase)
415	 38.46	+1	509880..510698	-	272	94986860	-	LI0416	-	ABC transporter permease
416	 35.37	0	510688..511422	-	244	94986861	-	LI0417	-	ABC transporter ATP-binding protein
417	 37.96	+1	511426..512397	-	323	94986862	-	LI0418	-	hypothetical protein
418	 30.26	-1	514084..514919	+	277	94986863	-	LI0419	-	short chain dehydrogenase, putative
419	 33.02	0	514967..515935	-	322	94986864	bioB	LI0420	-	biotin synthase
420	 33.60	0	515952..517097	+	381	94986865	bioF	LI0421	-	7-keto-8-aminopelargonate synthetase and related enzymes
421	 27.54	-2	517094..517732	+	212	94986866	-	LI0422	-	hypothetical protein
422	 28.49	-1	517752..518495	+	247	94986867	bioC	LI0424	-	ubiE/COQ5 methyltransferase family protein
423	 32.03	0	518495..519106	+	203	94986868	bioD	LI0425	-	dethiobiotin synthetase
424	 32.32	0	519110..520387	+	425	94986869	bioA	LI0426	-	adenosylmethionine-8-amino-7-oxononanoate aminotransferase
425	 27.43	-2	520457..521032	-	191	94986870	-	LI0427	-	hypothetical protein
426	 35.09	0	522545..523912	+	455	94986871	putP	LI0428	-	sodium-dependent transporter
427	 34.73	0	524004..525074	-	356	94986872	hemN	LI0429	-	coproporphyrinogen III oxidase-like protein
428	 31.52	0	525142..525582	+	146	94986873	-	LI0430	-	histidine triad nucleotide-binding protein
429	 27.84	-2	525657..525947	+	96	94986874	himA	LI0431	-	nucleoid DNA-binding protein
430	 32.72	0	526092..526742	-	216	94986875	-	LI0432	-	S-adenosylmethionine-dependent methyltransferase involved in cell division
431	 34.91	0	527009..528847	-	612	94986876	dsbD	LI0433	-	hypothetical protein
432	 31.49	0	529148..530338	-	396	94986877	-	LI0434	-	glycosyltransferase
433	 34.96	0	530484..531716	+	410	94986878	aspC	LI0435	-	L,L-diaminopimelate aminotransferase
434	 32.39	0	531796..532644	-	282	94986879	-	LI0436	-	PhyA2
435	 35.14	0	532566..533117	-	183	94986880	-	LI0437	-	histidine acid phosphatase
436	 33.79	0	533368..534693	-	441	94986881	-	LI0438	-	PhyA2
437	 40.81	+2	535099..536355	+	418	94986882	hyaA	LI0439	-	hydrogenase-1 small subunit
438	 37.76	+1	536370..538178	+	602	94986883	hyaB	LI0440	-	hydrogenase-1 large subunit
439	 34.18	0	538288..538992	+	234	94986884	hyaC	LI0441	-	Ni/Fe-hydrogenase 1 B-type cytochrome subunit
440	 33.15	0	538995..539531	+	178	94986885	hyaD	LI0442	-	processing of HyaA and HyaB proteins
441	 28.40	-1	540291..540695	+	134	94986886	-	LI0443	-	hypothetical protein
442	 36.41	0	540700..541770	+	356	94986887	-	LI0444	-	glycosyltransferase
443	 33.55	0	541891..542361	-	156	94986888	dtd	LI0445	-	D-tyrosyl-tRNA deacylase
444	 35.83	0	542402..543601	-	399	94986889	-	LI0446	-	4-diphosphocytidyl-2-methyl-D-erithritol synthase
445	 46.26	+2	543696..543989	+	97	94986890	-	LI0447	-	hypothetical protein
446	 36.86	0	544048..544812	-	254	94986891	-	LI0448	-	hypothetical protein
447	 35.59	0	544847..545644	-	265	94986892	-	LI0449	-	hypothetical protein
448	 37.45	0	545767..546591	-	274	94986893	purL	LI0450	-	phosphoribosylformylglycinamidine synthase domain-containing protein
449	 35.75	0	546832..548484	+	550	94986894	pyrG	LI0451	-	CTP synthetase
450	 38.41	+1	548515..549321	+	268	94986895	kdsA	LI0452	-	2-dehydro-3-deoxyphosphooctonate aldolase
451	 34.31	0	549318..549929	+	203	94986896	-	LI0453	-	HAD superfamily low specificity phosphatase
452	 33.15	0	550004..550549	+	181	94986897	-	LI0454	-	hypothetical protein
453	 29.82	-1	550649..551218	+	189	94986898	-	LI0455	-	hypothetical protein
454	 33.89	0	551218..551940	+	240	94986899	-	LI0456	-	ABC transporter ATPase
455	 35.65	0	552086..553507	+	473	94986900	rpoN	LI0457	-	DNA-directed RNA polymerase specialized sigma subunit, sigma54-like protein
456	 33.15	0	553542..554078	+	178	94986901	-	LI0458	-	ribosome-associated protein Y (PSrp-1)
457	 33.44	0	554113..555078	+	321	94986902	-	LI0459	-	hypothetical protein
458	 34.06	0	555553..556104	+	183	94986903	-	LI0460	-	putative outer membrane protein
459	 36.94	0	556323..557819	-	498	94986904	-	LI0461	-	hypothetical protein
460	 35.91	0	557976..559373	-	465	94986905	gltX	LI0462	-	glutamyl-and glutaminyl-tRNA synthetases
461	 33.33	0	559477..560727	-	416	94986906	-	LI0463	-	hypothetical protein
462	 37.96	+1	560781..562121	-	446	94986907	pgk	LI0464	-	phosphoglycerate kinase
463	 31.07	-1	562525..563409	+	294	94986908	-	LI0465	-	hypothetical protein
464	 37.16	0	563439..564431	-	330	94986909	galE	LI0466	-	nucleoside-diphosphate-sugar epimerases
465	 32.43	0	564532..565308	-	258	94986910	cynT	LI0467	-	carbonic anhydrase
466	 33.85	0	566233..567591	+	452	94986911	rfbB	LI0468	-	dTDP-D-glucose 4,6-dehydratase
467	 34.40	0	567584..569458	+	624	94986912	-	LI0469	-	hypothetical protein
468	 35.45	0	569852..570466	+	204	94986913	-	LI0470	-	membrane proteins related to metalloendopeptidases
469	 32.52	0	570504..571607	+	367	94986914	-	LI0471	-	xylanase/chitin deacetylase
470	 34.58	0	571638..572678	-	346	94986915	-	LI0472	-	permease
471	 35.26	0	573983..577249	-	1088	94986916	-	LI0473	-	putative DNA methylase protein
472	 34.57	0	579345..579749	-	134	94986917	-	LI0474	-	tellurite resistance
473	 37.84	+1	579945..580343	-	132	94986918	-	LI0475	-	hypothetical protein
474	 35.70	0	581215..583965	+	916	94986919	nrdA	LI0476	-	ribonucleotide-diphosphate reductase subunit alpha
475	 33.23	0	584106..585107	+	333	94986920	nrdB	LI0477	-	ribonucleotide reductase, beta subunit
476	 36.12	0	585484..586632	-	382	94986921	-	LI0478	-	cytosine deaminase-like protein
477	 32.64	0	587222..588658	+	478	94986922	-	LI0479	-	alginate O-acetylation protein
478	 33.03	0	588676..590637	+	653	94986923	-	LI0480	-	esterase MesA
479	 33.07	0	590701..591078	+	125	94986924	-	LI0481	-	hypothetical protein
480	 35.69	0	591277..592125	+	282	94986925	motA	LI0482	-	flagellar motor protein MotA
481	 39.22	+1	592170..592883	+	237	94986926	motB	LI0483	-	flagellar motor protein
482	 32.34	0	592910..594616	-	568	94986927	-	LI0484	-	hypothetical protein
483	 34.37	0	594907..596061	-	384	94986928	-	LI0485	-	major facilitator superfamily permease
484	 33.60	0	596408..597160	+	250	94986929	motA	LI0486	-	flagellar motor component
485	 38.00	+1	597267..597887	+	206	94986930	motB	LI0487	-	flagellar motor protein
486	 36.72	0	598269..599687	+	472	94986931	accC	LI0488	-	biotin carboxylase
487	 36.98	0	599700..601946	+	748	94986932	-	LI0489	-	Acetyl-CoA carboxylase alpha subunit
488	 34.56	0	601994..602644	+	216	94986933	-	LI0490	-	hypothetical protein
489	 34.49	0	602649..602993	+	114	94986934	-	LI0491	-	hypothetical protein
490	 35.75	0	603031..603486	+	151	94986935	-	LI0492	-	single-stranded DNA-binding protein
491	 34.86	0	603604..605301	-	565	94986936	glnS	LI0493	-	glutaminyl-tRNA synthetase
492	 34.13	0	605340..605717	-	125	94986937	-	LI0494	-	hypothetical protein
493	 34.65	0	605999..607135	+	378	94986938	-	LI0495	-	glycosyltransferase
494	 34.91	0	607449..608588	+	379	94986939	-	LI0496	-	branched chain amino acid ABC transporter, periplasmic amino acid-binding protein
495	 35.35	0	608669..609562	+	297	94986940	livH	LI0497	-	branched chain amino acid ABC transporter, permease protein
496	 33.05	0	609559..610602	+	347	94986941	livM	LI0498	-	branched chain amino acid ABC transporter, permease protein
34.48	MEAN

3.07	STD DEV
