IslandPath Analysis: Lawsonia intracellularis PHE/MN1-00

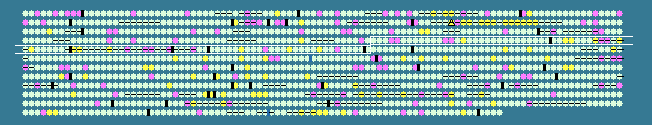

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.48 STD DEV: 3.07
Lawsonia intracellularis PHE/MN1-00, complete genome - 1..1457619
1180 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
359	 33.78	0	452761..453651	+	296	94986804	nadC	LI0360	-	nicotinate-nucleotide pyrophosphorylase
360	 34.28	0	453648..454703	+	351	94986805	-	LI0361	-	quinolinate synthetase
361	 34.91	0	454752..456335	+	527	94986806	nadB	LI0362	-	aspartate oxidase
362	 29.74	-1	456390..456695	-	101	94986807	-	LI0363	-	integral membrane protein
363	 30.52	-1	456801..457475	-	224	94986808	gph	LI0364	-	phosphatases
364	 32.92	0	457964..458686	-	240	94986809	-	LI0365	-	DNA uptake lipoprotein
365	 36.35	0	458692..459618	-	308	94986810	trxB	LI0366	-	thioredoxin reductase
366	 35.19	0	459615..459938	-	107	94986811	trxA	LI0367	-	Thiol-disulfide isomerase and thioredoxins
367	 35.96	0	460064..461131	-	355	94986812	ygjD	LI0368	-	metal-dependent proteases with chaperone activity
368	 36.90	0	461235..462242	-	335	94986813	fbp	LI0369	-	fructose-1,6-bisphosphatase
369	 33.22	0	462356..463225	-	289	94986814	-	LI0370	-	hypothetical protein
370	 35.26	0	463255..464136	-	293	94986815	-	LI0371	-	hypothetical protein
371	 26.92	-2	464159..464470	-	103	94986816	-	LI0372	-	hypothetical protein
372	 29.77	-1	464482..465042	-	186	94986817	pgsA	LI0373	-	phosphatidylglycerophosphate synthase
373	 34.68	0	465190..466008	-	272	94986818	-	LI0374	-	ATPases involved in chromosome partitioning
374	 38.62	+1	466089..466769	-	226	94986819	pcm	LI0375	-	protein-L-isoaspartate carboxylmethyltransferase
375	 34.40	0	467194..468507	+	437	94986820	-	LI0376	-	membrane proteins related to metalloendopeptidases
376	 35.27	0	468756..469631	+	291	94986821	rpsB	LI0377	-	30S ribosomal protein S2
377	 35.71	0	469657..470541	+	294	94986822	tsf	LI0378	-	elongation factor Ts
378	 32.93	0	470643..471623	+	326	94986823	galE	LI0379	-	nucleoside-diphosphate-sugar epimerases
379	 35.41	0	471627..472781	+	384	94986824	-	LI0380	-	cell wall biogenesis regulatory protein
380	 31.47	0	472788..473591	+	267	94986825	lgtF	LI0381	-	cell wall biosynthesis glycosyltransferase
381	 36.68	0	473612..474328	+	238	94986826	pyrH	LI0382	-	uridylate kinase
382	 31.04	-1	474332..474898	+	188	94986827	rrf	LI0383	-	ribosome recycling factor
383	 33.20	0	474934..475656	+	240	94986828	yaeS	LI0384	-	undecaprenyl pyrophosphate synthase
384	 34.09	0	475653..476450	+	265	94986829	cdsA	LI0385	-	CDP-diglyceride synthetase
385	 35.90	0	476513..477721	+	402	94986830	dxr	LI0386	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
386	 36.44	0	477721..478845	+	374	94986831	-	LI0387	-	membrane-associated Zn-dependent proteases 1
387	 33.46	0	478842..479636	+	264	94986832	-	LI0388	-	hypothetical protein
388	 32.66	0	480542..481426	+	294	94986833	-	LI0389	-	modification methylase BepI (cytosine-specific methyltransferase BepI)
389	 35.19	0	481800..483527	-	575	94986834	proS	LI0390	-	prolyl-tRNA synthetase
390	 35.79	0	483648..484544	-	298	94986835	-	LI0391	-	Fe-S oxidoreductase
391	 39.19	+1	484633..485673	+	346	94986836	mreB	LI0392	-	Actin-like ATPase involved in cell morphogenesis
392	 39.34	+1	485787..486668	+	293	94986837	mreC	LI0393	-	cell shape-determining protein
393	 31.63	0	486665..487135	+	156	94986838	-	LI0394	-	hypothetical protein
394	 37.18	0	487119..488912	+	597	94986839	-	LI0395	-	cell division protein FtsI/penicillin-binding protein 2
395	 35.30	0	488937..490052	+	371	94986840	rodA	LI0396	-	rod shape-determining protein RodA
396	 39.37	+1	490077..490424	+	115	94986841	-	LI0397	-	integral membrane protein CcmA involved in cell shape determination
397	 28.13	-2	490519..490941	+	140	94986842	-	LI0398	-	F0F1-type ATP synthase, subunit b
398	 29.02	-1	490959..491537	+	192	94986843	atpF	LI0399	-	F0F1-type ATP synthase, subunit b
399	 31.92	0	491534..492100	+	188	94986844	atpE	LI0400	-	F0F1 ATP synthase subunit delta
400	 38.46	+1	492090..493610	+	506	94986845	atpD	LI0401	-	F0F1 ATP synthase subunit alpha
401	 32.53	0	493615..494484	+	289	94986846	atpC	LI0402	-	F0F1 ATP synthase subunit gamma
402	 38.35	+1	494508..495923	+	471	94986847	atpB	LI0403	-	F0F1 ATP synthase subunit beta
403	 37.81	+1	495934..496335	+	133	94986848	atpA	LI0404	-	F0F1 ATP synthase subunit epsilon
404	 31.88	0	496471..497913	+	480	94986849	xseA	LI0405	-	exonuclease VII, large subunit
405	 36.44	0	497938..498807	+	289	94986850	-	LI0406	-	membrane proteins related to metalloendopeptidases
406	 34.66	0	499089..499991	+	300	94986851	-	LI0407	-	geranylgeranyl pyrophosphate synthase
407	 37.46	0	500065..501978	+	637	94986852	dsx	LI0408	-	1-deoxy-D-xylulose-5-phosphate synthase
408	 33.82	0	502001..503026	-	341	94986853	-	LI0409	-	ATPase
409	 39.10	+1	504438..505217	-	259	94986854	trpA	LI0410	-	bifunctional tryptophan synthase TRPB
410	 41.71	+2	505228..506397	-	389	94986855	trpB	LI0411	-	tryptophan synthase subunit beta
411	 35.11	0	506387..507004	-	205	94986856	trpF	LI0412	-	phosphoribosyl anthranilate isomerase
412	 34.44	0	506982..507704	-	240	94986857	trpC_2	LI0413	-	indole-3-glycerol phosphate synthase protein
413	 35.97	0	507758..508744	-	328	94986858	trpD	LI0414	-	anthranilate phosphoribosyltransferase
414	 35.62	0	508741..509877	-	378	94986859	-	LI0415	-	kynureninase (kyurenine hydrolase)
415	 38.46	+1	509880..510698	-	272	94986860	-	LI0416	-	ABC transporter permease
416	 35.37	0	510688..511422	-	244	94986861	-	LI0417	-	ABC transporter ATP-binding protein
417	 37.96	+1	511426..512397	-	323	94986862	-	LI0418	-	hypothetical protein
418	 30.26	-1	514084..514919	+	277	94986863	-	LI0419	-	short chain dehydrogenase, putative
419	 33.02	0	514967..515935	-	322	94986864	bioB	LI0420	-	biotin synthase
420	 33.60	0	515952..517097	+	381	94986865	bioF	LI0421	-	7-keto-8-aminopelargonate synthetase and related enzymes
421	 27.54	-2	517094..517732	+	212	94986866	-	LI0422	-	hypothetical protein
422	 28.49	-1	517752..518495	+	247	94986867	bioC	LI0424	-	ubiE/COQ5 methyltransferase family protein
423	 32.03	0	518495..519106	+	203	94986868	bioD	LI0425	-	dethiobiotin synthetase
424	 32.32	0	519110..520387	+	425	94986869	bioA	LI0426	-	adenosylmethionine-8-amino-7-oxononanoate aminotransferase
425	 27.43	-2	520457..521032	-	191	94986870	-	LI0427	-	hypothetical protein
426	 35.09	0	522545..523912	+	455	94986871	putP	LI0428	-	sodium-dependent transporter
427	 34.73	0	524004..525074	-	356	94986872	hemN	LI0429	-	coproporphyrinogen III oxidase-like protein
428	 31.52	0	525142..525582	+	146	94986873	-	LI0430	-	histidine triad nucleotide-binding protein
429	 27.84	-2	525657..525947	+	96	94986874	himA	LI0431	-	nucleoid DNA-binding protein
430	 32.72	0	526092..526742	-	216	94986875	-	LI0432	-	S-adenosylmethionine-dependent methyltransferase involved in cell division
431	 34.91	0	527009..528847	-	612	94986876	dsbD	LI0433	-	hypothetical protein
432	 31.49	0	529148..530338	-	396	94986877	-	LI0434	-	glycosyltransferase
433	 34.96	0	530484..531716	+	410	94986878	aspC	LI0435	-	L,L-diaminopimelate aminotransferase
434	 32.39	0	531796..532644	-	282	94986879	-	LI0436	-	PhyA2
435	 35.14	0	532566..533117	-	183	94986880	-	LI0437	-	histidine acid phosphatase
436	 33.79	0	533368..534693	-	441	94986881	-	LI0438	-	PhyA2
437	 40.81	+2	535099..536355	+	418	94986882	hyaA	LI0439	-	hydrogenase-1 small subunit
438	 37.76	+1	536370..538178	+	602	94986883	hyaB	LI0440	-	hydrogenase-1 large subunit
439	 34.18	0	538288..538992	+	234	94986884	hyaC	LI0441	-	Ni/Fe-hydrogenase 1 B-type cytochrome subunit
440	 33.15	0	538995..539531	+	178	94986885	hyaD	LI0442	-	processing of HyaA and HyaB proteins
441	 28.40	-1	540291..540695	+	134	94986886	-	LI0443	-	hypothetical protein
442	 36.41	0	540700..541770	+	356	94986887	-	LI0444	-	glycosyltransferase
443	 33.55	0	541891..542361	-	156	94986888	dtd	LI0445	-	D-tyrosyl-tRNA deacylase
444	 35.83	0	542402..543601	-	399	94986889	-	LI0446	-	4-diphosphocytidyl-2-methyl-D-erithritol synthase
445	 46.26	+2	543696..543989	+	97	94986890	-	LI0447	-	hypothetical protein
446	 36.86	0	544048..544812	-	254	94986891	-	LI0448	-	hypothetical protein
447	 35.59	0	544847..545644	-	265	94986892	-	LI0449	-	hypothetical protein
448	 37.45	0	545767..546591	-	274	94986893	purL	LI0450	-	phosphoribosylformylglycinamidine synthase domain-containing protein
449	 35.75	0	546832..548484	+	550	94986894	pyrG	LI0451	-	CTP synthetase
450	 38.41	+1	548515..549321	+	268	94986895	kdsA	LI0452	-	2-dehydro-3-deoxyphosphooctonate aldolase
451	 34.31	0	549318..549929	+	203	94986896	-	LI0453	-	HAD superfamily low specificity phosphatase
452	 33.15	0	550004..550549	+	181	94986897	-	LI0454	-	hypothetical protein
453	 29.82	-1	550649..551218	+	189	94986898	-	LI0455	-	hypothetical protein
454	 33.89	0	551218..551940	+	240	94986899	-	LI0456	-	ABC transporter ATPase
455	 35.65	0	552086..553507	+	473	94986900	rpoN	LI0457	-	DNA-directed RNA polymerase specialized sigma subunit, sigma54-like protein
456	 33.15	0	553542..554078	+	178	94986901	-	LI0458	-	ribosome-associated protein Y (PSrp-1)
457	 33.44	0	554113..555078	+	321	94986902	-	LI0459	-	hypothetical protein
458	 34.06	0	555553..556104	+	183	94986903	-	LI0460	-	putative outer membrane protein
34.48	MEAN

3.07	STD DEV
