IslandPathversion 1.0

IslandPath Analysis: Lawsonia intracellularis PHE/MN1-00

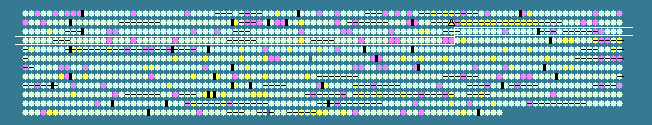

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.48 STD DEV: 3.07
Lawsonia intracellularis PHE/MN1-00, complete genome - 1..1457619
1180 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
273	 34.00	0	339468..340676	+	402	94986718	-	LI0274	-	uncharacterized flavoproteins
274	 37.10	0	340816..342117	+	433	94986719	cyoB	LI0275	-	cytochrome bd-type quinol oxidase, subunit 1
275	 35.37	0	342150..343178	+	342	94986720	cyoA	LI0276	-	cytochrome bd-type quinol oxidase, subunit 2
276	 35.00	0	343350..343829	-	159	94986721	-	LI0277	-	hypothetical protein
277	 36.73	0	344241..347804	+	1187	94986722	porA	LI0278	-	pyruvate:ferredoxin oxidoreductase and related 2-oxoacid:ferredoxin oxidoreductases, gamma subunit
278	 34.89	0	347892..350012	+	706	94986723	pta	LI0279	-	phosphate acetyltransferase
279	 34.81	0	350112..351326	+	404	94986724	ackA	LI0280	-	acetate kinase
280	 33.66	0	351351..352262	-	303	94986725	miaA	LI0281	-	tRNA delta(2)-isopentenylpyrophosphate transferase
281	 30.25	-1	352309..352827	-	172	94986726	kdtB	LI0282	-	phosphopantetheine adenylyltransferase
282	 35.60	0	352803..353375	-	190	94986727	-	LI0283	-	N6-adenine-specific methylase
283	 32.02	0	353516..355117	-	533	94986728	-	LI0284	-	RNA processing exonuclease
284	 34.21	0	355243..356610	-	455	94986729	-	LI0285	-	cell wall-associated hydrolases (invasion-associated proteins)
285	 34.23	0	356715..358055	-	446	94986730	-	LI0286	-	cell wall-associated hydrolases (invasion-associated proteins)
286	 33.38	0	358069..360267	-	732	94986731	recD	LI0287	-	exonuclease V subunit alpha
287	 33.81	0	361133..362386	+	417	94986732	-	LI0288	-	PAP2 superfamily protein
288	 35.48	0	362504..363340	-	278	94986733	-	LI0289	-	Pirin-related protein
289	 30.37	-1	363544..364893	-	449	94986734	-	LI0290	-	hypothetical protein
290	 33.14	0	365970..367550	-	526	94986735	-	LI0291	-	hypothetical protein
291	 31.08	-1	367971..368636	+	221	94986736	-	LI0292	-	Svh
292	 36.51	0	369577..370143	-	188	94986737	fumB	LI0293	-	fumarate hydratase
293	 36.52	0	370169..371014	-	281	94986738	fumA	LI0294	-	fumarate hydratase
294	 34.16	0	371279..371884	-	201	94986739	-	LI0295	-	hypothetical protein
295	 33.52	0	372325..373374	-	349	94986740	purM	LI0296	-	phosphoribosylaminoimidazole synthetase
296	 29.10	-1	373444..373821	+	125	94986741	-	LI0297	-	hypothetical protein
297	 28.84	-1	373843..374799	+	318	94986742	-	LI0298	-	hypothetical protein
298	 33.81	0	375220..377307	-	695	94986743	glyS	LI0299	-	glycyl-tRNA synthetase, beta subunit
299	 36.61	0	377313..378197	-	294	94986744	glyQ	LI0300	-	glycyl-tRNA synthetase subunit alpha
300	 32.00	0	378253..379002	-	249	94986745	recO	LI0301	-	hypothetical protein
301	 31.27	-1	379007..380026	-	339	94986746	-	LI0302	-	hypothetical protein
302	 31.93	0	380045..380971	-	308	94986747	ppi	LI0303	-	parvulin-like peptidyl-prolyl isomerase
303	 32.46	0	381141..382058	-	305	94986748	-	LI0304	-	parvulin-like peptidyl-prolyl isomerase
304	 36.07	0	382096..385563	-	1155	94986749	-	LI0305	-	transcription-repair coupling factor
305	 31.12	-1	385645..387228	-	527	94986750	-	LI0306	-	integral membrane protein
306	 36.29	0	387513..387986	+	157	94986751	greA	LI0307	-	transcription elongation factor greA
307	 35.24	0	388048..389358	+	436	94986752	-	LI0308	-	2-methylthioadenine synthetase
308	 34.47	0	389463..390344	+	293	94986753	yicC	LI0309	-	hypothetical protein
309	 35.99	0	390597..391235	+	212	94986754	gmk	LI0310	-	guanylate kinase
310	 35.65	0	391242..391931	+	229	94986755	pyrF	LI0311	-	orotidine-5'-phosphate decarboxylase
311	 32.60	0	392001..392819	+	272	94986756	-	LI0312	-	TPR repeat-containing protein
312	 36.03	0	392879..394585	+	568	94986757	recJ	LI0313	-	single-stranded DNA-specific exonuclease
313	 35.78	0	394647..395873	-	408	94986758	pepP	LI0314	-	Xaa-Pro aminopeptidase
314	 35.73	0	396014..396430	+	138	94986759	-	LI0315	-	CoA-binding protein
315	 30.26	-1	396615..397526	+	303	94986760	-	LI0316	-	DnaJ-class molecular chaperone
316	 33.33	0	397583..398272	+	229	94986761	-	LI0317	-	adenylate kinase-like kinase
317	 33.02	0	398358..399626	-	422	94986762	-	LI0318	-	hypothetical protein
318	 36.28	0	399629..400849	-	406	94986763	-	LI0319	-	ADP-heptose:LPS heptosyltransferase
319	 30.68	-1	401285..401962	+	225	94986764	cysG	LI0320	-	siroheme synthase
320	 33.45	0	401949..402839	+	296	94986765	resC	LI0321	-	ABC-type transport system involved in cytochrome c biogenesis, permease component
321	 34.68	0	402814..404079	+	421	94986766	hemA	LI0322	-	glutamyl-tRNA reductase
322	 35.17	0	404208..405515	+	435	94986767	-	LI0323	-	Signal renition particle GTPase
323	 36.24	0	405585..406238	+	217	94986768	thiE	LI0324	-	thiamine monophosphate synthase
324	 37.18	0	406369..407796	-	475	94986769	gltD	LI0325	-	NADPH-dependent glutamate synthase beta chain and related oxidoreductases
325	 32.25	0	408049..408975	+	308	94986770	-	LI0326	-	SAM-dependent methyltransferase
326	 29.56	-1	409616..410542	-	308	94986771	-	LI0327	-	hypothetical protein
327	 33.78	0	410586..411035	-	149	94986772	-	LI0328	-	hypothetical protein
328	 35.08	0	411409..413466	+	685	94986773	glgX	LI0329	-	Glyen debranching enzyme
329	 34.90	0	413485..414825	+	446	94986774	-	LI0330	-	putative glycosyltransferase
330	 33.95	0	414828..416114	+	428	94986775	amyA	LI0331	-	alpha-amylase
331	 36.05	0	416124..420386	+	1420	94986776	glgP	LI0332	-	carbohydrate phosphorylase family protein
332	 33.33	0	420460..421350	-	296	94986777	argB	LI0333	-	acetylglutamate kinase
333	 36.41	0	421371..422672	-	433	94986778	hslU	LI0334	-	ATP-dependent protease ATP-binding subunit
334	 35.31	0	422757..423464	-	235	94986779	livF	LI0335	-	branched chain amino acid ABC transporter, ATP-binding protein
335	 35.04	0	423517..424278	-	253	94986780	livG	LI0336	-	branched chain amino acid ABC transporter, ATP-binding protein
336	 33.74	0	424288..425274	-	328	94986781	livM	LI0337	-	branched chain amino acid ABC transporter, permease protein
337	 33.55	0	425271..426173	-	300	94986782	livH	LI0338	-	branched chain amino acid ABC transporter, permease protein
338	 33.96	0	426224..427348	-	374	94986783	-	LI0339	-	ABC-type branched-chain amino acid transport systems, periplasmic component
339	 32.31	0	427714..428691	+	325	94986784	-	LI0340	-	hypothetical protein
340	 34.18	0	428956..429660	+	234	94986785	-	LI0341	-	hypothetical protein
341	 36.75	0	429818..430519	+	233	94986786	leuB	LI0342	-	Rossmann fold nucleotide-binding protein
342	 35.38	0	430612..431100	+	162	94986787	codA	LI0343	-	cytosine/adenosine deaminases
343	 35.07	0	431319..431606	+	95	94986788	-	LI0344	-	hypothetical protein
344	 34.22	0	431805..432596	+	263	94986789	-	LI0345	-	SAM-dependent methyltransferases
345	 36.63	0	433193..434617	-	474	94986790	htrA	LI0346	-	trypsin domain/PDZ domain-containing protein
346	 36.15	0	434818..437232	-	804	94986791	flgE	LI0347	-	flagellar hook protein FlgE
347	 38.44	+1	437383..438891	-	502	94986792	flgE	LI0348	-	flagellar hook protein FlgE
348	 34.56	0	439256..440152	+	298	94986793	purC	LI0349	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
349	 32.94	0	440193..440957	+	254	94986794	fabI	LI0350	-	enoyl-[acyl-carrier-protein] reductase (NADH)
350	 36.14	0	441137..442456	+	439	94986795	mdh	LI0351	-	malate dehydrogenase
351	 31.45	0	442654..442971	+	105	94986796	rpsF	LI0352	-	30S ribosomal protein S6
352	 37.16	0	443247..443768	+	173	94986797	rplI	LI0353	-	50S ribosomal protein L9
353	 36.12	0	443830..445194	+	454	94986798	recQ	LI0354	-	replicative DNA helicase
354	 32.83	0	445449..446039	-	196	94986799	-	LI0355	-	rRNA methylases
355	 34.83	0	446089..448086	-	665	94986800	-	LI0356	-	ABC transporter ATPase
356	 35.75	0	448090..448959	-	289	94986801	pcm	LI0357	-	protein-L-isoaspartate carboxylmethyltransferase
357	 30.35	-1	449124..451136	+	670	94986802	-	LI0358	-	asmA protein
358	 35.30	0	451158..452531	-	457	94986803	mgtE	LI0359	-	Mg2+/Co2+ transporter
359	 33.78	0	452761..453651	+	296	94986804	nadC	LI0360	-	nicotinate-nucleotide pyrophosphorylase
360	 34.28	0	453648..454703	+	351	94986805	-	LI0361	-	quinolinate synthetase
361	 34.91	0	454752..456335	+	527	94986806	nadB	LI0362	-	aspartate oxidase
362	 29.74	-1	456390..456695	-	101	94986807	-	LI0363	-	integral membrane protein
363	 30.52	-1	456801..457475	-	224	94986808	gph	LI0364	-	phosphatases
364	 32.92	0	457964..458686	-	240	94986809	-	LI0365	-	DNA uptake lipoprotein
365	 36.35	0	458692..459618	-	308	94986810	trxB	LI0366	-	thioredoxin reductase
366	 35.19	0	459615..459938	-	107	94986811	trxA	LI0367	-	Thiol-disulfide isomerase and thioredoxins
367	 35.96	0	460064..461131	-	355	94986812	ygjD	LI0368	-	metal-dependent proteases with chaperone activity
368	 36.90	0	461235..462242	-	335	94986813	fbp	LI0369	-	fructose-1,6-bisphosphatase
369	 33.22	0	462356..463225	-	289	94986814	-	LI0370	-	hypothetical protein
370	 35.26	0	463255..464136	-	293	94986815	-	LI0371	-	hypothetical protein
371	 26.92	-2	464159..464470	-	103	94986816	-	LI0372	-	hypothetical protein
372	 29.77	-1	464482..465042	-	186	94986817	pgsA	LI0373	-	phosphatidylglycerophosphate synthase
34.48	MEAN

3.07	STD DEV
