IslandPath Analysis: Lawsonia intracellularis PHE/MN1-00

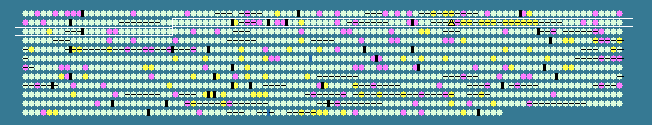

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.48 STD DEV: 3.07
Lawsonia intracellularis PHE/MN1-00, complete genome - 1..1457619
1180 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
126	 36.52	0	155540..158173	+	877	94986571	clpB	LI0126	-	ATPases with chaperone activity, ATP-binding subunit
127	 36.36	0	158235..158993	-	252	94986572	glnQ	LI0127	-	ABC-type polar amino acid transport system, ATPase component
128	 35.50	0	158962..159747	-	261	94986573	glnP	LI0128	-	ABC-type amino acid transport system, permease component
129	 33.20	0	159798..160547	-	249	94986574	-	LI0129	-	amino acid ABC transporter, periplasmic amino acid-binding protein
130	 32.83	0	160881..161474	+	197	94986575	hisJ	LI0130	-	histidinol phosphatase and related phosphatases
131	 34.33	0	161575..162882	+	435	94986576	folC	LI0131	-	folylpolyglutamate synthase
132	 32.15	0	162904..164340	+	478	94986577	selA	LI0132	-	selenocysteine synthase
133	 31.64	0	164510..164863	+	117	94986578	-	LI0133	-	hypothetical protein
134	 31.30	-1	164954..166084	+	376	94986579	-	LI0134	-	polymerase
135	 33.57	0	166090..167793	+	567	94986580	-	LI0135	-	hypothetical protein
136	 38.73	+1	169098..169745	+	215	94986581	-	LI0136	-	hypothetical protein
137	 35.61	0	170015..170803	-	262	94986582	-	LI0137	-	putative integral membrane protein
138	 27.13	-2	171157..171543	-	128	94986583	-	LI0138	-	hypothetical protein
139	 25.67	-2	171577..172059	-	160	94986584	-	LI0139	-	hypothetical protein
140	 29.59	-1	172266..173522	-	418	94986585	-	LI0140	-	glycosyltransferase
141	 34.58	0	173721..174680	+	319	94986586	nodB	LI0141	-	xylanase/chitin deacetylase
142	 32.77	0	178242..179129	+	295	94986587	-	LI0142	-	hypothetical protein
143	 30.35	-1	180054..180455	-	133	94986588	-	LI0143	-	hypothetical protein
144	 30.45	-1	180718..181446	-	242	94986589	-	LI0144	-	SAM-dependent methyltransferases
145	 34.69	0	182088..183926	+	612	94986590	typA/bipA	LI0145	-	GTP-binding protein lepA
146	 33.61	0	183980..185080	-	366	94986591	-	LI0146	-	translation-associated GTPase
147	 38.78	+1	185352..185810	+	152	94986592	-	LI0147	-	Outer membrane lipoprotein
148	 37.02	0	185906..188398	-	830	94986593	lon	LI0148	-	ATP-dependent protease
149	 35.24	0	188436..189116	-	226	94986594	radC	LI0149	-	DNA repair proteins
150	 32.21	0	189211..190188	-	325	94986595	-	LI0150	-	hypothetical protein
151	 33.33	0	190209..190736	-	175	94986596	-	LI0151	-	hypothetical protein
152	 33.33	0	190747..193254	-	835	94986597	leuS	LI0152	-	leucyl-tRNA synthetase
153	 30.25	-1	193265..193750	-	161	94986598	nusB	LI0153	-	transcription termination factor
154	 36.29	0	193760..194233	-	157	94986599	ribH	LI0154	-	riboflavin synthase beta-chain
155	 36.33	0	194320..195588	-	422	94986600	ribA	LI0155	-	GTP cyclohydrolase II
156	 29.73	-1	195573..196238	-	221	94986601	ribE	LI0156	-	riboflavin synthase subunit alpha
157	 33.25	0	196242..197390	-	382	94986602	ribD	LI0157	-	pyrimidine reductase, riboflavin biosynthesis
158	 35.75	0	197926..199164	-	412	94986603	glyA	LI0159	-	serine hydroxymethyltransferase
159	 35.65	0	199233..200483	-	416	94986604	fabF/fabB	LI0160	-	3-oxoacyl-(acyl-carrier-protein) synthase
160	 35.08	0	200903..201646	-	247	94986605	fabG	LI0161	-	3-oxoacyl-[acyl-carrier protein] reductase
161	 33.73	0	201755..202759	-	334	94986606	fabH	LI0162	-	3-oxoacyl-[acyl-carrier-protein] synthase III
162	 33.91	0	202841..203884	-	347	94986607	plsX	LI0163	-	putative glycerol-3-phosphate acyltransferase PlsX
163	 31.28	-1	204107..204643	-	178	94986608	-	LI0164	-	metal-binding protein
164	 34.07	0	204755..205846	-	363	94986609	mutY	LI0165	-	A/G-specific DNA glycosylase
165	 28.99	-1	205977..206483	+	168	94986610	ppiB	LI0166	-	peptidyl-prolyl cis-trans isomerase
166	 28.57	-1	206826..207434	-	202	94986611	-	LI0167	-	peptidyl-prolyl cis-trans isomerase
167	 34.67	0	207522..210743	-	1073	94986612	-	LI0168	-	SNF2 family DNA/RNA helicase
168	 34.08	0	211599..213256	+	551	94986613	oppA	LI0169	-	ABC-type dipeptide transport system, periplasmic component
169	 34.88	0	213386..215581	+	731	94986614	relA	LI0170	-	guanosine polyphosphate pyrophosphohydrolases/synthetases
170	 33.33	0	215599..216006	-	135	94986615	-	LI0171	-	hypothetical protein
171	 33.33	0	216601..217899	-	432	94986616	-	LI0172	-	hypothetical protein
172	 38.05	+1	218703..219869	+	388	94986617	-	LI0173	-	prophage DLP12 integrase
173	 29.18	-1	219859..220869	+	336	94986618	-	LI0174	-	hypothetical protein
174	 48.89	+2	221210..222874	+	554	94986619	-	LI0175	-	hyphotheical protein
175	 54.71	+2	222965..223357	+	130	94986620	-	LI0176	-	hypothetical protein
176	 36.08	0	223987..224532	+	181	94986621	-	LI0177	-	hypothetical protein
177	 44.24	+2	224690..225184	+	164	94986622	-	LI0178	-	hypothetical protein
178	 50.73	+2	225939..227858	-	639	94986623	tetW	LI0179	-	ribosomal protection tetracycline resistance protein
179	 55.30	+2	228343..229257	+	304	94986624	-	LI0180	-	hypothetical protein
180	 37.79	+1	229471..230256	+	261	94986625	-	LI0181	-	endonuclease I
181	 45.64	+2	230232..231092	+	286	94986626	-	LI0182	-	putative recombination protein-phage associated
182	 49.04	+2	231161..232363	+	400	94986627	-	LI0183	-	hypothetical protein
183	 50.13	+2	232347..232721	+	124	94986628	-	LI0184	-	hypothetical protein
184	 52.37	+2	232791..233741	+	316	94986629	-	LI0185	-	MoxR-like ATPases
185	 51.81	+2	233745..234740	+	331	94986630	-	LI0186	-	hypothetical protein
186	 51.10	+2	234755..236347	+	530	94986631	-	LI0187	-	hypothetical protein
187	 37.68	+1	236969..238876	+	635	94986632	ftsH	LI0188	-	ATP-dependent Zn proteases
188	 31.87	0	238888..239775	+	295	94986633	folP	LI0189	-	dihydropteroate synthase
189	 34.95	0	239839..240579	+	246	94986634	-	LI0190	-	hypothetical protein
190	 34.58	0	240772..241494	+	240	94986635	-	LI0191	-	hypothetical protein
191	 36.14	0	241522..242877	+	451	94986636	-	LI0192	-	phosphomannomutase
192	 34.53	0	242878..243798	+	306	94986637	galU	LI0193	-	UDP-glucose pyrophosphorylase
193	 32.41	0	243833..246211	+	792	94986638	priA	LI0194	-	primosomal protein N'
194	 30.86	-1	247238..247885	+	215	94986639	-	LI0195	-	SAM-dependent methyltransferases
195	 33.71	0	247882..249495	+	537	94986640	-	LI0196	-	putative transport protein
196	 29.52	-1	249535..250242	-	235	94986641	-	LI0197	-	endo-1,4-beta-xylanase
197	 31.16	-1	250367..250963	-	198	94986642	-	LI0198	-	hypothetical protein
198	 32.49	0	250984..253005	-	673	94986643	-	LI0199	-	exoribonuclease R
199	 35.45	0	253065..254339	-	424	94986644	purH	LI0200	-	AICAR transformylase/IMP cyclohydrolase PurH
200	 31.17	-1	254566..254889	+	107	94986645	-	LI0201	-	hypothetical protein
201	 33.49	0	255142..256428	+	428	94986646	purA	LI0202	-	adenylosuccinate synthetase
202	 36.07	0	256593..257651	+	352	94986647	trmU	LI0203	-	tRNA(5-methylaminomethyl-2-thiouridylate) methyltransferase
203	 36.46	0	257733..258917	+	394	94986648	-	LI0204	-	Fe-S oxidoreductases
204	 36.14	0	259031..260029	+	332	94986649	hemB	LI0205	-	delta-aminolevulinic acid dehydratase
205	 38.74	+1	260014..261327	+	437	94986650	-	LI0206	-	Fe-S oxidoreductases
206	 32.67	0	261332..261784	+	150	94986651	nirD	LI0207	-	transcriptional regulators
207	 32.12	0	261947..262936	+	329	94986652	-	LI0208	-	hypothetical protein
208	 31.38	-1	263206..263820	+	204	94986653	-	LI0209	-	hypothetical protein
209	 35.25	0	264303..264875	-	190	94986654	fliS	LI0210	-	flagellin-specific chaperone FliS
210	 34.34	0	264907..266991	-	694	94986655	fliD	LI0211	-	flagellar capping protein
211	 32.97	0	267658..269586	+	642	94986656	thrS	LI0212	-	threonyl-tRNA synthetase
212	 36.90	0	269654..270130	+	158	94986657	infC	LI0213	-	translation initiation factor IF-3
213	 37.29	0	270500..270853	+	117	94986658	rplT	LI0214	-	50S ribosomal protein L20
214	 34.49	0	270937..271974	+	345	94986659	pheS	LI0215	-	phenylalanyl-tRNA synthetase alpha subunit
215	 30.72	-1	272014..274425	+	803	94986660	pheT	LI0216	-	phenylalanyl-tRNA synthetase beta subunit
216	 30.22	-1	274466..274882	+	138	94986661	-	LI0217	-	transcriptional regulator
217	 33.12	0	275097..275564	+	155	94986662	rpe	LI0218	-	Pentose-5-phosphate-3-epimerase
218	 35.47	0	275627..277594	+	655	94986663	tkt	LI0219	-	transketolase
219	 33.42	0	277821..278945	+	374	94986664	trmD	LI0220	-	tRNA-(guanine-N1)-methyltransferase
220	 36.21	0	278981..279328	+	115	94986665	rplS	LI0221	-	50S ribosomal protein L19
221	 34.52	0	279395..280069	+	224	94986666	rplS	LI0222	-	ribonuclease HII
222	 31.33	-1	280089..280487	+	132	94986667	-	LI0223	-	endonuclease
223	 32.85	0	280429..281259	+	276	94986668	-	LI0224	-	methyltransferases
224	 32.69	0	281262..281729	+	155	94986669	smpB	LI0225	-	SsrA-binding protein
225	 35.71	0	281750..283432	+	560	94986670	yjjK	LI0226	-	putative ABC transporter ATP-binding protein
34.48	MEAN

3.07	STD DEV
