IslandPath Analysis: Lawsonia intracellularis PHE/MN1-00

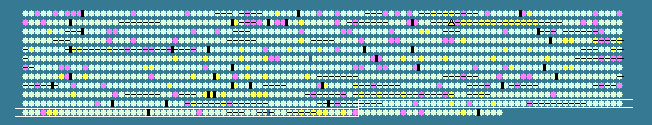

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.48 STD DEV: 3.07
Lawsonia intracellularis PHE/MN1-00, complete genome - 1..1457619
1180 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1057	 34.92	0	1304124..1304564	+	146	94987502	-	LI1060	-	flagellar biosynthesis chaperone
1058	 36.52	0	1304581..1305333	+	250	94987503	-	LI1061	-	hypothetical protein
1059	 36.30	0	1305357..1306130	+	257	94987504	truA	LI1062	-	tRNA pseudouridine synthase A
1060	 37.59	+1	1306382..1306804	+	140	94987505	-	LI1063	-	hypothetical protein
1061	 36.90	0	1307072..1307548	+	158	94987506	fdhF	LI1064	-	Fe-S-cluster-containing hydrogenase components 1
1062	 35.39	0	1307621..1308496	-	291	94987507	rfbD	LI1065	-	dTDP-4-dehydrorhamnose reductase
1063	 34.90	0	1308493..1309512	-	339	94987508	rfbB	LI1066	-	dTDP-D-glucose 4,6-dehydratase
1064	 31.44	0	1309801..1310592	+	263	94987509	-	LI1067	-	cobalamin biosynthesis protein CbiK, Co2+ chelatase
1065	 32.82	0	1310656..1311624	+	322	94987510	-	LI1068	-	hypothetical protein
1066	 30.00	-1	1312240..1312479	+	79	94987511	rnpA	LI1069	-	RNase P protein component
1067	 34.96	0	1312833..1314431	+	532	94987512	yidC	LI1070	-	preprotein translocase subunit YidC
1068	 33.04	0	1314455..1315468	+	337	94987513	jag	LI1071	-	RNA-binding protein
1069	 35.22	0	1315534..1316913	+	459	94987514	trmE	LI1072	-	tRNA modification GTPase TrmE
1070	 34.67	0	1316917..1317513	+	198	94987515	rncS	LI1073	-	ribonuclease D
1071	 32.76	0	1317595..1320534	+	979	94987516	-	LI1074	-	endonuclease
1072	 38.20	+1	1320591..1321721	+	376	94987517	ncd2	LI1075	-	dioxygenases related to 2-nitropropane dioxygenase
1073	 33.03	0	1321808..1322791	-	327	94987518	glk	LI1076	-	glucokinase
1074	 33.46	0	1322933..1323712	-	259	94987519	-	LI1077	-	hypothetical protein
1075	 30.75	-1	1324889..1326631	+	580	94987520	HydH	LI1078	-	Signal transduction histidine kinase
1076	 35.88	0	1326651..1328066	+	471	94987521	hydG	LI1079	-	response regulator
1077	 36.21	0	1328199..1328615	+	138	94987522	-	LI1080	-	hypothetical protein
1078	 36.38	0	1328645..1329628	-	327	94987523	oppD	LI1081	-	oligopeptide ABC transporter
1079	 40.41	+1	1330153..1330491	+	112	94987524	feoA	LI1082	-	Fe2+ transport system protein A
1080	 35.97	0	1330619..1332820	+	733	94987525	feoB	LI1083	-	Fe2+ transport system protein B
1081	 33.17	0	1332824..1334038	-	404	94987526	glpC	LI1084	-	sn-glycerol-3-phosphate dehydrogenase subunit C
1082	 32.93	0	1334050..1335303	-	417	94987527	-	LI1085	-	anaerobic glycerol-3-phosphate dehydrogenase subunit B
1083	 34.68	0	1335296..1336924	-	542	94987528	glpA	LI1086	-	anaerobic glycerol-3-phosphate dehydrogenase subunit A
1084	 35.51	0	1337223..1337819	-	198	94987529	-	LI1087	-	hypothetical protein
1085	 30.10	-1	1337816..1338124	-	102	94987530	-	LI1088	-	hypothetical protein
1086	 33.03	0	1338433..1339086	+	217	94987531	-	LI1089	-	methyltransferase
1087	 35.24	0	1339149..1339568	+	139	94987532	-	LI1090	-	transcription regulator
1088	 33.85	0	1339592..1340368	+	258	94987533	-	LI1091	-	putative GTP cyclohydrolase
1089	 37.05	0	1340557..1341606	+	349	94987534	-	LI1092	-	response regulator
1090	 35.28	0	1341663..1344893	+	1076	94987535	-	LI1093	-	Outer membrane protein and related peptidoglycan-associated (lipo)proteins
1091	 34.20	0	1344921..1345964	-	347	94987536	-	LI1094	-	HD-GYP domain-containing protein
1092	 36.09	0	1345968..1347383	-	471	94987537	pykF	LI1095	-	pyruvate kinase
1093	 35.56	0	1347589..1348038	+	149	94987538	mraZ	LI1096	-	cell division protein MraZ
1094	 36.10	0	1348109..1349047	+	312	94987539	-	LI1097	-	S-adenosylmethionine-dependent methyltransferase involved in cell envelope biogenesis
1095	 34.20	0	1349553..1351634	+	693	94987540	ftsI	LI1098	-	cell division protein FtsI/penicillin-binding protein 2
1096	 35.68	0	1351636..1353084	+	482	94987541	murE	LI1099	-	UDP-N-acetylmuramyl tripeptide synthase
1097	 35.27	0	1353075..1354469	+	464	94987542	murF	LI1100	-	UDP-N-acetylmuramyl pentapeptide synthase
1098	 31.85	0	1354469..1355545	+	358	94987543	mraY	LI1101	-	UDP-N-acetylmuramyl pentapeptide phosphotransferase/UDP-N-acetylglucosamine-1-phosphate transferase
1099	 34.32	0	1355559..1356881	+	440	94987544	murD	LI1102	-	UDP-N-acetylmuramoylalanine-D-glutamate ligase
1100	 34.55	0	1356868..1358016	+	382	94987545	spoVE	LI1103	-	cell division membrane protein
1101	 35.81	0	1358021..1359112	+	363	94987546	murG	LI1104	-	UDP-N-acetylglucosamine:LPS N-acetylglucosamine transferase
1102	 35.76	0	1359109..1360470	+	453	94987547	murC	LI1105	-	UDP-N-acetylmuramate-alanine ligase
1103	 33.22	0	1360502..1361392	+	296	94987548	-	LI1106	-	UDP-N-acetylmuramate dehydrogenase
1104	 29.71	-1	1361386..1362213	+	275	94987549	ftsQ	LI1107	-	cell division septal protein
1105	 38.69	+1	1362407..1363639	+	410	94987550	ftsA	LI1108	-	cell division protein FtsA
1106	 38.97	+1	1363691..1365073	+	460	94987551	ftsZ	LI1109	-	cell division protein FtsZ
1107	 32.08	0	1365182..1365661	+	159	94987552	-	LI1110	-	hypothetical protein
1108	 32.18	0	1365658..1366440	-	260	94987553	-	LI1111	-	amidophosphoribosyltransferases
1109	 33.17	0	1366446..1367042	-	198	94987554	-	LI1112	-	multimeric flavodoxin WrbA
1110	 34.33	0	1367118..1368020	-	300	94987555	argF	LI1113	-	ornithine carbamoyltransferase
1111	 33.02	0	1368164..1370053	-	629	94987556	-	LI1114	-	parvulin-like peptidyl-prolyl isomerase
1112	 37.66	+1	1370349..1371827	-	492	94987557	flbD	LI1115	-	response regulator
1113	 35.94	0	1372257..1373870	+	537	94987558	priS	LI1116	-	hydroxylamine reductase
1114	 34.27	0	1374180..1375139	+	319	94987559	cheV	LI1117	-	chemotaxis signal transduction protein
1115	 34.32	0	1375188..1375997	+	269	94987560	-	LI1118	-	hypothetical protein
1116	 33.92	0	1376132..1377148	-	338	94987561	gapB	LI1119	-	glyceraldehyde-3-phosphate dehydrogenase/erythrose-4-phosphate dehydrogenase
1117	 37.40	0	1377471..1378307	-	278	94987562	proC	LI1120	-	pyrroline-5-carboxylate reductase
1118	 32.85	0	1378307..1378723	-	138	94987563	ndk	LI1121	-	nucleoside-diphosphate kinase
1119	 32.21	0	1378753..1380090	-	445	94987564	-	LI1122	-	hypothetical protein
1120	 36.57	0	1380396..1381724	-	442	94987565	prc	LI1123	-	periplasmic protease
1121	 32.89	0	1381792..1382472	-	226	94987566	nth	LI1124	-	endonuclease III, putative
1122	 35.71	0	1382916..1385270	-	784	94987567	copA	LI1125	-	copper-translocating P-type ATPase
1123	 35.50	0	1385472..1385933	+	153	94987568	-	LI1126	-	RNA methyltransferase
1124	 36.77	0	1385991..1387358	+	455	94987569	-	LI1127	-	Na+-driven multidrug efflux pump
1125	 33.67	0	1387436..1388335	+	299	94987570	-	LI1128	-	hypothetical protein
1126	 35.91	0	1388490..1389227	+	245	94987571	glnQ	LI1129	-	ABC-type polar amino acid transport system, ATPase component
1127	 33.33	0	1389244..1390113	+	289	94987572	-	LI1130	-	ribosomal protein L11 methylase
1128	 33.92	0	1390148..1390486	-	112	94987573	secG	LI1131	-	preprotein translocase subunit SecG
1129	 34.39	0	1390582..1391340	-	252	94987574	tpiA	LI1132	-	triosephosphate isomerase
1130	 29.72	-1	1391360..1391830	-	156	94987575	rimJ	LI1133	-	acetyltransferase
1131	 33.15	0	1391831..1392370	+	179	94987576	-	LI1134	-	NTP pyrophosphohydrolases including oxidative damage repair enzymes
1132	 35.73	0	1392420..1393421	-	333	94987577	mreB	LI1135	-	Actin-like ATPase involved in cell morphogenesis
1133	 36.33	0	1393424..1394458	-	344	94987578	-	LI1136	-	hypothetical protein
1134	 37.15	0	1394777..1395850	+	357	94987579	cheB	LI1137	-	chemotaxis response regulator
1135	 33.74	0	1395874..1397826	+	650	94987580	-	LI1138	-	hypothetical protein
1136	 31.96	0	1397826..1398701	+	291	94987581	cheR	LI1139	-	methylase of chemotaxis methyl-accepting proteins
1137	 32.04	0	1398717..1399487	+	256	94987582	soj	LI1140	-	ATPases involved in chromosome partitioning
1138	 32.27	0	1399691..1400161	+	156	94987583	cheW	LI1141	-	chemotaxis signal transduction protein
1139	 31.71	0	1400172..1400540	+	122	94987584	cheY	LI1142	-	CheY-like receiver
1140	 34.57	0	1400564..1401208	+	214	94987585	cheA_1	LI1143	-	chemotaxis protein histidine kinase-like kinase
1141	 36.36	0	1401396..1403609	+	737	94987586	cheA_2	LI1144	-	chemotaxis protein histidine kinase-like kinase
1142	 32.44	0	1409027..1411030	-	667	94987592	-	LI1150	-	putative regulator
1143	 33.41	0	1411391..1412671	-	426	94987593	-	LI1151	-	transcriptional regulator
1144	 35.50	0	1412680..1413048	-	122	94987594	-	LI1152	-	hypothetical protein
1145	 36.01	0	1413348..1414544	-	398	94987595	-	LI1153	-	putative outer protein N
1146	 36.97	0	1415356..1416042	+	228	94987596	-	LI1154	-	hypothetical protein
1147	 39.59	+1	1416504..1417094	+	196	94987597	-	LI1155	-	hypothetical protein
1148	 36.49	0	1418018..1418524	+	168	94987598	-	LI1156	-	hypothetical protein
1149	 42.59	+2	1419132..1419671	+	179	94987599	-	LI1157	-	regulatory protein PcrH
1150	 40.30	+1	1419668..1420858	+	396	94987600	-	LI1158	-	hypothetical protein
1151	 38.85	+1	1420906..1421703	+	265	94987601	-	LI1159	-	hypothetical protein
1152	 35.22	0	1422992..1424743	+	583	94987602	YscC	LI1160	-	putative type III secretion protein YscC
1153	 35.30	0	1424743..1426164	+	473	94987603	-	LI1161	-	hypothetical protein
1154	 38.12	+1	1426377..1426856	+	159	94987604	-	LI1162	-	hypothetical protein
1155	 34.65	0	1426865..1427701	+	278	94987605	YscJ	LI1163	-	putative type III secretion protein
1156	 28.34	-2	1427698..1428378	+	226	94987606	YscL	LI1164	-	putative type III secretion protein
34.48	MEAN

3.07	STD DEV
