IslandPath Analysis: Lawsonia intracellularis PHE/MN1-00

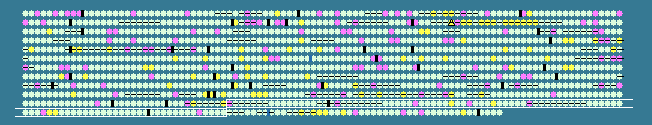

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.48 STD DEV: 3.07
Lawsonia intracellularis PHE/MN1-00, complete genome - 1..1457619
1180 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1035	 25.47	-2	1279875..1280561	-	228	94987480	-	LI1038	-	hypothetical protein
1036	 32.55	0	1281061..1282206	-	381	94987481	-	LI1039	-	hypothetical protein
1037	 33.04	0	1282447..1283466	-	339	94987482	-	LI1040	-	hypothetical protein
1038	 31.93	0	1283628..1284554	-	308	94987483	-	LI1041	-	hypothetical protein
1039	 34.83	0	1285000..1286004	-	334	94987484	-	LI1042	-	hypothetical protein
1040	 37.65	+1	1286368..1287339	-	323	94987485	hprA	LI1043	-	lactate dehydrogenase and related dehydrogenases
1041	 34.80	0	1287421..1288035	-	204	94987486	-	LI1044	-	hypothetical protein
1042	 32.40	0	1288038..1288997	-	319	94987487	pqiB	LI1045	-	paraquat-inducible protein B
1043	 34.73	0	1288994..1289782	-	262	94987488	-	LI1046	-	ABC-type transport system involved in resistance to organic solvents, ATPase component
1044	 34.88	0	1289790..1290950	-	386	94987489	ttg2B	LI1047	-	ABC-type transport system involved in resistance to organic solvents, permease component
1045	 34.91	0	1291103..1291672	-	189	94987490	grpE	LI1048	-	molecular chaperone GrpE (heat shock protein)
1046	 34.97	0	1292388..1293122	+	244	94987491	-	LI1049	-	hypothetical protein
1047	 34.49	0	1293526..1294392	+	288	94987492	-	LI1050	-	metal-dependent phosphoesterase
1048	 35.43	0	1294652..1297465	+	937	94987493	ileS	LI1051	-	isoleucyl-tRNA synthetase
1049	 32.32	0	1297490..1297984	+	164	94987494	lsp	LI1052	-	lipoprotein signal peptidase
1050	 36.71	0	1298127..1299044	+	305	94987495	-	LI1053	-	hypothetical protein
1051	 33.72	0	1299149..1299931	+	260	94987496	cheZ	LI1054	-	chemotaxis protein
1052	 33.60	0	1300313..1301428	+	371	94987497	lpxB	LI1055	-	Lipid A disaccharide synthetase
1053	 27.60	-2	1301682..1302152	+	156	94987498	-	LI1056	-	hypothetical protein
1054	 31.91	0	1302188..1302889	+	233	94987499	atpA	LI1057	-	F0F1-type ATP synthase, subunit a
1055	 37.07	0	1302949..1303296	+	115	94987500	atpC	LI1058	-	F0F1-type ATP synthase, subunit c
1056	 34.59	0	1303342..1303977	+	211	94987501	-	LI1059	-	redox-sensing transcriptional repressor Rex
1057	 34.92	0	1304124..1304564	+	146	94987502	-	LI1060	-	flagellar biosynthesis chaperone
1058	 36.52	0	1304581..1305333	+	250	94987503	-	LI1061	-	hypothetical protein
1059	 36.30	0	1305357..1306130	+	257	94987504	truA	LI1062	-	tRNA pseudouridine synthase A
1060	 37.59	+1	1306382..1306804	+	140	94987505	-	LI1063	-	hypothetical protein
1061	 36.90	0	1307072..1307548	+	158	94987506	fdhF	LI1064	-	Fe-S-cluster-containing hydrogenase components 1
1062	 35.39	0	1307621..1308496	-	291	94987507	rfbD	LI1065	-	dTDP-4-dehydrorhamnose reductase
1063	 34.90	0	1308493..1309512	-	339	94987508	rfbB	LI1066	-	dTDP-D-glucose 4,6-dehydratase
1064	 31.44	0	1309801..1310592	+	263	94987509	-	LI1067	-	cobalamin biosynthesis protein CbiK, Co2+ chelatase
1065	 32.82	0	1310656..1311624	+	322	94987510	-	LI1068	-	hypothetical protein
1066	 30.00	-1	1312240..1312479	+	79	94987511	rnpA	LI1069	-	RNase P protein component
1067	 34.96	0	1312833..1314431	+	532	94987512	yidC	LI1070	-	preprotein translocase subunit YidC
1068	 33.04	0	1314455..1315468	+	337	94987513	jag	LI1071	-	RNA-binding protein
1069	 35.22	0	1315534..1316913	+	459	94987514	trmE	LI1072	-	tRNA modification GTPase TrmE
1070	 34.67	0	1316917..1317513	+	198	94987515	rncS	LI1073	-	ribonuclease D
1071	 32.76	0	1317595..1320534	+	979	94987516	-	LI1074	-	endonuclease
1072	 38.20	+1	1320591..1321721	+	376	94987517	ncd2	LI1075	-	dioxygenases related to 2-nitropropane dioxygenase
1073	 33.03	0	1321808..1322791	-	327	94987518	glk	LI1076	-	glucokinase
1074	 33.46	0	1322933..1323712	-	259	94987519	-	LI1077	-	hypothetical protein
1075	 30.75	-1	1324889..1326631	+	580	94987520	HydH	LI1078	-	Signal transduction histidine kinase
1076	 35.88	0	1326651..1328066	+	471	94987521	hydG	LI1079	-	response regulator
1077	 36.21	0	1328199..1328615	+	138	94987522	-	LI1080	-	hypothetical protein
1078	 36.38	0	1328645..1329628	-	327	94987523	oppD	LI1081	-	oligopeptide ABC transporter
1079	 40.41	+1	1330153..1330491	+	112	94987524	feoA	LI1082	-	Fe2+ transport system protein A
1080	 35.97	0	1330619..1332820	+	733	94987525	feoB	LI1083	-	Fe2+ transport system protein B
1081	 33.17	0	1332824..1334038	-	404	94987526	glpC	LI1084	-	sn-glycerol-3-phosphate dehydrogenase subunit C
1082	 32.93	0	1334050..1335303	-	417	94987527	-	LI1085	-	anaerobic glycerol-3-phosphate dehydrogenase subunit B
1083	 34.68	0	1335296..1336924	-	542	94987528	glpA	LI1086	-	anaerobic glycerol-3-phosphate dehydrogenase subunit A
1084	 35.51	0	1337223..1337819	-	198	94987529	-	LI1087	-	hypothetical protein
1085	 30.10	-1	1337816..1338124	-	102	94987530	-	LI1088	-	hypothetical protein
1086	 33.03	0	1338433..1339086	+	217	94987531	-	LI1089	-	methyltransferase
1087	 35.24	0	1339149..1339568	+	139	94987532	-	LI1090	-	transcription regulator
1088	 33.85	0	1339592..1340368	+	258	94987533	-	LI1091	-	putative GTP cyclohydrolase
1089	 37.05	0	1340557..1341606	+	349	94987534	-	LI1092	-	response regulator
1090	 35.28	0	1341663..1344893	+	1076	94987535	-	LI1093	-	Outer membrane protein and related peptidoglycan-associated (lipo)proteins
1091	 34.20	0	1344921..1345964	-	347	94987536	-	LI1094	-	HD-GYP domain-containing protein
1092	 36.09	0	1345968..1347383	-	471	94987537	pykF	LI1095	-	pyruvate kinase
1093	 35.56	0	1347589..1348038	+	149	94987538	mraZ	LI1096	-	cell division protein MraZ
1094	 36.10	0	1348109..1349047	+	312	94987539	-	LI1097	-	S-adenosylmethionine-dependent methyltransferase involved in cell envelope biogenesis
1095	 34.20	0	1349553..1351634	+	693	94987540	ftsI	LI1098	-	cell division protein FtsI/penicillin-binding protein 2
1096	 35.68	0	1351636..1353084	+	482	94987541	murE	LI1099	-	UDP-N-acetylmuramyl tripeptide synthase
1097	 35.27	0	1353075..1354469	+	464	94987542	murF	LI1100	-	UDP-N-acetylmuramyl pentapeptide synthase
1098	 31.85	0	1354469..1355545	+	358	94987543	mraY	LI1101	-	UDP-N-acetylmuramyl pentapeptide phosphotransferase/UDP-N-acetylglucosamine-1-phosphate transferase
1099	 34.32	0	1355559..1356881	+	440	94987544	murD	LI1102	-	UDP-N-acetylmuramoylalanine-D-glutamate ligase
1100	 34.55	0	1356868..1358016	+	382	94987545	spoVE	LI1103	-	cell division membrane protein
1101	 35.81	0	1358021..1359112	+	363	94987546	murG	LI1104	-	UDP-N-acetylglucosamine:LPS N-acetylglucosamine transferase
1102	 35.76	0	1359109..1360470	+	453	94987547	murC	LI1105	-	UDP-N-acetylmuramate-alanine ligase
1103	 33.22	0	1360502..1361392	+	296	94987548	-	LI1106	-	UDP-N-acetylmuramate dehydrogenase
1104	 29.71	-1	1361386..1362213	+	275	94987549	ftsQ	LI1107	-	cell division septal protein
1105	 38.69	+1	1362407..1363639	+	410	94987550	ftsA	LI1108	-	cell division protein FtsA
1106	 38.97	+1	1363691..1365073	+	460	94987551	ftsZ	LI1109	-	cell division protein FtsZ
1107	 32.08	0	1365182..1365661	+	159	94987552	-	LI1110	-	hypothetical protein
1108	 32.18	0	1365658..1366440	-	260	94987553	-	LI1111	-	amidophosphoribosyltransferases
1109	 33.17	0	1366446..1367042	-	198	94987554	-	LI1112	-	multimeric flavodoxin WrbA
1110	 34.33	0	1367118..1368020	-	300	94987555	argF	LI1113	-	ornithine carbamoyltransferase
1111	 33.02	0	1368164..1370053	-	629	94987556	-	LI1114	-	parvulin-like peptidyl-prolyl isomerase
1112	 37.66	+1	1370349..1371827	-	492	94987557	flbD	LI1115	-	response regulator
1113	 35.94	0	1372257..1373870	+	537	94987558	priS	LI1116	-	hydroxylamine reductase
1114	 34.27	0	1374180..1375139	+	319	94987559	cheV	LI1117	-	chemotaxis signal transduction protein
1115	 34.32	0	1375188..1375997	+	269	94987560	-	LI1118	-	hypothetical protein
1116	 33.92	0	1376132..1377148	-	338	94987561	gapB	LI1119	-	glyceraldehyde-3-phosphate dehydrogenase/erythrose-4-phosphate dehydrogenase
1117	 37.40	0	1377471..1378307	-	278	94987562	proC	LI1120	-	pyrroline-5-carboxylate reductase
1118	 32.85	0	1378307..1378723	-	138	94987563	ndk	LI1121	-	nucleoside-diphosphate kinase
1119	 32.21	0	1378753..1380090	-	445	94987564	-	LI1122	-	hypothetical protein
1120	 36.57	0	1380396..1381724	-	442	94987565	prc	LI1123	-	periplasmic protease
1121	 32.89	0	1381792..1382472	-	226	94987566	nth	LI1124	-	endonuclease III, putative
1122	 35.71	0	1382916..1385270	-	784	94987567	copA	LI1125	-	copper-translocating P-type ATPase
1123	 35.50	0	1385472..1385933	+	153	94987568	-	LI1126	-	RNA methyltransferase
1124	 36.77	0	1385991..1387358	+	455	94987569	-	LI1127	-	Na+-driven multidrug efflux pump
1125	 33.67	0	1387436..1388335	+	299	94987570	-	LI1128	-	hypothetical protein
1126	 35.91	0	1388490..1389227	+	245	94987571	glnQ	LI1129	-	ABC-type polar amino acid transport system, ATPase component
1127	 33.33	0	1389244..1390113	+	289	94987572	-	LI1130	-	ribosomal protein L11 methylase
1128	 33.92	0	1390148..1390486	-	112	94987573	secG	LI1131	-	preprotein translocase subunit SecG
1129	 34.39	0	1390582..1391340	-	252	94987574	tpiA	LI1132	-	triosephosphate isomerase
1130	 29.72	-1	1391360..1391830	-	156	94987575	rimJ	LI1133	-	acetyltransferase
1131	 33.15	0	1391831..1392370	+	179	94987576	-	LI1134	-	NTP pyrophosphohydrolases including oxidative damage repair enzymes
1132	 35.73	0	1392420..1393421	-	333	94987577	mreB	LI1135	-	Actin-like ATPase involved in cell morphogenesis
1133	 36.33	0	1393424..1394458	-	344	94987578	-	LI1136	-	hypothetical protein
1134	 37.15	0	1394777..1395850	+	357	94987579	cheB	LI1137	-	chemotaxis response regulator
34.48	MEAN

3.07	STD DEV
