IslandPath Analysis: Lactobacillus delbrueckii subsp. bulgaricus ATCC 11842

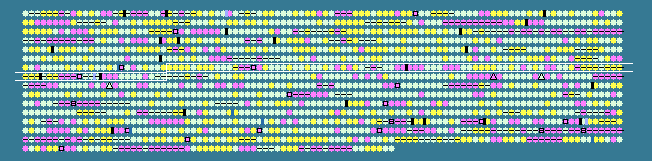

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.73 STD DEV: 5.22
Lactobacillus delbrueckii subsp. bulgaricus ATCC 11842, complete genome - 1..1864998
1562 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
625	 54.77	0	702945..703919	+	324	104773882	-	Ldb0812	-	hypothetical protein
626	 57.69	+1	703903..704871	+	322	104773883	-	Ldb0813	-	D-isomer specific 2-hydroxyacid dehydrogenase
627	 54.63	0	704946..706715	+	589	104773884	recQ	Ldb0814	-	ATP-dependent DNA helicase RecQ
628	 55.48	0	706772..707710	-	312	104773885	-	Ldb0815	-	inosine-uridine preferring nucleoside hydrolase
629	 52.08	0	707984..709786	+	600	104773886	uvrC	Ldb0816	-	excinuclease ABC subunit C
630	 56.69	+1	709855..711177	+	440	104773887	obgE	Ldb0817	-	GTPase ObgE
631	 54.62	0	713210..714139	+	309	104773888	-	Ldb0820	-	beta-lactamase family hydrolase
632	 56.10	+1	714150..714944	+	264	104773889	-	Ldb0821	-	Short-chain dehydrogenase/reductase
633	 50.00	0	715059..715250	+	63	104773890	rpmF	Ldb0822	-	50S ribosomal protein L32
634	 53.90	0	715319..716884	+	521	104773891	-	Ldb0823	-	5'-nucleotidase
635	 53.73	0	716970..718886	+	638	104773892	-	Ldb0824	-	hypothetical protein
636	 56.21	+1	719633..720196	+	187	104773893	-	Ldb0827	-	hypothetical protein
637	 42.86	-1	721767..721850	-	27	104773894	-	Ldb0833	-	hypothetical protein
638	 45.24	-1	721805..721888	-	27	104773895	-	Ldb0834	-	hypothetical protein
639	 43.79	-1	721999..723222	+	407	104773896	-	Ldb0835	-	transposase
640	 46.27	0	723441..723641	-	66	104773897	-	Ldb0836	-	hypothetical protein
641	 55.34	0	723776..727255	+	1159	104773898	dnaE	Ldb0837	-	DNA polymerase III, alpha subunit (DnaE)
642	 53.33	0	727463..728422	+	319	104773899	pfk1	Ldb0838	-	6-phosphofructokinase
643	 48.36	0	728462..730231	+	589	104773900	pyk	Ldb0839	-	pyruvate kinase
644	 52.90	0	731787..732665	+	292	104773901	-	Ldb0842	-	hypothetical protein
645	 55.96	+1	732658..733554	+	298	104773902	xerD	Ldb0843	-	site-specific recombinase
646	 49.44	0	733565..733918	+	117	104773903	-	Ldb0844	-	hypothetical protein
647	 51.97	0	733908..734642	+	244	104773904	-	Ldb0845	-	hypothetical protein
648	 54.39	0	734632..735234	+	200	104773905	scpB	Ldb0846	-	putative segregation and condensation protein B
649	 52.50	0	735234..735953	+	239	104773906	rluB	Ldb0847	-	pseudouridylate synthase
650	 52.20	0	736178..736882	+	234	104773907	-	Ldb0848	-	hypothetical protein
651	 56.82	+1	736992..737387	+	131	104773908	-	Ldb0849	-	hypothetical protein
652	 51.77	0	737441..738118	+	225	104773909	cmk	Ldb0850	-	cytidylate kinase
653	 46.19	0	738206..739411	+	401	104773910	rpsA	Ldb0851	-	30S ribosomal protein S1
654	 56.80	+1	739488..740795	+	435	104773911	engA	Ldb0852	-	GTP-binding protein EngA
655	 46.74	0	740999..741274	+	91	104773912	hlbA	Ldb0853	-	histone-like DNA-binding protein
656	 54.86	0	741390..742643	+	417	104773913	-	Ldb0854	-	hypothetical protein
657	 52.80	0	742771..745626	+	951	104773914	-	Ldb0855	-	hypothetical protein
658	 51.18	0	745704..746639	-	311	104773915	-	Ldb0856	-	LysR family transcriptional regulator
659	 46.46	0	747890..748087	-	65	104773916	-	Ldb0860	-	hypothetical protein
660	 54.06	0	748267..750702	+	811	104773917	-	Ldb0861	-	hypothetical protein
661	 51.74	0	750725..751126	+	133	104773918	-	Ldb0862	-	hypothetical protein
662	 50.70	0	751143..751355	+	70	104773919	-	Ldb0863	-	hypothetical protein
663	 41.67	-1	752943..753146	+	67	104773920	-	Ldb0865	-	hypothetical protein
664	 44.81	-1	753825..754007	+	60	104773921	-	Ldb0867	-	hypothetical protein
665	 44.47	-1	754688..757453	+	921	104773922	cas3	Ldb0868	-	CRISPR-associated helicase Cas3
666	 42.55	-1	757456..759180	+	574	104773923	-	Ldb0869	-	hypothetical protein
667	 46.31	0	759199..759807	+	202	104773924	-	Ldb0870	-	hypothetical protein
668	 47.35	0	759825..760901	+	358	104773925	-	Ldb0871	-	hypothetical protein
669	 48.86	0	760882..761583	+	233	104773926	-	Ldb0872	-	hypothetical protein
670	 48.56	0	761596..762219	+	207	104773927	-	Ldb0873	-	hypothetical protein
671	 46.27	0	762222..763172	+	316	104773928	-	Ldb0874	-	hypothetical protein
672	 42.61	-1	763169..764041	+	290	104773929	-	Ldb0875	-	hypothetical protein
673	 46.99	0	766821..767435	+	204	104773930	-	Ldb0876	-	hypothetical protein
674	 50.22	0	767432..768100	+	222	104773931	-	Ldb0877	-	two-component system, response regulator
675	 47.46	0	768103..769362	+	419	104773932	-	Ldb0878	-	two-component system, sensor histidine kinase
676	 55.50	0	769518..770618	+	366	104773933	-	Ldb0879	-	Acetyl-CoA acetyltransferase
677	 54.26	0	770663..771847	+	394	104773934	mvaA	Ldb0880	-	hydroxymethylglutaryl-CoA reductase
678	 54.30	0	771851..773014	+	387	104773935	mvaS	Ldb0881	-	hydroxymethylglutaryl-coenzyme A synthase
679	 58.43	+1	773179..774537	+	452	104773936	-	Ldb0882	-	hypothetical protein
680	 51.87	0	774595..775101	-	168	104773937	-	Ldb0883	-	hypothetical protein
681	 54.18	0	775182..776126	+	314	104773938	prmA	Ldb0884	-	ribosomal protein L11 methyltransferase
682	 54.82	0	776267..778528	+	753	104773939	relA	Ldb0885	-	GTP pyrophosphokinase
683	 53.65	0	778557..778994	+	145	104773940	dtd	Ldb0886	-	D-tyrosyl-tRNA deacylase
684	 46.49	0	779056..779169	+	37	104773941	-	Ldb0887	-	hypothetical protein
685	 54.08	0	779278..780564	+	428	104773942	hisS	Ldb0888	-	histidyl-tRNA synthetase
686	 55.34	0	780580..782424	+	614	104773943	aspS	Ldb0889	-	aspartyl-tRNA synthetase
687	 48.27	0	782498..783133	-	211	104773944	-	Ldb0890	-	hypothetical protein
688	 42.86	-1	783578..783661	-	27	104773945	-	Ldb0892	-	hypothetical protein
689	 46.43	0	783616..783699	-	27	104773946	-	Ldb0893	-	hypothetical protein
690	 51.97	0	786549..788324	+	591	104773947	-	Ldb0898	-	hypothetical protein
691	 49.81	0	788399..789472	+	357	104773948	-	Ldb0899	-	hypothetical protein
692	 59.27	+1	789756..790715	+	319	104773949	fabH	Ldb0900	-	3-oxoacyl-[acyl-carrier-protein] synthase III
693	 45.12	-1	790788..791033	+	81	104773950	acpP2	Ldb0901	-	Acyl carrier protein (ACP)
694	 55.13	0	791046..791990	+	314	104773951	fabD	Ldb0902	-	malonyl-CoA-[acyl-carrier-protein] transacylase
695	 54.77	0	791974..792696	+	240	104773952	fabG	Ldb0903	-	3-oxoacyl-[acyl-carrier-protein] reductase
696	 55.28	0	792706..793926	+	406	104773953	fabF	Ldb0904	-	3-oxoacyl-[acyl-carrier protein] synthase II
697	 52.17	0	793917..794399	+	160	104773954	accB	Ldb0905	-	Acetyl-CoA carboxylase, biotin carboxyl carrier protein
698	 54.73	0	794401..794844	+	147	104773955	fabZ1	Ldb0906	-	hydroxymyristoyl-[acyl carrier protein] dehydratase
699	 54.23	0	794837..796219	+	460	104773956	accC	Ldb0907	-	Acetyl-CoA carboxylase, biotin carboxylase subunit
700	 54.77	0	796206..797054	+	282	104773957	accD	Ldb0908	-	Acetyl-CoA carboxylase, beta subunit
701	 58.33	+1	797059..797814	+	251	104773958	accA	Ldb0909	-	Acetyl-CoA carboxylase, alpha subunit
702	 54.38	0	797824..798588	+	254	104773959	fabI	Ldb0910	-	enoyl-(acyl carrier protein) reductase
703	 54.35	0	798598..799263	+	221	104773960	birA	Ldb0911	-	biotin-[acetyl-CoA-carboxylase] ligase
704	 52.50	0	799511..800131	-	206	104773961	-	Ldb0913	-	hypothetical protein
705	 55.97	+1	800397..800639	+	80	104773962	-	Ldb0914	-	hypothetical protein
706	 55.76	0	800851..801015	+	54	104773963	-	Ldb0915	-	hypothetical protein
707	 41.67	-1	801034..801201	+	55	104773964	-	Ldb0916	-	hypothetical protein
708	 42.86	-1	801212..801295	-	27	104773965	-	Ldb0917	-	hypothetical protein
709	 45.24	-1	801250..801333	-	27	104773966	-	Ldb0918	-	hypothetical protein
710	 43.79	-1	801444..802667	+	407	104773967	-	Ldb0919	-	transposase
711	 50.00	0	802922..803053	+	43	104773968	-	Ldb0920	-	hypothetical protein
712	 49.86	0	803055..803762	+	235	104773969	-	Ldb0921	-	hypothetical protein
713	 51.26	0	811351..812226	+	291	104773970	-	Ldb0930	-	tRNA/rRNA methyltransferase
714	 44.44	-1	817772..818014	+	80	104773971	-	Ldb0952	-	hypothetical protein
715	 42.18	-1	818975..819268	-	97	104773972	-	Ldb0954	-	hypothetical protein
716	 44.44	-1	819466..819744	-	92	104773973	-	Ldb0955	-	hypothetical protein
717	 53.14	0	820306..821148	+	280	104773974	pstS	Ldb0956	-	phosphate ABC transporter phosphate-binding protein
718	 53.69	0	821168..822076	+	302	104773975	pstC	Ldb0957	-	phosphate ABC transporter permease
719	 51.94	0	822079..822954	+	291	104773976	pstA	Ldb0958	-	phosphate ABC transporter permease
720	 50.33	0	822954..823712	+	252	104773977	pstB	Ldb0959	-	phosphate ABC transporter ATP-binding protein
721	 46.79	0	823731..824369	+	212	104773978	phoU	Ldb0960	-	phosphate uptake regulator
722	 51.42	0	825128..826786	+	552	104773979	phoR	Ldb0963	-	phosphate regulon sensor histidine kinase
723	 53.42	0	828348..829004	-	218	104773980	-	Ldb0967	-	hypothetical protein
724	 50.44	0	829059..830087	+	342	104773981	-	Ldb0968	-	hypothetical protein
50.73	MEAN

5.22	STD DEV
