IslandPath Analysis: Lactobacillus delbrueckii subsp. bulgaricus ATCC 11842

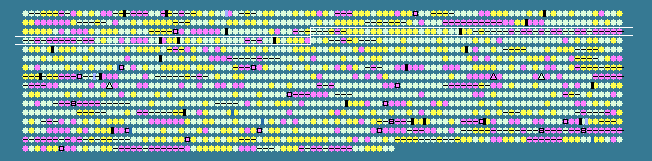

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.73 STD DEV: 5.22
Lactobacillus delbrueckii subsp. bulgaricus ATCC 11842, complete genome - 1..1864998
1562 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
249	 49.12	0	300549..300947	+	132	104773506	-	Ldb0352	-	hypothetical protein
250	 50.53	0	300993..301562	+	189	104773507	rpoE	Ldb0353	-	DNA-directed RNA polymerase subunit delta
251	 53.33	0	301679..303298	+	539	104773508	pyrG	Ldb0354	-	CTP synthetase
252	 57.08	+1	303418..304689	+	423	104773509	murA	Ldb0355	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
253	 42.46	-1	304789..305040	+	83	104773510	rpmE2	Ldb0356	-	50S ribosomal protein L31 type B
254	 55.56	0	305148..306515	+	455	104773511	murF	Ldb0357	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2, 6-diaminopimelate-D-alanyl-D-alanine ligase
255	 57.71	+1	306525..307976	+	483	104773512	-	Ldb0358	-	DEAD-box ATP dependent DNA helicase
256	 57.00	+1	308061..308474	+	137	104773513	acpS	Ldb0359	-	Holo-[acyl-carrier protein] synthase
257	 57.56	+1	308471..309601	+	376	104773514	alr	Ldb0360	-	alanine racemase
258	 53.22	0	309655..310353	-	232	104773515	-	Ldb0361	-	hypothetical protein
259	 54.30	0	310577..311134	+	185	104773516	pth	Ldb0362	-	peptidyl-tRNA hydrolase
260	 56.43	+1	311151..314627	+	1158	104773517	mfd	Ldb0363	-	transcription-repair coupling factor
261	 53.09	0	314696..314938	+	80	104773518	-	Ldb0364	-	putative ribosome-associated heat shock protein
262	 54.86	0	315004..315384	+	126	104773519	-	Ldb0365	-	hypothetical protein
263	 58.47	+1	315384..315737	+	117	104773520	-	Ldb0366	-	putative RNA-binding protein
264	 55.63	0	315784..317079	+	431	104773521	-	Ldb0367	-	hypothetical protein
265	 54.70	0	317150..319363	+	737	104773522	ftsH	Ldb0368	-	cell division protein FtsH
266	 54.65	0	319408..320289	+	293	104773523	hslO	Ldb0369	-	chaperonin HSP33
267	 53.63	0	320743..322368	+	541	104773524	-	Ldb0370	-	peptide binding protein
268	 54.39	0	322378..323664	+	428	104773525	pepT2	Ldb0371	-	peptidase T
269	 55.85	0	323778..324812	+	344	104773526	-	Ldb0372	-	putative tRNA-dihydrouridine synthase
270	 53.45	0	324829..326334	+	501	104773527	lysS	Ldb0373	-	lysyl-tRNA synthetase
271	 54.81	0	326486..326890	+	134	104773528	-	Ldb0374	-	hypothetical protein
272	 53.97	0	326908..327663	+	251	104773529	-	Ldb0375	-	hypothetical protein
273	 53.37	0	329764..330372	-	202	104773530	-	Ldb0378	-	hypothetical protein
274	 54.55	0	330996..331457	+	153	104773531	-	Ldb0382	-	hypothetical protein
275	 56.26	+1	331481..333940	+	819	104773532	clpC	Ldb0383	-	ATP-dependent Clp protease, ATP-binding subunit
276	 51.32	0	333965..334153	+	62	104773533	-	Ldb0384	-	hypothetical protein
277	 59.12	+1	334150..334308	+	52	104773534	-	Ldb0385	-	hypothetical protein
278	 53.96	0	334519..338184	+	1221	104773535	rpoB	Ldb0386	-	DNA-directed RNA polymerase subunit beta
279	 53.14	0	338200..341865	+	1221	104773536	rpoC	Ldb0387	-	DNA-directed RNA polymerase subunit beta'
280	 48.13	0	341933..342493	-	186	104773537	-	Ldb0388	-	hypothetical protein
281	 49.26	0	343209..343616	+	135	104773538	rpsL	Ldb0392	-	30S ribosomal protein S12
282	 45.44	-1	343632..344102	+	156	104773539	rpsG	Ldb0393	-	30S ribosomal protein S7
283	 49.11	0	344136..346220	+	694	104773540	fusA	Ldb0394	-	elongation factor G
284	 45.95	0	346607..346915	+	102	104773541	rpsJ	Ldb0395	-	30S ribosomal protein S10
285	 45.08	-1	346941..347570	+	209	104773542	rplC	Ldb0396	-	50S ribosomal protein L3
286	 48.06	0	347585..348202	+	205	104773543	rplD	Ldb0397	-	50S ribosomal protein L4
287	 44.78	-1	348202..348498	+	98	104773544	rplW	Ldb0398	-	50S ribosomal protein L23
288	 47.67	0	348524..349360	+	278	104773545	rplB	Ldb0399	-	50S ribosomal protein L2
289	 46.74	0	349378..349653	+	91	104773546	rpsS	Ldb0400	-	30S ribosomal protein S19
290	 43.79	-1	349675..350028	+	117	104773547	rplV	Ldb0401	-	50S ribosomal protein L22
291	 47.77	0	350042..350713	+	223	104773548	rpsC	Ldb0402	-	30S ribosomal protein S3
292	 48.42	0	350713..351156	+	147	104773549	rplP	Ldb0403	-	50S ribosomal protein L16
293	 39.39	-2	351146..351343	+	65	104773550	rpmC	Ldb0404	-	50S ribosomal protein L29
294	 42.32	-1	351362..351628	+	88	104773551	rpsQ	Ldb0405	-	30S ribosomal protein S17
295	 48.24	0	351659..352027	+	122	104773552	rplN	Ldb0406	-	50S ribosomal protein L14
296	 44.17	-1	352044..352283	+	79	104773553	rplX	Ldb0407	-	50S ribosomal protein L24
297	 44.38	-1	352303..352845	+	180	104773554	rplE	Ldb0408	-	50S ribosomal protein L5
298	 46.77	0	352860..353045	+	61	104773555	rpsN	Ldb0409	-	30S ribosomal protein S14
299	 43.86	-1	353068..353466	+	132	104773556	rpsH	Ldb0410	-	30S ribosomal protein S8
300	 46.33	0	353491..354021	+	176	104773557	rplF	Ldb0411	-	50S ribosomal protein L6
301	 47.50	0	354048..354407	+	119	104773558	rplR	Ldb0412	-	50S ribosomal protein L18
302	 47.95	0	354424..354936	+	170	104773559	rpsE	Ldb0413	-	30S ribosomal protein S5
303	 39.78	-2	354948..355133	+	61	104773560	rpmD	Ldb0414	-	50S ribosomal protein L30
304	 47.39	0	355154..355594	+	146	104773561	rplO	Ldb0415	-	50S ribosomal protein L15
305	 44.83	-1	355594..356889	+	431	104773562	secY	Ldb0416	-	preprotein translocase subunit SecY
306	 46.33	0	356900..357553	+	217	104773563	adk	Ldb0417	-	adenylate kinase
307	 41.89	-1	357629..357850	+	73	104773564	infA	Ldb0418	-	translation initiation factor IF-1
308	 41.88	-1	357865..357981	+	38	104773565	rpmJ	Ldb0419	-	50S ribosomal protein L36
309	 45.87	0	358007..358357	+	116	104773566	rpsM	Ldb0420	-	30S ribosomal protein S13
310	 48.46	0	358386..358775	+	129	104773567	rpsK	Ldb0421	-	30S ribosomal protein S11
311	 46.96	0	358819..359757	+	312	104773568	rpoA	Ldb0422	-	DNA-directed RNA polymerase subunit alpha
312	 47.14	0	359781..360164	+	127	104773569	rplQ	Ldb0423	-	50S ribosomal protein L17
313	 53.00	0	360354..361202	+	282	104773570	cbiO1	Ldb0424	-	cobalt transporter ATP-binding subunit
314	 55.44	0	361178..362041	+	287	104773571	cbiO2	Ldb0425	-	cobalt transporter ATP-binding subunit
315	 53.51	0	362034..362831	+	265	104773572	cbiQ	Ldb0426	-	cobalt ABC transporter permease
316	 53.16	0	362828..363619	+	263	104773573	truA	Ldb0427	-	tRNA pseudouridine synthase A
317	 42.57	-1	363725..364168	+	147	104773574	rplM	Ldb0428	-	50S ribosomal protein L13
318	 48.99	0	364181..364576	+	131	104773575	rpsI	Ldb0429	-	30S ribosomal protein S9
319	 40.30	-1	365059..365259	+	66	104773576	-	Ldb0430	-	hypothetical protein
320	 37.94	-2	365249..365530	+	93	104773577	-	Ldb0431	-	hypothetical protein
321	 40.97	-1	365564..365707	+	47	104773578	-	Ldb0432	-	hypothetical protein
322	 52.33	0	367398..368018	+	206	104773579	-	Ldb0435	-	MutT/NUDIX family hydrolase
323	 52.85	0	369356..369847	+	163	104773580	-	Ldb0438	-	hypothetical protein
324	 46.20	0	370137..370307	+	56	104773581	-	Ldb0440	-	hypothetical protein
325	 54.40	0	370632..371813	+	393	104773582	-	Ldb0441	-	aromatic amino acid aminotransferase
326	 56.34	+1	371800..372855	+	351	104773583	-	Ldb0442	-	hypothetical protein
327	 50.64	0	373616..373771	+	51	104773584	-	Ldb0446	-	hypothetical protein
328	 55.08	0	373917..375029	+	370	104773585	-	Ldb0447	-	hypothetical protein
329	 52.62	0	375044..376111	+	355	104773586	-	Ldb0448	-	hypothetical protein
330	 57.69	+1	376178..376879	+	233	104773587	-	Ldb0449	-	GntR family transcriptional regulator
331	 53.42	0	377042..378181	+	379	104773588	tarB	Ldb0450	-	putative CDP-glycerol:glycerophosphate glycerophosphotransferase
332	 51.33	0	378185..379612	+	475	104773589	-	Ldb0451	-	polysaccharide repeat-containing transporter
333	 56.46	+1	379664..380398	+	244	104773590	-	Ldb0452	-	glycosyltransferase
334	 53.41	0	380398..381498	+	366	104773591	-	Ldb0453	-	glycosyltransferase
335	 49.57	0	381495..382196	+	233	104773592	-	Ldb0454	-	glycosyltransferase
336	 53.55	0	382301..383131	+	276	104773593	nadE	Ldb0455	-	NAD synthetase
337	 53.62	0	383337..386003	+	888	104773594	-	Ldb0456	-	cation transporting P-type ATPase ( Ca2+ transporter)
338	 36.39	-2	386217..386543	+	108	104773595	-	Ldb0457	-	hypothetical protein
339	 52.27	0	386687..386950	+	87	104773596	-	Ldb0458	-	hypothetical protein
340	 45.20	-1	386971..387147	-	58	104773597	-	Ldb0459	-	hypothetical protein
341	 51.08	0	387255..387857	+	200	104773598	-	Ldb0460	-	ABC transporter, ATP-binding protein
342	 52.81	0	387861..388358	+	165	104773599	-	Ldb0461	-	hypothetical protein
343	 56.09	+1	388592..389215	+	207	104773600	-	Ldb0463	-	hypothetical protein
344	 53.67	0	389229..389882	+	217	104773601	-	Ldb0464	-	putative muramidase
345	 55.48	0	389971..392232	+	753	104773602	pcrA	Ldb0465	-	ATP-dependent DNA helicase PcrA
346	 54.96	0	392243..394258	+	671	104773603	ligA	Ldb0466	-	NAD-dependent DNA ligase
347	 54.42	0	394282..395400	+	372	104773604	-	Ldb0467	-	hypothetical protein
348	 45.42	-1	395412..395717	+	101	104773605	gatC	Ldb0468	-	glutamyl-tRNA(Gln) amidotransferase subunit C
50.73	MEAN

5.22	STD DEV
