IslandPath Analysis: Lactobacillus delbrueckii subsp. bulgaricus ATCC 11842

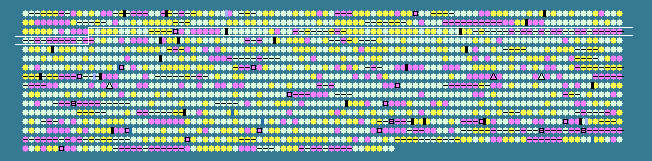

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.73 STD DEV: 5.22
Lactobacillus delbrueckii subsp. bulgaricus ATCC 11842, complete genome - 1..1864998
1562 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
212	 56.55	+1	261781..262383	+	200	104773469	-	Ldb0306	-	Pnp/Udp family phosphorylase
213	 52.10	0	262463..263725	-	420	104773470	-	Ldb0307	-	hypothetical protein
214	 54.76	0	263819..264784	-	321	104773471	-	Ldb0308	-	CRP family transcriptional regulator
215	 57.98	+1	266275..267207	+	310	104773472	mmuM	Ldb0311	-	homocysteine methyltransferase
216	 54.44	0	267263..267712	+	149	104773473	-	Ldb0312	-	hypothetical protein
217	 52.94	0	267948..268151	+	67	104773474	-	Ldb0313	-	hypothetical protein
218	 52.00	0	268210..268659	+	149	104773475	-	Ldb0314	-	MarR family transcriptional regulator
219	 56.87	+1	268674..269663	+	329	104773476	ansA	Ldb0315	-	asparaginase
220	 51.15	0	270702..271178	+	158	104773477	mscL	Ldb0318	-	large-conductance mechanosensitive channel
221	 53.67	0	271258..272781	-	507	104773478	pncB	Ldb0319	-	nicotinate phosphoribosyltransferase
222	 56.58	+1	273997..274551	-	184	104773479	pncA	Ldb0322	-	nicotinamidase
223	 54.43	0	274806..275663	+	285	104773480	-	Ldb0323	-	hypothetical protein
224	 54.31	0	275656..275922	-	88	104773481	-	Ldb0324	-	hypothetical protein
225	 55.98	+1	276018..276794	-	258	104773482	-	Ldb0325	-	NUDIX family hydrolase
226	 43.65	-1	276961..278259	+	432	104773483	-	Ldb0326	-	putative transposase
227	 45.49	-1	278529..278816	+	95	104773484	-	Ldb0327	-	hypothetical protein
228	 50.40	0	279004..279255	+	83	104773485	-	Ldb0328	-	hypothetical protein
229	 35.59	-2	279389..280009	-	206	104773486	-	Ldb0329	-	hypothetical protein
230	 39.70	-2	280011..280811	-	266	104773487	-	Ldb0330	-	ABC transporter, permease protein
231	 41.07	-1	280808..281518	-	236	104773488	-	Ldb0331	-	ABC transporter, ATP-binding protein
232	 36.59	-2	281643..281888	+	81	104773489	-	Ldb0332	-	hypothetical protein
233	 32.63	-2	281910..282194	+	94	104773490	-	Ldb0333	-	hypothetical protein
234	 52.62	0	283792..284460	+	222	104773491	-	Ldb0336	-	hypothetical protein
235	 53.80	0	284781..285806	+	341	104773492	trpS	Ldb0338	-	tryptophanyl-tRNA synthetase II
236	 53.42	0	285808..286290	+	160	104773493	-	Ldb0339	-	putative dCMP deaminase
237	 51.87	0	286163..286885	+	240	104773494	-	Ldb0340	-	hypothetical protein
238	 54.14	0	287244..289934	+	896	104773495	-	Ldb0341	-	cation transporting P-type ATPase ( Mg2+ transporter)
239	 53.30	0	290070..292052	+	660	104773496	metS	Ldb0342	-	methionyl-tRNA synthetase
240	 53.21	0	292052..292831	+	259	104773497	-	Ldb0343	-	TatD family deoxyribonuclease
241	 53.93	0	292815..293387	+	190	104773498	-	Ldb0344	-	hypothetical protein
242	 56.45	+1	293362..294252	+	296	104773499	ksgA	Ldb0345	-	dimethyladenosine transferase
243	 46.43	0	294312..294563	+	83	104773500	-	Ldb0346	-	hypothetical protein
244	 54.03	0	294669..295499	+	276	104773501	purR	Ldb0347	-	purine operon repressor
245	 53.54	0	295561..296946	+	461	104773502	gcaD	Ldb0348	-	UDP-N-acetylglucosamine pyrophosphorylase
246	 46.21	0	297116..297814	+	232	104773503	-	Ldb0349	-	hypothetical protein
247	 53.62	0	298044..299024	+	326	104773504	prs1	Ldb0350	-	ribose-phosphate pyrophosphokinase
248	 55.78	0	299096..300409	-	437	104773505	-	Ldb0351	-	HD superfamily phosphohydrolase
249	 49.12	0	300549..300947	+	132	104773506	-	Ldb0352	-	hypothetical protein
250	 50.53	0	300993..301562	+	189	104773507	rpoE	Ldb0353	-	DNA-directed RNA polymerase subunit delta
251	 53.33	0	301679..303298	+	539	104773508	pyrG	Ldb0354	-	CTP synthetase
252	 57.08	+1	303418..304689	+	423	104773509	murA	Ldb0355	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
253	 42.46	-1	304789..305040	+	83	104773510	rpmE2	Ldb0356	-	50S ribosomal protein L31 type B
254	 55.56	0	305148..306515	+	455	104773511	murF	Ldb0357	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2, 6-diaminopimelate-D-alanyl-D-alanine ligase
255	 57.71	+1	306525..307976	+	483	104773512	-	Ldb0358	-	DEAD-box ATP dependent DNA helicase
256	 57.00	+1	308061..308474	+	137	104773513	acpS	Ldb0359	-	Holo-[acyl-carrier protein] synthase
257	 57.56	+1	308471..309601	+	376	104773514	alr	Ldb0360	-	alanine racemase
258	 53.22	0	309655..310353	-	232	104773515	-	Ldb0361	-	hypothetical protein
259	 54.30	0	310577..311134	+	185	104773516	pth	Ldb0362	-	peptidyl-tRNA hydrolase
260	 56.43	+1	311151..314627	+	1158	104773517	mfd	Ldb0363	-	transcription-repair coupling factor
261	 53.09	0	314696..314938	+	80	104773518	-	Ldb0364	-	putative ribosome-associated heat shock protein
262	 54.86	0	315004..315384	+	126	104773519	-	Ldb0365	-	hypothetical protein
263	 58.47	+1	315384..315737	+	117	104773520	-	Ldb0366	-	putative RNA-binding protein
264	 55.63	0	315784..317079	+	431	104773521	-	Ldb0367	-	hypothetical protein
265	 54.70	0	317150..319363	+	737	104773522	ftsH	Ldb0368	-	cell division protein FtsH
266	 54.65	0	319408..320289	+	293	104773523	hslO	Ldb0369	-	chaperonin HSP33
267	 53.63	0	320743..322368	+	541	104773524	-	Ldb0370	-	peptide binding protein
268	 54.39	0	322378..323664	+	428	104773525	pepT2	Ldb0371	-	peptidase T
269	 55.85	0	323778..324812	+	344	104773526	-	Ldb0372	-	putative tRNA-dihydrouridine synthase
270	 53.45	0	324829..326334	+	501	104773527	lysS	Ldb0373	-	lysyl-tRNA synthetase
271	 54.81	0	326486..326890	+	134	104773528	-	Ldb0374	-	hypothetical protein
272	 53.97	0	326908..327663	+	251	104773529	-	Ldb0375	-	hypothetical protein
273	 53.37	0	329764..330372	-	202	104773530	-	Ldb0378	-	hypothetical protein
274	 54.55	0	330996..331457	+	153	104773531	-	Ldb0382	-	hypothetical protein
275	 56.26	+1	331481..333940	+	819	104773532	clpC	Ldb0383	-	ATP-dependent Clp protease, ATP-binding subunit
276	 51.32	0	333965..334153	+	62	104773533	-	Ldb0384	-	hypothetical protein
277	 59.12	+1	334150..334308	+	52	104773534	-	Ldb0385	-	hypothetical protein
278	 53.96	0	334519..338184	+	1221	104773535	rpoB	Ldb0386	-	DNA-directed RNA polymerase subunit beta
279	 53.14	0	338200..341865	+	1221	104773536	rpoC	Ldb0387	-	DNA-directed RNA polymerase subunit beta'
280	 48.13	0	341933..342493	-	186	104773537	-	Ldb0388	-	hypothetical protein
281	 49.26	0	343209..343616	+	135	104773538	rpsL	Ldb0392	-	30S ribosomal protein S12
282	 45.44	-1	343632..344102	+	156	104773539	rpsG	Ldb0393	-	30S ribosomal protein S7
283	 49.11	0	344136..346220	+	694	104773540	fusA	Ldb0394	-	elongation factor G
284	 45.95	0	346607..346915	+	102	104773541	rpsJ	Ldb0395	-	30S ribosomal protein S10
285	 45.08	-1	346941..347570	+	209	104773542	rplC	Ldb0396	-	50S ribosomal protein L3
286	 48.06	0	347585..348202	+	205	104773543	rplD	Ldb0397	-	50S ribosomal protein L4
287	 44.78	-1	348202..348498	+	98	104773544	rplW	Ldb0398	-	50S ribosomal protein L23
288	 47.67	0	348524..349360	+	278	104773545	rplB	Ldb0399	-	50S ribosomal protein L2
289	 46.74	0	349378..349653	+	91	104773546	rpsS	Ldb0400	-	30S ribosomal protein S19
290	 43.79	-1	349675..350028	+	117	104773547	rplV	Ldb0401	-	50S ribosomal protein L22
291	 47.77	0	350042..350713	+	223	104773548	rpsC	Ldb0402	-	30S ribosomal protein S3
292	 48.42	0	350713..351156	+	147	104773549	rplP	Ldb0403	-	50S ribosomal protein L16
293	 39.39	-2	351146..351343	+	65	104773550	rpmC	Ldb0404	-	50S ribosomal protein L29
294	 42.32	-1	351362..351628	+	88	104773551	rpsQ	Ldb0405	-	30S ribosomal protein S17
295	 48.24	0	351659..352027	+	122	104773552	rplN	Ldb0406	-	50S ribosomal protein L14
296	 44.17	-1	352044..352283	+	79	104773553	rplX	Ldb0407	-	50S ribosomal protein L24
297	 44.38	-1	352303..352845	+	180	104773554	rplE	Ldb0408	-	50S ribosomal protein L5
298	 46.77	0	352860..353045	+	61	104773555	rpsN	Ldb0409	-	30S ribosomal protein S14
299	 43.86	-1	353068..353466	+	132	104773556	rpsH	Ldb0410	-	30S ribosomal protein S8
300	 46.33	0	353491..354021	+	176	104773557	rplF	Ldb0411	-	50S ribosomal protein L6
301	 47.50	0	354048..354407	+	119	104773558	rplR	Ldb0412	-	50S ribosomal protein L18
302	 47.95	0	354424..354936	+	170	104773559	rpsE	Ldb0413	-	30S ribosomal protein S5
303	 39.78	-2	354948..355133	+	61	104773560	rpmD	Ldb0414	-	50S ribosomal protein L30
304	 47.39	0	355154..355594	+	146	104773561	rplO	Ldb0415	-	50S ribosomal protein L15
305	 44.83	-1	355594..356889	+	431	104773562	secY	Ldb0416	-	preprotein translocase subunit SecY
306	 46.33	0	356900..357553	+	217	104773563	adk	Ldb0417	-	adenylate kinase
307	 41.89	-1	357629..357850	+	73	104773564	infA	Ldb0418	-	translation initiation factor IF-1
308	 41.88	-1	357865..357981	+	38	104773565	rpmJ	Ldb0419	-	50S ribosomal protein L36
309	 45.87	0	358007..358357	+	116	104773566	rpsM	Ldb0420	-	30S ribosomal protein S13
310	 48.46	0	358386..358775	+	129	104773567	rpsK	Ldb0421	-	30S ribosomal protein S11
311	 46.96	0	358819..359757	+	312	104773568	rpoA	Ldb0422	-	DNA-directed RNA polymerase subunit alpha
50.73	MEAN

5.22	STD DEV
