IslandPath Analysis: Lactobacillus delbrueckii subsp. bulgaricus ATCC 11842

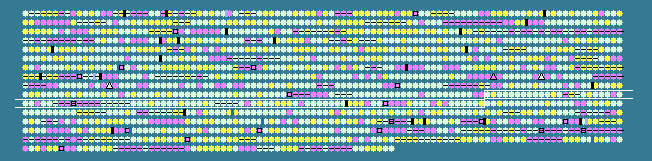

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.73 STD DEV: 5.22
Lactobacillus delbrueckii subsp. bulgaricus ATCC 11842, complete genome - 1..1864998
1562 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
978	 53.62	0	1161073..1161693	+	206	104774235	lexA	Ldb1356	-	LexA repressor
979	 54.77	0	1161893..1162741	+	282	104774236	-	Ldb1357	-	putative sugar uptake protein
980	 51.88	0	1162842..1163720	-	292	104774237	-	Ldb1358	-	glutamine-binding protein
981	 50.94	0	1163916..1164449	-	177	104774238	-	Ldb1359	-	hypothetical protein
982	 52.75	0	1164506..1166740	-	744	104774239	-	Ldb1360	-	putative helicase
983	 52.99	0	1166763..1168085	-	440	104774240	-	Ldb1361	-	hypothetical protein
984	 51.24	0	1168085..1169983	-	632	104774241	-	Ldb1362	-	hypothetical protein
985	 52.23	0	1170116..1171957	-	613	104774242	-	Ldb1363	-	putative secreted 5'-nucleotidase
986	 49.71	0	1172223..1172570	-	115	104774243	rplS	Ldb1364	-	50S ribosomal protein L19
987	 52.51	0	1174507..1174965	-	152	104774244	-	Ldb1367	-	hypothetical protein
988	 52.83	0	1174971..1175447	-	158	104774245	-	Ldb1368	-	hypothetical protein
989	 54.47	0	1175462..1176199	-	245	104774246	trmD	Ldb1369	-	tRNA (guanine-N1)-methyltransferase
990	 51.79	0	1176199..1176702	-	167	104774247	rimM	Ldb1370	-	16S rRNA processing protein RimM
991	 44.32	-1	1176764..1177036	-	90	104774248	rpsP	Ldb1371	-	30S ribosomal protein S16
992	 54.72	0	1177131..1178561	-	476	104774249	ffh	Ldb1372	-	Signal recognition particle protein Ffh
993	 48.83	0	1178563..1178904	-	113	104774250	-	Ldb1373	-	hypothetical protein
994	 50.11	0	1180423..1181751	-	442	104774251	ftsY	Ldb1378	-	Signal recognition particle-docking protein FtsY
995	 54.26	0	1181754..1185299	-	1181	104774252	smc	Ldb1379	-	chromosome partition protein SMC
996	 49.86	0	1185314..1186009	-	231	104774253	rnc	Ldb1380	-	ribonuclease III
997	 48.82	0	1186134..1187876	-	580	104774254	oppA2	Ldb1381	-	oligopeptide ABC transporter, substrate binding protein
998	 48.67	0	1188049..1189815	-	588	104774255	oppA1	Ldb1382	-	oligopeptide ABC transporter, substrate binding protein
999	 46.93	0	1189975..1190871	-	298	104774256	oppC	Ldb1383	-	oligopeptide ABC transporter, permease protein
1000	 50.52	0	1190898..1191857	-	319	104774257	oppB	Ldb1384	-	oligopeptide ABC transporter, permease protein
1001	 51.72	0	1191861..1192817	-	318	104774258	oppF	Ldb1385	-	oligopeptide ABC transporter, ATP-binding protein
1002	 49.50	0	1192827..1193828	-	333	104774259	oppD	Ldb1386	-	oligopeptide ABC transporter, ATP-binding protein
1003	 44.86	-1	1194119..1194361	-	80	104774260	acpP1	Ldb1387	-	Acyl carrier protein (ACP)
1004	 52.87	0	1194423..1195415	-	330	104774261	plsX	Ldb1388	-	putative glycerol-3-phosphate acyltransferase PlsX
1005	 53.24	0	1195446..1197485	-	679	104774262	recG	Ldb1389	-	ATP-dependent DNA helicase RecG
1006	 51.13	0	1197485..1199164	-	559	104774263	-	Ldb1390	-	putative kinase
1007	 42.98	-1	1199169..1199531	-	120	104774264	-	Ldb1391	-	hypothetical protein
1008	 44.09	-1	1199707..1199892	+	61	104774265	rpmB	Ldb1392	-	50S ribosomal protein L28
1009	 45.51	0	1200024..1201058	-	344	104774266	-	Ldb1393	-	transposase
1010	 36.43	-2	1201220..1201510	-	96	104774267	-	Ldb1394	-	hypothetical protein
1011	 35.71	-2	1201564..1201941	+	125	104774268	-	Ldb1395	-	hypothetical protein
1012	 37.75	-2	1201987..1203210	+	407	104774269	-	Ldb1396	-	hypothetical protein
1013	 34.38	-2	1206745..1206936	-	63	104774270	-	Ldb1403	-	hypothetical protein
1014	 52.26	0	1207396..1207971	-	191	104774271	-	Ldb1404	-	hypothetical protein
1015	 51.43	0	1207734..1208186	-	150	104774272	-	Ldb1405	-	hypothetical protein
1016	 50.15	0	1208183..1208521	-	112	104774273	-	Ldb1406	-	hypothetical protein
1017	 50.29	0	1208960..1209643	-	227	104774274	-	Ldb1407	-	putative thiamine pyrophosphokinase
1018	 53.69	0	1209673..1210566	-	297	104774275	-	Ldb1408	-	putative GTP-binding protein
1019	 51.41	0	1210567..1212591	-	674	104774276	-	Ldb1409	-	Serine/threonine protein kinase
1020	 51.85	0	1212563..1213318	-	251	104774277	pppL	Ldb1410	-	Serine/threonine protein phosphatase
1021	 52.54	0	1213324..1214640	-	438	104774278	-	Ldb1411	-	putative RNA methylase
1022	 54.44	0	1214630..1215529	-	299	104774279	fmt	Ldb1412	-	methionyl-tRNA formyltransferase
1023	 54.20	0	1215595..1217976	-	793	104774280	priA	Ldb1413	-	PriA (primosomal protein N')
1024	 51.80	0	1218039..1218260	-	73	104774281	rpoZ	Ldb1414	-	DNA-directed RNA polymerase, omega chain
1025	 53.01	0	1218262..1218876	-	204	104774282	gmk1	Ldb1415	-	guanylate kinase
1026	 49.02	0	1219050..1219355	+	101	104774283	-	Ldb1416	-	hypothetical protein
1027	 54.29	0	1220499..1222187	-	562	104774284	recN	Ldb1420	-	RecN, ATPase involved in DNA repair
1028	 54.17	0	1222209..1223024	-	271	104774285	-	Ldb1421	-	putative RNA methylase
1029	 50.93	0	1223024..1223887	-	287	104774286	crtE	Ldb1422	-	geranylgeranyl pyrophosphate synthase
1030	 49.58	0	1223892..1224131	-	79	104774287	xseB	Ldb1423	-	exodeoxyribonuclease VII, small subunit
1031	 54.56	0	1224124..1225494	-	456	104774288	xseA	Ldb1424	-	exodeoxyribonuclease VII, large subunit
1032	 53.99	0	1225481..1226332	-	283	104774289	folD	Ldb1425	-	methylenetetrahydrofolate dehydrogenase / methenyltetrahydrofolate cyclohydrolase
1033	 49.12	0	1226391..1226789	-	132	104774290	nusB	Ldb1426	-	transcription antitermination protein NusB
1034	 49.43	0	1226789..1227223	-	144	104774291	-	Ldb1427	-	hypothetical protein
1035	 47.89	0	1227240..1227809	-	189	104774292	efP1	Ldb1428	-	elongation factor P
1036	 53.39	0	1227879..1228985	-	368	104774293	pepP	Ldb1429	-	X-Pro dipeptidase PepP
1037	 49.19	0	1229131..1229439	-	102	104774294	rpmA	Ldb1430	-	50S ribosomal protein L27
1038	 43.59	-1	1229446..1229757	-	103	104774295	rplU	Ldb1431	-	50S ribosomal protein L21
1039	 52.66	0	1229998..1230354	+	118	104774296	-	Ldb1432	-	hypothetical protein
1040	 55.06	0	1231561..1232826	-	421	104774297	purD	Ldb1435	-	phosphoribosylamine-glycine ligase
1041	 52.66	0	1232842..1234383	-	513	104774298	purH	Ldb1436	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
1042	 50.86	0	1234384..1234965	-	193	104774299	purN	Ldb1437	-	phosphoribosylglycinamide formyltransferase
1043	 54.86	0	1234965..1236014	-	349	104774300	purM	Ldb1438	-	phosphoribosylaminoimidazole synthetase
1044	 54.23	0	1236011..1237489	-	492	104774301	purF	Ldb1439	-	amidophosphoribosyltransferase
1045	 54.75	0	1237465..1239687	-	740	104774302	purL	Ldb1440	-	phosphoribosylformylglycinamidine synthase II
1046	 53.04	0	1239687..1240361	-	224	104774303	purQ	Ldb1441	-	phosphoribosylformylglycinamidine synthase I
1047	 43.78	-1	1240361..1240609	-	82	104774304	purS	Ldb1442	-	phosphoribosylformylglycinamidine (FGAM) synthase, PurS component
1048	 49.52	0	1240614..1241336	-	240	104774305	purC	Ldb1443	-	phosphoribosylaminoimidazole- succinocarboxamidesynthetase
1049	 53.16	0	1241660..1242955	-	431	104774306	purB	Ldb1444	-	adenylosuccinate lyase
1050	 53.70	0	1242999..1244132	-	377	104774307	purK	Ldb1445	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
1051	 53.86	0	1244113..1244604	-	163	104774308	purE	Ldb1446	-	phosphoribosylaminoimidazole carboxylase, catalytic subunit
1052	 50.59	0	1244763..1245017	-	84	104774309	-	Ldb1447	-	hypothetical protein
1053	 47.65	0	1245018..1246232	-	404	104774310	-	Ldb1448	-	putative permease
1054	 49.94	0	1248108..1249919	-	603	104774311	-	Ldb1451	-	hypothetical protein
1055	 55.61	0	1252729..1255107	+	792	104774312	pepX	Ldb1455	-	x-prolyl-dipeptidyl aminopeptidase
1056	 54.39	0	1255219..1256562	+	447	104774313	-	Ldb1456	-	putative permease
1057	 55.63	0	1257695..1258618	+	307	104774314	cysK1	Ldb1458	-	cysteine synthase
1058	 37.39	-2	1259758..1260939	+	393	104774315	cfa	Ldb1461	-	cyclopropane-fatty-acyl-phospholipid synthase
1059	 52.97	0	1262377..1263369	-	330	104774316	add	Ldb1463	-	adenosine deaminase
1060	 50.88	0	1263591..1263932	-	113	104774317	-	Ldb1464	-	hypothetical protein
1061	 43.79	-1	1265571..1266794	-	407	104774318	-	Ldb1466	-	transposase
1062	 45.24	-1	1266905..1266988	+	27	104774319	-	Ldb1467	-	hypothetical protein
1063	 42.86	-1	1266943..1267026	+	27	104774320	-	Ldb1468	-	hypothetical protein
1064	 45.70	0	1267332..1267703	-	123	104774321	-	Ldb1470	-	hypothetical protein
1065	 54.63	0	1267804..1269024	-	406	104774322	-	Ldb1471	-	permease
1066	 50.60	0	1269274..1270611	-	445	104774323	glnA	Ldb1472	-	glutamine synthetase (glutamate-ammonia ligase)
1067	 54.15	0	1272003..1272929	-	308	104774324	miaA	Ldb1476	-	tRNA isopentenyltransferase
1068	 53.98	0	1273010..1273411	-	133	104774325	-	Ldb1477	-	hypothetical protein
1069	 41.13	-1	1273474..1273704	-	76	104774326	-	Ldb1478	-	hypothetical protein
1070	 55.71	0	1273701..1274348	-	215	104774327	-	Ldb1479	-	hypothetical protein
1071	 42.67	-1	1274993..1275142	-	49	104774328	rpmG	Ldb1482	-	50S ribosomal protein L33
1072	 53.33	0	1275229..1277343	-	704	104774329	pbp	Ldb1483	-	penicillin-binding protein
1073	 51.62	0	1277512..1280010	+	832	104774330	-	Ldb1484	-	hypothetical protein
1074	 49.69	0	1280062..1280550	-	162	104774331	greA1	Ldb1485	-	transcription elongation factor GreA
1075	 53.86	0	1280621..1283032	-	803	104774332	pheT	Ldb1486	-	phenylalanyl-tRNA synthetase, beta subunit
1076	 53.90	0	1283032..1284081	-	349	104774333	pheS	Ldb1487	-	phenylalanyl-tRNA synthetase, alpha subunit
1077	 54.99	0	1284363..1284713	-	116	104774334	-	Ldb1488	-	MarR family transcriptional regulator
50.73	MEAN

5.22	STD DEV
