IslandPathversion 1.0

IslandPath Analysis: Kocuria rhizophila DC2201

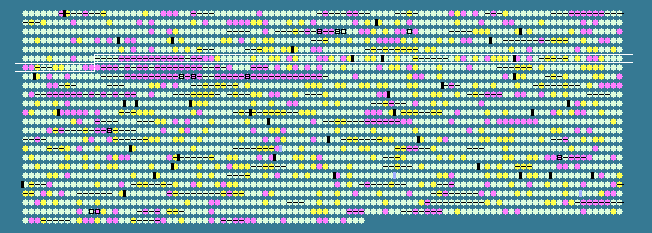

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 70.94 STD DEV: 3.83
Kocuria rhizophila DC2201, complete genome - 1..2697540
2357 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
513	 68.79	0	562709..562990	-	93	184200159	-	KRH_05130	-	hypothetical protein
514	 70.09	0	563188..563625	+	145	184200160	-	KRH_05140	-	hypothetical protein
515	 70.63	0	563720..564148	+	142	184200161	-	KRH_05150	-	cysteine synthase
516	 70.50	0	564191..564895	+	234	184200162	-	KRH_05160	-	cysteine synthase
517	 66.67	-1	564633..564818	+	61	184200163	-	KRH_05170	-	cysteine synthase
518	 58.39	-2	564892..565314	-	140	184200164	-	KRH_05180	-	hypothetical protein
519	 63.45	-1	565347..566030	-	227	184200165	-	KRH_05190	-	hypothetical protein
520	 66.67	-1	565646..566854	-	402	184200166	-	KRH_05200	-	hypothetical protein
521	 65.77	-1	566949..567950	-	333	184200167	-	KRH_05210	-	hypothetical protein
522	 63.73	-1	567966..568373	-	135	184200168	-	KRH_05220	-	hypothetical protein
523	 62.01	-2	568589..570154	+	521	184200169	hsdM	KRH_05230	-	type I restriction enzyme M protein
524	 58.81	-2	570151..571347	+	398	184200170	hsdS	KRH_05240	-	type I restriction enzyme S protein
525	 56.60	-2	571344..572078	+	244	184200171	-	KRH_05250	-	hypothetical protein
526	 61.59	-2	572075..575209	+	1044	184200172	hsdR	KRH_05260	-	type I restriction enzyme R protein
527	 51.57	-2	575309..576202	+	297	184200173	-	KRH_05270	-	hypothetical protein
528	 68.92	0	577184..577627	+	147	184200174	-	KRH_05280	-	Fur family transcriptional regulator
529	 65.03	-1	577702..579228	+	508	184200175	katA	KRH_05290	-	catalase
530	 64.74	-1	579654..580121	+	155	184200176	-	KRH_05300	-	hypothetical protein
531	 64.62	-1	580193..580876	-	227	184200177	-	KRH_05310	-	hypothetical protein
532	 65.52	-1	580882..581493	-	203	184200178	-	KRH_05320	-	hypothetical protein
533	 76.04	+1	581777..582790	+	337	184200179	menC	KRH_05330	-	putative o-succinylbenzoate synthase
534	 67.61	0	583109..585334	+	741	184200180	-	KRH_05340	-	hypothetical protein
535	 70.28	0	585635..587293	+	552	184200181	nirA	KRH_05350	-	putative nitrite/sulfite reductase
536	 72.45	0	587290..588153	+	287	184200182	cysH	KRH_05360	-	phosphoadenosine phosphosulfate reductase
537	 71.26	0	588135..589070	+	311	184200183	cysD	KRH_05370	-	sulfate adenylyltransferase subunit 2
538	 72.33	0	589073..590413	+	446	184200184	cysN	KRH_05380	-	sulfate adenylyltransferase subunit 1
539	 75.85	+1	590527..592530	+	667	184200185	menD	KRH_05390	-	putative menaquinone biosynthesis protein MenD
540	 72.90	0	592756..593493	+	245	184200186	-	KRH_05400	-	putative oxidoreductase
541	 68.61	0	593503..594273	-	256	184200187	-	KRH_05410	-	putative amino acid ABC transporter amino acid-binding protein
542	 76.85	+1	594348..595928	-	526	184200188	-	KRH_05420	-	isochorismate synthase
543	 74.84	+1	596084..597355	+	423	184200189	-	KRH_05430	-	putative oxidoreductase
544	 72.06	0	597408..598427	+	339	184200190	-	KRH_05440	-	putative polyprenyl diphosphate synthase
545	 66.44	-1	598510..600291	+	593	184200191	-	KRH_05450	-	sodium-dependent transporter
546	 76.09	+1	600288..600584	+	98	184200192	-	KRH_05460	-	hypothetical protein
547	 70.93	0	600678..601616	-	312	184200193	-	KRH_05470	-	hypothetical protein
548	 74.22	0	601666..603147	-	493	184200194	-	KRH_05480	-	hypothetical protein
549	 73.98	0	603370..604833	+	487	184200195	-	KRH_05490	-	hypothetical protein
550	 67.39	0	605120..606643	-	507	184200196	katA	KRH_05500	-	catalase
551	 67.23	0	606636..607163	-	175	184200197	-	KRH_05510	-	Fur family transcriptional regulator
552	 77.47	+1	607885..609624	+	579	184200198	-	KRH_05520	-	RNA polymerase ECF-type sigma factor
553	 70.86	0	609683..610588	+	301	184200199	-	KRH_05530	-	protease HtpX-like protein
554	 62.60	-2	610801..611292	-	163	184200200	-	KRH_05540	-	hypothetical protein
555	 75.44	+1	611342..612253	-	303	184200201	-	KRH_05550	-	hypothetical protein
556	 67.66	0	612803..613204	+	133	184200202	trxA	KRH_05560	-	thioredoxin
557	 71.67	0	613445..614143	-	232	184200203	-	KRH_05570	-	hypothetical protein
558	 76.00	+1	614254..615249	-	331	184200204	-	KRH_05580	-	hypothetical protein
559	 76.98	+1	615473..617227	+	584	184200205	-	KRH_05590	-	hypothetical protein
560	 72.22	0	617363..619522	+	719	184200206	deaD	KRH_05600	-	ATP-dependent DEAD-box RNA helicase DeaD
561	 72.22	0	620295..620744	+	149	184200207	-	KRH_05610	-	hypothetical protein
562	 71.43	0	620741..621223	+	160	184200208	-	KRH_05620	-	hypothetical protein
563	 74.49	0	621235..622500	+	421	184200209	murB	KRH_05630	-	UDP-N-acetylenolpyruvoylglucosamine reductase
564	 70.10	0	622553..622960	+	135	184200210	-	KRH_05640	-	hypothetical protein
565	 70.89	0	623046..624182	-	378	184200211	asd	KRH_05650	-	aspartate-semialdehyde dehydrogenase
566	 81.70	+2	624179..624331	-	50	184200212	-	KRH_05660	-	hypothetical protein
567	 68.25	0	624418..624795	-	125	184200213	-	KRH_05670	-	hypothetical protein
568	 73.73	0	624800..625351	-	183	184200214	folA	KRH_05680	-	dihydrofolate reductase
569	 69.71	0	625465..626286	-	273	184200215	thyA	KRH_05690	-	thymidylate synthase
570	 71.40	0	626365..627315	-	316	184200216	mutT	KRH_05700	-	putative NTP pyrophosphohydrolase MutT
571	 73.46	0	627394..628305	-	303	184200217	mshD	KRH_05710	-	acetyltransferase MshD
572	 71.59	0	628339..629028	-	229	184200218	-	KRH_05720	-	putative transcriptional regulator
573	 75.07	+1	629176..629937	+	253	184200219	-	KRH_05730	-	hypothetical protein
574	 58.33	-2	629942..630049	+	35	184200220	-	KRH_05740	-	hypothetical protein
575	 71.50	0	630053..630673	+	206	184200221	-	KRH_05750	-	hypothetical protein
576	 75.51	+1	630670..631902	+	410	184200222	-	KRH_05760	-	hypothetical protein
577	 71.41	0	631999..633030	-	343	184200223	-	KRH_05770	-	6-phosphofructokinase
578	 65.62	-1	633222..634175	+	317	184200224	ppk2	KRH_05780	-	polyphosphate kinase 2
579	 76.80	+1	634227..634808	+	193	184200225	-	KRH_05790	-	hypothetical protein
580	 74.71	0	634850..636403	+	517	184200226	-	KRH_05800	-	hypothetical protein
581	 77.05	+1	636460..636825	-	121	184200227	-	KRH_05810	-	hypothetical protein
582	 70.87	0	636822..638033	-	403	184200228	-	KRH_05820	-	aspartate aminotransferase
583	 64.42	-1	638400..638666	+	88	184200229	secE	KRH_05830	-	preprotein translocase SecE subunit
584	 67.80	0	638713..639597	+	294	184200230	nusG	KRH_05840	-	transcription antitermination protein NusG
585	 64.35	-1	639729..640160	+	143	184200231	rplK	KRH_05850	-	50S ribosomal protein L11
586	 67.51	0	640248..640958	+	236	184200232	rplA	KRH_05860	-	50S ribosomal protein L1
587	 72.15	0	641153..642337	+	394	184200233	-	KRH_05870	-	hypothetical protein
588	 77.71	+1	642438..643877	-	479	184200234	-	KRH_05880	-	putative molybdenum cofactor biosynthesis protein
589	 75.76	+1	643870..644133	-	87	184200235	moaD	KRH_05890	-	putative molybdopterin synthase small subunit MoaD
590	 72.00	0	644137..645168	-	343	184200236	moaA	KRH_05900	-	molybdenum cofactor biosynthesis protein A
591	 78.87	+2	645276..646742	+	488	184200237	moeA	KRH_05910	-	molybdopterin biosynthesis protein MoeA
592	 72.89	0	646739..647236	+	165	184200238	moaC	KRH_05920	-	molybdenum cofactor biosynthesis protein C
593	 75.93	+1	647308..648495	+	395	184200239	moaE	KRH_05930	-	putative bifunctional molybdopterin biosynthesis protein MoaE
594	 74.07	0	648497..649333	+	278	184200240	-	KRH_05940	-	FdhD protein
595	 65.54	-1	649603..650136	+	177	184200241	rplJ	KRH_05950	-	50S ribosomal protein L10
596	 67.44	0	650263..650649	+	128	184200242	rplL	KRH_05960	-	50S ribosomal protein L7/L12
597	 78.89	+2	650674..650943	+	89	184200243	-	KRH_05970	-	hypothetical protein
598	 71.92	0	651254..654148	+	964	184200244	gcvP	KRH_05980	-	glycine dehydrogenase
599	 73.65	0	654148..655293	+	381	184200245	gcvT	KRH_05990	-	aminomethyltransferase
600	 72.72	0	655443..656186	+	247	184200246	-	KRH_06000	-	hypothetical protein
601	 66.87	-1	656414..659923	+	1169	184200247	rpoB	KRH_06010	-	DNA-directed RNA polymerase beta subunit
602	 67.44	0	659989..663879	+	1296	184200248	rpoC	KRH_06020	-	DNA-directed RNA polymerase beta' subunit
603	 75.42	+1	664067..664843	+	258	184200249	-	KRH_06030	-	IclR family transcriptional regulator
604	 69.97	0	665025..665780	+	251	184200250	pcaH	KRH_06040	-	protocatechuate 3,4-dioxygenase beta subunit
605	 73.09	0	665830..666405	+	191	184200251	pcaG	KRH_06050	-	protocatechuate 3,4-dioxygenase alpha subunit
606	 77.73	+1	666405..667877	+	490	184200252	pcaB	KRH_06060	-	3-carboxy-cis,cis-muconate cycloisomerase
607	 76.26	+1	667874..668665	+	263	184200253	pcaD	KRH_06070	-	putative 3-oxoadipate enol-lactonase
608	 70.43	0	668820..669218	+	132	184200254	pcaC	KRH_06080	-	4-carboxymuconolactone decarboxylase
609	 72.39	0	669300..669998	+	232	184200255	pcaI	KRH_06090	-	3-oxoadipate CoA-transferase subunit A
610	 71.85	0	669995..670669	+	224	184200256	pcaJ	KRH_06100	-	3-oxoadipate CoA-transferase subunit B
611	 65.87	-1	670956..671330	+	124	184200257	rpsL	KRH_06110	-	30S ribosomal protein S12
612	 66.03	-1	671330..671800	+	156	184200258	rpsG	KRH_06120	-	30S ribosomal protein S7
70.94	MEAN

3.83	STD DEV
