IslandPathversion 1.0

IslandPath Analysis: Kocuria rhizophila DC2201

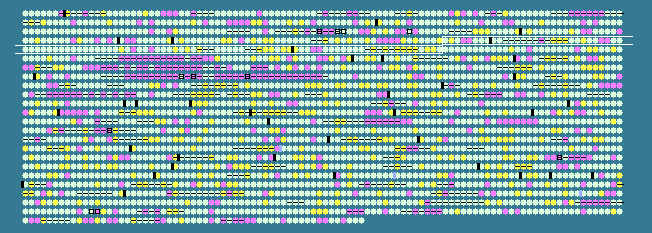

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 70.94 STD DEV: 3.83
Kocuria rhizophila DC2201, complete genome - 1..2697540
2357 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
371	 70.11	0	409004..409990	-	328	184200017	-	KRH_03710	-	hypothetical protein
372	 76.34	+1	410201..410851	+	216	184200018	-	KRH_03720	-	hypothetical protein
373	 69.52	0	411086..412450	-	454	184200019	-	KRH_03730	-	putative sugar ABC transporter ATP-binding protein
374	 65.83	-1	412499..413335	-	278	184200020	-	KRH_03740	-	putative sugar ABC transporter permease protein
375	 66.67	-1	413342..414310	-	322	184200021	-	KRH_03750	-	putative ABC transporter permease protein
376	 69.32	0	414307..415623	-	438	184200022	-	KRH_03760	-	putative sugar ABC transporter sugar-binding protein
377	 72.75	0	415752..416672	-	306	184200023	-	KRH_03770	-	AEC family transporter
378	 72.85	0	416695..417147	-	150	184200024	panD	KRH_03780	-	aspartate 1-decarboxylase precursor
379	 69.95	0	417597..418175	+	192	184200025	dcd	KRH_03790	-	deoxycytidine triphosphate deaminase
380	 72.40	0	418182..419612	-	476	184200026	-	KRH_03800	-	MFS transporter
381	 70.99	0	419819..422920	+	1033	184200027	mrpA/mrpB	KRH_03810	-	Na(+)/H(+) antiporter subunit A/B
382	 69.49	0	422917..423447	+	176	184200028	mrpC	KRH_03820	-	Na(+)/H(+) antiporter subunit C
383	 68.32	0	423437..425074	+	545	184200029	mrpD	KRH_03830	-	Na(+)/H(+) antiporter subunit D
384	 70.22	0	425071..425718	+	215	184200030	mrpE	KRH_03840	-	putative Na(+)/H(+) antiporter subunit E
385	 68.52	0	425715..425984	+	89	184200031	mrpF	KRH_03850	-	Na(+)/H(+) antiporter subunit F
386	 71.07	0	425981..426343	+	120	184200032	mrpG	KRH_03860	-	Na(+)/H(+) antiporter subunit G
387	 67.25	0	426402..426746	+	114	184200033	-	KRH_03870	-	hypothetical protein
388	 72.12	0	427005..427628	+	207	184200034	-	KRH_03880	-	hypothetical protein
389	 76.11	+1	427625..429223	+	532	184200035	-	KRH_03890	-	putative ABC transporter ATP-binding protein
390	 75.25	+1	429220..430023	+	267	184200036	-	KRH_03900	-	putative ABC transporter permease protein
391	 76.57	+1	430262..431200	-	312	184200037	-	KRH_03910	-	putative aminotransferase
392	 73.84	0	431197..431823	-	208	184200038	-	KRH_03920	-	hypothetical protein
393	 74.10	0	431820..432317	-	165	184200039	-	KRH_03930	-	protein-tyrosine-phosphatase
394	 74.45	0	432352..433212	-	286	184200040	-	KRH_03940	-	TetR family transcriptional regulator
395	 71.89	0	433387..433635	+	82	184200041	-	KRH_03950	-	hypothetical protein
396	 71.43	0	433692..434069	+	125	184200042	-	KRH_03960	-	hypothetical protein
397	 67.42	0	434160..436151	-	663	184200043	betP	KRH_03970	-	glycine betaine transporter
398	 66.99	-1	436478..438349	+	623	184200044	dnaK	KRH_03980	-	chaperone protein DnaK
399	 72.09	0	438460..438975	+	171	184200045	grpE	KRH_03990	-	GrpE protein
400	 69.77	0	439060..440091	+	343	184200046	-	KRH_04000	-	heat shock protein DnaJ family protein
401	 71.01	0	440093..440599	+	168	184200047	hspR	KRH_04010	-	putative heat shock protein HspR
402	 73.72	0	440770..441549	-	259	184200048	trmB	KRH_04020	-	tRNA (guanine-N(7)-)-methyltransferase
403	 73.51	0	442001..443227	+	408	184200049	-	KRH_04030	-	drug resistance efflux protein
404	 68.92	0	443590..445056	+	488	184200050	-	KRH_04040	-	sodium/alanine symporter
405	 67.59	0	445316..446824	+	502	184200051	cycA	KRH_04050	-	D-serine/D-alanine/glycine transporter
406	 72.71	0	446887..447747	+	286	184200052	-	KRH_04060	-	hypothetical protein
407	 69.48	0	447772..449298	-	508	184200053	-	KRH_04070	-	sodium/alanine symporter
408	 69.95	0	449456..449851	-	131	184200054	-	KRH_04080	-	hypothetical protein
409	 68.97	0	450058..450840	+	260	184200055	-	KRH_04090	-	ThiJ/PfpI family protein
410	 68.05	0	450837..451634	+	265	184200056	-	KRH_04100	-	putative oxidoreductase
411	 68.00	0	451631..451780	+	49	184200057	-	KRH_04110	-	hypothetical protein
412	 69.32	0	451823..452575	+	250	184200058	-	KRH_04120	-	putative oxidoreductase
413	 73.20	0	452856..454463	+	535	184200059	-	KRH_04130	-	putative DEAD-box RNA helicase
414	 72.96	0	454591..455241	-	216	184200060	-	KRH_04140	-	putative phosphatase
415	 73.63	0	455360..456034	-	224	184200061	-	KRH_04150	-	putative phosphatase
416	 73.00	0	456088..456687	+	199	184200062	-	KRH_04160	-	hypothetical protein
417	 75.12	+1	456684..457310	+	208	184200063	-	KRH_04170	-	putative acetyltransferase
418	 72.15	0	457303..457995	+	230	184200064	tag	KRH_04180	-	3-methyladenine-DNA glycosylase I
419	 66.67	-1	457971..458195	-	74	184200065	-	KRH_04190	-	hypothetical protein
420	 68.99	0	458374..461037	+	887	184200066	clpB	KRH_04200	-	chaperone ClpB
421	 72.63	0	461239..461607	-	122	184200067	-	KRH_04210	-	hypothetical protein
422	 63.68	-1	461921..462121	+	66	184200068	-	KRH_04220	-	hypothetical protein
423	 73.32	0	462330..463487	-	385	184200069	purM	KRH_04230	-	phosphoribosylformylglycinamidine cyclo-ligase
424	 70.80	0	463484..465031	-	515	184200070	purF	KRH_04240	-	amidophosphoribosyltransferase
425	 73.47	0	465044..465469	-	141	184200071	-	KRH_04250	-	hypothetical protein
426	 76.86	+1	465466..465828	-	120	184200072	-	KRH_04260	-	hypothetical protein
427	 72.46	0	465839..466840	-	333	184200073	-	KRH_04270	-	hypothetical protein
428	 75.00	+1	466911..468278	+	455	184200074	purD	KRH_04280	-	phosphoribosylamine--glycine ligase
429	 70.06	0	468275..469246	+	323	184200075	purC	KRH_04290	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
430	 77.27	+1	469224..469619	-	131	184200076	-	KRH_04300	-	hypothetical protein
431	 72.12	0	469586..470740	-	384	184200077	-	KRH_04310	-	two-component histidine kinase
432	 71.57	0	470791..470994	-	67	184200078	-	KRH_04320	-	hypothetical protein
433	 70.22	0	471006..471764	+	252	184200079	-	KRH_04330	-	NarL family two-component response regulator
434	 72.20	0	472121..472843	-	240	184200080	-	KRH_04340	-	GntR family transcriptional regulator
435	 68.58	0	472928..474598	-	556	184200081	-	KRH_04350	-	putative L-lactate permease
436	 67.85	0	474925..475767	+	280	184200082	-	KRH_04360	-	hypothetical protein
437	 70.98	0	475764..477755	+	663	184200083	-	KRH_04370	-	putative iron-sulfur protein
438	 71.47	0	477752..478396	+	214	184200084	-	KRH_04380	-	hypothetical protein
439	 74.13	0	478549..479808	-	419	184200085	moeB	KRH_04390	-	putative molybdopterin synthase sulfurylase MoeB
440	 75.33	+1	479805..481016	-	403	184200086	thiG	KRH_04400	-	thiazole biosynthesis protein ThiG
441	 74.53	0	481019..481285	-	88	184200087	thiS	KRH_04410	-	putative thiamine biosynthesis protein ThiS
442	 75.20	+1	481378..482655	-	425	184200088	thiO	KRH_04420	-	putative thiamine biosynthesis oxidoreductase ThiO
443	 74.06	0	482893..483555	+	220	184200089	thiE	KRH_04430	-	thiamine-phosphate pyrophosphorylase
444	 76.44	+1	483662..484234	-	190	184200090	-	KRH_04440	-	hypothetical protein
445	 76.24	+1	484231..485097	-	288	184200091	-	KRH_04450	-	putative phenazine biosynthesis protein
446	 74.44	0	485358..486605	+	415	184200092	-	KRH_04460	-	MFS transporter
447	 73.33	0	486719..489733	-	1004	184200093	-	KRH_04470	-	putative FAD linked oxidase
448	 73.87	0	489744..490673	-	309	184200094	-	KRH_04480	-	hypothetical protein
449	 66.57	-1	490670..492811	-	713	184200095	-	KRH_04490	-	penicillin-binding protein
450	 64.62	-1	492929..493123	+	64	184200096	-	KRH_04500	-	hypothetical protein
451	 72.92	0	493143..493622	+	159	184200097	-	KRH_04510	-	hypothetical protein
452	 73.11	0	493625..494539	+	304	184200098	-	KRH_04520	-	hypothetical protein
453	 70.21	0	494752..495429	-	225	184200099	-	KRH_04530	-	Crp family transcriptional regulator
454	 72.32	0	495685..496869	+	394	184200100	-	KRH_04540	-	S1C family peptidase
455	 69.46	0	497032..497496	-	154	184200101	aroD	KRH_04550	-	3-dehydroquinate dehydratase
456	 69.44	0	497731..499680	-	649	184200102	acs	KRH_04560	-	acetate--CoA ligase
457	 73.84	0	499891..500727	+	278	184200103	nth	KRH_04570	-	putative endonuclease III
458	 72.16	0	500739..501521	+	260	184200104	-	KRH_04580	-	hypothetical protein
459	 74.59	0	501618..503384	-	588	184200105	-	KRH_04590	-	putative DNA polymerase
460	 72.93	0	503527..503973	-	148	184200106	-	KRH_04600	-	hypothetical protein
461	 75.15	+1	504198..504869	+	223	184200107	-	KRH_04610	-	hypothetical protein
462	 71.35	0	504906..505673	-	255	184200108	-	KRH_04620	-	hypothetical protein
463	 77.21	+1	505812..506921	+	369	184200109	-	KRH_04630	-	hypothetical protein
464	 75.04	+1	506918..508135	+	405	184200110	-	KRH_04640	-	hypothetical protein
465	 76.60	+1	508132..508896	+	254	184200111	-	KRH_04650	-	hypothetical protein
466	 74.75	0	508893..509498	+	201	184200112	-	KRH_04660	-	hypothetical protein
467	 72.36	0	509641..510009	+	122	184200113	-	KRH_04670	-	hypothetical protein
468	 75.90	+1	510131..510628	+	165	184200114	-	KRH_04680	-	hypothetical protein
469	 76.15	+1	510615..510983	+	122	184200115	-	KRH_04690	-	hypothetical protein
470	 72.54	0	511119..513449	-	776	184200116	-	KRH_04700	-	putative ATP-dependent helicase
70.94	MEAN

3.83	STD DEV
