IslandPathversion 1.0

IslandPath Analysis: Kocuria rhizophila DC2201

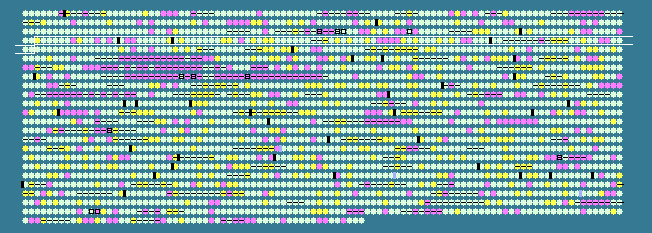

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 70.94 STD DEV: 3.83
Kocuria rhizophila DC2201, complete genome - 1..2697540
2357 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
303	 74.85	+1	333356..334528	-	390	184199949	-	KRH_03030	-	putative glycosidase
304	 72.01	0	334682..335224	-	180	184199950	idi	KRH_03040	-	isopentenyl-diphosphate delta-isomerase
305	 72.17	0	335287..336267	+	326	184199951	-	KRH_03050	-	putative pseudouridine synthase
306	 72.22	0	336486..337493	+	335	184199952	-	KRH_03060	-	hypothetical protein
307	 73.02	0	337742..338749	-	335	184199953	-	KRH_03070	-	putative DNA glycosylase
308	 68.24	0	338932..339441	+	169	184199954	-	KRH_03080	-	hypothetical protein
309	 63.75	-1	339522..340310	+	262	184199955	-	KRH_03090	-	putative esterase
310	 74.55	0	340396..345732	-	1778	184199956	-	KRH_03100	-	putative ATP-dependent DNA helicase
311	 74.16	0	345722..346495	-	257	184199957	-	KRH_03110	-	hypothetical protein
312	 72.26	0	346492..349566	-	1024	184199958	-	KRH_03120	-	putative FAD linked oxidase
313	 64.83	-1	349594..349920	-	108	184199959	-	KRH_03130	-	2Fe-2S ferredoxin
314	 70.92	0	350030..350851	-	273	184199960	-	KRH_03140	-	hypothetical protein
315	 66.58	-1	351049..352161	-	370	184199961	-	KRH_03150	-	hypothetical protein
316	 71.04	0	352232..353284	-	350	184199962	-	KRH_03160	-	putative oxidoreductase
317	 74.21	0	353624..354100	-	158	184199963	-	KRH_03170	-	putative deaminase
318	 64.47	-1	354106..354789	-	227	184199964	-	KRH_03180	-	hypothetical protein
319	 66.43	-1	354841..356124	-	427	184199965	-	KRH_03190	-	hypothetical protein
320	 70.39	0	356121..357032	-	303	184199966	-	KRH_03200	-	putative ABC transporter ATP-binding protein
321	 69.81	0	357269..357904	+	211	184199967	upp	KRH_03210	-	uracil phosphoribosyltransferase
322	 72.58	0	358162..358956	+	264	184199968	-	KRH_03220	-	putative transcriptional regulator
323	 73.37	0	359068..359589	+	173	184199969	-	KRH_03230	-	hypothetical protein
324	 73.18	0	359561..359821	-	86	184199970	-	KRH_03240	-	hypothetical protein
325	 77.02	+1	359839..360900	-	353	184199971	-	KRH_03250	-	hypothetical protein
326	 68.76	0	361370..363235	+	621	184199972	pckG	KRH_03260	-	GTP-dependent phosphoenolpyruvate carboxykinase
327	 74.58	0	363343..363873	+	176	184199973	-	KRH_03270	-	Rrf2 family DNA-binding protein
328	 72.15	0	363931..365115	+	394	184199974	hmp	KRH_03280	-	flavohemoprotein
329	 71.06	0	365366..366775	-	469	184199975	manB	KRH_03290	-	phosphomannomutase
330	 74.09	0	366847..368085	+	412	184199976	manA	KRH_03300	-	mannose-6-phosphate isomerase
331	 72.50	0	368159..368707	+	182	184199977	-	KRH_03310	-	TetR family transcriptional regulator
332	 71.64	0	368821..369483	+	220	184199978	-	KRH_03320	-	hypothetical protein
333	 70.88	0	369615..369899	+	94	184199979	-	KRH_03330	-	putative acylphosphatase
334	 76.04	+1	369988..370179	+	63	184199980	-	KRH_03340	-	hypothetical protein
335	 75.94	+1	370238..370927	+	229	184199981	-	KRH_03350	-	hypothetical protein
336	 72.66	0	370702..371685	+	327	184199982	-	KRH_03360	-	putative pyruvate kinase
337	 65.94	-1	371682..371819	+	45	184199983	-	KRH_03370	-	hypothetical protein
338	 70.37	0	372004..372813	+	269	184199984	-	KRH_03380	-	hypothetical protein
339	 74.52	0	372958..373899	+	313	184199985	glpQ	KRH_03390	-	putative glycerophosphoryl diester phosphodiesterase
340	 70.82	0	374020..375417	-	465	184199986	purB	KRH_03400	-	adenylosuccinate lyase
341	 77.28	+1	375641..376045	+	134	184199987	-	KRH_03410	-	hypothetical protein
342	 77.07	+1	376042..378117	+	691	184199988	-	KRH_03420	-	hypothetical protein
343	 71.15	0	378241..379401	+	386	184199989	-	KRH_03430	-	putative phenylalanine aminotransferase
344	 70.46	0	379468..380679	+	403	184199990	-	KRH_03440	-	branched-chain alpha-keto acid dehydrogenase E1 alpha subunit
345	 70.56	0	380676..381650	+	324	184199991	-	KRH_03450	-	branched-chain alpha-keto acid dehydrogenase E1 beta subunit
346	 72.18	0	381711..383288	+	525	184199992	-	KRH_03460	-	dihydrolipoamide acyltransferase
347	 74.04	0	383373..383942	-	189	184199993	-	KRH_03470	-	putative 3-methyladenine-DNA glycosylase I
348	 71.25	0	384185..385231	-	348	184199994	-	KRH_03480	-	hypothetical protein
349	 69.05	0	385207..386466	-	419	184199995	-	KRH_03490	-	hypothetical protein
350	 68.76	0	386534..387250	-	238	184199996	-	KRH_03500	-	putative two-component response regulator
351	 77.41	+1	387314..388309	-	331	184199997	-	KRH_03510	-	hypothetical protein
352	 70.18	0	388413..390122	+	569	184199998	fadD	KRH_03520	-	long-chain fatty-acid-CoA ligase
353	 76.30	+1	390182..391063	+	293	184199999	-	KRH_03530	-	LysR family transcriptional regulator
354	 73.05	0	391587..392072	-	161	184200000	-	KRH_03540	-	MarR family transcriptional regulator
355	 75.56	+1	392118..393197	-	359	184200001	-	KRH_03550	-	hypothetical protein
356	 70.99	0	393236..394321	+	361	184200002	-	KRH_03560	-	hypothetical protein
357	 71.63	0	394669..395514	+	281	184200003	-	KRH_03570	-	putative citrate lyase beta chain
358	 75.11	+1	395534..396244	-	236	184200004	-	KRH_03580	-	putative phosphatase
359	 73.66	0	396348..398579	+	743	184200005	malQ	KRH_03590	-	4-alpha-glucanotransferase
360	 65.82	-1	399167..399403	+	78	184200006	rpmB	KRH_03600	-	50S ribosomal protein L28
361	 61.31	-2	399405..399572	+	55	184200007	rpmG	KRH_03610	-	50S ribosomal protein L33
362	 66.34	-1	399577..399882	+	101	184200008	rpsN	KRH_03620	-	30S ribosomal protein S14
363	 65.61	-1	399963..400247	+	94	184200009	-	KRH_03630	-	HU_IHF family transcriptional regulator
364	 76.05	+1	400549..401145	+	198	184200010	-	KRH_03640	-	hypothetical protein
365	 73.48	0	401255..401929	+	224	184200011	-	KRH_03650	-	putative copper resistance protein C
366	 78.40	+1	401985..402197	-	70	184200012	-	KRH_03660	-	hypothetical protein
367	 70.82	0	402214..402936	+	240	184200013	-	KRH_03670	-	hypothetical protein
368	 71.87	0	402926..404194	+	422	184200014	-	KRH_03680	-	Dyp-type peroxidase family protein
369	 70.87	0	404272..406434	+	720	184200015	-	KRH_03690	-	hypothetical protein
370	 74.82	+1	406659..408731	+	690	184200016	-	KRH_03700	-	hypothetical protein
371	 70.11	0	409004..409990	-	328	184200017	-	KRH_03710	-	hypothetical protein
372	 76.34	+1	410201..410851	+	216	184200018	-	KRH_03720	-	hypothetical protein
373	 69.52	0	411086..412450	-	454	184200019	-	KRH_03730	-	putative sugar ABC transporter ATP-binding protein
374	 65.83	-1	412499..413335	-	278	184200020	-	KRH_03740	-	putative sugar ABC transporter permease protein
375	 66.67	-1	413342..414310	-	322	184200021	-	KRH_03750	-	putative ABC transporter permease protein
376	 69.32	0	414307..415623	-	438	184200022	-	KRH_03760	-	putative sugar ABC transporter sugar-binding protein
377	 72.75	0	415752..416672	-	306	184200023	-	KRH_03770	-	AEC family transporter
378	 72.85	0	416695..417147	-	150	184200024	panD	KRH_03780	-	aspartate 1-decarboxylase precursor
379	 69.95	0	417597..418175	+	192	184200025	dcd	KRH_03790	-	deoxycytidine triphosphate deaminase
380	 72.40	0	418182..419612	-	476	184200026	-	KRH_03800	-	MFS transporter
381	 70.99	0	419819..422920	+	1033	184200027	mrpA/mrpB	KRH_03810	-	Na(+)/H(+) antiporter subunit A/B
382	 69.49	0	422917..423447	+	176	184200028	mrpC	KRH_03820	-	Na(+)/H(+) antiporter subunit C
383	 68.32	0	423437..425074	+	545	184200029	mrpD	KRH_03830	-	Na(+)/H(+) antiporter subunit D
384	 70.22	0	425071..425718	+	215	184200030	mrpE	KRH_03840	-	putative Na(+)/H(+) antiporter subunit E
385	 68.52	0	425715..425984	+	89	184200031	mrpF	KRH_03850	-	Na(+)/H(+) antiporter subunit F
386	 71.07	0	425981..426343	+	120	184200032	mrpG	KRH_03860	-	Na(+)/H(+) antiporter subunit G
387	 67.25	0	426402..426746	+	114	184200033	-	KRH_03870	-	hypothetical protein
388	 72.12	0	427005..427628	+	207	184200034	-	KRH_03880	-	hypothetical protein
389	 76.11	+1	427625..429223	+	532	184200035	-	KRH_03890	-	putative ABC transporter ATP-binding protein
390	 75.25	+1	429220..430023	+	267	184200036	-	KRH_03900	-	putative ABC transporter permease protein
391	 76.57	+1	430262..431200	-	312	184200037	-	KRH_03910	-	putative aminotransferase
392	 73.84	0	431197..431823	-	208	184200038	-	KRH_03920	-	hypothetical protein
393	 74.10	0	431820..432317	-	165	184200039	-	KRH_03930	-	protein-tyrosine-phosphatase
394	 74.45	0	432352..433212	-	286	184200040	-	KRH_03940	-	TetR family transcriptional regulator
395	 71.89	0	433387..433635	+	82	184200041	-	KRH_03950	-	hypothetical protein
396	 71.43	0	433692..434069	+	125	184200042	-	KRH_03960	-	hypothetical protein
397	 67.42	0	434160..436151	-	663	184200043	betP	KRH_03970	-	glycine betaine transporter
398	 66.99	-1	436478..438349	+	623	184200044	dnaK	KRH_03980	-	chaperone protein DnaK
399	 72.09	0	438460..438975	+	171	184200045	grpE	KRH_03990	-	GrpE protein
400	 69.77	0	439060..440091	+	343	184200046	-	KRH_04000	-	heat shock protein DnaJ family protein
401	 71.01	0	440093..440599	+	168	184200047	hspR	KRH_04010	-	putative heat shock protein HspR
402	 73.72	0	440770..441549	-	259	184200048	trmB	KRH_04020	-	tRNA (guanine-N(7)-)-methyltransferase
70.94	MEAN

3.83	STD DEV
