IslandPathversion 1.0

IslandPath Analysis: Kocuria rhizophila DC2201

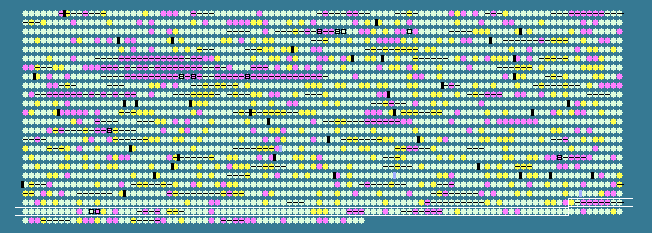

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 70.94 STD DEV: 3.83
Kocuria rhizophila DC2201, complete genome - 1..2697540
2357 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2192	 75.44	+1	2520774..2522198	-	474	184201838	-	KRH_21920	-	putative oxidoreductase
2193	 70.40	0	2522306..2523001	+	231	184201839	-	KRH_21930	-	putative enoyl-CoA hydratase
2194	 61.94	-2	2523271..2523693	-	140	184201840	-	KRH_21940	-	hypothetical protein
2195	 66.67	-1	2523907..2524422	-	171	184201841	-	KRH_21950	-	putative acetyltransferase
2196	 63.25	-2	2525165..2525545	+	126	184201842	-	KRH_21960	-	hypothetical protein
2197	 60.91	-2	2525554..2526786	+	410	184201843	-	KRH_21970	-	RNA polymerase ECF-type sigma factor
2198	 65.33	-1	2526879..2527028	-	49	184201844	-	KRH_21980	-	hypothetical protein
2199	 69.60	0	2527410..2527988	-	192	184201845	-	KRH_21990	-	hypothetical protein
2200	 72.50	0	2528001..2528771	-	256	184201846	-	KRH_22000	-	putative 2,4-dihydroxyhept-2-ene-1,7-dioic acid aldolase
2201	 69.41	0	2528822..2529586	-	254	184201847	-	KRH_22010	-	2-oxo-hepta-3-ene-1,7-dioic acid hydratase
2202	 68.21	0	2529818..2530984	-	388	184201848	-	KRH_22020	-	3,4-dihydroxyphenylacetate 2,3-dioxygenase
2203	 67.90	0	2531114..2532649	-	511	184201849	-	KRH_22030	-	5-carboxymethyl-2-hydroxymuconate semialdehyde dehydrogenase
2204	 70.29	0	2532688..2533377	-	229	184201850	-	KRH_22040	-	GntR family transcriptional regulator
2205	 73.19	0	2533422..2534954	-	510	184201851	-	KRH_22050	-	putative 2-hydroxyhepta-2,4-diene-1,7-dioate isomerase/5-carboxymethyl-2-oxo-hex-3-ene-1,7-dioate decarboxylase
2206	 69.16	0	2535360..2537246	+	628	184201852	-	KRH_22060	-	putative phenol 2-monooxygenase
2207	 72.78	0	2537317..2538117	-	266	184201853	-	KRH_22070	-	putative bacteriocin
2208	 69.97	0	2538120..2539208	-	362	184201854	-	KRH_22080	-	Dyp-type peroxidase family protein
2209	 68.18	0	2539225..2539554	-	109	184201855	-	KRH_22090	-	small multidrug resistance protein
2210	 65.29	-1	2539551..2539913	-	120	184201856	-	KRH_22100	-	small multidrug resistance protein
2211	 72.16	0	2539910..2540419	-	169	184201857	-	KRH_22110	-	TetR family transcriptional regulator
2212	 70.04	0	2540593..2541393	+	266	184201858	-	KRH_22120	-	putative transposase
2213	 67.09	-1	2541197..2541901	+	234	184201859	-	KRH_22130	-	putative transposase
2214	 76.43	+1	2541962..2542975	-	337	184201860	-	KRH_22140	-	putative 2-nitropropane dioxygenase
2215	 71.60	0	2542999..2543484	+	161	184201861	-	KRH_22150	-	hypothetical protein
2216	 64.76	-1	2543481..2543795	-	104	184201862	-	KRH_22160	-	hypothetical protein
2217	 73.32	0	2544062..2545729	-	555	184201863	-	KRH_22170	-	drug resistance efflux protein
2218	 72.83	0	2545898..2546806	-	302	184201864	surE	KRH_22180	-	5'-nucleotidase SurE
2219	 73.73	0	2546823..2547785	-	320	184201865	-	KRH_22190	-	hypothetical protein
2220	 69.98	0	2547814..2548326	+	170	184201866	-	KRH_22200	-	putative acetyltransferase
2221	 63.61	-1	2548487..2549107	-	206	184201867	-	KRH_22210	-	hypothetical protein
2222	 69.29	0	2549137..2549556	-	139	184201868	-	KRH_22220	-	hypothetical protein
2223	 65.45	-1	2549844..2550335	+	163	184201869	-	KRH_22230	-	heat shock protein Hsp20 family protein
2224	 69.98	0	2550569..2551564	-	331	184201870	cdsA	KRH_22240	-	phosphatidate cytidylyltransferase
2225	 74.66	0	2551571..2552233	-	220	184201871	-	KRH_22250	-	putative phosphatidylinositol synthase
2226	 76.60	+1	2552487..2553050	+	187	184201872	-	KRH_22260	-	hypothetical protein
2227	 72.24	0	2553118..2556759	-	1213	184201873	-	KRH_22270	-	hypothetical protein
2228	 73.12	0	2556895..2557560	-	221	184201874	-	KRH_22280	-	TetR family transcriptional regulator
2229	 74.23	0	2557650..2559182	-	510	184201875	dsdA	KRH_22290	-	D-serine dehydratase
2230	 73.27	0	2559232..2560488	-	418	184201876	-	KRH_22300	-	MFS transporter
2231	 72.34	0	2560814..2562418	+	534	184201877	-	KRH_22310	-	oxidoreductase
2232	 63.29	-1	2562607..2562813	-	68	184201878	-	KRH_22320	-	cold shock protein
2233	 70.18	0	2563062..2564144	-	360	184201879	-	KRH_22330	-	putative oxidoreductase
2234	 71.00	0	2564382..2565788	-	468	184201880	-	KRH_22340	-	aldehyde dehydrogenase
2235	 70.71	0	2565998..2567482	+	494	184201881	-	KRH_22350	-	putative amino acid transporter
2236	 70.50	0	2567652..2568983	+	443	184201882	-	KRH_22360	-	flavin-containing amine oxidase
2237	 72.03	0	2569200..2570150	-	316	184201883	-	KRH_22370	-	AraC family transcription regulator
2238	 68.71	0	2570352..2570792	+	146	184201884	-	KRH_22380	-	putative phenylacetic acid degradation protein
2239	 71.77	0	2570832..2571635	-	267	184201885	-	KRH_22390	-	oxidoreductase
2240	 71.90	0	2571676..2573337	-	553	184201886	-	KRH_22400	-	putative hydrolase
2241	 70.74	0	2573363..2574763	-	466	184201887	-	KRH_22410	-	MFS transporter
2242	 68.23	0	2575082..2575273	+	63	184201888	-	KRH_22420	-	hypothetical protein
2243	 71.75	0	2575277..2575453	+	58	184201889	-	KRH_22430	-	hypothetical protein
2244	 73.88	0	2575450..2577183	-	577	184201890	-	KRH_22440	-	acyltransferase
2245	 70.80	0	2577248..2578456	-	402	184201891	-	KRH_22450	-	aminotransferase
2246	 70.98	0	2578929..2579600	-	223	184201892	-	KRH_22460	-	hypothetical protein
2247	 72.22	0	2579703..2580152	+	149	184201893	-	KRH_22470	-	pyrimidine dimer DNA glycosylase
2248	 73.68	0	2580217..2580786	+	189	184201894	-	KRH_22480	-	hypothetical protein
2249	 76.17	+1	2580820..2582418	+	532	184201895	-	KRH_22490	-	putative DNA-3-methyladenine glycosylase II
2250	 76.79	+1	2582415..2582918	+	167	184201896	-	KRH_22500	-	putative methyltransferase
2251	 75.25	+1	2583129..2583920	+	263	184201897	-	KRH_22510	-	putative glycosyltransferase
2252	 71.64	0	2584178..2584660	+	160	184201898	-	KRH_22520	-	hypothetical protein
2253	 71.92	0	2584780..2585217	-	145	184201899	-	KRH_22530	-	hypothetical protein
2254	 67.61	0	2585214..2585636	-	140	184201900	ohr	KRH_22540	-	organic hydroperoxide resistance protein
2255	 65.46	-1	2586008..2587084	-	358	184201901	-	KRH_22550	-	2,3-butanediol dehydrogenase
2256	 66.55	-1	2587393..2588232	+	279	184201902	-	KRH_22560	-	phosphotransferase system enzyme IIAB component
2257	 65.34	-1	2588283..2589869	+	528	184201903	-	KRH_22570	-	phosphotransferase system enzyme IIC component
2258	 72.35	0	2589866..2590534	+	222	184201904	-	KRH_22580	-	hypothetical protein
2259	 70.62	0	2590531..2591163	+	210	184201905	-	KRH_22590	-	putative acetyltransferase
2260	 73.23	0	2591148..2591528	+	126	184201906	-	KRH_22600	-	hypothetical protein
2261	 66.88	-1	2591635..2592555	-	306	184201907	-	KRH_22610	-	hypothetical protein
2262	 71.43	0	2592622..2593209	-	195	184201908	-	KRH_22620	-	hypothetical protein
2263	 69.28	0	2593393..2595612	+	739	184201909	katE	KRH_22630	-	catalase HPII
2264	 71.47	0	2595837..2596898	+	353	184201910	-	KRH_22640	-	hypothetical protein
2265	 73.48	0	2596925..2597320	+	131	184201911	-	KRH_22650	-	hypothetical protein
2266	 66.67	-1	2597445..2597612	-	55	184201912	-	KRH_22660	-	hypothetical protein
2267	 72.90	0	2597873..2598787	+	304	184201913	-	KRH_22670	-	hypothetical protein
2268	 61.11	-2	2599039..2599398	+	119	184201914	-	KRH_22680	-	hypothetical protein
2269	 62.17	-2	2599731..2600219	+	162	184201915	-	KRH_22690	-	hypothetical protein
2270	 65.19	-1	2600331..2600600	-	89	184201916	-	KRH_22700	-	hypothetical protein
2271	 72.28	0	2600812..2601756	-	314	184201917	-	KRH_22710	-	putative electron transfer flavoprotein alpha subunit
2272	 73.23	0	2601890..2602696	-	268	184201918	-	KRH_22720	-	putative electron transfer flavoprotein beta subunit
2273	 75.20	+1	2602696..2603586	-	296	184201919	-	KRH_22730	-	putative citrate lyase beta chain
2274	 71.08	0	2603583..2604284	-	233	184201920	-	KRH_22740	-	hypothetical protein
2275	 68.78	0	2604281..2605462	-	393	184201921	fadE	KRH_22750	-	acyl-CoA dehydrogenase
2276	 73.62	0	2605596..2607665	-	689	184201922	accA	KRH_22760	-	acyl-CoA carboxylase alpha chain
2277	 69.41	0	2607677..2609350	-	557	184201923	accD	KRH_22770	-	acyl-CoA carboxylase beta chain
2278	 70.75	0	2609411..2610022	+	203	184201924	-	KRH_22780	-	TetR family transcriptional regulator
2279	 69.83	0	2610027..2611196	+	389	184201925	fadE	KRH_22790	-	acyl-CoA dehydrogenase
2280	 68.95	0	2611275..2612897	+	540	184201926	-	KRH_22800	-	putative fatty-acid--CoA ligase
2281	 64.43	-1	2612921..2613412	+	163	184201927	-	KRH_22810	-	hypothetical protein
2282	 70.10	0	2613643..2614371	+	242	184201928	-	KRH_22820	-	hypothetical protein
2283	 65.38	-1	2614428..2614661	+	77	184201929	-	KRH_22830	-	hypothetical protein
2284	 74.34	0	2614724..2615062	-	112	184201930	-	KRH_22840	-	hypothetical protein
2285	 70.15	0	2615072..2615272	-	66	184201931	-	KRH_22850	-	hypothetical protein
2286	 71.12	0	2615394..2616719	-	441	184201932	phrB	KRH_22860	-	deoxyribodipyrimidine photo-lyase
2287	 67.94	0	2616923..2618257	-	444	184201933	-	KRH_22870	-	serine transporter
2288	 68.75	0	2618471..2618902	+	143	184201934	-	KRH_22880	-	MarR family transcriptional regulator
2289	 67.92	0	2618951..2620708	-	585	184201935	-	KRH_22890	-	hypothetical protein
2290	 72.01	0	2620852..2621544	+	230	184201936	-	KRH_22900	-	TetR family transcriptional regulator
2291	 68.18	0	2621780..2623234	-	484	184201937	proY	KRH_22910	-	putative proline-specific permease
70.94	MEAN

3.83	STD DEV
