IslandPathversion 1.0

IslandPath Analysis: Kocuria rhizophila DC2201

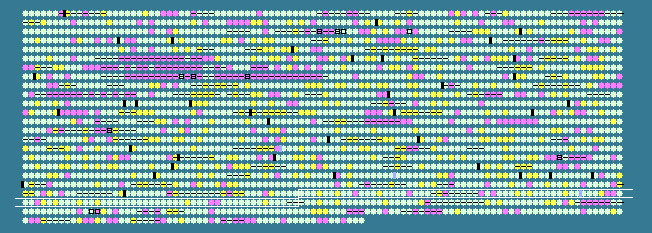

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 70.94 STD DEV: 3.83
Kocuria rhizophila DC2201, complete genome - 1..2697540
2357 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2047	 71.58	0	2351035..2352072	+	345	184201693	fcl	KRH_20470	-	GDP-L-fucose synthase
2048	 72.40	0	2352150..2352881	-	243	184201694	-	KRH_20480	-	hypothetical protein
2049	 70.56	0	2353050..2354309	-	419	184201695	-	KRH_20490	-	hypothetical protein
2050	 74.50	0	2354303..2355157	-	284	184201696	-	KRH_20500	-	putative glycosyltransferase
2051	 70.70	0	2355528..2356172	+	214	184201697	-	KRH_20510	-	hypothetical protein
2052	 69.28	0	2356169..2357431	+	420	184201698	-	KRH_20520	-	hypothetical protein
2053	 74.96	+1	2357442..2359130	+	562	184201699	-	KRH_20530	-	hypothetical protein
2054	 73.18	0	2359218..2359754	+	178	184201700	-	KRH_20540	-	hypothetical protein
2055	 74.01	0	2359760..2360875	+	371	184201701	-	KRH_20550	-	putative glycosyltransferase
2056	 63.58	-1	2361044..2361205	+	53	184201702	-	KRH_20560	-	hypothetical protein
2057	 69.42	0	2361322..2362518	+	398	184201703	serA	KRH_20570	-	D-3-phosphoglycerate dehydrogenase
2058	 70.41	0	2362820..2364529	+	569	184201704	-	KRH_20580	-	DASS family transporter
2059	 70.23	0	2364797..2365414	-	205	184201705	dps	KRH_20590	-	DNA-binding protein Dps
2060	 74.52	0	2365602..2367740	+	712	184201706	fadH	KRH_20600	-	2,4-dienoyl-CoA reductase
2061	 72.63	0	2367895..2368716	+	273	184201707	-	KRH_20610	-	hypothetical protein
2062	 74.42	0	2368718..2369233	+	171	184201708	-	KRH_20620	-	hypothetical protein
2063	 73.23	0	2369237..2370820	+	527	184201709	pstP	KRH_20630	-	serine/threonine phosphatase
2064	 72.40	0	2370817..2372595	+	592	184201710	rodA	KRH_20640	-	putative cell division protein RodA
2065	 66.39	-1	2372592..2374034	+	480	184201711	pbpA	KRH_20650	-	penicillin-binding protein
2066	 73.17	0	2374031..2375767	+	578	184201712	-	KRH_20660	-	serine/threonine protein kinase
2067	 73.36	0	2375773..2377713	+	646	184201713	-	KRH_20670	-	serine/threonine protein kinase
2068	 72.90	0	2377829..2378470	-	213	184201714	trpG	KRH_20680	-	anthranilate synthase component II
2069	 72.27	0	2378659..2379354	+	231	184201715	-	KRH_20690	-	hypothetical protein
2070	 76.15	+1	2379351..2379677	+	108	184201716	-	KRH_20700	-	hypothetical protein
2071	 66.13	-1	2379789..2380343	-	184	184201717	-	KRH_20710	-	hypothetical protein
2072	 69.24	0	2380496..2381155	-	219	184201718	-	KRH_20720	-	putative oxidoreductase
2073	 68.56	0	2381377..2381904	-	175	184201719	-	KRH_20730	-	putative oxidoreductase
2074	 69.90	0	2382046..2382756	-	236	184201720	-	KRH_20740	-	putative alkylated DNA repair protein
2075	 68.51	0	2383038..2384015	+	325	184201721	-	KRH_20750	-	hypothetical protein
2076	 69.98	0	2384141..2384956	-	271	184201722	-	KRH_20760	-	putative hydrolase
2077	 67.09	-1	2385097..2385810	-	237	184201723	-	KRH_20770	-	hypothetical protein
2078	 68.49	0	2385810..2386631	-	273	184201724	-	KRH_20780	-	putative ABC transporter ATP-binding protein
2079	 65.29	-1	2386754..2387116	-	120	184201725	-	KRH_20790	-	GntR family transcriptional regulator
2080	 69.68	0	2387266..2388162	-	298	184201726	crtEb	KRH_20800	-	lycopene elongase
2081	 70.34	0	2388131..2388484	-	117	184201727	crtYf	KRH_20810	-	C50 carotenoid epsilon cyclase
2082	 73.86	0	2388481..2389050	-	189	184201728	crtYe	KRH_20820	-	C50 carotenoid epsilon cyclase
2083	 74.71	0	2389050..2390915	-	621	184201729	crtI	KRH_20830	-	phytoene desaturase
2084	 73.79	0	2390912..2391823	-	303	184201730	crtB	KRH_20840	-	phytoene synthase
2085	 76.15	+1	2391823..2392971	-	382	184201731	crtE	KRH_20850	-	geranylgeranyl pyrophosphate synthase
2086	 74.13	0	2392968..2393597	-	209	184201732	-	KRH_20860	-	MarR family transcriptional regulator
2087	 74.02	0	2393754..2394623	-	289	184201733	-	KRH_20870	-	hypothetical protein
2088	 74.26	0	2394669..2395709	-	346	184201734	-	KRH_20880	-	hypothetical protein
2089	 68.48	0	2395933..2396262	+	109	184201735	-	KRH_20890	-	hypothetical protein
2090	 74.10	0	2396503..2397498	+	331	184201736	metF	KRH_20900	-	5,10-methylenetetrahydrofolate reductase
2091	 75.73	+1	2397661..2400099	+	812	184201737	metE	KRH_20910	-	5-methyltetrahydropteroyltriglutamate-- homocysteine methyltransferase
2092	 74.17	0	2400180..2401499	+	439	184201738	-	KRH_20920	-	putative O-acetylhomoserine (thiol)-lyase
2093	 72.37	0	2401625..2402869	+	414	184201739	metB	KRH_20930	-	cystathionine gamma-synthase
2094	 71.10	0	2408690..2410405	-	571	184201740	-	KRH_20940	-	putative fatty-acid--CoA ligase
2095	 68.81	0	2410449..2411708	-	419	184201741	-	KRH_20950	-	putative glutaryl-CoA dehydrogenase
2096	 71.38	0	2411738..2413837	-	699	184201742	fadB	KRH_20960	-	fatty oxidation complex alpha subunit
2097	 75.37	+1	2414008..2415294	-	428	184201743	-	KRH_20970	-	TetR family transcriptional regulator
2098	 64.04	-1	2415565..2417202	+	545	184201744	-	KRH_20980	-	putative peptide ABC transporter peptide-binding protein
2099	 65.91	-1	2417291..2418217	+	308	184201745	-	KRH_20990	-	putative peptide ABC transporter permease protein
2100	 68.57	0	2418210..2419310	+	366	184201746	-	KRH_21000	-	putative peptide ABC transporter permease protein
2101	 67.73	0	2419307..2420995	+	562	184201747	-	KRH_21010	-	putative peptide ABC transporter ATP-binding protein
2102	 73.33	0	2421124..2422038	-	304	184201748	-	KRH_21020	-	hypothetical protein
2103	 65.75	-1	2422035..2422469	-	144	184201749	-	KRH_21030	-	hypothetical protein
2104	 75.35	+1	2422705..2423982	+	425	184201750	-	KRH_21040	-	MFS transporter
2105	 68.19	0	2424069..2425640	-	523	184201751	ansP	KRH_21050	-	L-asparagine permease
2106	 77.68	+1	2425760..2426095	-	111	184201752	-	KRH_21060	-	hypothetical protein
2107	 71.49	0	2426200..2426697	+	165	184201753	-	KRH_21070	-	putative acetyltransferase
2108	 68.84	0	2426682..2427326	-	214	184201754	-	KRH_21080	-	putative acetyltransferase
2109	 72.99	0	2427329..2427850	-	173	184201755	-	KRH_21090	-	MarR family transcriptional regulator
2110	 76.21	+1	2427856..2428599	-	247	184201756	-	KRH_21100	-	NAD(P)H-dependent FMN reductase
2111	 71.19	0	2428698..2429891	-	397	184201757	-	KRH_21110	-	hypothetical protein
2112	 73.78	0	2430057..2430815	+	252	184201758	-	KRH_21120	-	hypothetical protein
2113	 76.36	+1	2430995..2432665	+	556	184201759	-	KRH_21130	-	hypothetical protein
2114	 73.90	0	2432662..2434404	+	580	184201760	accA	KRH_21140	-	acyl-CoA carboxylase alpha chain
2115	 73.48	0	2434401..2435075	+	224	184201761	-	KRH_21150	-	GntR family transcriptional regulator
2116	 73.22	0	2434741..2436006	-	421	184201762	-	KRH_21160	-	hypothetical protein
2117	 73.08	0	2435225..2435380	-	51	184201763	-	KRH_21170	-	hypothetical protein
2118	 67.71	0	2436134..2437186	-	350	184201764	-	KRH_21180	-	hypothetical protein
2119	 69.95	0	2437703..2438251	-	182	184201765	-	KRH_21190	-	hypothetical protein
2120	 69.71	0	2438308..2439882	-	524	184201766	-	KRH_21200	-	hypothetical protein
2121	 70.11	0	2439979..2440674	+	231	184201767	-	KRH_21210	-	TetR family transcriptional regulator
2122	 71.28	0	2440899..2441591	-	230	184201768	-	KRH_21220	-	hypothetical protein
2123	 72.57	0	2441660..2443117	-	485	184201769	-	KRH_21230	-	hypothetical protein
2124	 70.18	0	2443250..2443705	-	151	184201770	-	KRH_21240	-	transcription regulator AsnC
2125	 70.24	0	2444137..2445339	+	400	184201771	-	KRH_21250	-	branched-chain alpha-keto acid dehydrogenase E1 alpha subunit
2126	 69.93	0	2445339..2446349	+	336	184201772	-	KRH_21260	-	branched-chain alpha-keto acid dehydrogenase E1 beta subunit
2127	 72.88	0	2446353..2447897	+	514	184201773	-	KRH_21270	-	dihydrolipoamide acyltransferase
2128	 76.46	+1	2448132..2449367	-	411	184201774	-	KRH_21280	-	hypothetical protein
2129	 69.12	0	2449419..2450030	-	203	184201775	-	KRH_21290	-	putative amino acid transporter
2130	 69.59	0	2450155..2450769	+	204	184201776	-	KRH_21300	-	putative oxidoreductase
2131	 71.98	0	2450880..2451368	-	162	184201777	-	KRH_21310	-	MarR family transcriptional regulator
2132	 66.10	-1	2451702..2452235	+	177	184201778	-	KRH_21320	-	hypothetical protein
2133	 65.02	-1	2452305..2452910	+	201	184201779	-	KRH_21330	-	hypothetical protein
2134	 71.48	0	2453026..2454210	-	394	184201780	-	KRH_21340	-	aminotransferase
2135	 71.97	0	2454207..2455244	-	345	184201781	speB	KRH_21350	-	putative agmatinase
2136	 70.75	0	2455439..2456884	+	481	184201782	-	KRH_21360	-	putative sodium/solute symporter
2137	 71.94	0	2456881..2458530	+	549	184201783	-	KRH_21370	-	putative acetolactate synthase large subunit
2138	 72.52	0	2458659..2459222	-	187	184201784	-	KRH_21380	-	hypothetical protein
2139	 71.34	0	2459531..2461156	+	541	184201785	-	KRH_21390	-	putative xanthine permease
2140	 73.88	0	2461122..2461634	+	170	184201786	guaD	KRH_21400	-	guanine deaminase
2141	 74.97	+1	2461654..2462448	-	264	184201787	xdhC	KRH_21410	-	xanthine dehydrogenase accessory protein
2142	 71.92	0	2462450..2464828	-	792	184201788	xdhB	KRH_21420	-	xanthine dehydrogenase large subunit
2143	 74.21	0	2464825..2466348	-	507	184201789	xdhA	KRH_21430	-	xanthine dehydrogenase small subunit
2144	 68.64	0	2466697..2467914	+	405	184201790	soxB	KRH_21440	-	sarcosine oxidase beta subunit
2145	 68.03	0	2467950..2468243	+	97	184201791	soxD	KRH_21450	-	sarcosine oxidase delta subunit
2146	 72.74	0	2468240..2471152	+	970	184201792	soxA	KRH_21460	-	sarcosine oxidase alpha subunit
70.94	MEAN

3.83	STD DEV
