IslandPath Analysis: Kocuria rhizophila DC2201

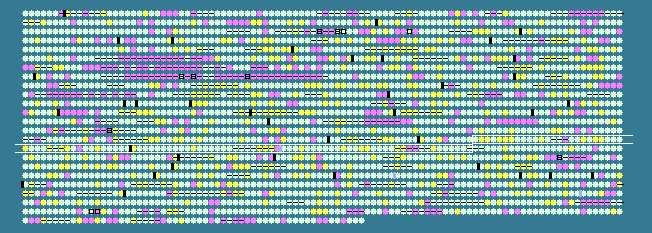

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 70.94 STD DEV: 3.83
Kocuria rhizophila DC2201, complete genome - 1..2697540
2357 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1476	 68.77	0	1668182..1668703	-	173	184201122	-	KRH_14760	-	hypothetical protein
1477	 75.62	+1	1668769..1669662	-	297	184201123	-	KRH_14770	-	hypothetical protein
1478	 76.17	+1	1669659..1670384	-	241	184201124	-	KRH_14780	-	hypothetical protein
1479	 70.98	0	1670561..1671811	-	416	184201125	ftsZ	KRH_14790	-	cell division protein FtsZ
1480	 75.37	+1	1672049..1673185	-	378	184201126	ftsQ	KRH_14800	-	putative cell division protein FtsQ
1481	 76.62	+1	1673185..1674591	-	468	184201127	murC	KRH_14810	-	UDP-N-acetylmuramate--L-alanine ligase
1482	 75.93	+1	1674620..1675753	-	377	184201128	murG	KRH_14820	-	UDP-N-acetylglucosamine--N-acetylmuramyl- (pentapeptide) pyrophosphoryl-undecaprenol N-acetylglucosamine transferase
1483	 70.78	0	1675750..1677111	-	453	184201129	ftsW	KRH_14830	-	cell division protein FtsW
1484	 73.80	0	1677111..1678652	-	513	184201130	murD	KRH_14840	-	UDP-N-acetylmuramoylalanine--D-glutamate ligase
1485	 68.52	0	1678731..1679864	-	377	184201131	mraY	KRH_14850	-	phospho-N-acetylmuramoyl-pentapeptide- transferase
1486	 73.50	0	1679870..1681348	-	492	184201132	murF	KRH_14860	-	UDP-N-acetylmuramoyl-tripeptide--D-alanyl-D- alanine ligase
1487	 74.71	0	1681345..1682985	-	546	184201133	murE	KRH_14870	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6- diaminopimelate ligase
1488	 70.33	0	1683107..1684960	-	617	184201134	ftsI	KRH_14880	-	peptidoglycan synthase FtsI precursor
1489	 74.02	0	1685046..1685657	-	203	184201135	-	KRH_14890	-	hypothetical protein
1490	 72.15	0	1685654..1686637	-	327	184201136	mraW	KRH_14900	-	S-adenosyl-methyltransferase MraW
1491	 65.74	-1	1687084..1687515	-	143	184201137	mraZ	KRH_14910	-	MraZ protein
1492	 68.43	0	1687776..1688171	-	131	184201138	-	KRH_14920	-	hypothetical protein
1493	 73.61	0	1688222..1689460	-	412	184201139	dinB	KRH_14930	-	DNA polymerase IV
1494	 75.02	+1	1689691..1690803	+	370	184201140	-	KRH_14940	-	polyprenyl synthase
1495	 72.26	0	1690924..1691316	-	130	184201141	-	KRH_14950	-	hypothetical protein
1496	 75.67	+1	1691464..1692585	+	373	184201142	-	KRH_14960	-	putative lysozyme
1497	 75.77	+1	1692590..1694446	+	618	184201143	-	KRH_14970	-	serine/threonine protein kinase
1498	 69.82	0	1694532..1695926	-	464	184201144	-	KRH_14980	-	3-deoxy-D-arabino-heptulosonate 7-phosphate synthase
1499	 71.46	0	1695936..1696790	-	284	184201145	-	KRH_14990	-	putative acyltransferase
1500	 73.86	0	1696920..1697711	+	263	184201146	-	KRH_15000	-	putative esterase
1501	 74.88	+1	1697708..1698121	+	137	184201147	-	KRH_15010	-	hypothetical protein
1502	 70.65	0	1698307..1700115	+	602	184201148	-	KRH_15020	-	putative fatty-acid--CoA ligase
1503	 68.49	0	1700174..1701598	-	474	184201149	mtr	KRH_15030	-	mycothiol reductase
1504	 71.25	0	1701713..1705162	-	1149	184201150	pyc	KRH_15040	-	pyruvate carboxylase
1505	 74.43	0	1705370..1706206	+	278	184201151	-	KRH_15050	-	putative chromosome partitioning protein
1506	 70.55	0	1706418..1707035	-	205	184201152	-	KRH_15060	-	MerR family transcriptional regulator
1507	 74.46	0	1707180..1707692	-	170	184201153	-	KRH_15070	-	hypothetical protein
1508	 75.03	+1	1707689..1708597	-	302	184201154	-	KRH_15080	-	MerR family transcriptional regulator
1509	 67.57	0	1708606..1709049	-	147	184201155	-	KRH_15090	-	hypothetical protein
1510	 66.93	-1	1709083..1709469	-	128	184201156	gcvH	KRH_15100	-	glycine cleavage system H protein
1511	 70.24	0	1709654..1711054	+	466	184201157	-	KRH_15110	-	putative cation transporter
1512	 69.57	0	1711204..1711893	+	229	184201158	-	KRH_15120	-	hypothetical protein
1513	 75.12	+1	1711996..1713012	-	338	184201159	-	KRH_15130	-	putative ATP-binding protein
1514	 72.45	0	1713085..1714797	+	570	184201160	-	KRH_15140	-	putative Na(+)/H(+) antiporter
1515	 73.82	0	1714928..1716130	-	400	184201161	-	KRH_15150	-	aminotransferase
1516	 70.33	0	1716158..1716703	-	181	184201162	-	KRH_15160	-	hypothetical protein
1517	 70.18	0	1716929..1717696	+	255	184201163	-	KRH_15170	-	hypothetical protein
1518	 72.80	0	1717716..1718465	+	249	184201164	-	KRH_15180	-	hypothetical protein
1519	 78.57	+1	1718679..1718846	-	55	184201165	-	KRH_15190	-	hypothetical protein
1520	 71.87	0	1718919..1720418	-	499	184201166	engA	KRH_15200	-	GTP-binding protein EngA
1521	 71.08	0	1720466..1721212	-	248	184201167	cmk	KRH_15210	-	cytidylate kinase
1522	 73.73	0	1721212..1722330	-	372	184201168	tyrA	KRH_15220	-	prephenate dehydrogenase
1523	 71.18	0	1722327..1723433	-	368	184201169	-	KRH_15230	-	pseudouridine synthase
1524	 71.43	0	1723441..1724133	-	230	184201170	scpB	KRH_15240	-	putative chromosome segregation and condensation protein ScpB
1525	 71.07	0	1724284..1725168	-	294	184201171	scpA	KRH_15250	-	putative chromosome segregation and condensation protein ScpA
1526	 68.46	0	1725197..1726090	-	297	184201172	-	KRH_15260	-	putative Soj/ParA-related protein
1527	 69.53	0	1726265..1727764	-	499	184201173	dctA	KRH_15270	-	C4-dicarboxylate transport protein
1528	 70.21	0	1727934..1729853	-	639	184201174	prpE	KRH_15280	-	propionate--CoA ligase
1529	 74.85	+1	1730035..1730694	+	219	184201175	-	KRH_15290	-	GntR family transcriptional regulator
1530	 69.73	0	1730753..1732285	+	510	184201176	prpD	KRH_15300	-	2-methylcitrate dehydratase
1531	 69.08	0	1732288..1733199	+	303	184201177	prpB	KRH_15310	-	2-methylisocitrate lyase
1532	 68.16	0	1733282..1734421	+	379	184201178	prpC	KRH_15320	-	2-methylcitrate synthase
1533	 70.74	0	1734480..1735460	-	326	184201179	-	KRH_15330	-	putative D-alanyl-D-alanine carboxypeptidase
1534	 73.01	0	1735689..1736603	-	304	184201180	xerD	KRH_15340	-	tyrosine recombinase XerD
1535	 69.56	0	1736732..1737388	-	218	184201181	nudF	KRH_15350	-	ADP-ribose pyrophosphatase
1536	 69.38	0	1737392..1739089	-	565	184201182	pyrG	KRH_15360	-	CTP synthase
1537	 73.61	0	1739140..1740852	-	570	184201183	recN	KRH_15370	-	DNA repair protein RecN
1538	 72.02	0	1740849..1741931	-	360	184201184	ppnK	KRH_15380	-	inorganic polyphosphate/ATP-NAD kinase
1539	 73.70	0	1741987..1742754	-	255	184201185	-	KRH_15390	-	hypothetical protein
1540	 76.65	+1	1742751..1743281	-	176	184201186	-	KRH_15400	-	hypothetical protein
1541	 74.79	+1	1743271..1744317	-	348	184201187	-	KRH_15410	-	putative phosphatase
1542	 75.55	+1	1744307..1746523	-	738	184201188	-	KRH_15420	-	hypothetical protein
1543	 66.67	-1	1746722..1747933	+	403	184201189	-	KRH_15430	-	DAACS family transporter
1544	 68.12	0	1754423..1755733	-	436	184201190	tyrS	KRH_15440	-	tyrosyl-tRNA synthetase
1545	 73.13	0	1755747..1758050	-	767	184201191	-	KRH_15450	-	hypothetical protein
1546	 73.11	0	1758121..1758648	-	175	184201192	apt	KRH_15460	-	adenine phosphoribosyltransferase
1547	 75.81	+1	1758684..1759394	-	236	184201193	-	KRH_15470	-	putative 3-methyladenine DNA glycosylase
1548	 73.72	0	1759391..1760836	-	481	184201194	argH	KRH_15480	-	argininosuccinate lyase
1549	 68.16	0	1761045..1762250	-	401	184201195	argG	KRH_15490	-	argininosuccinate synthase
1550	 69.11	0	1762337..1763851	-	504	184201196	fadD	KRH_15500	-	long-chain fatty-acid-CoA ligase
1551	 71.30	0	1764060..1764491	+	143	184201197	-	KRH_15510	-	hypothetical protein
1552	 73.33	0	1764718..1765212	-	164	184201198	argR	KRH_15520	-	arginine repressor ArgR
1553	 73.05	0	1765209..1766180	-	323	184201199	argF	KRH_15530	-	ornithine carbamoyltransferase
1554	 75.24	+1	1766308..1767543	-	411	184201200	argD	KRH_15540	-	acetylornithine/succinyldiaminopimelate aminotransferase
1555	 70.45	0	1767540..1768490	-	316	184201201	argB	KRH_15550	-	acetylglutamate kinase
1556	 73.35	0	1768501..1769712	-	403	184201202	argJ	KRH_15560	-	glutamate N-acetyltransferase/amino-acid acetyltransferase
1557	 74.76	0	1769863..1770924	-	353	184201203	argC	KRH_15570	-	N-acetyl-gamma-glutamyl-phosphate reductase
1558	 74.85	+1	1771134..1772111	+	325	184201204	qor	KRH_15580	-	NADPH--quinone reductase
1559	 70.83	0	1772301..1772900	-	199	184201205	-	KRH_15590	-	hypothetical protein
1560	 73.91	0	1772922..1775474	-	850	184201206	pheT	KRH_15600	-	phenylalanyl-tRNA synthetase beta chain
1561	 70.73	0	1775478..1776536	-	352	184201207	pheS	KRH_15610	-	phenylalanyl-tRNA synthetase alpha chain
1562	 72.29	0	1776923..1778452	-	509	184201208	-	KRH_15620	-	drug resistance efflux protein
1563	 75.65	+1	1778449..1779060	-	203	184201209	-	KRH_15630	-	hypothetical protein
1564	 74.97	+1	1779057..1780007	-	316	184201210	-	KRH_15640	-	putative RNA methyltransferase
1565	 66.67	-1	1780016..1780402	-	128	184201211	rplT	KRH_15650	-	50S ribosomal protein L20
1566	 66.16	-1	1780498..1780695	-	65	184201212	rpmI	KRH_15660	-	50S ribosomal protein L35
1567	 69.95	0	1780815..1781759	-	314	184201213	infC	KRH_15670	-	translation initiation factor IF-3
1568	 73.11	0	1782093..1782542	+	149	184201214	-	KRH_15680	-	hypothetical protein
1569	 75.64	+1	1782821..1783678	-	285	184201215	-	KRH_15690	-	hypothetical protein
1570	 73.07	0	1783671..1784420	-	249	184201216	hisA	KRH_15700	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino) methylideneamino] imidazole-4-carboxamide isomerase
1571	 69.75	0	1784602..1784763	-	53	184201217	-	KRH_15710	-	hypothetical protein
1572	 74.15	0	1784760..1785494	-	244	184201218	hisH	KRH_15720	-	imidazole glycerol phosphate synthase subunit HisH
1573	 69.91	0	1785550..1786197	-	215	184201219	hisB	KRH_15730	-	imidazoleglycerol-phosphate dehydratase
1574	 71.20	0	1786448..1787551	-	367	184201220	hisC	KRH_15740	-	histidinol-phosphate aminotransferase
1575	 73.12	0	1787574..1787945	-	123	184201221	-	KRH_15750	-	hypothetical protein
70.94	MEAN

3.83	STD DEV
