IslandPathversion 1.0

IslandPath Analysis: Kocuria rhizophila DC2201

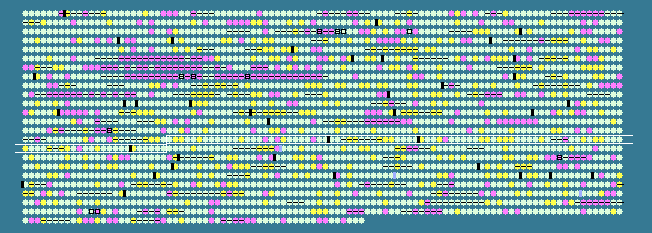

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 70.94 STD DEV: 3.83
Kocuria rhizophila DC2201, complete genome - 1..2697540
2357 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1425	 70.42	0	1603722..1604147	-	141	184201071	-	KRH_14250	-	hypothetical protein
1426	 75.39	+1	1604467..1606002	+	511	184201072	-	KRH_14260	-	hypothetical protein
1427	 75.58	+1	1606135..1606740	+	201	184201073	-	KRH_14270	-	hypothetical protein
1428	 74.41	0	1606777..1607925	-	382	184201074	-	KRH_14280	-	hypothetical protein
1429	 70.42	0	1607922..1608641	-	239	184201075	-	KRH_14290	-	hypothetical protein
1430	 76.12	+1	1608697..1610304	-	535	184201076	-	KRH_14300	-	putative protein kinase
1431	 72.39	0	1610317..1613007	-	896	184201077	-	KRH_14310	-	putative acetate--CoA ligase
1432	 71.56	0	1613078..1615633	+	851	184201078	gyrA	KRH_14320	-	DNA gyrase subunit A
1433	 69.70	0	1615951..1618059	-	702	184201079	gyrB	KRH_14330	-	DNA gyrase subunit B
1434	 69.48	0	1618238..1618486	+	82	184201080	-	KRH_14340	-	hypothetical protein
1435	 70.83	0	1618593..1619288	-	231	184201081	menH	KRH_14350	-	menaquinone biosynthesis methyltransferase MenH
1436	 70.33	0	1619321..1621039	-	572	184201082	sigA	KRH_14360	-	RNA polymerase sigma factor SigA
1437	 76.14	+1	1621263..1622708	-	481	184201083	-	KRH_14370	-	hypothetical protein
1438	 71.30	0	1622990..1624285	-	431	184201084	-	KRH_14380	-	MFS transporter
1439	 71.72	0	1624345..1625274	-	309	184201085	-	KRH_14390	-	hypothetical protein
1440	 73.44	0	1625493..1627013	+	506	184201086	pepA	KRH_14400	-	leucine aminopeptidase
1441	 66.81	-1	1627187..1628554	+	455	184201087	lpd	KRH_14410	-	dihydrolipoamide dehydrogenase
1442	 68.64	0	1628674..1630899	+	741	184201088	-	KRH_14420	-	dihydrolipoamide acyltransferase
1443	 63.53	-1	1631064..1631414	+	116	184201089	-	KRH_14430	-	hypothetical protein
1444	 77.13	+1	1631510..1633450	-	646	184201090	-	KRH_14440	-	hypothetical protein
1445	 70.68	0	1633759..1634481	+	240	184201091	lipB	KRH_14450	-	lipoate-protein ligase B
1446	 68.35	0	1634572..1635579	+	335	184201092	lipA	KRH_14460	-	lipoyl synthase
1447	 69.20	0	1635779..1636528	+	249	184201093	-	KRH_14470	-	hypothetical protein
1448	 72.48	0	1636711..1637157	-	148	184201094	-	KRH_14480	-	hypothetical protein
1449	 66.81	-1	1637381..1638805	+	474	184201095	glnA	KRH_14490	-	glutamine synthetase I
1450	 71.10	0	1638981..1640558	-	525	184201096	-	KRH_14500	-	hypothetical protein
1451	 68.00	0	1640755..1641354	+	199	184201097	orn	KRH_14510	-	oligoribonuclease
1452	 69.37	0	1641773..1642957	-	394	184201098	-	KRH_14520	-	glutathione-dependent formaldehyde dehydrogenase
1453	 70.08	0	1643046..1643954	-	302	184201099	-	KRH_14530	-	putative oxidoreductase
1454	 70.18	0	1644068..1644721	-	217	184201100	-	KRH_14540	-	putative two-component response regulator
1455	 74.59	0	1644743..1645588	-	281	184201101	-	KRH_14550	-	hypothetical protein
1456	 76.40	+1	1645585..1646766	-	393	184201102	-	KRH_14560	-	hypothetical protein
1457	 73.07	0	1646763..1647824	-	353	184201103	-	KRH_14570	-	putative glycosyltransferase
1458	 73.52	0	1647821..1648900	-	359	184201104	-	KRH_14580	-	hypothetical protein
1459	 70.88	0	1649145..1649714	+	189	184201105	def	KRH_14590	-	peptide deformylase
1460	 75.68	+1	1649826..1650602	-	258	184201106	-	KRH_14600	-	hypothetical protein
1461	 75.03	+1	1651164..1651892	-	242	184201107	-	KRH_14610	-	hypothetical protein
1462	 76.98	+1	1652088..1652969	-	293	184201108	-	KRH_14620	-	hypothetical protein
1463	 68.27	0	1653020..1653580	+	186	184201109	msrA	KRH_14630	-	peptide methionine sulfoxide reductase MsrA
1464	 68.48	0	1653680..1654615	+	311	184201110	cysK	KRH_14640	-	cysteine synthase
1465	 70.26	0	1654800..1655384	+	194	184201111	cysE	KRH_14650	-	serine O-acetyltransferase
1466	 68.24	0	1655607..1657064	-	485	184201112	gnd	KRH_14660	-	6-phosphogluconate dehydrogenase
1467	 75.27	+1	1657860..1658417	+	185	184201113	-	KRH_14670	-	hypothetical protein
1468	 73.91	0	1658488..1659177	-	229	184201114	-	KRH_14680	-	hypothetical protein
1469	 73.47	0	1659209..1660105	-	298	184201115	-	KRH_14690	-	hypothetical protein
1470	 76.18	+1	1660109..1661632	-	507	184201116	hisD	KRH_14700	-	histidinol dehydrogenase
1471	 67.09	-1	1661896..1665450	-	1184	184201117	dnaE	KRH_14710	-	DNA polymerase III alpha subunit
1472	 73.31	0	1665507..1666484	-	325	184201118	rluD	KRH_14720	-	pseudouridine synthase RluD
1473	 71.37	0	1666474..1667004	-	176	184201119	lspA	KRH_14730	-	lipoprotein signal peptidase
1474	 70.68	0	1667009..1667755	-	248	184201120	-	KRH_14740	-	hypothetical protein
1475	 69.02	0	1667882..1668178	-	98	184201121	-	KRH_14750	-	hypothetical protein
1476	 68.77	0	1668182..1668703	-	173	184201122	-	KRH_14760	-	hypothetical protein
1477	 75.62	+1	1668769..1669662	-	297	184201123	-	KRH_14770	-	hypothetical protein
1478	 76.17	+1	1669659..1670384	-	241	184201124	-	KRH_14780	-	hypothetical protein
1479	 70.98	0	1670561..1671811	-	416	184201125	ftsZ	KRH_14790	-	cell division protein FtsZ
1480	 75.37	+1	1672049..1673185	-	378	184201126	ftsQ	KRH_14800	-	putative cell division protein FtsQ
1481	 76.62	+1	1673185..1674591	-	468	184201127	murC	KRH_14810	-	UDP-N-acetylmuramate--L-alanine ligase
1482	 75.93	+1	1674620..1675753	-	377	184201128	murG	KRH_14820	-	UDP-N-acetylglucosamine--N-acetylmuramyl- (pentapeptide) pyrophosphoryl-undecaprenol N-acetylglucosamine transferase
1483	 70.78	0	1675750..1677111	-	453	184201129	ftsW	KRH_14830	-	cell division protein FtsW
1484	 73.80	0	1677111..1678652	-	513	184201130	murD	KRH_14840	-	UDP-N-acetylmuramoylalanine--D-glutamate ligase
1485	 68.52	0	1678731..1679864	-	377	184201131	mraY	KRH_14850	-	phospho-N-acetylmuramoyl-pentapeptide- transferase
1486	 73.50	0	1679870..1681348	-	492	184201132	murF	KRH_14860	-	UDP-N-acetylmuramoyl-tripeptide--D-alanyl-D- alanine ligase
1487	 74.71	0	1681345..1682985	-	546	184201133	murE	KRH_14870	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6- diaminopimelate ligase
1488	 70.33	0	1683107..1684960	-	617	184201134	ftsI	KRH_14880	-	peptidoglycan synthase FtsI precursor
1489	 74.02	0	1685046..1685657	-	203	184201135	-	KRH_14890	-	hypothetical protein
1490	 72.15	0	1685654..1686637	-	327	184201136	mraW	KRH_14900	-	S-adenosyl-methyltransferase MraW
1491	 65.74	-1	1687084..1687515	-	143	184201137	mraZ	KRH_14910	-	MraZ protein
1492	 68.43	0	1687776..1688171	-	131	184201138	-	KRH_14920	-	hypothetical protein
1493	 73.61	0	1688222..1689460	-	412	184201139	dinB	KRH_14930	-	DNA polymerase IV
1494	 75.02	+1	1689691..1690803	+	370	184201140	-	KRH_14940	-	polyprenyl synthase
1495	 72.26	0	1690924..1691316	-	130	184201141	-	KRH_14950	-	hypothetical protein
1496	 75.67	+1	1691464..1692585	+	373	184201142	-	KRH_14960	-	putative lysozyme
1497	 75.77	+1	1692590..1694446	+	618	184201143	-	KRH_14970	-	serine/threonine protein kinase
1498	 69.82	0	1694532..1695926	-	464	184201144	-	KRH_14980	-	3-deoxy-D-arabino-heptulosonate 7-phosphate synthase
1499	 71.46	0	1695936..1696790	-	284	184201145	-	KRH_14990	-	putative acyltransferase
1500	 73.86	0	1696920..1697711	+	263	184201146	-	KRH_15000	-	putative esterase
1501	 74.88	+1	1697708..1698121	+	137	184201147	-	KRH_15010	-	hypothetical protein
1502	 70.65	0	1698307..1700115	+	602	184201148	-	KRH_15020	-	putative fatty-acid--CoA ligase
1503	 68.49	0	1700174..1701598	-	474	184201149	mtr	KRH_15030	-	mycothiol reductase
1504	 71.25	0	1701713..1705162	-	1149	184201150	pyc	KRH_15040	-	pyruvate carboxylase
1505	 74.43	0	1705370..1706206	+	278	184201151	-	KRH_15050	-	putative chromosome partitioning protein
1506	 70.55	0	1706418..1707035	-	205	184201152	-	KRH_15060	-	MerR family transcriptional regulator
1507	 74.46	0	1707180..1707692	-	170	184201153	-	KRH_15070	-	hypothetical protein
1508	 75.03	+1	1707689..1708597	-	302	184201154	-	KRH_15080	-	MerR family transcriptional regulator
1509	 67.57	0	1708606..1709049	-	147	184201155	-	KRH_15090	-	hypothetical protein
1510	 66.93	-1	1709083..1709469	-	128	184201156	gcvH	KRH_15100	-	glycine cleavage system H protein
1511	 70.24	0	1709654..1711054	+	466	184201157	-	KRH_15110	-	putative cation transporter
1512	 69.57	0	1711204..1711893	+	229	184201158	-	KRH_15120	-	hypothetical protein
1513	 75.12	+1	1711996..1713012	-	338	184201159	-	KRH_15130	-	putative ATP-binding protein
1514	 72.45	0	1713085..1714797	+	570	184201160	-	KRH_15140	-	putative Na(+)/H(+) antiporter
1515	 73.82	0	1714928..1716130	-	400	184201161	-	KRH_15150	-	aminotransferase
1516	 70.33	0	1716158..1716703	-	181	184201162	-	KRH_15160	-	hypothetical protein
1517	 70.18	0	1716929..1717696	+	255	184201163	-	KRH_15170	-	hypothetical protein
1518	 72.80	0	1717716..1718465	+	249	184201164	-	KRH_15180	-	hypothetical protein
1519	 78.57	+1	1718679..1718846	-	55	184201165	-	KRH_15190	-	hypothetical protein
1520	 71.87	0	1718919..1720418	-	499	184201166	engA	KRH_15200	-	GTP-binding protein EngA
1521	 71.08	0	1720466..1721212	-	248	184201167	cmk	KRH_15210	-	cytidylate kinase
1522	 73.73	0	1721212..1722330	-	372	184201168	tyrA	KRH_15220	-	prephenate dehydrogenase
1523	 71.18	0	1722327..1723433	-	368	184201169	-	KRH_15230	-	pseudouridine synthase
1524	 71.43	0	1723441..1724133	-	230	184201170	scpB	KRH_15240	-	putative chromosome segregation and condensation protein ScpB
70.94	MEAN

3.83	STD DEV
