IslandPath Analysis: Kocuria rhizophila DC2201

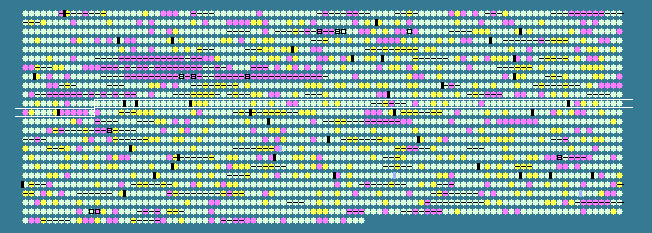

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 70.94   STD DEV: 3.83
Kocuria rhizophila DC2201, complete genome - 1..2697540
2357 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1013	 71.31	0	1101855..1102952	-	365	184200659	-	KRH_10130	-	mycothiol-dependent formaldehyde dehydrogenase
1014	 67.91	0	1103381..1104583	-	400	184200660	-	KRH_10140	-	hypothetical protein
1015	 68.68	0	1104674..1105120	-	148	184200661	-	KRH_10150	-	MarR family transcriptional regulator
1016	 68.22	0	1105323..1106807	-	494	184200662	mqo	KRH_10160	-	putative malate--quinone oxidoreductase
1017	 72.51	0	1106918..1108525	-	535	184200663	-	KRH_10170	-	putative ABC transporter substrate-binding protein
1018	 72.36	0	1108785..1109258	-	157	184200664	bcp	KRH_10180	-	hydroperoxide peroxidase
1019	 71.40	0	1109500..1110048	+	182	184200665	-	KRH_10190	-	MarR family transcriptional regulator
1020	 73.25	0	1110557..1111528	+	323	184200666	-	KRH_10200	-	putative dehydrogenase
1021	 70.39	0	1111797..1113674	+	625	184200667	ilvB	KRH_10210	-	acetolactate synthase large subunit
1022	 68.63	0	1113678..1114187	+	169	184200668	ilvN	KRH_10220	-	acetolactate synthase small subunit
1023	 67.54	0	1114303..1115328	+	341	184200669	ilvC	KRH_10230	-	ketol-acid reductoisomerase
1024	 69.24	0	1115557..1117110	+	517	184200670	metG	KRH_10240	-	methionyl-tRNA synthetase
1025	 71.11	0	1117457..1118536	+	359	184200671	leuB	KRH_10250	-	3-isopropylmalate dehydrogenase
1026	 69.95	0	1118643..1119740	+	365	184200672	ilvE	KRH_10260	-	branched-chain amino acid aminotransferase
1027	 71.15	0	1119830..1120609	+	259	184200673	-	KRH_10270	-	fumarylacetoacetate hydrolase family protein
1028	 69.82	0	1120656..1122176	+	506	184200674	gltX	KRH_10280	-	glutamyl-tRNA synthetase
1029	 75.04	+1	1122883..1124637	+	584	184200675	-	KRH_10290	-	hypothetical protein
1030	 76.46	+1	1124634..1126298	+	554	184200676	-	KRH_10300	-	hypothetical protein
1031	 75.65	+1	1126326..1127138	-	270	184200677	-	KRH_10310	-	IclR family transcriptional regulator
1032	 71.61	0	1127290..1128726	+	478	184200678	leuC	KRH_10320	-	3-isopropylmalate dehydratase large subunit
1033	 68.00	0	1128850..1129449	+	199	184200679	leuD	KRH_10330	-	3-isopropylmalate dehydratase small subunit
1034	 69.47	0	1129547..1130866	+	439	184200680	murA	KRH_10340	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
1035	 73.98	0	1130982..1131788	+	268	184200681	-	KRH_10350	-	putative acyltransferase
1036	 73.76	0	1131785..1132855	+	356	184200682	gpsA	KRH_10360	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
1037	 71.09	0	1132852..1134003	+	383	184200683	ddl	KRH_10370	-	D-alanine--D-alanine ligase
1038	 74.18	0	1134095..1134613	-	172	184200684	-	KRH_10380	-	hypothetical protein
1039	 75.92	+1	1134800..1135912	+	370	184200685	thiL	KRH_10390	-	thiamine-monophosphate kinase
1040	 73.63	0	1135902..1136849	+	315	184200686	-	KRH_10400	-	hypothetical protein
1041	 73.83	0	1136846..1139107	+	753	184200687	recG	KRH_10410	-	ATP-dependent DNA helicase RecG
1042	 74.72	0	1139104..1139736	+	210	184200688	-	KRH_10420	-	hypothetical protein
1043	 74.39	0	1139933..1141111	-	392	184200689	-	KRH_10430	-	aminotransferase
1044	 69.85	0	1141287..1141757	+	156	184200690	coaD	KRH_10440	-	phosphopantetheine adenylyltransferase
1045	 64.97	-1	1141931..1142521	+	196	184200691	-	KRH_10450	-	hypothetical protein
1046	 62.75	-2	1142524..1142727	+	67	184200692	rpmF	KRH_10460	-	50S ribosomal protein L32
1047	 71.63	0	1142729..1143433	+	234	184200693	rnc	KRH_10470	-	ribonuclease III
1048	 73.44	0	1143441..1144370	+	309	184200694	mutM	KRH_10480	-	formamidopyrimidine-DNA glycosylase/AP lyase
1049	 69.62	0	1144530..1145240	+	236	184200695	-	KRH_10490	-	hypothetical protein
1050	 73.48	0	1145342..1146559	-	405	184200696	-	KRH_10500	-	putative steroid dehydrogenase
1051	 74.54	0	1146736..1149465	-	909	184200697	-	KRH_10510	-	putative fatty-acid--CoA ligase
1052	 70.18	0	1149492..1150517	-	341	184200698	-	KRH_10520	-	putative 3-oxoacyl-[acyl-carrier-protein] synthase III
1053	 75.03	+1	1150779..1154423	+	1214	184200699	smc	KRH_10530	-	chromosome partition protein SMC
1054	 70.32	0	1154461..1155063	-	200	184200700	-	KRH_10540	-	hypothetical protein
1055	 74.42	0	1155140..1156468	-	442	184200701	-	KRH_10550	-	MFS transporter
1056	 70.24	0	1156500..1157618	+	372	184200702	ftsY	KRH_10560	-	cell division protein FtsY
1057	 70.74	0	1157851..1159200	+	449	184200703	amtB	KRH_10570	-	ammonium transporter
1058	 69.62	0	1159197..1159535	+	112	184200704	-	KRH_10580	-	nitrogen regulatory protein P-II
1059	 69.28	0	1159721..1161286	+	521	184200705	ffh	KRH_10590	-	signal recognition particle protein
1060	 71.52	0	1161293..1161787	+	164	184200706	-	KRH_10600	-	hypothetical protein
1061	 75.52	+1	1161784..1162653	+	289	184200707	-	KRH_10610	-	hypothetical protein
1062	 67.13	0	1162846..1163274	+	142	184200708	rpsP	KRH_10620	-	30S ribosomal protein S16
1063	 71.08	0	1163271..1163519	+	82	184200709	-	KRH_10630	-	hypothetical protein
1064	 72.92	0	1163647..1164222	+	191	184200710	rimM	KRH_10640	-	putative 16S rRNA processing protein RimM
1065	 74.00	0	1164225..1165220	+	331	184200711	trmD	KRH_10650	-	tRNA (guanine-N(1)-)-methyltransferase
1066	 64.74	-1	1165396..1165758	+	120	184200712	rplS	KRH_10660	-	50S ribosomal protein L19
1067	 74.06	0	1165770..1166459	+	229	184200713	-	KRH_10670	-	signal peptidase I
1068	 70.53	0	1166535..1167311	+	258	184200714	-	KRH_10680	-	signal peptidase I
1069	 74.91	+1	1167233..1168033	+	266	184200715	rnhB	KRH_10690	-	ribonuclease HII
1070	 74.25	0	1168361..1168795	+	144	184200716	-	KRH_10700	-	hypothetical protein
1071	 75.70	+1	1169007..1170335	+	442	184200717	-	KRH_10710	-	hypothetical protein
1072	 73.14	0	1170686..1172245	+	519	184200718	-	KRH_10720	-	putative magnesium chelatase
1073	 74.04	0	1172242..1173570	+	442	184200719	-	KRH_10730	-	putative DNA processing protein
1074	 74.05	0	1173542..1174678	+	378	184200720	xerC	KRH_10740	-	tyrosine recombinase XerC
1075	 70.83	0	1174885..1175388	+	167	184200721	-	KRH_10750	-	hypothetical protein
1076	 70.91	0	1175802..1177073	-	423	184200722	fabF	KRH_10760	-	3-oxoacyl-[acyl-carrier-protein] synthase
1077	 58.94	-2	1177184..1177429	-	81	184200723	acpP	KRH_10770	-	acyl carrier protein
1078	 70.22	0	1177579..1178646	-	355	184200724	fabH	KRH_10780	-	3-oxoacyl-[acyl-carrier-protein] synthase III
1079	 73.25	0	1178709..1179620	-	303	184200725	fabD	KRH_10790	-	malonyl CoA-acyl carrier protein transacylase
1080	 73.14	0	1179712..1180947	-	411	184200726	-	KRH_10800	-	transcription regulator CcdaR
1081	 68.09	0	1181052..1183790	-	912	184200727	aceE	KRH_10810	-	pyruvate dehydrogenase E1 component
1082	 68.82	0	1184153..1184569	+	138	184200728	-	KRH_10820	-	hypothetical protein
1083	 68.61	0	1184608..1185069	+	153	184200729	-	KRH_10830	-	putative peroxiredoxin
1084	 72.30	0	1185071..1185976	+	301	184200730	-	KRH_10840	-	NAD-dependent deacetylase
1085	 69.42	0	1186305..1187138	-	277	184200731	ppgK	KRH_10850	-	polyphosphate glucokinase
1086	 69.34	0	1187236..1188132	-	298	184200732	map	KRH_10860	-	methionine aminopeptidase
1087	 70.79	0	1188226..1188492	+	88	184200733	-	KRH_10870	-	hypothetical protein
1088	 73.45	0	1188643..1189482	-	279	184200734	panB	KRH_10880	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
1089	 67.49	0	1189672..1191015	+	447	184200735	glnA	KRH_10890	-	glutamine synthetase I
1090	 72.85	0	1191023..1194094	+	1023	184200736	glnE	KRH_10900	-	glutamine-synthetase adenylyltransferase
1091	 71.56	0	1194234..1194866	-	210	184200737	-	KRH_10910	-	hypothetical protein
1092	 72.48	0	1195347..1196051	+	234	184200738	ssb	KRH_10920	-	single-stranded DNA-binding protein
1093	 66.19	-1	1196274..1197956	+	560	184200739	-	KRH_10930	-	putative ABC transporter ATP-binding protein
1094	 76.63	+1	1198438..1201287	-	949	184200740	-	KRH_10940	-	putative penicillin amidase
1095	 73.03	0	1201149..1203080	-	643	184200741	-	KRH_10950	-	putative siderophore biosynthesis protein
1096	 74.61	0	1203077..1205341	-	754	184200742	-	KRH_10960	-	siderophore biosynthesis protein
1097	 73.17	0	1205338..1206843	-	501	184200743	ddc	KRH_10970	-	putative L-2,4-diaminobutyrate decarboxylase
1098	 72.76	0	1206973..1207743	+	256	184200744	-	KRH_10980	-	putative siderophore-interacting protein
1099	 74.35	0	1207740..1209002	+	420	184200745	-	KRH_10990	-	putative MFS transporter
1100	 70.26	0	1209265..1210155	-	296	184200746	-	KRH_11000	-	putative acyl-CoA thioesterase
1101	 65.38	-1	1210199..1210666	+	155	184200747	-	KRH_11010	-	hypothetical protein
1102	 76.93	+1	1210663..1211373	+	236	184200748	-	KRH_11020	-	hypothetical protein
1103	 71.78	0	1211463..1211873	-	136	184200749	glbO	KRH_11030	-	2-on-2 hemoglobin
1104	 71.28	0	1212161..1214740	-	859	184200750	pepN	KRH_11040	-	aminopeptidase N
1105	 70.18	0	1214998..1215510	+	170	184200751	rpiB	KRH_11050	-	ribose 5-phosphate isomerase B
1106	 74.92	+1	1215526..1216446	+	306	184200752	-	KRH_11060	-	putative DNA glycosylase
1107	 67.41	0	1217162..1218508	+	448	184200753	tig	KRH_11070	-	trigger factor
1108	 66.97	-1	1218736..1219389	+	217	184200754	clpP	KRH_11080	-	ATP-dependent Clp protease proteolytic subunit
1109	 65.61	-1	1219439..1220101	+	220	184200755	clpP	KRH_11090	-	ATP-dependent Clp protease proteolytic subunit
1110	 65.35	-1	1220251..1221546	+	431	184200756	clpX	KRH_11100	-	ATP-dependent Clp protease ATP-binding subunit ClpX
1111	 67.33	0	1221577..1222179	+	200	184200757	-	KRH_11110	-	DSBA oxidoreductase family protein
1112	 73.93	0	1222353..1223384	-	343	184200758	-	KRH_11120	-	hypothetical protein
70.94	MEAN

3.83	STD DEV
