IslandPath Analysis: Klebsiella pneumoniae 342

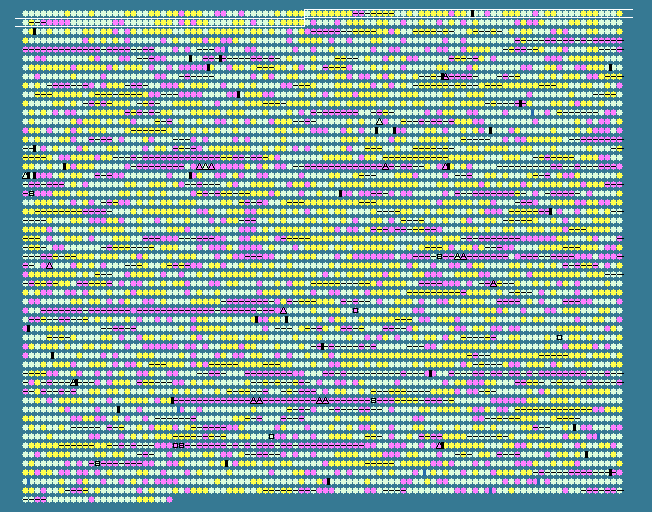

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 57.01   STD DEV: 6.61
Klebsiella pneumoniae 342, complete genome - 1..5641239
5425 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
48	 55.43	0	49719..49994	-	91	206577615	-	KPK_0048	-	hypothetical protein
49	 62.02	0	50116..51018	-	300	206578384	-	KPK_0049	-	putative transport protein
50	 63.38	0	51170..52600	-	476	206576235	murP	KPK_0050	-	PTS system, N-acetylmuramic acid-specific EIIBC component
51	 62.02	0	52625..53527	-	300	206575804	murQ	KPK_0051	-	N-acetylmuramic acid 6-phosphate etherase
52	 63.92	+1	53690..54853	-	387	206579124	-	KPK_0052	-	drug resistance transporter, Bcr/CflA subfamily
53	 64.69	+1	54899..56263	-	454	206580081	eefC	KPK_0053	-	multidrug efflux transporter EefC
54	 63.58	0	56267..59374	-	1035	206578026	eefB	KPK_0054	-	multidrug efflux permease EefB
55	 62.67	0	59374..60498	-	374	206578875	eefA	KPK_0055	-	multidrug efflux transporter EefA
56	 29.27	-2	60705..60827	+	40	206579940	-	KPK_0057	-	hypothetical protein
57	 34.19	-2	60787..60903	-	38	206576740	-	KPK_0056	-	hypothetical protein
58	 56.83	0	60878..61294	+	138	206578755	-	KPK_0058	-	acetyltransferase, GNAT family
59	 60.65	0	61396..62043	-	215	206579332	-	KPK_0059	-	transcriptional regulator, TetR family
60	 62.65	0	62124..63617	+	497	206578230	-	KPK_0061	-	drug resistance MFS transporter, drug:H+ antiporter-1 (DHA2) family
61	 65.46	+1	63614..64528	-	304	206577630	-	KPK_0060	-	transcriptional regulator, LysR family
62	 61.43	0	64624..65253	+	209	206578933	-	KPK_0062	-	pyridoxamine 5'-phosphate oxidase family protein
63	 60.30	0	65253..65723	+	156	206579478	-	KPK_0063	-	hypothetical protein
64	 60.34	0	65744..66280	-	178	206577339	-	KPK_0064	-	putative peroxidase
65	 67.00	+1	66397..67302	+	301	206578276	-	KPK_0065	-	transcriptional regulator, AraC family
66	 58.64	0	67430..68239	+	269	206577779	nlpA	KPK_0066	-	lipoprotein NlpA
67	 63.27	0	68264..69118	+	284	206578342	-	KPK_0068	-	hypothetical protein
68	 61.14	0	69108..69668	-	186	206578673	-	KPK_0067	-	putative ADP-ribose pyrophosphatase
69	 60.64	0	69836..70615	+	259	206577111	-	KPK_0069	-	hypothetical protein
70	 64.68	+1	70637..71590	+	317	206576244	-	KPK_0071	-	transcriptional regulator, AraC family
71	 62.86	0	71587..72636	-	349	206576842	-	KPK_0070	-	oxidoreductase, zinc-binding dehydrogenase family
72	 52.07	0	72959..73705	+	248	206577931	-	KPK_0072	-	hypothetical protein
73	 63.57	0	73757..74047	-	96	206577125	-	KPK_0073	-	antibiotic biosynthesis monooxygenase domain protein
74	 64.38	+1	74049..75056	-	335	206576123	-	KPK_0074	-	zinc-binding alcohol dehydrogenase family protein
75	 58.97	0	75169..75636	-	155	206576014	-	KPK_0075	-	hypothetical protein
76	 59.35	0	76191..77585	+	464	206580308	-	KPK_0077	-	sugar transporter, glycoside-pentoside-hexuronide (GPH):cation symporter family
77	 60.24	0	77598..79916	+	772	206580909	yicI	KPK_0078	-	alpha-xylosidase
78	 52.97	0	80075..80797	+	240	206575989	-	KPK_0079	-	transcriptional regulator, RpiR family
79	 56.52	0	81707..83086	-	459	206577985	-	KPK_0080	-	glycosyl hydrolase, family 4
80	 53.97	0	83099..84658	-	519	206577556	-	KPK_0081	-	PTS system, IIBC component
81	 62.96	0	84909..86606	-	565	206579773	-	KPK_0082	-	AsmA family protein
82	 60.63	0	86747..88138	-	463	206581086	-	KPK_0083	-	xanthine permease
83	 60.68	0	88423..89625	+	400	206580320	gltS	KPK_0084	-	sodium/glutamate symporter
84	 59.39	0	89740..91251	-	503	206579874	glpK	KPK_0085	-	glycerol kinase
85	 59.27	0	91273..92124	-	283	206576708	glpF	KPK_0086	-	glycerol uptake facilitator protein
86	 50.00	-1	92567..92812	+	81	206576869	-	KPK_0087	-	hypothetical protein
87	 55.66	0	92964..93953	+	329	206576596	sbp	KPK_0088	-	sulfate-binding protein
88	 61.83	0	94123..94887	+	254	206579576	cdh	KPK_0089	-	CDP-diacylglycerol pyrophosphatase
89	 62.84	0	94952..96256	+	434	206578836	-	KPK_0090	-	sodium:sulfate symporter family protein
90	 57.16	0	96349..97116	-	255	206581122	tpiA	KPK_0091	-	triosephosphate isomerase
91	 56.50	0	97226..97825	-	199	206580296	-	KPK_0092	-	hypothetical protein
92	 60.37	0	97938..98366	+	142	206580307	-	KPK_0093	-	hypothetical protein
93	 59.97	0	98367..99113	-	248	206575838	fpr	KPK_0094	-	ferredoxin--NADP(+) reductase
94	 60.83	0	99264..100274	-	336	206577819	glpX	KPK_0095	-	fructose-1,6-bisphosphatase, class II
95	 62.54	0	100325..102406	-	693	206577391	recG	KPK_0096	-	ATP-dependent DNA helicase RecG
96	 61.30	0	102412..103101	-	229	206577394	trmH	KPK_0097	-	tRNA guanosine-2'-O-methyltransferase
97	 57.33	0	103106..105226	-	706	206579714	spoT	KPK_0098	-	guanosine-3',5'-bis(diphosphate) 3'-diphosphatase
98	 53.62	0	105245..105520	-	91	206580733	rpoZ	KPK_0099	-	DNA-directed RNA polymerase, omega subunit
99	 54.81	0	105575..106198	-	207	206580871	gmk	KPK_0100	-	guanylate kinase
100	 63.98	+1	106456..108132	+	558	206576543	ligB	KPK_0101	-	NAD(+)-dependent DNA ligase LigB
101	 59.06	0	108138..108755	-	205	206577321	-	KPK_0102	-	hypothetical protein
102	 60.96	0	108977..110290	+	437	206576576	-	KPK_0103	-	chloride transporter, chloride channel (ClC) family
103	 57.29	0	110340..111203	-	287	206579904	-	KPK_0104	-	conserved hypothetical protein TIGR00255
104	 37.85	-2	111276..111452	+	58	206580192	-	KPK_0105	-	hypothetical protein
105	 40.27	-2	111847..113547	+	566	206578775	-	KPK_0106	-	hypothetical protein
106	 46.07	-1	113634..114599	+	321	206578540	-	KPK_0107	-	putative lipoprotein
107	 46.73	-1	114592..115509	+	305	206576186	-	KPK_0108	-	ABC transporter, ATP-binding protein
108	 45.70	-1	115496..116635	+	379	206580466	-	KPK_0109	-	ABC transporter, permease protein
109	 58.86	0	116731..117447	+	238	206579777	rph	KPK_0110	-	ribonuclease PH
110	 57.32	0	117559..118200	+	213	206579381	pyrE	KPK_0111	-	orotate phosphoribosyltransferase
111	 55.85	0	118238..119254	-	338	206578663	-	KPK_0112	-	SMP-30/gluconolactonase/LRE family protein
112	 55.61	0	119430..120026	-	198	206576017	-	KPK_0113	-	transcriptional regulator domain protein, TetR family
113	 60.13	0	120151..120609	-	152	206580470	dut	KPK_0114	-	dUTP diphosphatase
114	 59.03	0	120587..121804	-	405	206580238	coaBC	KPK_0115	-	phosphopantothenoylcysteine decarboxylase/phosphopantothenate--cysteine ligase
115	 54.05	0	121974..122639	+	221	206579335	radC	KPK_0116	-	DNA repair protein RadC
116	 53.16	0	122856..123092	+	78	206578199	rpmB	KPK_0117	-	ribosomal protein L28
117	 41.67	-2	123113..123280	+	55	206580922	rpmG	KPK_0118	-	ribosomal protein L33
118	 58.15	0	123416..124225	+	269	206576628	mutM	KPK_0119	-	formamidopyrimidine-DNA glycosylase
119	 56.25	0	124357..124836	-	159	206576018	coaD	KPK_0120	-	pantetheine-phosphate adenylyltransferase
120	 60.05	0	124839..125609	-	256	206577849	-	KPK_0121	-	glycosyl transferase, group 2 family protein
121	 59.92	0	125609..126883	-	424	206575984	waaA	KPK_0122	-	3-deoxy-D-manno-octulosonic-acid transferase
122	 56.36	0	126975..127964	-	329	206577814	-	KPK_0123	-	glycosyl transferase, group 2 family protein
123	 61.92	0	127994..129088	-	364	206577219	-	KPK_0124	-	glycosyl transferase, group 1 family protein
124	 62.50	0	129091..130218	-	375	206579686	-	KPK_0125	-	putative lipopolysaccharide core biosynthesis protein RfaG
125	 60.54	0	130215..131291	-	358	206579090	rfaQ	KPK_0126	-	lipopolysaccharide core biosynthesis glycosyltransferase RfaQ
126	 55.24	0	131403..132365	+	320	206580845	-	KPK_0127	-	walW protein
127	 51.76	0	132384..133463	+	359	206576993	-	KPK_0128	-	putative lipopolysaccharide 1,2-N-acetylglucosaminetransferase RfaK
128	 60.76	0	133507..134589	-	360	206576181	waaL	KPK_0129	-	surface polymer ligase WaaL
129	 52.70	0	134654..135562	-	302	206575738	-	KPK_0130	-	putative lipopolysaccharide core biosynthesis protein RfaZ
130	 62.76	0	135562..136533	-	323	206577745	rfaC	KPK_0131	-	lipopolysaccharide heptosyltransferase I
131	 61.00	0	136537..137595	-	352	206576091	rfaF	KPK_0132	-	lipopolysaccharide heptosyltransferase II
132	 54.88	0	137604..138536	-	310	206578147	rfaD	KPK_0133	-	ADP-glyceromanno-heptose 6-epimerase
133	 60.05	0	138750..139943	+	397	206577718	kbl	KPK_0134	-	2-amino-3-ketobutyrate coenzyme A ligase
134	 58.48	0	139956..140981	+	341	206579625	tdh	KPK_0135	-	L-threonine 3-dehydrogenase
135	 57.29	0	141151..141939	+	262	206579235	-	KPK_0136	-	glycosyl transferase, group 2 family protein
136	 60.61	0	141945..142901	-	318	206578516	-	KPK_0137	-	polysaccharide deacetylase family protein
137	 61.32	0	142905..144176	-	423	206579386	-	KPK_0138	-	M23 peptidase domain protein
138	 58.25	0	144186..145730	-	514	206577275	gpmI	KPK_0139	-	2,3-bisphosphoglycerate-independent phosphoglycerate mutase
139	 53.01	0	145976..146407	+	143	206578346	-	KPK_0140	-	rhodanese domain protein
140	 55.16	0	146512..146763	+	83	206576196	grxC	KPK_0141	-	glutaredoxin 3
141	 55.56	0	146824..147291	+	155	206576226	secB	KPK_0142	-	protein-export chaperone SecB
142	 60.69	0	147291..148310	+	339	206577002	-	KPK_0143	-	NAD-dependent glycerol-3-phosphate dehydrogenase
143	 60.34	0	148384..149205	+	273	206580507	cysE	KPK_0144	-	serine O-acetyltransferase
144	 60.76	0	149287..149760	-	157	206578587	-	KPK_0145	-	RNA methyltransferase, TrmH family, group 2
145	 63.38	0	149941..151125	-	394	206577634	lldD	KPK_0146	-	L-lactate dehydrogenase (cytochrome)
146	 62.40	0	151125..151898	-	257	206578378	-	KPK_0147	-	putative L-lactate dehydrogenase operon regulatory protein LldR
147	 60.57	0	151895..153550	-	551	206579413	lldP	KPK_0148	-	L-lactate permease
57.01	MEAN

6.61	STD DEV
