IslandPathversion 1.0

IslandPath Analysis: Klebsiella pneumoniae 342

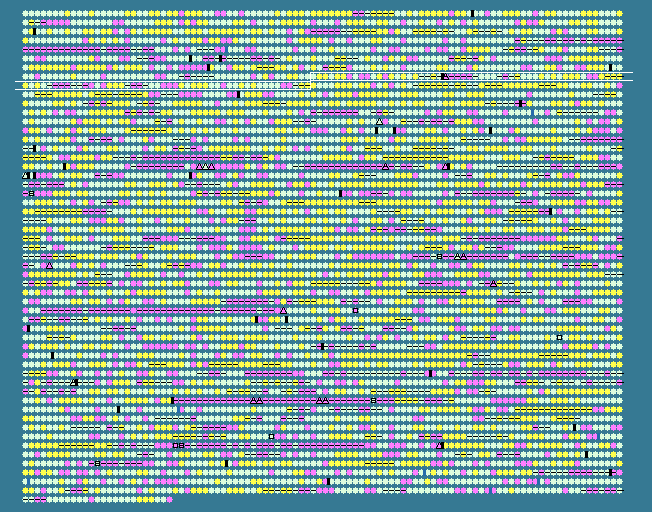

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 6.61
Klebsiella pneumoniae 342, complete genome - 1..5641239
5425 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
749	 60.23	0	770556..773429	+	957	206576161	gcvP	KPK_0761	-	glycine dehydrogenase (decarboxylating)
750	 62.37	0	773490..774233	+	247	206578211	-	KPK_0762	-	NAD dependent epimerase/dehydratase family
751	 64.09	+1	774549..775052	-	167	206576713	scsD	KPK_0763	-	suppressor for copper-sensitivity D
752	 54.90	0	775042..775653	-	203	206577589	scsC	KPK_0764	-	suppressor for copper-sensitivity C
753	 64.22	+1	775655..777658	-	667	206576991	scsB	KPK_0765	-	suppressor for copper-sensitivity B
754	 62.50	0	777714..778073	-	119	206578733	scsA	KPK_0766	-	suppressor for copper-sensitivity A
755	 47.01	-1	778048..778164	+	38	206578174	-	KPK_0767	-	hypothetical protein
756	 56.42	0	778198..779631	-	477	206578920	bglA	KPK_0768	-	6-phospho-beta-glucosidase BglA
757	 52.24	0	779751..780485	-	244	206579585	-	KPK_0769	-	transcriptional regulator, RpiR family
758	 51.60	0	780530..780841	+	103	206576438	-	KPK_0770	-	hypothetical protein
759	 57.88	0	781005..781664	+	219	206581111	-	KPK_0771	-	channel protein, hemolysin III family
760	 62.20	0	781820..782803	-	327	206575880	ygfZ	KPK_0772	-	tRNA-modifying protein YgfZ
761	 53.18	0	783049..783315	+	88	206576457	-	KPK_0773	-	TPR repeat protein
762	 62.29	0	783296..783706	+	136	206576569	-	KPK_0774	-	hypothetical protein
763	 56.13	0	783713..784234	-	173	206579862	fldB	KPK_0775	-	flavodoxin
764	 61.09	0	784335..785231	+	298	206576348	xerD	KPK_0776	-	tyrosine recombinase XerD
765	 57.70	0	785254..785967	+	237	206576982	dsbC	KPK_0777	-	thiol:disulfide interchange protein DsbC
766	 62.28	0	785973..787706	+	577	206577627	recJ	KPK_0778	-	single-stranded-DNA-specific exonuclease RecJ
767	 56.14	0	787792..788890	+	365	206578228	prfB	KPK_0779	-	peptide chain release factor 2
768	 56.13	0	788900..790417	+	505	206578828	lysS	KPK_0780	-	lysyl-tRNA synthetase LysS
769	 61.08	0	790648..791202	-	184	206579322	idi	KPK_0781	-	isopentenyl-diphosphate delta-isomerase
770	 59.86	0	791495..792229	+	244	206580990	-	KPK_0782	-	M23 peptidase domain protein
771	 49.24	-1	792525..794165	+	546	206580411	-	KPK_0784	-	site-specific recombinase, phage integrase family
772	 46.92	-1	794134..794766	+	210	206577454	-	KPK_0785	-	hypothetical protein
773	 49.21	-1	795820..796512	+	230	206576758	-	KPK_0786	-	hypothetical protein
774	 51.16	0	796869..797300	+	143	206577920	-	KPK_0787	-	hypothetical protein
775	 53.16	0	797399..798538	+	379	206576639	-	KPK_0788	-	hypothetical protein
776	 58.60	0	799139..800527	-	462	206578627	-	KPK_0789	-	transporter, major facilitator family
777	 57.53	0	800657..801586	+	309	206577921	-	KPK_0790	-	transcriptional regulator, LysR family
778	 57.59	0	801947..802750	-	267	206579817	-	KPK_0791	-	carboxymuconolactone decarboxylase family protein
779	 59.51	0	802783..803802	-	339	206579048	-	KPK_0792	-	oxidoreductase, aldo/keto reductase family
780	 57.27	0	803823..804386	-	187	206580963	-	KPK_0793	-	flavodoxin fold family protein
781	 51.78	0	804389..804697	-	102	206580195	-	KPK_0794	-	hypothetical protein
782	 54.22	0	804836..805735	+	299	206579234	-	KPK_0795	-	transcriptional regulator, LysR family
783	 64.13	+1	805905..806180	+	91	206578503	-	KPK_0796	-	hypothetical protein
784	 60.03	0	806184..806756	-	190	206579729	-	KPK_0797	-	hypothetical protein
785	 56.80	0	806775..807068	-	97	206578974	-	KPK_0798	-	YciL domain protein
786	 59.39	0	807288..807617	+	109	206575891	arsR_1	KPK_0799	-	arsenical resistance operon repressor
787	 61.25	0	807670..808962	+	430	206577873	arsB_1	KPK_0800	-	arsenical pump membrane protein
788	 58.87	0	808972..809394	+	140	206577469	arsC_1	KPK_0801	-	arsenate reductase
789	 60.75	0	809872..811425	+	517	206578261	-	KPK_0802	-	amino acid/peptide transporter
790	 56.33	0	811609..811908	+	99	206580954	-	KPK_0803	-	hypothetical protein
791	 63.98	+1	812175..813623	-	482	206580172	mdtP	KPK_0804	-	multidrug resistance outer membrane protein MdtP
792	 65.27	+1	813620..815557	-	645	206579015	mdtO	KPK_0805	-	multidrug resistance protein MdtO
793	 64.13	+1	815570..816595	-	341	206580947	mdtN	KPK_0806	-	multidrug resistance protein MdtN
794	 56.41	0	816602..816874	-	90	206580601	-	KPK_0807	-	hypothetical protein
795	 52.81	0	817081..817311	+	76	206578495	-	KPK_0808	-	hypothetical protein
796	 51.65	0	817323..817595	+	90	206576874	-	KPK_0809	-	hypothetical protein
797	 60.63	0	817638..818879	-	413	206580312	-	KPK_0810	-	putative cyclic diguanylate phosphodiesterase
798	 61.04	0	819047..819952	-	301	206575974	fimH	KPK_0811	-	fimbrial protein FimH
799	 63.27	0	819970..820470	-	166	206576049	fimG	KPK_0812	-	fimbrial protein FimG
800	 62.31	0	820483..821010	-	175	206577173	fimF	KPK_0813	-	fimbrial protein FimF
801	 62.35	0	821021..823636	-	871	206577896	fimD	KPK_0814	-	outer membrane usher protein fimD
802	 58.87	0	823717..824421	-	234	206578956	fimC	KPK_0815	-	chaperone protein FimC
803	 60.80	0	824471..824998	-	175	206579140	-	KPK_0816	-	fimbrial protein
804	 60.29	0	825078..825626	-	182	206579227	fimA	KPK_0817	-	type-1 fimbrial protein
805	 54.19	0	826107..826715	-	202	206578497	fimE	KPK_0818	-	type 1 fimbriae regulatory protein FimE
806	 37.50	-2	826906..827025	-	39	206578435	-	KPK_0819	-	hypothetical protein
807	 51.75	0	827179..827808	-	209	206577666	fimB	KPK_0820	-	type 1 fimbriae regulatory protein FimB
808	 43.79	-1	827832..827984	-	50	206576283	-	KPK_0821	-	hypothetical protein
809	 58.91	0	828098..828226	+	42	206580966	-	KPK_0822	-	hypothetical protein
810	 58.94	0	828637..828882	-	81	206580742	-	KPK_0823	-	hypothetical protein
811	 51.57	0	829232..829774	+	180	206580002	-	KPK_0824	-	fimbrial protein
812	 43.57	-2	829836..830519	+	227	206579881	-	KPK_0825	-	gram-negative pilus assembly chaperone
813	 53.57	0	830532..833012	+	826	206579142	-	KPK_0826	-	fimbrial usher protein
814	 49.25	-1	833286..834014	+	242	206578358	-	KPK_0827	-	hypothetical protein
815	 63.23	0	834151..835110	+	319	206579816	-	KPK_0829	-	transporter, Ni2+-Co2+ transporter (NiCoT) family
816	 61.93	0	835107..835613	-	168	206576374	-	KPK_0828	-	transcriptional regulator, MarR family
817	 64.21	+1	835695..836591	+	298	206579792	-	KPK_0830	-	hypothetical protein
818	 53.81	0	836690..836899	-	69	206580688	-	KPK_0831	-	hypothetical protein
819	 53.53	0	837605..838213	+	202	206578759	mrkF	KPK_0832	-	mrkF protein
820	 53.17	0	838285..839010	+	241	206579533	-	KPK_0833	-	gram-negative pili assembly chaperone
821	 58.71	0	839022..841508	+	828	206579842	mrkC	KPK_0834	-	outer membrane usher protein MrkC
822	 58.03	0	841499..842494	+	331	206580352	-	KPK_0835	-	fimbrial protein
823	 57.23	0	842508..843143	+	211	206578638	-	KPK_0836	-	fimbrial protein
824	 45.75	-1	843179..843895	-	238	206576077	-	KPK_0837	-	cyclic diguanylate phosphodiesterase (EAL) domain protein
825	 47.01	-1	844039..844623	-	194	206575999	-	KPK_0838	-	transcriptional regulator, LuxR family
826	 44.68	-1	844629..845333	-	234	206576582	-	KPK_0839	-	type IV pilus assembly family protein
827	 63.59	0	845716..846594	-	292	206580645	-	KPK_0840	-	oxidoreductase, aldo/keto reductase family
828	 56.75	0	846714..847943	-	409	206580089	-	KPK_0841	-	serine transporter family protein
829	 61.69	0	848068..848529	-	153	206576082	-	KPK_0842	-	hypothetical protein
830	 64.25	+1	848632..849501	+	289	206580953	-	KPK_0843	-	transcriptional regulator, LysR family
831	 64.89	+1	849620..850798	+	392	206578252	-	KPK_0844	-	acetyl-CoA acetyltransferase
832	 54.17	0	851048..851743	+	231	206577460	-	KPK_0845	-	putative oligogalacturonate-specific porin
833	 56.89	0	851878..853053	-	391	206580055	ogl	KPK_0846	-	oligogalacturonate lyase
834	 51.63	0	853177..853329	-	50	206577830	-	KPK_0847	-	hypothetical protein
835	 60.24	0	853541..854302	+	253	206578131	kduD	KPK_0848	-	2-deoxy-D-gluconate 3-dehydrogenase
836	 58.86	0	854601..856022	+	473	206576925	araE	KPK_0850	-	arabinose-proton symporter
837	 63.35	0	856019..857014	-	331	206577658	-	KPK_0849	-	sugar binding transcriptional regulator, LacI family
838	 57.73	0	857256..858497	+	413	206576286	-	KPK_0851	-	oligosaccharide:H+ symporter
839	 62.42	0	858514..859950	+	478	206578244	cscA	KPK_0852	-	beta-fructofuranosidase
840	 55.95	0	860072..861415	+	447	206577303	-	KPK_0853	-	putative glycoporin RfaY
841	 56.10	0	861475..862761	-	428	206579309	togB	KPK_0854	-	oligogalacturonide ABC transporter, periplasmic pectic oligomer-binding protein
842	 55.50	0	862778..863905	-	375	206578602	togA	KPK_0855	-	oligogalacturonide ABC transporter, ATP-binding protein
843	 56.04	0	863918..864820	-	300	206580532	togN	KPK_0856	-	oligogalacturonide ABC transporter, permease protein TogN
844	 52.75	0	864813..865703	-	296	206576411	togM	KPK_0857	-	oligogalacturonide ABC transporter, permease protein TogM
845	 45.83	-1	866010..866153	-	47	206578884	-	KPK_0858	-	hypothetical protein
846	 57.80	0	866157..866483	-	108	206577982	kdgF	KPK_0859	-	pectin degradation protein KdgF
847	 62.46	0	866623..867336	+	237	206579517	-	KPK_0861	-	aspartate racemase family protein
848	 64.83	+1	867302..868228	-	308	206580450	lysR	KPK_0860	-	transcriptional activator protein LysR
57.01	MEAN

6.61	STD DEV
