IslandPath Analysis: Klebsiella pneumoniae 342

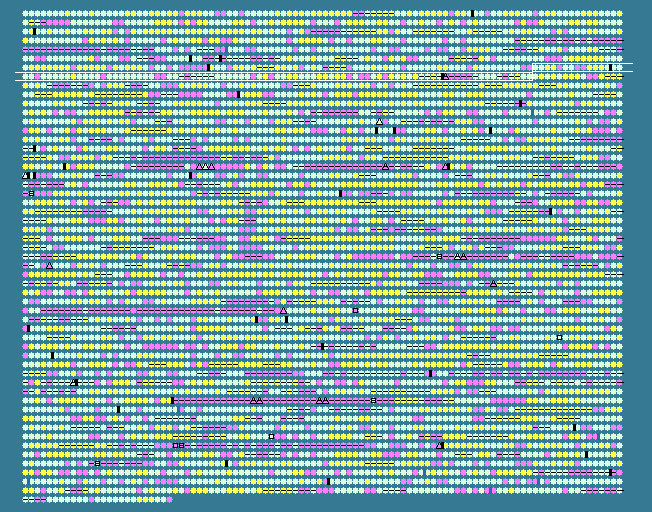

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 6.61
Klebsiella pneumoniae 342, complete genome - 1..5641239
5425 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
686	 58.11	0	709977..710864	+	295	206575860	-	KPK_0697	-	dienelactone hydrolase family protein
687	 55.21	0	710943..711230	+	95	206578941	-	KPK_0698	-	hypothetical protein
688	 60.90	0	711303..712169	-	288	206580864	-	KPK_0699	-	glutathione S-transferase domain protein
689	 61.32	0	712217..712777	-	186	206576662	-	KPK_0700	-	hypothetical protein
690	 41.67	-2	712777..712920	+	47	206576201	-	KPK_0701	-	hypothetical protein
691	 56.86	0	712997..714862	+	621	206575912	gsp	KPK_0702	-	bifunctional glutathionylspermidine synthetase/amidase
692	 60.07	0	715008..716189	+	393	206577140	-	KPK_0703	-	aminotransferase, classes I and II
693	 41.80	-2	716386..716574	-	62	206578523	-	KPK_0704	-	hypothetical protein
694	 53.33	0	716774..717118	-	114	206579047	-	KPK_0705	-	hypothetical protein
695	 62.19	0	717205..717807	-	200	206581048	-	KPK_0706	-	oxidoreductase, short chain dehydrogenase/reductase family
696	 66.12	+1	717905..718816	+	303	206580258	-	KPK_0707	-	transcriptional regulator, LysR family
697	 63.10	0	718817..719965	-	382	206577860	-	KPK_0708	-	putative cystathionine beta-lyase
698	 60.13	0	719977..721353	-	458	206578606	-	KPK_0709	-	putative cystathionine beta-synthase
699	 56.16	0	722215..722928	-	237	206579350	-	KPK_0711	-	hypothetical protein
700	 59.65	0	723348..725486	+	712	206580796	speC	KPK_0712	-	ornithine decarboxylase, constitutive
701	 56.30	0	725530..726783	-	417	206576052	nupG	KPK_0713	-	nucleoside permease NupG
702	 56.05	0	726975..728057	-	360	206578787	mltC	KPK_0714	-	membrane-bound lytic murein transglycosylase C
703	 52.54	0	728106..728381	-	91	206576508	yggX	KPK_0715	-	protein YggX
704	 58.17	0	728410..729468	-	352	206579997	mutY	KPK_0716	-	A/G-specific adenine glycosylase
705	 55.56	0	729605..730324	+	239	206576290	trmB	KPK_0717	-	tRNA (guanine-N(7)-)-methyltransferase
706	 54.13	0	730324..730650	+	108	206577066	-	KPK_0718	-	hypothetical protein
707	 58.61	0	730701..731420	+	239	206577480	-	KPK_0719	-	hypothetical protein
708	 60.42	0	731461..732597	-	378	206578289	-	KPK_0720	-	putative oxygen-independent coproporphyrinogen III oxidase
709	 60.61	0	732590..733183	-	197	206578648	rdgB	KPK_0721	-	non-canonical purine NTP pyrophosphatase RdgB
710	 57.04	0	733196..733486	-	96	206579395	-	KPK_0722	-	conserved hypothetical protein TIGR00251
711	 57.50	0	733483..734049	-	188	206578029	-	KPK_0723	-	YGGT family protein
712	 57.55	0	734070..734771	-	233	206579525	-	KPK_0724	-	alanine racemase family
713	 60.45	0	734788..735768	+	326	206578904	-	KPK_0725	-	twitching motility family protein
714	 48.01	-1	736117..736770	+	217	206577986	-	KPK_0726	-	transcriptional regulator, LuxR family
715	 58.03	0	736823..737239	-	138	206577149	-	KPK_0727	-	conserved hypothetical protein TIGR00250
716	 55.50	0	737239..737802	-	187	206578334	-	KPK_0728	-	hypothetical protein
717	 56.89	0	737977..738927	-	316	206577717	gshB	KPK_0729	-	glutathione synthase
718	 56.83	0	738948..739679	-	243	206576729	rsmE	KPK_0730	-	ribosomal RNA small subunit methyltransferase RsmE
719	 57.06	0	739771..740478	-	235	206576144	endA	KPK_0731	-	endonuclease-1
720	 60.08	0	740573..741073	-	166	206578701	sprT	KPK_0732	-	protein SprT
721	 58.06	0	741151..742545	-	464	206580389	galP	KPK_0733	-	galactose-proton symporter
722	 57.66	0	742924..744078	-	384	206577838	metK	KPK_0734	-	S-adenosylmethionine synthetase
723	 46.78	-1	744226..744396	-	56	206577200	-	KPK_0735	-	hypothetical protein
724	 40.91	-2	744780..744911	+	43	206579646	-	KPK_0736	-	hypothetical protein
725	 60.14	0	744998..746896	+	632	206579063	speA	KPK_0737	-	arginine decarboxylase
726	 59.39	0	747130..748050	+	306	206580808	speB	KPK_0738	-	agmatinase
727	 56.11	0	748182..749450	-	422	206580248	oprD	KPK_0739	-	porin D
728	 48.89	-1	749569..749703	+	44	206575924	-	KPK_0740	-	hypothetical protein
729	 57.84	0	749828..750586	-	252	206578062	-	KPK_0741	-	peptidase, M48B family
730	 59.59	0	750867..752858	+	663	206575753	tktA_1	KPK_0742	-	transketolase
731	 55.88	0	753243..754271	+	342	206577912	epd	KPK_0743	-	D-erythrose-4-phosphate dehydrogenase
732	 55.58	0	754311..755474	+	387	206579376	pgk	KPK_0744	-	phosphoglycerate kinase
733	 54.44	0	755572..756651	+	359	206578717	fbaA	KPK_0745	-	fructose-bisphosphate aldolase
734	 56.64	0	756843..757700	+	285	206580535	mscS	KPK_0746	-	small-conductance mechanosensitive channel
735	 58.02	0	757852..758487	+	211	206579893	argO	KPK_0747	-	arginine exporter protein ArgO
736	 56.26	0	758577..759335	+	252	206576957	-	KPK_0748	-	hypothetical protein
737	 59.73	0	759390..760283	-	297	206576372	argP	KPK_0749	-	transcriptional regulator ArgP
738	 58.79	0	760451..761110	+	219	206578185	rpiA	KPK_0750	-	ribose 5-phosphate isomerase A
739	 42.42	-2	761217..761348	-	43	206577599	-	KPK_0751	-	hypothetical protein
740	 57.58	0	761380..762612	+	410	206578579	serA	KPK_0752	-	phosphoglycerate dehydrogenase
741	 61.14	0	762696..763292	-	198	206579135	-	KPK_0753	-	5,10-methenyltetrahydrofolate synthetase
742	 49.39	-1	763616..763945	-	109	206578889	-	KPK_0754	-	Zapa family protein
743	 55.79	0	764112..764690	+	192	206578319	-	KPK_0755	-	YecA family protein
744	 57.93	0	764714..766030	+	438	206579369	pepP	KPK_0756	-	Xaa-Pro aminopeptidase
745	 64.72	+1	766027..767205	+	392	206578789	ubiH	KPK_0757	-	2-octaprenyl-6-methoxyphenol hydroxylase
746	 61.76	0	767216..768418	+	400	206580544	-	KPK_0758	-	ubiquinone biosynthesis hydroxylase, UbiH/UbiF/VisC/COQ6 family
747	 58.69	0	768808..769935	+	375	206579883	gcvT	KPK_0759	-	glycine cleavage system T protein
748	 55.64	0	769960..770349	+	129	206577051	gcvH	KPK_0760	-	glycine cleavage system H protein
749	 60.23	0	770556..773429	+	957	206576161	gcvP	KPK_0761	-	glycine dehydrogenase (decarboxylating)
750	 62.37	0	773490..774233	+	247	206578211	-	KPK_0762	-	NAD dependent epimerase/dehydratase family
751	 64.09	+1	774549..775052	-	167	206576713	scsD	KPK_0763	-	suppressor for copper-sensitivity D
752	 54.90	0	775042..775653	-	203	206577589	scsC	KPK_0764	-	suppressor for copper-sensitivity C
753	 64.22	+1	775655..777658	-	667	206576991	scsB	KPK_0765	-	suppressor for copper-sensitivity B
754	 62.50	0	777714..778073	-	119	206578733	scsA	KPK_0766	-	suppressor for copper-sensitivity A
755	 47.01	-1	778048..778164	+	38	206578174	-	KPK_0767	-	hypothetical protein
756	 56.42	0	778198..779631	-	477	206578920	bglA	KPK_0768	-	6-phospho-beta-glucosidase BglA
757	 52.24	0	779751..780485	-	244	206579585	-	KPK_0769	-	transcriptional regulator, RpiR family
758	 51.60	0	780530..780841	+	103	206576438	-	KPK_0770	-	hypothetical protein
759	 57.88	0	781005..781664	+	219	206581111	-	KPK_0771	-	channel protein, hemolysin III family
760	 62.20	0	781820..782803	-	327	206575880	ygfZ	KPK_0772	-	tRNA-modifying protein YgfZ
761	 53.18	0	783049..783315	+	88	206576457	-	KPK_0773	-	TPR repeat protein
762	 62.29	0	783296..783706	+	136	206576569	-	KPK_0774	-	hypothetical protein
763	 56.13	0	783713..784234	-	173	206579862	fldB	KPK_0775	-	flavodoxin
764	 61.09	0	784335..785231	+	298	206576348	xerD	KPK_0776	-	tyrosine recombinase XerD
765	 57.70	0	785254..785967	+	237	206576982	dsbC	KPK_0777	-	thiol:disulfide interchange protein DsbC
766	 62.28	0	785973..787706	+	577	206577627	recJ	KPK_0778	-	single-stranded-DNA-specific exonuclease RecJ
767	 56.14	0	787792..788890	+	365	206578228	prfB	KPK_0779	-	peptide chain release factor 2
768	 56.13	0	788900..790417	+	505	206578828	lysS	KPK_0780	-	lysyl-tRNA synthetase LysS
769	 61.08	0	790648..791202	-	184	206579322	idi	KPK_0781	-	isopentenyl-diphosphate delta-isomerase
770	 59.86	0	791495..792229	+	244	206580990	-	KPK_0782	-	M23 peptidase domain protein
771	 49.24	-1	792525..794165	+	546	206580411	-	KPK_0784	-	site-specific recombinase, phage integrase family
772	 46.92	-1	794134..794766	+	210	206577454	-	KPK_0785	-	hypothetical protein
773	 49.21	-1	795820..796512	+	230	206576758	-	KPK_0786	-	hypothetical protein
774	 51.16	0	796869..797300	+	143	206577920	-	KPK_0787	-	hypothetical protein
775	 53.16	0	797399..798538	+	379	206576639	-	KPK_0788	-	hypothetical protein
776	 58.60	0	799139..800527	-	462	206578627	-	KPK_0789	-	transporter, major facilitator family
777	 57.53	0	800657..801586	+	309	206577921	-	KPK_0790	-	transcriptional regulator, LysR family
778	 57.59	0	801947..802750	-	267	206579817	-	KPK_0791	-	carboxymuconolactone decarboxylase family protein
779	 59.51	0	802783..803802	-	339	206579048	-	KPK_0792	-	oxidoreductase, aldo/keto reductase family
780	 57.27	0	803823..804386	-	187	206580963	-	KPK_0793	-	flavodoxin fold family protein
781	 51.78	0	804389..804697	-	102	206580195	-	KPK_0794	-	hypothetical protein
782	 54.22	0	804836..805735	+	299	206579234	-	KPK_0795	-	transcriptional regulator, LysR family
783	 64.13	+1	805905..806180	+	91	206578503	-	KPK_0796	-	hypothetical protein
784	 60.03	0	806184..806756	-	190	206579729	-	KPK_0797	-	hypothetical protein
785	 56.80	0	806775..807068	-	97	206578974	-	KPK_0798	-	YciL domain protein
57.01	MEAN

6.61	STD DEV
