IslandPath Analysis: Klebsiella pneumoniae 342

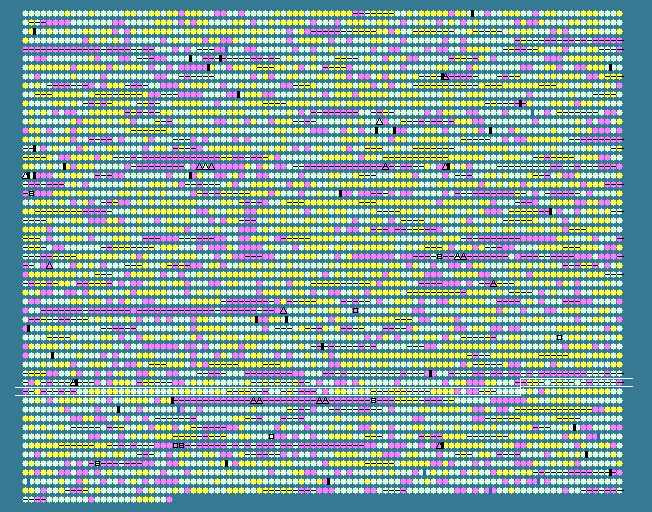

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 6.61
Klebsiella pneumoniae 342, complete genome - 1..5641239
5425 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
4184	 50.83	0	4304831..4304950	-	39	206577553	-	KPK_4269	-	hypothetical protein
4185	 62.68	0	4304950..4306728	-	592	206580053	mdlB	KPK_4270	-	multidrug ABC transporter, permease/ATP-binding protein
4186	 61.08	0	4306721..4308493	-	590	206580784	mdlA	KPK_4271	-	multidrug ABC transporter, permease/ATP-binding protein
4187	 54.47	0	4308536..4308994	-	152	206578490	-	KPK_4272	-	transcriptional regulator, AsnC family
4188	 60.30	0	4309110..4310162	+	350	206579274	-	KPK_4273	-	pyridoxal-phosphate dependent enzyme
4189	 57.88	0	4310207..4311025	-	272	206580111	cof	KPK_4274	-	hydrolase Cof
4190	 62.02	0	4311153..4312853	+	566	206579523	-	KPK_4275	-	putative periplasmic solute-binding protein
4191	 57.55	0	4312920..4313621	+	233	206577844	queC	KPK_4276	-	queuosine biosynthesis protein QueC
4192	 53.73	0	4313732..4314133	-	133	206577240	-	KPK_4277	-	thioesterase family protein
4193	 59.62	0	4314245..4314613	-	122	206579574	-	KPK_4278	-	competence protein ComEA homolog
4194	 57.76	0	4314762..4316636	-	624	206578972	ppiD	KPK_4279	-	peptidylprolyl isomerase
4195	 49.82	-1	4316851..4317123	-	90	206578345	hupB	KPK_4280	-	DNA-binding protein HU, beta subunit
4196	 55.12	0	4317333..4319687	-	784	206577719	lon	KPK_4281	-	ATP-dependent protease La
4197	 55.53	0	4319871..4321145	-	424	206579207	clpX	KPK_4282	-	ATP-dependent Clp protease, ATP-binding subunit ClpX
4198	 55.61	0	4321396..4322019	-	207	206578475	clpP	KPK_4283	-	ATP-dependent Clp protease, proteolytic subunit ClpP
4199	 54.12	0	4322329..4323627	-	432	206575727	tig	KPK_4284	-	trigger factor
4200	 53.14	0	4323973..4324290	-	105	206580724	-	KPK_4285	-	protein BolA
4201	 41.09	-2	4324336..4324464	+	42	206577396	-	KPK_4286	-	hypothetical protein
4202	 58.03	0	4324593..4325171	+	192	206577872	-	KPK_4287	-	putative lipoprotein
4203	 60.50	0	4325215..4326690	+	491	206575735	ampG	KPK_4288	-	AmpG protein
4204	 49.84	-1	4327170..4328114	+	314	206577720	cyoA	KPK_4289	-	cytochrome o ubiquinol oxidase, subunit II
4205	 54.52	0	4328134..4330125	+	663	206578173	cyoB	KPK_4290	-	cytochrome o ubiquinol oxidase, subunit I
4206	 55.23	0	4330115..4330726	+	203	206577207	cyoC	KPK_4291	-	cytochrome o ubiquinol oxidase, subunit III
4207	 50.91	0	4330726..4331055	+	109	206576416	cyoD	KPK_4292	-	cytochrome o ubiquinol oxidase, subunit IV
4208	 56.53	0	4331067..4331954	+	295	206579876	cyoE	KPK_4294	-	protoheme IX farnesyltransferase
4209	 47.15	-1	4331911..4332033	-	40	206577011	-	KPK_4293	-	hypothetical protein
4210	 54.95	0	4332205..4332537	+	110	206580608	-	KPK_4295	-	hypothetical protein
4211	 59.29	0	4332574..4333332	-	252	206577301	-	KPK_4296	-	transcriptional regulator, IclR family
4212	 65.82	+1	4333485..4334306	+	273	206576180	-	KPK_4297	-	putative shikimate 5-dehydrogenase
4213	 65.06	+1	4334303..4335979	+	558	206578121	-	KPK_4298	-	FAD-dependent oxidoreductase
4214	 57.01	0	4335993..4336313	+	106	206577769	-	KPK_4299	-	hypothetical protein
4215	 66.90	+1	4336324..4338015	+	563	206576316	-	KPK_4300	-	FAD-dependent oxidoreductase
4216	 66.67	+1	4338078..4338896	+	272	206580887	-	KPK_4301	-	AP endonuclease, family 2
4217	 60.00	0	4338907..4340271	+	454	206577216	-	KPK_4302	-	4-hydroxybenzoate transporter
4218	 61.24	0	4340601..4341779	+	392	206576913	-	KPK_4303	-	oxidoreductase, NAD binding
4219	 59.78	0	4341939..4343303	+	454	206579128	-	KPK_4304	-	transporter, major facilitator family
4220	 53.86	0	4343346..4343837	-	163	206578566	-	KPK_4305	-	hypothetical protein
4221	 57.79	0	4344055..4344966	+	303	206579053	panE	KPK_4306	-	2-dehydropantoate 2-reductase
4222	 61.95	0	4344929..4345522	+	197	206578160	thiJ	KPK_4307	-	protein ThiJ
4223	 57.02	0	4345573..4346049	+	158	206579253	-	KPK_4308	-	hypothetical protein
4224	 56.38	0	4346119..4347567	-	482	206579645	thiI	KPK_4309	-	thiamine biosynthesis/tRNA modification protein ThiI
4225	 57.61	0	4347749..4347991	+	80	206577258	xseB	KPK_4310	-	exodeoxyribonuclease VII, small subunit
4226	 60.56	0	4347993..4348892	+	299	206576602	ispA	KPK_4311	-	geranyltranstransferase
4227	 60.06	0	4348911..4350773	+	620	206579733	dxs	KPK_4312	-	1-deoxy-D-xylulose-5-phosphate synthase
4228	 62.05	0	4350834..4351808	+	324	206577789	-	KPK_4313	-	oxidoreductase, aldo/keto reductase family
4229	 58.93	0	4351854..4352357	-	167	206580825	pgpA	KPK_4314	-	phosphatidylglycerophosphatase A
4230	 61.63	0	4352350..4353321	-	323	206580351	thiL	KPK_4315	-	thiamine-monophosphate kinase
4231	 55.71	0	4353395..4353814	-	139	206577191	nusB	KPK_4316	-	transcription antitermination factor NusB
4232	 54.99	0	4353834..4354304	-	156	206576632	ribH	KPK_4317	-	6,7-dimethyl-8-ribityllumazine synthase
4233	 63.22	0	4354392..4355495	-	367	206578559	ribD	KPK_4318	-	riboflavin biosynthesis protein RibD
4234	 54.89	0	4355499..4355948	-	149	206578443	-	KPK_4319	-	transcriptional regulator, NrdR family
4235	 60.74	0	4356096..4356635	+	179	206576090	-	KPK_4320	-	putative lipoprotein
4236	 55.14	0	4356936..4357820	+	294	206576028	tsx	KPK_4321	-	nucleoside-specific channel-forming protein
4237	 63.65	+1	4357863..4358558	-	231	206577949	-	KPK_4322	-	helix-turn-helix domain protein
4238	 60.93	0	4358583..4358948	-	121	206577195	-	KPK_4323	-	glyoxalase family protein
4239	 57.92	0	4359085..4360056	-	323	206579173	secF	KPK_4324	-	protein-export membrane protein SecF
4240	 57.47	0	4360067..4361914	-	615	206578988	secD	KPK_4325	-	protein-export membrane protein SecD
4241	 52.85	0	4361941..4362273	-	110	206578929	yajC	KPK_4326	-	preprotein translocase, YajC subunit
4242	 55.50	0	4362296..4363423	-	375	206577628	tgt	KPK_4327	-	queuine tRNA-ribosyltransferase
4243	 60.19	0	4363533..4364597	-	354	206577784	queA	KPK_4328	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
4244	 54.70	0	4364662..4364778	-	38	206579073	-	KPK_4329	-	hypothetical protein
4245	 61.17	0	4364853..4365434	+	193	206579639	acpH	KPK_4330	-	acyl carrier protein phosphodiesterase
4246	 54.56	0	4365562..4366164	+	200	206576800	-	KPK_4331	-	antioxidant, AhpC/TSA family
4247	 36.05	-2	4366309..4366455	-	48	206580154	-	KPK_4332	-	hypothetical protein
4248	 51.13	0	4366511..4366954	+	147	206576000	-	KPK_4333	-	PTS system, IIA component
4249	 44.79	-1	4366960..4367247	+	95	206576580	-	KPK_4334	-	PTS system, IIB component
4250	 56.32	0	4367268..4368659	+	463	206579130	-	KPK_4335	-	putative sugar-specific permease, SgaT/UlaA family
4251	 49.33	-1	4368725..4369687	+	320	206580900	-	KPK_4336	-	kinase, pfkB family
4252	 55.59	0	4369711..4370577	+	288	206575739	-	KPK_4337	-	putative fructose-1,6-bisphosphate aldolase, class II
4253	 62.17	0	4370637..4372505	-	622	206578068	-	KPK_4338	-	amidohydrolase family protein
4254	 61.36	0	4372530..4373075	-	181	206579999	-	KPK_4339	-	antibiotic biosynthesis monooxygenase domain protein
4255	 57.17	0	4373261..4373902	-	213	206576789	-	KPK_4340	-	isochorismatase hydrolase family protein
4256	 59.80	0	4374171..4375073	+	300	206581043	-	KPK_4342	-	transcriptional regulator, LysR family
4257	 62.21	0	4375070..4376887	-	605	206579120	malZ	KPK_4341	-	maltodextrin glucosidase
4258	 57.50	0	4377038..4378411	-	457	206577875	proY	KPK_4343	-	proline-specific permease ProY
4259	 61.52	0	4378498..4379817	-	439	206577123	brnQ	KPK_4344	-	branched-chain amino acid transport system II carrier protein
4260	 58.87	0	4380231..4381526	-	431	206577924	phoR	KPK_4345	-	phosphate regulon sensor kinase PhoR
4261	 56.52	0	4381548..4382237	-	229	206576178	phoB	KPK_4346	-	phosphate regulon transcriptional regulatory protein PhoB
4262	 61.94	0	4382420..4383625	+	401	206578297	sbcD	KPK_4347	-	nuclease SbcCD, D subunit
4263	 63.03	0	4383622..4386759	+	1045	206578945	sbcC	KPK_4348	-	nuclease SbcCD, C subunit
4264	 63.39	0	4386966..4387880	-	304	206576812	mak	KPK_4349	-	manno(fructo)kinase
4265	 57.79	0	4387972..4388883	+	303	206578111	-	KPK_4350	-	putative recombination-associated exonuclease RdgC
4266	 54.74	0	4388955..4389239	-	94	206575896	-	KPK_4351	-	hypothetical protein
4267	 55.80	0	4389317..4389997	-	226	206576472	-	KPK_4352	-	AroM protein
4268	 56.77	0	4390246..4390437	-	63	206579810	-	KPK_4353	-	hypothetical protein
4269	 61.05	0	4390509..4391042	-	177	206580991	aroL	KPK_4354	-	shikimate kinase
4270	 63.38	0	4391370..4392068	+	232	206577185	-	KPK_4356	-	hypothetical protein
4271	 61.66	0	4392065..4392523	-	152	206577637	-	KPK_4355	-	hypothetical protein
4272	 60.86	0	4392640..4393449	+	269	206579640	proC	KPK_4357	-	pyrroline-5-carboxylate reductase
4273	 50.31	-1	4393520..4393837	-	105	206579166	psfF	KPK_4358	-	phosphate starvation-inducible protein PsiF
4274	 60.45	0	4393929..4395359	-	476	206578431	phoA	KPK_4359	-	alkaline phosphatase
4275	 51.34	0	4395449..4395709	-	86	206578996	-	KPK_4360	-	hypothetical protein
4276	 37.50	-2	4395859..4396002	-	47	206576195	-	KPK_4361	-	hypothetical protein
4277	 59.33	0	4396010..4397209	-	399	206576784	-	KPK_4362	-	MdtG family protein
4278	 65.79	+1	4397379..4398062	-	227	206579798	-	KPK_4363	-	extensin domain protein
4279	 59.84	0	4398162..4399259	+	365	206580748	ddlA	KPK_4364	-	D-alanine--D-alanine ligase A
4280	 59.87	0	4399291..4399599	-	102	206580437	-	KPK_4365	-	hypothetical protein
4281	 57.76	0	4399748..4400050	+	100	206577534	-	KPK_4367	-	hypothetical protein
4282	 59.98	0	4400047..4401153	-	368	206576234	-	KPK_4366	-	putative lipoprotein
4283	 56.92	0	4401172..4402392	-	406	206578275	smbA	KPK_4368	-	protein SbmA
57.01	MEAN

6.61	STD DEV
