IslandPathversion 1.0

IslandPath Analysis: Klebsiella pneumoniae 342

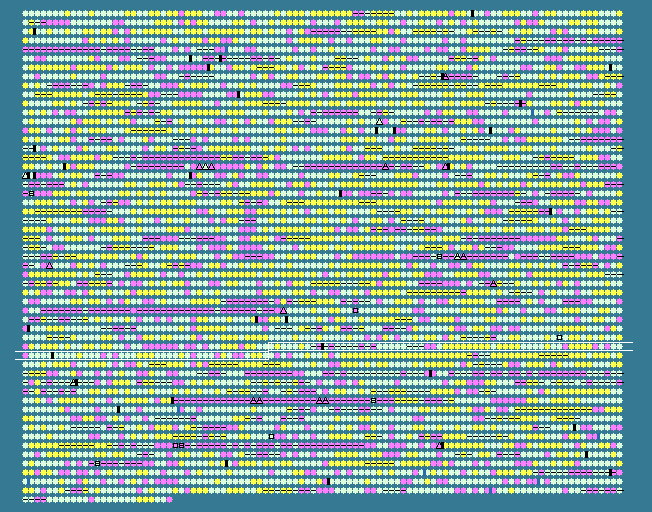

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 6.61
Klebsiella pneumoniae 342, complete genome - 1..5641239
5425 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3742	 59.46	0	3856379..3857530	+	383	206576061	galK	KPK_3808	-	galactokinase
3743	 63.60	0	3857524..3858567	+	347	206578409	galM	KPK_3809	-	galactose mutarotase
3744	 56.71	0	3858858..3859610	+	250	206577622	gpmA	KPK_3810	-	2,3-bisphosphoglycerate-dependent phosphoglycerate mutase
3745	 58.31	0	3859684..3860736	-	350	206577846	aroG	KPK_3811	-	3-deoxy-7-phosphoheptulonate synthase, Phe-sensitive
3746	 55.56	0	3861051..3861428	+	125	206577254	-	KPK_3812	-	hypothetical protein
3747	 61.48	0	3861547..3862491	+	314	206579098	zitB	KPK_3814	-	zinc transporter ZitB
3748	 57.08	0	3862488..3863207	-	239	206579633	pnuC	KPK_3813	-	nicotinamide mononucleotide transporter PnuC
3749	 59.60	0	3863243..3864289	-	348	206580828	nadA	KPK_3815	-	quinolinate synthetase complex, A subunit
3750	 48.72	-1	3864368..3864484	+	38	206578305	-	KPK_3816	-	hypothetical protein
3751	 54.06	0	3865793..3866593	-	266	206576794	ygbF	KPK_3824	-	tol-pal system protein YbgF
3752	 52.95	0	3866603..3867127	-	174	206576207	pal	KPK_3825	-	peptidoglycan-associated lipoprotein
3753	 58.47	0	3867162..3868454	-	430	206575815	tolB	KPK_3826	-	Tol-Pal system beta propeller repeat protein TolB
3754	 58.89	0	3868584..3869921	-	445	206580639	tolA	KPK_3827	-	protein TolA
3755	 55.48	0	3870021..3870449	-	142	206581047	tolR	KPK_3828	-	protein TolR
3756	 54.69	0	3870453..3871145	-	230	206580447	tolQ	KPK_3829	-	protein TolQ
3757	 52.82	0	3871215..3871409	+	64	206579492	-	KPK_3830	-	hypothetical protein
3758	 53.68	0	3871696..3871980	-	94	206578912	-	KPK_3831	-	cyd operon protein YbgE
3759	 52.63	0	3872111..3872224	-	37	206578015	-	KPK_3832	-	cyd operon protein YbgT
3760	 58.77	0	3872240..3873379	-	379	206580184	cydB	KPK_3833	-	cytochrome d ubiquinol oxidase, subunit II
3761	 56.09	0	3873395..3874963	-	522	206578246	cydA	KPK_3834	-	cytochrome d ubiquinol oxidase, subunit I
3762	 58.16	0	3875791..3876660	-	289	206579009	sucD	KPK_3835	-	succinate-CoA ligase, alpha subunit
3763	 57.16	0	3876660..3877826	-	388	206577005	sucC	KPK_3836	-	succinate-CoA ligase, beta subunit
3764	 58.52	0	3877972..3879198	-	408	206577845	sucB	KPK_3837	-	dihydrolipoyllysine-residue succinyltransferase, E2 component of oxoglutarate dehydrogenase (succinyl-transferring) complex
3765	 57.59	0	3879213..3882020	-	935	206575964	sucA	KPK_3838	-	oxoglutarate dehydrogenase (succinyl-transferring), E1 component
3766	 54.25	0	3882527..3883243	-	238	206576672	sdhB	KPK_3839	-	succinate dehydrogenase, iron-sulfur subunit
3767	 59.93	0	3883259..3885025	-	588	206580158	sdhA	KPK_3840	-	succinate dehydrogenase, flavoprotein subunit
3768	 52.87	0	3885025..3885372	-	115	206580925	sdhD	KPK_3841	-	succinate dehydrogenase, hydrophobic membrane anchor protein
3769	 49.88	-1	3885366..3885770	-	134	206581019	sdhC	KPK_3842	-	succinate dehydrogenase, cytochrome b556 subunit
3770	 54.13	0	3886411..3887694	+	427	206577689	gltA	KPK_3843	-	citrate (Si)-synthase
3771	 60.86	0	3887761..3888552	-	263	206575846	nei	KPK_3844	-	endonuclease VIII
3772	 62.64	0	3888568..3889212	-	214	206578058	pcp	KPK_3845	-	pyrrolidone-carboxylate peptidase
3773	 66.80	+1	3889242..3889994	-	250	206577414	-	KPK_3846	-	LamB/YcsF family protein
3774	 64.95	+1	3889984..3890916	-	310	206579364	-	KPK_3847	-	biotin-dependent carboxylase uncharacterized domain protein
3775	 64.99	+1	3890910..3891566	-	218	206578816	-	KPK_3848	-	allophanate hydrolase, subunit 1
3776	 60.75	0	3891581..3892324	-	247	206581074	-	KPK_3849	-	NIF3 family protein
3777	 61.53	0	3892593..3894071	+	492	206579493	-	KPK_3851	-	amino acid/peptide transporter
3778	 63.41	0	3894043..3895485	-	480	206580444	phrB	KPK_3850	-	deoxyribodipyrimidine photo-lyase
3779	 56.19	0	3895670..3895879	-	69	206578563	-	KPK_3852	-	hypothetical protein
3780	 62.62	0	3896276..3897955	+	559	206578444	kdpA	KPK_3853	-	K+-transporting ATPase, A subunit
3781	 62.76	0	3897976..3900024	+	682	206579165	kdpB	KPK_3854	-	K+-transporting ATPase, B subunit
3782	 62.67	0	3900035..3900610	+	191	206576753	kdpC	KPK_3855	-	K+-transporting ATPase, C subunit
3783	 65.33	+1	3900611..3903298	+	895	206576134	kdpD	KPK_3856	-	sensor protein KdpD
3784	 59.59	0	3903295..3903972	+	225	206576802	kdpE	KPK_3858	-	KDP operon transcriptional regulatory protein KdpE
3785	 55.48	0	3903954..3904391	-	145	206580063	-	KPK_3857	-	hypothetical protein
3786	 59.54	0	3904446..3906086	-	546	206578593	pgm	KPK_3859	-	phosphoglucomutase, alpha-D-glucose phosphate-specific
3787	 54.10	0	3906119..3906667	-	182	206580749	seqA	KPK_3860	-	protein SeqA
3788	 63.44	0	3906851..3907624	+	257	206579149	-	KPK_3861	-	putative esterase YbfF
3789	 53.74	0	3907758..3908051	+	97	206579348	-	KPK_3862	-	ribbon-helix-helix protein, CopG family
3790	 55.18	0	3908203..3908733	+	176	206576266	fldA	KPK_3863	-	flavodoxin
3791	 51.21	0	3909025..3909477	+	150	206577797	fur	KPK_3864	-	ferric uptake regulation protein
3792	 62.78	0	3909605..3910531	+	308	206580173	-	KPK_3865	-	transcriptional regulator, LysR family
3793	 64.46	+1	3910629..3912032	+	467	206576939	cobZ	KPK_3866	-	precorrin 3B synthase CobZ
3794	 60.53	0	3912019..3913158	+	379	206580658	citB	KPK_3867	-	citrate utilization protein B
3795	 61.11	0	3913214..3914509	+	431	206580946	-	KPK_3868	-	citrate:proton symporter
3796	 52.55	0	3914560..3914892	-	110	206579228	-	KPK_3869	-	putative lipoprotein
3797	 55.20	0	3914940..3916343	-	467	206578499	-	KPK_3870	-	outer membrane porin, OprD family
3798	 34.90	-2	3916534..3916725	+	63	206578442	-	KPK_3871	-	hypothetical protein
3799	 55.88	0	3916780..3918447	-	555	206579102	glnS	KPK_3872	-	glutaminyl-tRNA synthetase
3800	 59.30	0	3918626..3920581	-	651	206577744	nagE	KPK_3873	-	PTS system, N-acetylglucosamine-specific IIBC component
3801	 52.43	0	3920897..3921697	+	266	206579685	nagB	KPK_3874	-	glucosamine-6-phosphate isomerase
3802	 57.27	0	3921811..3922959	+	382	206575825	nagA	KPK_3875	-	N-acetylglucosamine-6-phosphate deacetylase
3803	 58.72	0	3922968..3924188	+	406	206577827	nagC	KPK_3876	-	N-acetylglucosamine repressor
3804	 57.90	0	3924317..3925069	+	250	206576654	nagD	KPK_3877	-	nagD protein
3805	 57.54	0	3925348..3927012	+	554	206575898	asnB	KPK_3878	-	asparagine synthase (glutamine-hydrolyzing)
3806	 56.00	0	3929474..3930898	+	474	206578177	miaB	KPK_3887	-	tRNA-i(6)A37 thiotransferase enzyme MiaB
3807	 57.88	0	3931052..3932098	+	348	206580634	-	KPK_3888	-	PhoH family protein
3808	 56.33	0	3932095..3932568	+	157	206580847	-	KPK_3889	-	conserved hypothetical protein TIGR00043
3809	 53.92	0	3932716..3933594	+	292	206580247	corC	KPK_3890	-	magnesium and cobalt efflux protein CorC
3810	 61.08	0	3933723..3935261	+	512	206579657	lnt	KPK_3891	-	apolipoprotein N-acyltransferase
3811	 53.73	0	3935616..3936527	+	303	206579054	gltI	KPK_3892	-	glutamate/aspartate ABC transporter, periplasmic glutamate/aspartate-binding protein
3812	 57.49	0	3936692..3937432	+	246	206577704	gltJ	KPK_3893	-	glutamate/aspartate ABC transporter, permease protein GltJ
3813	 58.07	0	3937432..3938106	+	224	206577118	gltK	KPK_3894	-	glutamate/aspartate ABC transporter, permease protein GltK
3814	 53.44	0	3938106..3938831	+	241	206576500	gltL	KPK_3895	-	glutamate/aspartate ABC transporter, ATP-binding protein
3815	 57.33	0	3939204..3940874	+	556	206575901	-	KPK_3896	-	ShlB-type POTRA domain/haemolysin secretion/activation protein ShlB/FhaC/HecB
3816	 52.68	0	3940939..3942732	+	597	206578520	-	KPK_3897	-	filamentous haemagglutinin family protein
3817	 57.41	0	3942779..3943264	-	161	206579552	-	KPK_3898	-	hypothetical protein
3818	 57.30	0	3943488..3946070	+	860	206577993	leuS	KPK_3899	-	leucyl-tRNA synthetase
3819	 55.50	0	3946085..3946675	+	196	206578785	-	KPK_3900	-	rare lipoprotein B family protein
3820	 61.64	0	3946672..3947706	+	344	206576965	holA	KPK_3901	-	DNA polymerase III, delta subunit
3821	 61.14	0	3947699..3948349	+	216	206577237	nadD	KPK_3902	-	nicotinate (nicotinamide) nucleotide adenylyltransferase
3822	 61.75	0	3948422..3949051	+	209	206580934	cobC	KPK_3903	-	alpha-ribazole phosphatase
3823	 55.66	0	3949274..3949591	+	105	206576093	-	KPK_3904	-	iojap family protein
3824	 59.40	0	3949595..3950062	+	155	206580010	-	KPK_3905	-	hypothetical protein
3825	 57.73	0	3950090..3951991	+	633	206580241	mrdA	KPK_3906	-	penicillin-binding protein 2
3826	 56.87	0	3951991..3953103	+	370	206578557	mrdB	KPK_3907	-	rod shape-determining protein RodA
3827	 63.64	+1	3953115..3954272	+	385	206579479	rlpA	KPK_3908	-	rare lipoprotein A
3828	 55.33	0	3954412..3955611	+	399	206577494	dacA	KPK_3909	-	serine-type D-Ala-D-Ala carboxypeptidase
3829	 50.38	-1	3955724..3955987	+	87	206576299	-	KPK_3910	-	protein YbeD
3830	 59.69	0	3956092..3956736	+	214	206577083	lipB	KPK_3911	-	lipoyltransferase
3831	 56.86	0	3956929..3957825	+	298	206579802	-	KPK_3912	-	transcriptional regulator, LysR family
3832	 56.83	0	3958006..3958971	+	321	206580569	lipA	KPK_3913	-	lipoic acid synthetase
3833	 48.79	-1	3959163..3959369	-	68	206580179	-	KPK_3914	-	twin arginine-targeting protein translocase, TatA/E family
3834	 61.60	0	3959614..3960402	-	262	206580818	-	KPK_3915	-	hydrolase, carbon-nitrogen family
3835	 58.59	0	3960492..3960875	+	127	206579039	crcB	KPK_3916	-	CrcB protein
3836	 43.33	-2	3960942..3961151	-	69	206579703	cspE	KPK_3917	-	cold shock protein CspE
3837	 51.75	0	3961346..3961915	-	189	206580357	pagP	KPK_3918	-	antimicrobial peptide resistance and lipid A acylation protein PagP
3838	 57.13	0	3962203..3963576	+	457	206581125	dcuC	KPK_3919	-	anaerobic C4-dicarboxylate transporter
3839	 60.53	0	3963669..3964466	+	265	206580001	rna	KPK_3920	-	ribonuclease I
3840	 61.56	0	3964645..3965055	+	136	206580755	rnk	KPK_3921	-	regulator of nucleoside diphosphate kinase
3841	 55.94	0	3965244..3965672	+	142	206578333	uspG	KPK_3922	-	universal stress protein G
57.01	MEAN

6.61	STD DEV
