IslandPath Analysis: Klebsiella pneumoniae 342

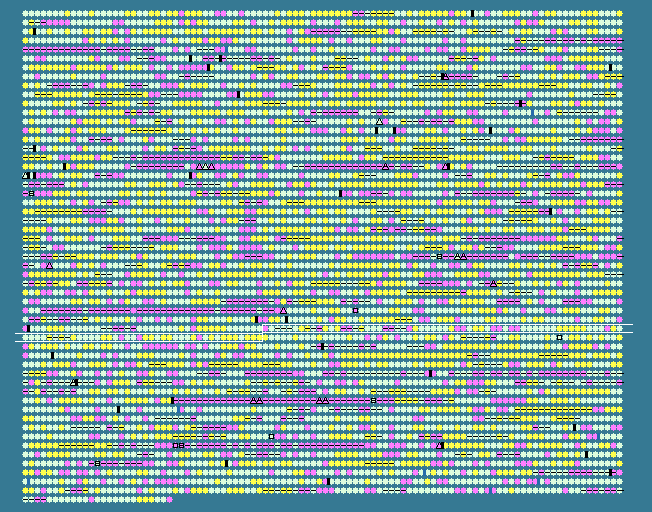

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 6.61
Klebsiella pneumoniae 342, complete genome - 1..5641239
5425 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3541	 49.46	-1	3633489..3634040	-	183	206575875	-	KPK_3606	-	Tat (twin-arginine translocation) pathway signal sequence domain/peptidase M15 family protein
3542	 58.79	0	3634344..3636134	-	596	206576426	-	KPK_3607	-	putative peptidoglycan binding protein
3543	 60.33	0	3636329..3640777	-	1482	206576892	mukB	KPK_3608	-	chromosome partition protein MukB
3544	 56.60	0	3640777..3641481	-	234	206578858	mukE	KPK_3609	-	chromosome partition protein MukE
3545	 56.92	0	3641462..3642784	-	440	206578986	mukF	KPK_3610	-	chromosome partition protein MukF
3546	 56.43	0	3642781..3643581	-	266	206579485	smtA	KPK_3611	-	SmtA protein
3547	 62.31	0	3643703..3644482	+	259	206581004	-	KPK_3613	-	hypothetical protein
3548	 61.52	0	3644459..3645352	-	297	206580604	-	KPK_3612	-	hypothetical protein
3549	 59.71	0	3645491..3646237	-	248	206575785	kdsB	KPK_3614	-	3-deoxy-D-manno-octulosonate cytidylyltransferase
3550	 49.18	-1	3646234..3646416	-	60	206576537	-	KPK_3615	-	hypothetical protein
3551	 60.89	0	3646480..3647709	-	409	206577199	-	KPK_3616	-	hypothetical protein
3552	 56.20	0	3648742..3650490	-	582	206578652	msbA	KPK_3618	-	lipid A export permease/ATP-binding protein MsbA
3553	 65.03	+1	3650527..3652791	-	754	206577881	-	KPK_3619	-	DNA internalization-related competence protein ComEC/Rec2
3554	 48.61	-1	3652997..3653284	-	95	206575911	ihfB	KPK_3620	-	integration host factor, beta subunit
3555	 52.21	0	3653436..3655109	-	557	206580559	rpsA	KPK_3621	-	ribosomal protein S1
3556	 58.48	0	3655243..3655926	-	227	206579846	cmk	KPK_3622	-	cytidylate kinase
3557	 60.90	0	3656101..3657384	-	427	206580881	aroA	KPK_3623	-	3-phosphoshikimate 1-carboxyvinyltransferase
3558	 57.94	0	3657458..3658546	-	362	206578935	serC	KPK_3624	-	phosphoserine aminotransferase
3559	 56.85	0	3658735..3659427	-	230	206579326	-	KPK_3625	-	hypothetical protein
3560	 57.35	0	3659544..3661304	+	586	206577441	-	KPK_3626	-	hypothetical protein
3561	 51.98	0	3661690..3662547	+	285	206578840	-	KPK_3627	-	putative formate transporter FocA
3562	 52.34	0	3662599..3664881	+	760	206577432	pflB	KPK_3628	-	formate acetyltransferase
3563	 53.71	0	3665073..3665813	+	246	206581035	pflA	KPK_3629	-	pyruvate formate-lyase 1-activating enzyme
3564	 59.44	0	3665979..3667127	-	382	206580256	-	KPK_3630	-	transporter, major facilitator family
3565	 32.46	-2	3667245..3667358	-	37	206579852	-	KPK_3631	-	hypothetical protein
3566	 61.00	0	3667403..3668266	-	287	206579085	dmsC	KPK_3632	-	anaerobic dimethyl sulfoxide reductase, C subunit
3567	 58.90	0	3668268..3668885	-	205	206578545	dmsB_2	KPK_3633	-	anaerobic dimethyl sulfoxide reductase, B subunit
3568	 58.51	0	3668896..3671334	-	812	206577821	dmsA	KPK_3634	-	anaerobic dimethyl sulfoxide reductase, A subunit
3569	 57.85	0	3671533..3672825	-	430	206577361	serS	KPK_3635	-	seryl-tRNA synthetase
3570	 59.97	0	3672917..3674260	-	447	206576595	-	KPK_3636	-	putative DNA recombination-associated ATPase RarA
3571	 54.74	0	3674269..3674880	-	203	206577823	lolA	KPK_3637	-	outer membrane lipoprotein carrier protein LolA
3572	 62.52	0	3675003..3679268	-	1421	206579838	ftsK	KPK_3638	-	DNA translocase FtsK
3573	 48.48	-1	3679404..3679898	-	164	206581091	lrp	KPK_3639	-	leucine-responsive regulatory protein
3574	 38.99	-2	3680106..3680264	+	52	206579139	-	KPK_3640	-	hypothetical protein
3575	 58.31	0	3680431..3681399	+	322	206579723	trxB	KPK_3641	-	thioredoxin-disulfide reductase
3576	 60.95	0	3681514..3683280	+	588	206577623	cydD	KPK_3642	-	ABC transporter, CydDC cysteine exporter family, permease/ATP-binding protein CydD
3577	 62.83	0	3683281..3685002	+	573	206577958	cydC	KPK_3643	-	ABC transporter, CydDC cysteine exporter family, permease/ATP-binding protein CydC
3578	 58.16	0	3685042..3685746	+	234	206579515	aat	KPK_3645	-	leucyl/phenylalanyl-tRNA--protein transferase
3579	 48.94	-1	3685726..3685866	-	46	206577400	-	KPK_3644	-	hypothetical protein
3580	 48.86	-1	3686098..3686316	+	72	206578930	infA	KPK_3646	-	translation initiation factor IF-1
3581	 56.93	0	3686435..3688714	-	759	206576060	clpA	KPK_3647	-	ATP-dependent Clp protease ATP-binding subunit ClpA
3582	 45.60	-1	3688745..3689062	-	105	206576057	clpS	KPK_3648	-	ATP-dependent Clp protease adaptor protein ClpS
3583	 52.70	0	3689388..3689609	+	73	206580364	cspD	KPK_3649	-	cold shock domain protein CspD
3584	 59.35	0	3689676..3691616	-	646	206580620	macB	KPK_3650	-	macrolide export ATP-binding/permease protein MacB
3585	 59.59	0	3691613..3692728	-	371	206578754	macA	KPK_3651	-	macrolide-specific efflux protein MacA
3586	 59.31	0	3692866..3694524	-	552	206579378	-	KPK_3652	-	hypothetical protein
3587	 60.06	0	3694944..3695639	+	231	206577519	aqpZ	KPK_3653	-	aquaporin Z
3588	 54.22	0	3695755..3696654	+	299	206578144	-	KPK_3654	-	hypothetical protein
3589	 58.86	0	3696798..3698450	+	550	206576128	hcp	KPK_3655	-	hydroxylamine reductase
3590	 61.82	0	3698461..3699429	+	322	206576907	hcr	KPK_3656	-	NADH oxidoreductase hcr
3591	 61.23	0	3699637..3700059	-	140	206578260	-	KPK_3657	-	DoxX family protein
3592	 60.67	0	3700223..3701941	+	572	206576772	poxB	KPK_3658	-	pyruvate dehydrogenase (cytochrome)
3593	 62.67	0	3701980..3702981	+	333	206576193	ltaE	KPK_3659	-	low-specificity L-threonine aldolase
3594	 60.78	0	3702992..3704434	+	480	206576736	-	KPK_3660	-	NAD dependent epimerase/dehydratase family protein
3595	 58.38	0	3704522..3705535	+	337	206578368	-	KPK_3662	-	NAD dependent epimerase/dehydratase family
3596	 60.29	0	3705532..3706362	-	276	206577713	amiD	KPK_3661	-	N-acetylmuramoyl-L-alanine amidase amiD
3597	 53.86	0	3706394..3707533	-	379	206578608	-	KPK_3663	-	membrane-associated diguanylate cyclase
3598	 46.15	-1	3707895..3708167	+	90	206579176	-	KPK_3664	-	hypothetical protein
3599	 60.85	0	3708422..3708937	+	171	206576759	-	KPK_3665	-	putative lipoprotein
3600	 58.57	0	3709164..3709892	+	242	206580773	artP	KPK_3666	-	arginine ABC transporter, ATP-binding protein ArtP
3601	 54.92	0	3709913..3710644	+	243	206576073	artI	KPK_3667	-	arginine ABC transporter, periplasmic arginine-binding protein ArtI
3602	 59.41	0	3710651..3711367	+	238	206578434	artQ	KPK_3668	-	arginine ABC transporter, permease protein ArtQ
3603	 57.25	0	3711367..3712035	+	222	206577412	artM	KPK_3669	-	arginine ABC transporter, permease protein ArtM
3604	 53.83	0	3712220..3712951	+	243	206578017	artJ	KPK_3670	-	arginine ABC transporter, periplasmic arginine-binding protein ArtJ
3605	 63.75	+1	3713035..3714507	-	490	206578882	-	KPK_3671	-	sensor histidine kinase
3606	 59.14	0	3714504..3715220	-	238	206579530	-	KPK_3672	-	DNA-binding response regulator
3607	 63.30	0	3715299..3716426	-	375	206577069	rumB	KPK_3673	-	23S rRNA (uracil-5-)-methyltransferase RumB
3608	 57.46	0	3716468..3716956	-	162	206580214	-	KPK_3674	-	hypothetical protein
3609	 61.35	0	3717014..3717859	-	281	206575876	potI	KPK_3675	-	putrescine ABC transporter, permease protein PotI
3610	 58.91	0	3717856..3718809	-	317	206576429	potH	KPK_3676	-	putrescine ABC transporter, permease protein PotH
3611	 59.70	0	3718820..3719953	-	377	206578065	potG	KPK_3677	-	putrescine ABC transporter, ATP-binding protein
3612	 55.17	0	3720117..3721229	-	370	206577099	potF	KPK_3678	-	putrescine ABC transporter, periplasmic putrescine-binding protein
3613	 54.17	0	3721578..3722057	-	159	206580618	-	KPK_3679	-	hypothetical protein
3614	 61.68	0	3722146..3723048	-	300	206580421	rimK	KPK_3680	-	ribosomal protein S6 modification protein
3615	 62.38	0	3723163..3723885	-	240	206576916	nfsA	KPK_3681	-	oxygen-insensitive NADPH nitroreductase
3616	 56.94	0	3723869..3724156	-	95	206576152	-	KPK_3682	-	hypothetical protein
3617	 52.65	0	3724359..3724622	+	87	206578200	grxA	KPK_3683	-	glutaredoxin
3618	 59.11	0	3724629..3725012	-	127	206577468	-	KPK_3684	-	hypothetical protein
3619	 59.19	0	3725280..3726965	+	561	206577988	-	KPK_3686	-	putative transporter
3620	 43.90	-1	3726957..3727079	-	40	206578747	-	KPK_3685	-	hypothetical protein
3621	 64.01	+1	3727145..3727708	-	187	206577929	-	KPK_3687	-	transcriptional regulator, TetR family
3622	 63.92	+1	3727791..3728993	+	400	206578352	-	KPK_3688	-	transporter, major facilitator family
3623	 56.09	0	3728993..3729805	+	270	206577771	ybjI	KPK_3689	-	phosphatase YbjI
3624	 60.50	0	3729847..3731079	-	410	206578304	mdfA	KPK_3690	-	multidrug translocase MdfA
3625	 62.12	0	3731406..3731999	+	197	206580607	-	KPK_3691	-	undecaprenyl-diphosphatase
3626	 60.34	0	3732102..3732860	+	252	206578458	deoR	KPK_3692	-	deoxyribose operon repressor
3627	 57.86	0	3732900..3734102	-	400	206576649	dacC	KPK_3693	-	serine-type D-Ala-D-Ala carboxypeptidase
3628	 60.45	0	3734358..3734984	+	208	206580038	-	KPK_3694	-	glutathione S-transferase family protein
3629	 63.42	0	3734987..3736096	-	369	206578162	yliI	KPK_3695	-	aldose sugar dehydrogenase yliI
3630	 50.48	0	3736212..3736631	-	139	206576335	bssR	KPK_3696	-	biofilm regulator BssR
3631	 55.72	0	3736974..3738215	+	413	206578192	-	KPK_3697	-	oligosaccharide:H+ symporter
3632	 60.91	0	3738243..3739145	-	300	206578578	-	KPK_3698	-	hypothetical protein
3633	 59.28	0	3739391..3740716	+	441	206579256	-	KPK_3699	-	MiaB-like tRNA modifying enzyme YliG
3634	 61.11	0	3740889..3741032	+	47	206579884	-	KPK_3700	-	hypothetical protein
3635	 61.84	0	3742000..3742911	-	303	206580797	gsiD	KPK_3701	-	glutathione ABC transporter, permease protein GsiD
3636	 60.59	0	3742913..3743833	-	306	206576720	gsiC	KPK_3702	-	glutathione ABC transporter, permease protein GsiC
3637	 57.52	0	3743906..3745447	-	513	206577471	gsiB	KPK_3703	-	glutathione ABC transporter, periplasmic glutathione-binding protein
3638	 62.85	0	3745480..3747339	-	619	206578247	gsiA	KPK_3704	-	glutathione ABC transporter, ATP-binding protein
3639	 63.80	+1	3747357..3748298	-	313	206578952	-	KPK_3705	-	L-asparaginase
3640	 64.64	+1	3748534..3749769	+	411	206580303	moeA	KPK_3706	-	molybdopterin biosynthesis protein MoeA
57.01	MEAN

6.61	STD DEV
