IslandPath Analysis: Klebsiella pneumoniae 342

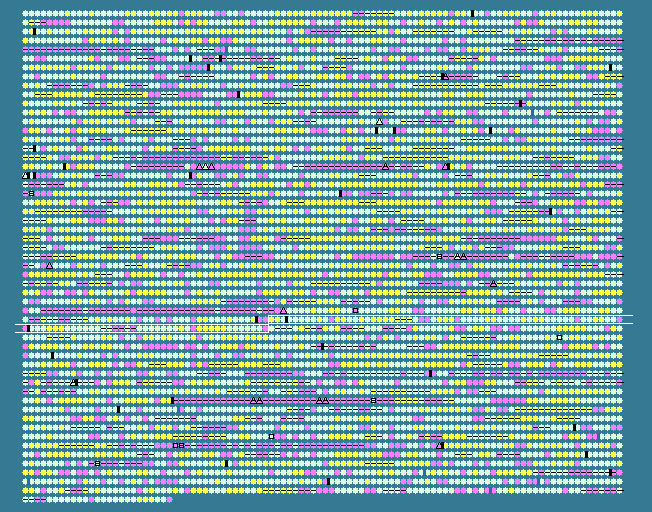

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 6.61
Klebsiella pneumoniae 342, complete genome - 1..5641239
5425 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3442	 64.24	+1	3523243..3524148	-	301	206578459	-	KPK_3505	-	transcriptional regulator, LysR family
3443	 62.25	0	3524263..3525123	+	286	206578432	-	KPK_3506	-	pirin family protein
3444	 59.88	0	3525142..3525819	+	225	206577675	-	KPK_3507	-	isochorismatase hydrolase family protein
3445	 54.01	0	3526786..3527844	-	352	206575885	phoH	KPK_3509	-	protein phoH
3446	 60.28	0	3528079..3529362	-	427	206577854	-	KPK_3510	-	Tat-translocated enzyme
3447	 56.91	0	3529367..3530494	-	375	206580108	-	KPK_3511	-	hypothetical protein
3448	 60.17	0	3530546..3531376	-	276	206576827	efeU	KPK_3512	-	ferrous iron permease EfeU
3449	 54.68	0	3531647..3532831	+	394	206578919	-	KPK_3513	-	Na+ dependent nucleoside transporter
3450	 62.89	0	3532863..3533312	-	149	206580869	-	KPK_3514	-	putative lipoprotein
3451	 56.99	0	3533432..3534940	-	502	206577256	putP	KPK_3515	-	sodium/proline symporter
3452	 35.96	-2	3535206..3535319	-	37	206576605	-	KPK_3516	-	hypothetical protein
3453	 64.04	+1	3535362..3539324	+	1320	206576015	putA	KPK_3517	-	bifunctional protein PutA
3454	 62.88	0	3539571..3539966	+	131	206575813	-	KPK_3519	-	hypothetical protein
3455	 59.47	0	3539963..3540601	-	212	206578371	rutR	KPK_3518	-	transcriptional regulator RutR
3456	 60.35	0	3540886..3541977	+	363	206576414	-	KPK_3520	-	putative monooxygenase rutA
3457	 60.62	0	3541977..3542687	+	236	206580040	-	KPK_3521	-	putative isochorismatase family protein, rutB
3458	 58.52	0	3542680..3543072	+	130	206580281	-	KPK_3522	-	rutC protein
3459	 68.29	+1	3543072..3543872	+	266	206580846	-	KPK_3523	-	putative rutD protein
3460	 62.94	0	3543869..3544459	+	196	206579119	-	KPK_3524	-	putative rutE protein
3461	 65.25	+1	3544470..3544964	+	164	206579701	-	KPK_3525	-	putative flavin reductase rutF
3462	 65.08	+1	3544986..3546308	+	440	206577186	-	KPK_3526	-	putative pyrimidine permease RutG
3463	 64.10	+1	3546374..3546490	-	38	206578109	-	KPK_3527	-	hypothetical protein
3464	 64.10	+1	3546963..3547079	-	38	206580709	-	KPK_3528	-	hypothetical protein
3465	 63.79	+1	3547583..3548521	-	312	206580121	-	KPK_3529	-	hypothetical protein
3466	 59.80	0	3549294..3549890	+	198	206576769	wrbA	KPK_3530	-	NAD(P)H:quinone oxidoreductase, type IV
3467	 53.51	0	3549911..3550138	+	75	206576171	-	KPK_3531	-	hypothetical protein
3468	 35.25	-2	3550283..3550960	-	225	206578303	-	KPK_3532	-	hypothetical protein
3469	 59.70	0	3551129..3552376	-	415	206577711	agp	KPK_3533	-	glucose-1-phosphatase
3470	 62.89	0	3552529..3552978	+	149	206576920	-	KPK_3534	-	putative transcriptional regulator
3471	 63.24	0	3553094..3553882	+	262	206576382	-	KPK_3535	-	oxidoreductase, short chain dehydrogenase/reductase family
3472	 60.81	0	3553903..3554124	-	73	206578205	-	KPK_3536	-	hypothetical protein
3473	 52.85	0	3554381..3554503	+	40	206577592	-	KPK_3537	-	hypothetical protein
3474	 58.62	0	3554623..3556014	-	463	206576155	puuP	KPK_3538	-	putrescine importer
3475	 58.51	0	3556368..3557789	-	473	206576948	puuA	KPK_3539	-	glutamate--putrescine ligase
3476	 56.73	0	3558003..3558767	+	254	206576008	puuD	KPK_3540	-	gamma-glutamyl-gamma-aminobutyrate hydrolase
3477	 53.94	0	3558793..3559350	+	185	206580692	puuR	KPK_3541	-	transcriptional regulator PuuR
3478	 60.95	0	3559671..3561158	+	495	206580335	puuC	KPK_3542	-	gamma-glutamyl-gamma-aminobutyraldehyde dehydrogenase
3479	 62.61	0	3561161..3562441	+	426	206578504	puuB	KPK_3544	-	gamma-glutamylputrescine oxidoreductase
3480	 60.19	0	3562438..3563379	-	313	206579547	-	KPK_3543	-	transcriptional regulator, LysR family
3481	 59.58	0	3563483..3564568	+	361	206577963	-	KPK_3545	-	tartrate dehydrogenase/decarboxylase
3482	 57.90	0	3565154..3566761	+	535	206578341	-	KPK_3546	-	transporter, betaine/carnitine/choline transporter (BCCT) family
3483	 57.07	0	3566798..3567922	+	374	206577758	-	KPK_3547	-	Rieske 2Fe-2S domain protein
3484	 61.84	0	3567941..3569389	+	482	206576745	-	KPK_3548	-	putative succinate-semialdehyde dehydrogenase (NAD(P)(+))
3485	 59.11	0	3569446..3570411	+	321	206580230	-	KPK_3549	-	oxidoreductase, FAD/NAD-binding/iron-sulfur cluster binding protein
3486	 60.91	0	3570449..3572950	-	833	206581034	ptsA	KPK_3550	-	multiphosphoryl transfer protein 2
3487	 61.19	0	3573260..3574336	+	358	206579083	frwC	KPK_3551	-	fructose-like permease IIC component 2
3488	 55.45	0	3574357..3574677	+	106	206579426	frwB	KPK_3552	-	fructose-like phosphotransferase enzyme IIB component 2
3489	 58.49	0	3574727..3577024	+	765	206577165	-	KPK_3553	-	formate C-acetyltransferase 2
3490	 60.39	0	3576990..3577865	+	291	206577451	-	KPK_3554	-	glycyl-radical enzyme activating protein family
3491	 57.31	0	3577881..3578222	+	113	206578209	frwD	KPK_3555	-	fructose-like phosphotransferase enzyme IIB component 3
3492	 60.16	0	3578236..3579003	-	255	206576386	-	KPK_3556	-	phytanoyl-CoA dioxygenase family protein
3493	 47.95	-1	3579080..3579250	-	56	206576820	-	KPK_3557	-	hypothetical protein
3494	 56.47	0	3579265..3580098	+	277	206579302	-	KPK_3559	-	transcriptional regulator, AraC family
3495	 58.41	0	3580095..3581015	-	306	206578784	-	KPK_3558	-	putative membrane-bound diguanylate cyclase
3496	 63.65	+1	3581259..3582287	-	342	206576116	fbpC	KPK_3560	-	iron(III) ABC transporter, ATP-binding protein
3497	 62.98	0	3582289..3583863	-	524	206576921	fbpB	KPK_3561	-	iron(III) ABC transporter, permease protein
3498	 57.72	0	3583885..3584901	-	338	206579888	fbpA	KPK_3562	-	iron(III) ABC transporter, periplasmic iron(III)-binding protein
3499	 55.47	0	3585304..3586839	+	511	206580516	-	KPK_3563	-	cyclic diguanylate phosphodiesterase (EAL) domain protein
3500	 50.00	-1	3586881..3587216	-	111	206580513	-	KPK_3564	-	anti-anti-sigma factor
3501	 50.47	0	3587281..3589707	-	808	206578763	-	KPK_3565	-	glycogen/starch/alpha-glucan phosphorylase family protein
3502	 56.95	0	3590245..3591870	-	541	206577561	-	KPK_3567	-	periplasmic oligopeptide-binding protein
3503	 57.88	0	3592139..3592798	+	219	206578129	-	KPK_3568	-	hypothetical protein
3504	 54.55	0	3592887..3593216	+	109	206576970	tusE	KPK_3570	-	sulfurtransferase TusE
3505	 60.64	0	3593213..3593494	-	93	206576539	-	KPK_3569	-	acylphosphatase
3506	 62.48	0	3593543..3594331	-	262	206581037	-	KPK_3571	-	putative transcriptional regulator, AraC family
3507	 64.14	+1	3594349..3594903	-	184	206580391	-	KPK_3572	-	phosphatidylethanolamine-binding protein
3508	 59.43	0	3595025..3596296	+	423	206579475	-	KPK_3573	-	hypothetical protein
3509	 58.18	0	3596356..3596673	+	105	206578872	-	KPK_3574	-	hemimethylated DNA-binding protein
3510	 58.94	0	3596702..3597115	-	137	206576983	-	KPK_3575	-	putative CoA-binding protein
3511	 56.64	0	3597269..3597727	+	152	206575855	mgsA	KPK_3576	-	methylglyoxal synthase
3512	 58.78	0	3597739..3599793	-	684	206577834	helD	KPK_3577	-	helicase IV
3513	 55.03	0	3599918..3600364	+	148	206577384	-	KPK_3578	-	hypothetical protein
3514	 59.69	0	3600382..3602517	+	711	206580720	-	KPK_3579	-	integral membrane protein, YccS/YhfK family
3515	 57.79	0	3602531..3603127	-	198	206580059	sxy	KPK_3580	-	DNA transformation protein Sxy
3516	 45.30	-1	3603292..3603408	-	38	206578032	-	KPK_3581	-	hypothetical protein
3517	 52.55	0	3603478..3603987	+	169	206577356	sulA	KPK_3582	-	cell division inhibitor SulA
3518	 56.13	0	3604340..3605392	+	350	206577508	ompA	KPK_3583	-	outer membrane protein A
3519	 52.10	0	3605503..3605955	-	150	206579581	-	KPK_3584	-	hypothetical protein
3520	 58.82	0	3606141..3607898	+	585	206579026	-	KPK_3585	-	peptidase, S16 (lon protease) family
3521	 54.91	0	3607968..3608486	+	172	206581115	fabA	KPK_3586	-	beta-hydroxyacyl-(acyl-carrier-protein) dehydratase FabA
3522	 58.87	0	3608975..3609538	-	187	206580056	-	KPK_3587	-	putative lipoprotein
3523	 56.65	0	3609538..3611175	-	545	206576402	-	KPK_3588	-	mce-related protein
3524	 56.19	0	3611165..3612433	-	422	206576141	-	KPK_3589	-	integral membrane protein, PqiA family
3525	 57.39	0	3612448..3614355	-	635	206578446	uup	KPK_3590	-	ABC transporter, ATP-binding protein
3526	 59.31	0	3614368..3616473	-	701	206578159	-	KPK_3591	-	putative RNA methylase family UPF0020
3527	 61.08	0	3616573..3617682	+	369	206579330	-	KPK_3593	-	MOSC domain protein
3528	 57.64	0	3617679..3618221	-	180	206577572	-	KPK_3592	-	hypothetical protein
3529	 51.04	0	3618391..3619401	-	336	206578770	pyrD	KPK_3594	-	dihydroorotate oxidase
3530	 61.63	0	3619650..3620225	+	191	206577085	ssuE	KPK_3595	-	NADPH-dependent FMN reductase
3531	 61.06	0	3620218..3621180	+	320	206576479	ssuA	KPK_3596	-	aliphatic sulfonates ABC transporter, periplasmic sulfonate-binding protein
3532	 63.26	0	3621177..3622322	+	381	206578253	ssuD	KPK_3597	-	alkanesulfonate monooxygenase, FMNH(2)-dependent
3533	 60.73	0	3622333..3623124	+	263	206577481	ssuC	KPK_3598	-	aliphatic sulfonates ABC transporter, permease protein
3534	 63.95	+1	3623121..3623894	+	257	206577487	ssuB	KPK_3599	-	aliphatic sulfonates ABC transporter, ATP-binding protein
3535	 58.18	0	3623992..3626607	-	871	206577475	pepN	KPK_3600	-	aminopeptidase N
3536	 58.54	0	3626919..3628136	+	405	206578750	pncB	KPK_3601	-	nicotinate phosphoribosyltransferase
3537	 58.32	0	3628302..3629702	+	466	206579329	asnS	KPK_3602	-	asparaginyl-tRNA synthetase
3538	 54.91	0	3630294..3631373	+	359	206579921	-	KPK_3603	-	outer membrane porin, OmpF family
3539	 58.69	0	3631561..3632751	+	396	206579919	aspC	KPK_3604	-	aspartate transaminase
3540	 58.64	0	3632828..3633475	-	215	206581011	-	KPK_3605	-	metallo-beta-lactamase domain protein
3541	 49.46	-1	3633489..3634040	-	183	206575875	-	KPK_3606	-	Tat (twin-arginine translocation) pathway signal sequence domain/peptidase M15 family protein
57.01	MEAN

6.61	STD DEV
