IslandPath Analysis: Klebsiella pneumoniae 342

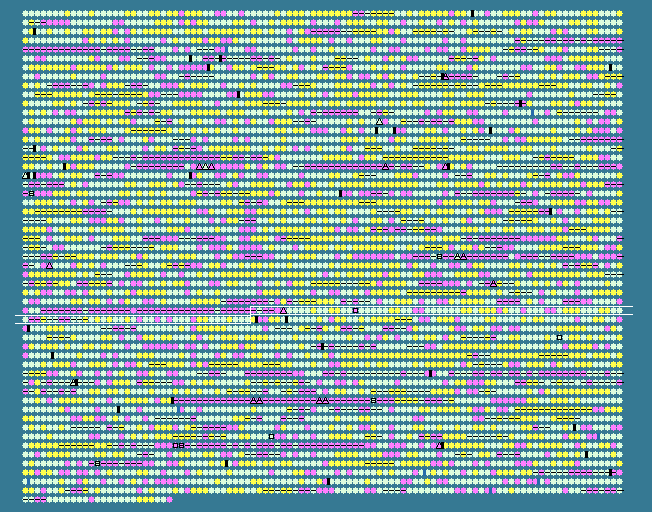

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 6.61
Klebsiella pneumoniae 342, complete genome - 1..5641239
5425 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3339	 49.23	-1	3423059..3423253	+	64	206577683	-	KPK_3401	-	hypothetical protein
3340	 53.62	0	3423296..3423709	+	137	206576463	-	KPK_3402	-	putative transcriptional regulator
3341	 42.98	-2	3423780..3423893	+	37	206575728	-	KPK_3403	-	hypothetical protein
3342	 48.33	-1	3423964..3424143	+	59	206576465	-	KPK_3404	-	hypothetical protein
3343	 46.34	-1	3424196..3424441	+	81	206577084	-	KPK_3405	-	putative excisionase
3344	 43.35	-2	3424422..3425549	+	375	206577296	-	KPK_3406	-	site-specific recombinase, phage integrase family
3345	 55.48	0	3425667..3426917	-	416	206579025	icd	KPK_3407	-	isocitrate dehydrogenase, NADP-dependent
3346	 59.75	0	3427158..3427808	+	216	206581129	rluE	KPK_3408	-	ribosomal large subunit pseudouridine synthase E
3347	 59.48	0	3427825..3428283	+	152	206580234	-	KPK_3409	-	hydrolase, NUDIX family
3348	 58.18	0	3428340..3429446	+	368	206576946	trmU	KPK_3410	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
3349	 60.59	0	3429501..3430142	+	213	206576641	-	KPK_3411	-	hypothetical protein
3350	 56.97	0	3430146..3431516	+	456	206578270	purB	KPK_3412	-	adenylosuccinate lyase
3351	 57.30	0	3431571..3431933	-	120	206577856	-	KPK_3413	-	cupin domain protein
3352	 63.69	+1	3432017..3432823	-	268	206578780	-	KPK_3414	-	transcriptional regulator, AraC family
3353	 61.01	0	3433107..3433778	+	223	206579731	phoP	KPK_3415	-	transcriptional regulatory protein PhoP
3354	 59.71	0	3433778..3435244	+	488	206580317	phoQ	KPK_3416	-	sensor protein PhoQ
3355	 59.80	0	3435330..3436451	+	373	206580898	-	KPK_3417	-	cupin family protein
3356	 52.24	0	3436589..3437080	-	163	206576048	-	KPK_3418	-	putative transposase
3357	 57.66	0	3437364..3438596	-	410	206576009	pepT	KPK_3419	-	peptidase T
3358	 56.90	0	3438854..3439990	+	378	206577558	potA	KPK_3420	-	spermidine/putrescine ABC transporter, ATP-binding protein
3359	 57.34	0	3439974..3440831	+	285	206577935	potB	KPK_3421	-	spermidine/putrescine ABC transporter, permease protein PotB
3360	 56.11	0	3440828..3441613	+	261	206576318	potC	KPK_3422	-	spermidine/putrescine ABC transporter, permease protein PotC
3361	 56.35	0	3441610..3442656	+	348	206580074	potD	KPK_3423	-	spermidine/putrescine ABC transporter, periplasmic spermidine/putrescine-binding protein
3362	 65.74	+1	3442701..3444425	-	574	206580623	-	KPK_3424	-	hypothetical protein
3363	 62.98	0	3444422..3446050	-	542	206580908	-	KPK_3425	-	AMP-binding enzyme
3364	 59.93	0	3446288..3448291	-	667	206579271	tktA_2	KPK_3426	-	transketolase
3365	 57.76	0	3448311..3449264	-	317	206577436	-	KPK_3427	-	putative transaldolase
3366	 53.38	0	3449292..3449750	-	152	206578229	rpiB	KPK_3428	-	ribose 5-phosphate isomerase B
3367	 49.33	-1	3449779..3450153	-	124	206576238	-	KPK_3429	-	PTS system, glucitol/sorbitol-specific IIA component
3368	 55.69	0	3450155..3451174	-	339	206578668	kdgT	KPK_3430	-	2-keto-3-deoxygluconate permease
3369	 57.88	0	3451267..3452985	-	572	206577531	-	KPK_3431	-	sorbitol phosphotransferase enzyme II
3370	 55.26	0	3453021..3454028	-	335	206577058	-	KPK_3432	-	putative 4-hydroxythreonine-4-phosphate dehydrogenase
3371	 57.48	0	3454271..3455065	+	264	206576289	tpiB	KPK_3433	-	triosephosphate isomerase
3372	 55.56	0	3455101..3456063	+	320	206580613	-	KPK_3434	-	putative sugar-binding domain protein
3373	 56.52	0	3456088..3456432	-	114	206579790	-	KPK_3435	-	hypothetical protein
3374	 61.85	0	3456523..3457353	-	276	206579384	npdA	KPK_3436	-	NAD-dependent deacetylase
3375	 61.84	0	3457368..3458279	-	303	206578302	nagK	KPK_3437	-	N-acetylglucosamine kinase
3376	 58.80	0	3458328..3459572	-	414	206577709	lolE	KPK_3438	-	lipoprotein releasing system, transmembrane protein LolE
3377	 60.54	0	3459572..3460273	-	233	206576765	lolD	KPK_3439	-	lipoprotein releasing system, ATP-binding protein LolD
3378	 60.50	0	3460266..3461465	-	399	206580257	lolC	KPK_3440	-	lipoprotein-releasing system transmembrane protein LolC
3379	 61.42	0	3461770..3465216	+	1148	206576037	mfd	KPK_3442	-	transcription-repair coupling factor
3380	 51.33	0	3465182..3465331	-	49	206576634	-	KPK_3441	-	hypothetical protein
3381	 62.50	0	3465380..3466339	+	319	206577781	-	KPK_3443	-	LysM domain/ErfK/YbiS/YcfS/YnhG family protein
3382	 54.65	0	3466468..3466725	-	85	206577201	-	KPK_3444	-	hypothetical protein
3383	 60.22	0	3466975..3467610	+	211	206577741	-	KPK_3445	-	transcriptional regulator, TetR family
3384	 30.89	-2	3467663..3467785	-	40	206579524	-	KPK_3446	-	hypothetical protein
3385	 58.97	0	3467849..3470044	+	731	206578887	iutA	KPK_3447	-	ferric aerobactin receptor
3386	 57.22	0	3470102..3470641	-	179	206580702	-	KPK_3448	-	surface antigen domain protein
3387	 58.39	0	3470834..3472138	-	434	206580126	ndh	KPK_3449	-	NADH dehydrogenase
3388	 35.68	-2	3472137..3472349	+	70	206578900	-	KPK_3450	-	hypothetical protein
3389	 53.41	0	3472383..3472925	-	180	206579491	-	KPK_3451	-	hypothetical protein
3390	 59.43	0	3472961..3473983	-	340	206576496	nagZ	KPK_3452	-	beta-N-acetylhexosaminidase
3391	 62.32	0	3473995..3474822	-	275	206577672	thiK	KPK_3453	-	thiamine kinase
3392	 62.35	0	3474803..3475450	-	215	206580710	-	KPK_3454	-	putative lipoprotein
3393	 61.87	0	3475463..3475837	-	124	206575734	-	KPK_3455	-	putative lipoprotein
3394	 55.74	0	3475842..3476198	-	118	206578647	hinT	KPK_3456	-	purine nucleoside phosphoramidase
3395	 56.00	0	3476460..3477893	-	477	206579407	ptsG	KPK_3457	-	PTS system, glucose-specific IIBC component
3396	 58.49	0	3478190..3478984	-	264	206578149	-	KPK_3458	-	hydrolase, TatD family
3397	 63.88	+1	3478995..3479999	-	334	206578898	holB	KPK_3459	-	DNA polymerase III, delta' subunit
3398	 63.86	+1	3479996..3480637	-	213	206579513	tmk	KPK_3460	-	thymidylate kinase
3399	 57.97	0	3480627..3481649	-	340	206580253	-	KPK_3461	-	hypothetical protein
3400	 60.12	0	3481651..3482460	-	269	206575879	pabC	KPK_3462	-	aminodeoxychorismate lyase
3401	 58.53	0	3482586..3483827	-	413	206576302	fabF	KPK_3463	-	3-oxoacyl-[acyl-carrier-protein] synthase II
3402	 48.52	-1	3483917..3484153	-	78	206577377	acpP	KPK_3464	-	acyl carrier protein
3403	 53.47	0	3484364..3485098	-	244	206577811	fabG	KPK_3465	-	3-oxoacyl-[acyl-carrier-protein] reductase
3404	 60.75	0	3485111..3486040	-	309	206578837	fabD	KPK_3466	-	malonyl CoA-acyl carrier protein transacylase
3405	 58.91	0	3486056..3487009	-	317	206579577	fabH	KPK_3467	-	3-oxoacyl-[acyl-carrier-protein] synthase 3
3406	 56.74	0	3487064..3488161	-	365	206579344	plsX	KPK_3468	-	fatty acid/phospholipid synthesis protein PlsX
3407	 53.45	0	3488365..3488538	-	57	206579800	rpmF	KPK_3469	-	ribosomal protein L32
3408	 51.34	0	3488555..3489076	-	173	206580556	-	KPK_3470	-	hypothetical protein
3409	 56.41	0	3489218..3489802	+	194	206576246	maf_1	KPK_3471	-	septum formation protein Maf
3410	 58.39	0	3489840..3490793	-	317	206577057	rluC	KPK_3472	-	ribosomal large subunit pseudouridine synthase C
3411	 61.06	0	3491493..3494720	+	1075	206577486	rne	KPK_3473	-	ribonuclease E
3412	 60.45	0	3494760..3495788	-	342	206578654	-	KPK_3474	-	transcriptional regulator, LysR family
3413	 64.20	+1	3495805..3497019	+	404	206579416	-	KPK_3475	-	transporter, major facilitator family
3414	 59.83	0	3497073..3498608	-	511	206579788	mviN	KPK_3476	-	integral membrane protein MviN
3415	 61.26	0	3498720..3499643	-	307	206577688	-	KPK_3477	-	oxidoreductase family, NAD-binding
3416	 58.87	0	3499646..3500299	-	217	206578651	-	KPK_3478	-	hypothetical protein
3417	 56.58	0	3500309..3500893	-	194	206580581	rimJ	KPK_3479	-	ribosomal-protein-alanine acetyltransferase
3418	 61.95	0	3501122..3502330	+	402	206580200	mdtH	KPK_3480	-	multidrug resistance protein MdtH
3419	 55.08	0	3502446..3503006	+	186	206576721	-	KPK_3481	-	putative lipoprotein
3420	 47.62	-1	3503018..3503143	-	41	206576252	-	KPK_3482	-	hypothetical protein
3421	 59.60	0	3503132..3504178	+	348	206578255	pyrC	KPK_3483	-	dihydroorotase, homodimeric type
3422	 58.73	0	3504252..3504503	+	83	206579263	dinI	KPK_3484	-	DNA-damage-inducible protein I
3423	 47.84	-1	3504808..3505062	+	84	206578534	-	KPK_3485	-	hypothetical protein
3424	 58.36	0	3505189..3506307	+	372	206580711	solA	KPK_3486	-	N-methyl-L-tryptophan oxidase
3425	 48.25	-1	3506380..3506493	+	37	206579333	-	KPK_3488	-	hypothetical protein
3426	 53.71	0	3506479..3507543	-	354	206577526	-	KPK_3487	-	rhodanese domain protein
3427	 58.85	0	3507749..3508669	+	306	206580836	lpxL_1	KPK_3489	-	lipid A biosynthesis lauroyl acyltransferase
3428	 58.92	0	3508840..3510078	+	412	206580528	mdtG	KPK_3490	-	multidrug resistance protein MdtG
3429	 53.23	0	3510170..3510556	+	128	206580005	-	KPK_3491	-	acidic protein MsyB
3430	 60.96	0	3510557..3510784	-	75	206576369	-	KPK_3492	-	putative lipoprotein
3431	 61.09	0	3510851..3513379	-	842	206577816	mdoH	KPK_3493	-	glucans biosynthesis glucosyltransferase H
3432	 54.30	0	3513372..3514907	-	511	206577546	mdoG	KPK_3494	-	glucans biosynthesis protein G
3433	 54.18	0	3515177..3516337	+	386	206579641	-	KPK_3495	-	putative glucans biosynthesis protein C
3434	 59.09	0	3516372..3516965	-	197	206580813	-	KPK_3496	-	transcriptional regulator, TetR family
3435	 61.36	0	3517032..3517559	-	175	206577665	-	KPK_3497	-	Appr-1-p processing enzyme domain protein
3436	 59.42	0	3517712..3518194	-	160	206579766	-	KPK_3498	-	hypothetical protein
3437	 60.00	0	3518298..3518852	-	184	206576038	-	KPK_3499	-	chaperone, TorD family
3438	 56.50	0	3518875..3519612	-	245	206576096	-	KPK_3500	-	PHP domain protein
57.01	MEAN

6.61	STD DEV
