IslandPath Analysis: Klebsiella pneumoniae 342

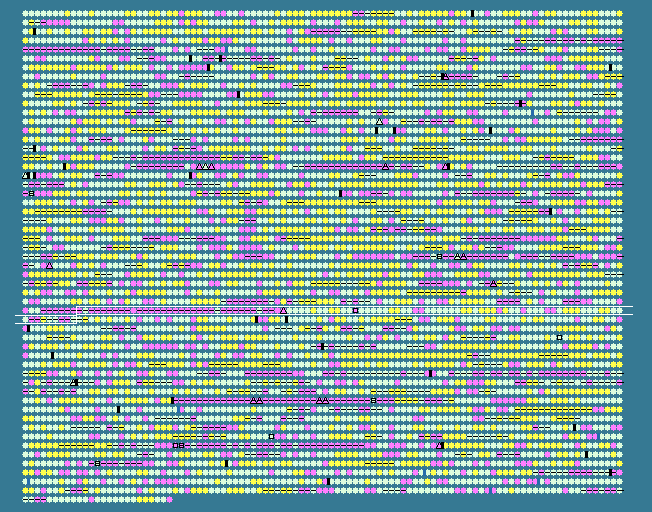

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 6.61
Klebsiella pneumoniae 342, complete genome - 1..5641239
5425 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3310	 51.28	0	3405457..3405807	-	116	206576526	-	KPK_3372	-	hypothetical protein
3311	 55.36	0	3405804..3406307	-	167	206576574	-	KPK_3373	-	phage lysozyme
3312	 52.34	0	3406279..3406620	-	113	206576544	-	KPK_3374	-	hypothetical protein
3313	 52.45	0	3407286..3407693	-	135	206580517	-	KPK_3375	-	hypothetical protein
3314	 47.46	-1	3407741..3407917	-	58	206576084	-	KPK_3376	-	hypothetical protein
3315	 38.66	-2	3408365..3409435	+	356	206578757	-	KPK_3377	-	hypothetical protein
3316	 34.93	-2	3409437..3410126	+	229	206578971	-	KPK_3379	-	hypothetical protein
3317	 40.80	-2	3410092..3411135	-	347	206579328	-	KPK_3378	-	DNA-cytosine methyltransferase
3318	 43.77	-2	3411225..3411569	-	114	206581112	-	KPK_3380	-	antitermination protein Q
3319	 52.71	0	3411582..3412613	-	343	206580771	-	KPK_3381	-	hypothetical protein
3320	 48.53	-1	3412613..3412816	-	67	206577824	-	KPK_3382	-	hypothetical protein
3321	 51.20	0	3412813..3413310	-	165	206578549	-	KPK_3383	-	LexA DNA binding domain protein
3322	 49.83	-1	3413246..3413536	-	96	206577211	-	KPK_3384	-	hypothetical protein
3323	 47.86	-1	3413548..3413781	-	77	206578989	-	KPK_3385	-	DinI family protein
3324	 47.69	-1	3413942..3414136	+	64	206575831	-	KPK_3386	-	hypothetical protein
3325	 37.39	-2	3414220..3414909	+	229	206579738	-	KPK_3387	-	hypothetical protein
3326	 41.50	-2	3414980..3415726	+	248	206577476	-	KPK_3388	-	oxidoreductase, short chain dehydrogenase/reductase family
3327	 42.86	-2	3415820..3416029	+	69	206577960	-	KPK_3389	-	hypothetical protein
3328	 49.12	-1	3416050..3416277	+	75	206576752	-	KPK_3390	-	hypothetical protein
3329	 51.24	0	3416228..3416428	+	66	206580068	-	KPK_3391	-	hypothetical protein
3330	 47.85	-1	3416724..3418487	-	587	206580435	-	KPK_3392	-	cyclic diguanylate phosphodiesterase (EAL) domain protein
3331	 46.24	-1	3418532..3418717	-	61	206580130	-	KPK_3393	-	hypothetical protein
3332	 53.24	0	3418800..3419246	-	148	206580659	-	KPK_3394	-	hypothetical protein
3333	 53.55	0	3419254..3419718	-	154	206579522	-	KPK_3395	-	hypothetical protein
3334	 50.81	0	3419711..3420694	-	327	206578820	-	KPK_3396	-	hypothetical protein
3335	 51.71	0	3420746..3421300	-	184	206581069	-	KPK_3397	-	hypothetical protein
3336	 45.37	-1	3421303..3421518	-	71	206578126	-	KPK_3398	-	hypothetical protein
3337	 42.82	-2	3421620..3422009	+	129	206581103	-	KPK_3399	-	DNA-binding protein
3338	 49.04	-1	3422355..3422825	-	156	206579937	-	KPK_3400	-	hypothetical protein
3339	 49.23	-1	3423059..3423253	+	64	206577683	-	KPK_3401	-	hypothetical protein
3340	 53.62	0	3423296..3423709	+	137	206576463	-	KPK_3402	-	putative transcriptional regulator
3341	 42.98	-2	3423780..3423893	+	37	206575728	-	KPK_3403	-	hypothetical protein
3342	 48.33	-1	3423964..3424143	+	59	206576465	-	KPK_3404	-	hypothetical protein
3343	 46.34	-1	3424196..3424441	+	81	206577084	-	KPK_3405	-	putative excisionase
3344	 43.35	-2	3424422..3425549	+	375	206577296	-	KPK_3406	-	site-specific recombinase, phage integrase family
3345	 55.48	0	3425667..3426917	-	416	206579025	icd	KPK_3407	-	isocitrate dehydrogenase, NADP-dependent
3346	 59.75	0	3427158..3427808	+	216	206581129	rluE	KPK_3408	-	ribosomal large subunit pseudouridine synthase E
3347	 59.48	0	3427825..3428283	+	152	206580234	-	KPK_3409	-	hydrolase, NUDIX family
3348	 58.18	0	3428340..3429446	+	368	206576946	trmU	KPK_3410	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
3349	 60.59	0	3429501..3430142	+	213	206576641	-	KPK_3411	-	hypothetical protein
3350	 56.97	0	3430146..3431516	+	456	206578270	purB	KPK_3412	-	adenylosuccinate lyase
3351	 57.30	0	3431571..3431933	-	120	206577856	-	KPK_3413	-	cupin domain protein
3352	 63.69	+1	3432017..3432823	-	268	206578780	-	KPK_3414	-	transcriptional regulator, AraC family
3353	 61.01	0	3433107..3433778	+	223	206579731	phoP	KPK_3415	-	transcriptional regulatory protein PhoP
3354	 59.71	0	3433778..3435244	+	488	206580317	phoQ	KPK_3416	-	sensor protein PhoQ
3355	 59.80	0	3435330..3436451	+	373	206580898	-	KPK_3417	-	cupin family protein
3356	 52.24	0	3436589..3437080	-	163	206576048	-	KPK_3418	-	putative transposase
3357	 57.66	0	3437364..3438596	-	410	206576009	pepT	KPK_3419	-	peptidase T
3358	 56.90	0	3438854..3439990	+	378	206577558	potA	KPK_3420	-	spermidine/putrescine ABC transporter, ATP-binding protein
3359	 57.34	0	3439974..3440831	+	285	206577935	potB	KPK_3421	-	spermidine/putrescine ABC transporter, permease protein PotB
3360	 56.11	0	3440828..3441613	+	261	206576318	potC	KPK_3422	-	spermidine/putrescine ABC transporter, permease protein PotC
3361	 56.35	0	3441610..3442656	+	348	206580074	potD	KPK_3423	-	spermidine/putrescine ABC transporter, periplasmic spermidine/putrescine-binding protein
3362	 65.74	+1	3442701..3444425	-	574	206580623	-	KPK_3424	-	hypothetical protein
3363	 62.98	0	3444422..3446050	-	542	206580908	-	KPK_3425	-	AMP-binding enzyme
3364	 59.93	0	3446288..3448291	-	667	206579271	tktA_2	KPK_3426	-	transketolase
3365	 57.76	0	3448311..3449264	-	317	206577436	-	KPK_3427	-	putative transaldolase
3366	 53.38	0	3449292..3449750	-	152	206578229	rpiB	KPK_3428	-	ribose 5-phosphate isomerase B
3367	 49.33	-1	3449779..3450153	-	124	206576238	-	KPK_3429	-	PTS system, glucitol/sorbitol-specific IIA component
3368	 55.69	0	3450155..3451174	-	339	206578668	kdgT	KPK_3430	-	2-keto-3-deoxygluconate permease
3369	 57.88	0	3451267..3452985	-	572	206577531	-	KPK_3431	-	sorbitol phosphotransferase enzyme II
3370	 55.26	0	3453021..3454028	-	335	206577058	-	KPK_3432	-	putative 4-hydroxythreonine-4-phosphate dehydrogenase
3371	 57.48	0	3454271..3455065	+	264	206576289	tpiB	KPK_3433	-	triosephosphate isomerase
3372	 55.56	0	3455101..3456063	+	320	206580613	-	KPK_3434	-	putative sugar-binding domain protein
3373	 56.52	0	3456088..3456432	-	114	206579790	-	KPK_3435	-	hypothetical protein
3374	 61.85	0	3456523..3457353	-	276	206579384	npdA	KPK_3436	-	NAD-dependent deacetylase
3375	 61.84	0	3457368..3458279	-	303	206578302	nagK	KPK_3437	-	N-acetylglucosamine kinase
3376	 58.80	0	3458328..3459572	-	414	206577709	lolE	KPK_3438	-	lipoprotein releasing system, transmembrane protein LolE
3377	 60.54	0	3459572..3460273	-	233	206576765	lolD	KPK_3439	-	lipoprotein releasing system, ATP-binding protein LolD
3378	 60.50	0	3460266..3461465	-	399	206580257	lolC	KPK_3440	-	lipoprotein-releasing system transmembrane protein LolC
3379	 61.42	0	3461770..3465216	+	1148	206576037	mfd	KPK_3442	-	transcription-repair coupling factor
3380	 51.33	0	3465182..3465331	-	49	206576634	-	KPK_3441	-	hypothetical protein
3381	 62.50	0	3465380..3466339	+	319	206577781	-	KPK_3443	-	LysM domain/ErfK/YbiS/YcfS/YnhG family protein
3382	 54.65	0	3466468..3466725	-	85	206577201	-	KPK_3444	-	hypothetical protein
3383	 60.22	0	3466975..3467610	+	211	206577741	-	KPK_3445	-	transcriptional regulator, TetR family
3384	 30.89	-2	3467663..3467785	-	40	206579524	-	KPK_3446	-	hypothetical protein
3385	 58.97	0	3467849..3470044	+	731	206578887	iutA	KPK_3447	-	ferric aerobactin receptor
3386	 57.22	0	3470102..3470641	-	179	206580702	-	KPK_3448	-	surface antigen domain protein
3387	 58.39	0	3470834..3472138	-	434	206580126	ndh	KPK_3449	-	NADH dehydrogenase
3388	 35.68	-2	3472137..3472349	+	70	206578900	-	KPK_3450	-	hypothetical protein
3389	 53.41	0	3472383..3472925	-	180	206579491	-	KPK_3451	-	hypothetical protein
3390	 59.43	0	3472961..3473983	-	340	206576496	nagZ	KPK_3452	-	beta-N-acetylhexosaminidase
3391	 62.32	0	3473995..3474822	-	275	206577672	thiK	KPK_3453	-	thiamine kinase
3392	 62.35	0	3474803..3475450	-	215	206580710	-	KPK_3454	-	putative lipoprotein
3393	 61.87	0	3475463..3475837	-	124	206575734	-	KPK_3455	-	putative lipoprotein
3394	 55.74	0	3475842..3476198	-	118	206578647	hinT	KPK_3456	-	purine nucleoside phosphoramidase
3395	 56.00	0	3476460..3477893	-	477	206579407	ptsG	KPK_3457	-	PTS system, glucose-specific IIBC component
3396	 58.49	0	3478190..3478984	-	264	206578149	-	KPK_3458	-	hydrolase, TatD family
3397	 63.88	+1	3478995..3479999	-	334	206578898	holB	KPK_3459	-	DNA polymerase III, delta' subunit
3398	 63.86	+1	3479996..3480637	-	213	206579513	tmk	KPK_3460	-	thymidylate kinase
3399	 57.97	0	3480627..3481649	-	340	206580253	-	KPK_3461	-	hypothetical protein
3400	 60.12	0	3481651..3482460	-	269	206575879	pabC	KPK_3462	-	aminodeoxychorismate lyase
3401	 58.53	0	3482586..3483827	-	413	206576302	fabF	KPK_3463	-	3-oxoacyl-[acyl-carrier-protein] synthase II
3402	 48.52	-1	3483917..3484153	-	78	206577377	acpP	KPK_3464	-	acyl carrier protein
3403	 53.47	0	3484364..3485098	-	244	206577811	fabG	KPK_3465	-	3-oxoacyl-[acyl-carrier-protein] reductase
3404	 60.75	0	3485111..3486040	-	309	206578837	fabD	KPK_3466	-	malonyl CoA-acyl carrier protein transacylase
3405	 58.91	0	3486056..3487009	-	317	206579577	fabH	KPK_3467	-	3-oxoacyl-[acyl-carrier-protein] synthase 3
3406	 56.74	0	3487064..3488161	-	365	206579344	plsX	KPK_3468	-	fatty acid/phospholipid synthesis protein PlsX
3407	 53.45	0	3488365..3488538	-	57	206579800	rpmF	KPK_3469	-	ribosomal protein L32
3408	 51.34	0	3488555..3489076	-	173	206580556	-	KPK_3470	-	hypothetical protein
3409	 56.41	0	3489218..3489802	+	194	206576246	maf_1	KPK_3471	-	septum formation protein Maf
57.01	MEAN

6.61	STD DEV
