IslandPath Analysis: Klebsiella pneumoniae 342

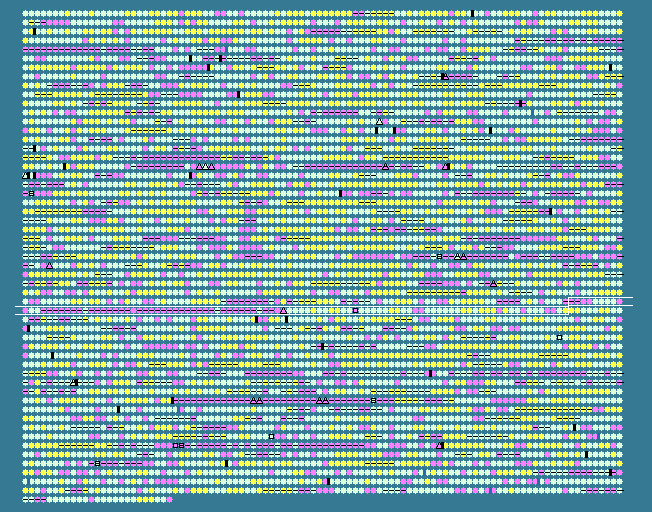

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 6.61
Klebsiella pneumoniae 342, complete genome - 1..5641239
5425 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3292	 45.20	-1	3388750..3388926	-	58	206576448	-	KPK_3352	-	hypothetical protein
3293	 30.61	-2	3389972..3390118	-	48	206577479	-	KPK_3354	-	hypothetical protein
3294	 30.30	-2	3390301..3390993	-	230	206578094	-	KPK_3355	-	putative cyclic diguanylate phosphodiesterase
3295	 36.45	-2	3391350..3392408	-	352	206576280	-	KPK_3356	-	MASE2 domain/diguanylate cyclase
3296	 53.98	0	3392831..3393232	-	133	206577956	-	KPK_3357	-	hypothetical protein
3297	 58.09	0	3393186..3394724	-	512	206577426	-	KPK_3358	-	hypothetical protein
3298	 57.77	0	3394766..3395473	-	235	206579043	-	KPK_3359	-	putative phage tail assembly protein
3299	 54.27	0	3395476..3396225	-	249	206581121	-	KPK_3360	-	phage minor tail protein L
3300	 47.22	-1	3396318..3396677	-	119	206576679	-	KPK_3361	-	hypothetical protein
3301	 52.14	0	3396690..3397040	-	116	206575887	-	KPK_3362	-	phage minor tail protein
3302	 56.10	0	3397040..3397834	-	264	206576003	-	KPK_3363	-	putative major capsid protein
3303	 56.83	0	3398870..3400129	-	419	206579535	-	KPK_3365	-	phage portal protein, HK97 family
3304	 49.36	-1	3400302..3402023	-	573	206580362	-	KPK_3366	-	putative phage terminase, large subunit
3305	 52.64	0	3402023..3402457	-	144	206581076	-	KPK_3367	-	putative phage terminase, small subunit, P27 family
3306	 51.85	0	3402791..3403222	-	143	206579568	-	KPK_3368	-	hypothetical protein
3307	 53.27	0	3403222..3403542	-	106	206576851	-	KPK_3369	-	hypothetical protein
3308	 52.07	0	3403494..3403856	-	120	206580647	-	KPK_3370	-	HNH endonuclease domain protein
3309	 52.08	0	3405339..3405482	-	47	206575789	-	KPK_3371	-	hypothetical protein
3310	 51.28	0	3405457..3405807	-	116	206576526	-	KPK_3372	-	hypothetical protein
3311	 55.36	0	3405804..3406307	-	167	206576574	-	KPK_3373	-	phage lysozyme
3312	 52.34	0	3406279..3406620	-	113	206576544	-	KPK_3374	-	hypothetical protein
3313	 52.45	0	3407286..3407693	-	135	206580517	-	KPK_3375	-	hypothetical protein
3314	 47.46	-1	3407741..3407917	-	58	206576084	-	KPK_3376	-	hypothetical protein
3315	 38.66	-2	3408365..3409435	+	356	206578757	-	KPK_3377	-	hypothetical protein
3316	 34.93	-2	3409437..3410126	+	229	206578971	-	KPK_3379	-	hypothetical protein
3317	 40.80	-2	3410092..3411135	-	347	206579328	-	KPK_3378	-	DNA-cytosine methyltransferase
3318	 43.77	-2	3411225..3411569	-	114	206581112	-	KPK_3380	-	antitermination protein Q
3319	 52.71	0	3411582..3412613	-	343	206580771	-	KPK_3381	-	hypothetical protein
3320	 48.53	-1	3412613..3412816	-	67	206577824	-	KPK_3382	-	hypothetical protein
3321	 51.20	0	3412813..3413310	-	165	206578549	-	KPK_3383	-	LexA DNA binding domain protein
3322	 49.83	-1	3413246..3413536	-	96	206577211	-	KPK_3384	-	hypothetical protein
3323	 47.86	-1	3413548..3413781	-	77	206578989	-	KPK_3385	-	DinI family protein
3324	 47.69	-1	3413942..3414136	+	64	206575831	-	KPK_3386	-	hypothetical protein
3325	 37.39	-2	3414220..3414909	+	229	206579738	-	KPK_3387	-	hypothetical protein
3326	 41.50	-2	3414980..3415726	+	248	206577476	-	KPK_3388	-	oxidoreductase, short chain dehydrogenase/reductase family
3327	 42.86	-2	3415820..3416029	+	69	206577960	-	KPK_3389	-	hypothetical protein
3328	 49.12	-1	3416050..3416277	+	75	206576752	-	KPK_3390	-	hypothetical protein
3329	 51.24	0	3416228..3416428	+	66	206580068	-	KPK_3391	-	hypothetical protein
3330	 47.85	-1	3416724..3418487	-	587	206580435	-	KPK_3392	-	cyclic diguanylate phosphodiesterase (EAL) domain protein
3331	 46.24	-1	3418532..3418717	-	61	206580130	-	KPK_3393	-	hypothetical protein
3332	 53.24	0	3418800..3419246	-	148	206580659	-	KPK_3394	-	hypothetical protein
3333	 53.55	0	3419254..3419718	-	154	206579522	-	KPK_3395	-	hypothetical protein
3334	 50.81	0	3419711..3420694	-	327	206578820	-	KPK_3396	-	hypothetical protein
3335	 51.71	0	3420746..3421300	-	184	206581069	-	KPK_3397	-	hypothetical protein
3336	 45.37	-1	3421303..3421518	-	71	206578126	-	KPK_3398	-	hypothetical protein
3337	 42.82	-2	3421620..3422009	+	129	206581103	-	KPK_3399	-	DNA-binding protein
3338	 49.04	-1	3422355..3422825	-	156	206579937	-	KPK_3400	-	hypothetical protein
3339	 49.23	-1	3423059..3423253	+	64	206577683	-	KPK_3401	-	hypothetical protein
3340	 53.62	0	3423296..3423709	+	137	206576463	-	KPK_3402	-	putative transcriptional regulator
3341	 42.98	-2	3423780..3423893	+	37	206575728	-	KPK_3403	-	hypothetical protein
3342	 48.33	-1	3423964..3424143	+	59	206576465	-	KPK_3404	-	hypothetical protein
3343	 46.34	-1	3424196..3424441	+	81	206577084	-	KPK_3405	-	putative excisionase
3344	 43.35	-2	3424422..3425549	+	375	206577296	-	KPK_3406	-	site-specific recombinase, phage integrase family
3345	 55.48	0	3425667..3426917	-	416	206579025	icd	KPK_3407	-	isocitrate dehydrogenase, NADP-dependent
3346	 59.75	0	3427158..3427808	+	216	206581129	rluE	KPK_3408	-	ribosomal large subunit pseudouridine synthase E
3347	 59.48	0	3427825..3428283	+	152	206580234	-	KPK_3409	-	hydrolase, NUDIX family
3348	 58.18	0	3428340..3429446	+	368	206576946	trmU	KPK_3410	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
3349	 60.59	0	3429501..3430142	+	213	206576641	-	KPK_3411	-	hypothetical protein
3350	 56.97	0	3430146..3431516	+	456	206578270	purB	KPK_3412	-	adenylosuccinate lyase
3351	 57.30	0	3431571..3431933	-	120	206577856	-	KPK_3413	-	cupin domain protein
3352	 63.69	+1	3432017..3432823	-	268	206578780	-	KPK_3414	-	transcriptional regulator, AraC family
3353	 61.01	0	3433107..3433778	+	223	206579731	phoP	KPK_3415	-	transcriptional regulatory protein PhoP
3354	 59.71	0	3433778..3435244	+	488	206580317	phoQ	KPK_3416	-	sensor protein PhoQ
3355	 59.80	0	3435330..3436451	+	373	206580898	-	KPK_3417	-	cupin family protein
3356	 52.24	0	3436589..3437080	-	163	206576048	-	KPK_3418	-	putative transposase
3357	 57.66	0	3437364..3438596	-	410	206576009	pepT	KPK_3419	-	peptidase T
3358	 56.90	0	3438854..3439990	+	378	206577558	potA	KPK_3420	-	spermidine/putrescine ABC transporter, ATP-binding protein
3359	 57.34	0	3439974..3440831	+	285	206577935	potB	KPK_3421	-	spermidine/putrescine ABC transporter, permease protein PotB
3360	 56.11	0	3440828..3441613	+	261	206576318	potC	KPK_3422	-	spermidine/putrescine ABC transporter, permease protein PotC
3361	 56.35	0	3441610..3442656	+	348	206580074	potD	KPK_3423	-	spermidine/putrescine ABC transporter, periplasmic spermidine/putrescine-binding protein
3362	 65.74	+1	3442701..3444425	-	574	206580623	-	KPK_3424	-	hypothetical protein
3363	 62.98	0	3444422..3446050	-	542	206580908	-	KPK_3425	-	AMP-binding enzyme
3364	 59.93	0	3446288..3448291	-	667	206579271	tktA_2	KPK_3426	-	transketolase
3365	 57.76	0	3448311..3449264	-	317	206577436	-	KPK_3427	-	putative transaldolase
3366	 53.38	0	3449292..3449750	-	152	206578229	rpiB	KPK_3428	-	ribose 5-phosphate isomerase B
3367	 49.33	-1	3449779..3450153	-	124	206576238	-	KPK_3429	-	PTS system, glucitol/sorbitol-specific IIA component
3368	 55.69	0	3450155..3451174	-	339	206578668	kdgT	KPK_3430	-	2-keto-3-deoxygluconate permease
3369	 57.88	0	3451267..3452985	-	572	206577531	-	KPK_3431	-	sorbitol phosphotransferase enzyme II
3370	 55.26	0	3453021..3454028	-	335	206577058	-	KPK_3432	-	putative 4-hydroxythreonine-4-phosphate dehydrogenase
3371	 57.48	0	3454271..3455065	+	264	206576289	tpiB	KPK_3433	-	triosephosphate isomerase
3372	 55.56	0	3455101..3456063	+	320	206580613	-	KPK_3434	-	putative sugar-binding domain protein
3373	 56.52	0	3456088..3456432	-	114	206579790	-	KPK_3435	-	hypothetical protein
3374	 61.85	0	3456523..3457353	-	276	206579384	npdA	KPK_3436	-	NAD-dependent deacetylase
3375	 61.84	0	3457368..3458279	-	303	206578302	nagK	KPK_3437	-	N-acetylglucosamine kinase
3376	 58.80	0	3458328..3459572	-	414	206577709	lolE	KPK_3438	-	lipoprotein releasing system, transmembrane protein LolE
3377	 60.54	0	3459572..3460273	-	233	206576765	lolD	KPK_3439	-	lipoprotein releasing system, ATP-binding protein LolD
3378	 60.50	0	3460266..3461465	-	399	206580257	lolC	KPK_3440	-	lipoprotein-releasing system transmembrane protein LolC
3379	 61.42	0	3461770..3465216	+	1148	206576037	mfd	KPK_3442	-	transcription-repair coupling factor
3380	 51.33	0	3465182..3465331	-	49	206576634	-	KPK_3441	-	hypothetical protein
3381	 62.50	0	3465380..3466339	+	319	206577781	-	KPK_3443	-	LysM domain/ErfK/YbiS/YcfS/YnhG family protein
3382	 54.65	0	3466468..3466725	-	85	206577201	-	KPK_3444	-	hypothetical protein
3383	 60.22	0	3466975..3467610	+	211	206577741	-	KPK_3445	-	transcriptional regulator, TetR family
3384	 30.89	-2	3467663..3467785	-	40	206579524	-	KPK_3446	-	hypothetical protein
3385	 58.97	0	3467849..3470044	+	731	206578887	iutA	KPK_3447	-	ferric aerobactin receptor
3386	 57.22	0	3470102..3470641	-	179	206580702	-	KPK_3448	-	surface antigen domain protein
3387	 58.39	0	3470834..3472138	-	434	206580126	ndh	KPK_3449	-	NADH dehydrogenase
3388	 35.68	-2	3472137..3472349	+	70	206578900	-	KPK_3450	-	hypothetical protein
3389	 53.41	0	3472383..3472925	-	180	206579491	-	KPK_3451	-	hypothetical protein
3390	 59.43	0	3472961..3473983	-	340	206576496	nagZ	KPK_3452	-	beta-N-acetylhexosaminidase
3391	 62.32	0	3473995..3474822	-	275	206577672	thiK	KPK_3453	-	thiamine kinase
57.01	MEAN

6.61	STD DEV
